Product Description

Class d active speaker amplifier module FP10000Q power amplifier with flight case

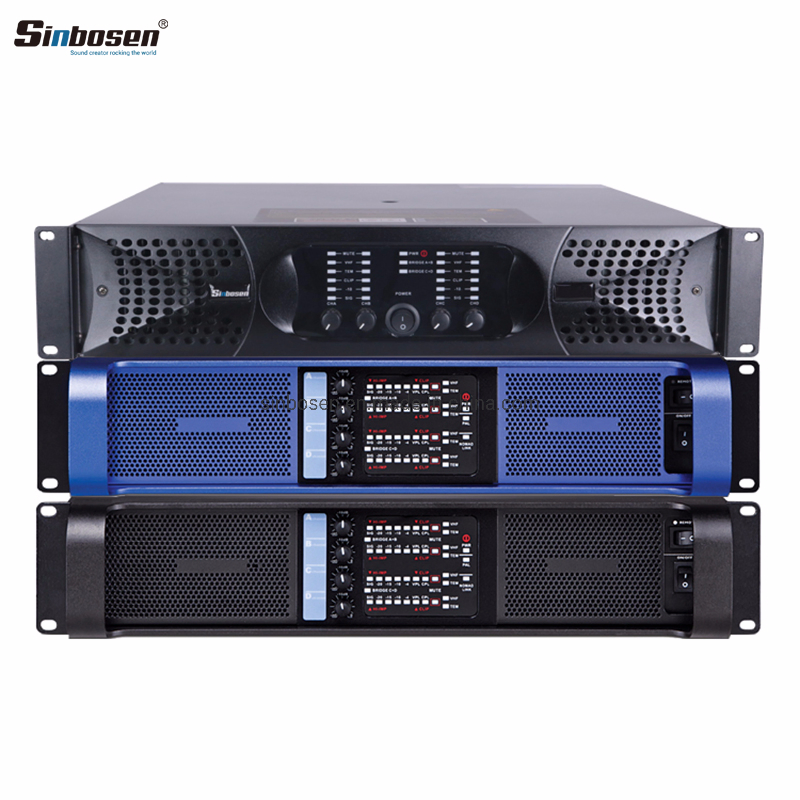

Sinbosen Audio FP Series Amplifier

FP Series	FP7000	FP9000	FP14000	FP6000Q	FP10000Q	FP20000Q
8ΩStereo Power(RMS)	1500WX2	1800WX2	2400WX2	700WX4	1350WX4	2200WX4
4ΩStereo Power(RMS)	2800WX2	3000WX2	4400WX2	1300WX4	2100WX4	4000WX4
2ΩStereo Power(RMS)	3500WX2	4500WX2	7000WX2	1500WX4	2500WX4	4500WX2
8ΩBridged Power(RMS)	5600W	6000W	8800W	2500WX2	4200WX2	8000WX2
4ΩBridged Power(RMS)	7000W	9000W	14000W	3000WX2	5000WX2	9000WX2
Frequency Response(+o/-0.3dB,1W/8Ω)	20 Hz - 34 kHz
THD 20 Hz - 20 kHz for 1 W	<0.1%
Signal-to-Noise Ratio	>112 dBA
Channel separation (Crosstalk) at 1 kHz	>70 dB
Input Connectors (per channel)	3-pin XLR, electronically balanced
Output Connectors (per channel)	Binding Posts 2-pole
Class	TD
TourClass Protection	ACL,IGM, AutoRamp, short circuit, DC voltage, turn-on/off transient, current inrush, sub/ultrasonic input
Operating voltage, 230 V / 115 V nominal	130-265 V / 65-135 V selectable
Voltage Gain(dB)	23, 26, 29, 32, 35, 38, 41, 44 dB selectable
Input impedance	20 kOhm
Level adjustment (per ch.)	Front-panel potentiometer, 31 position detented from -inf to 0 dB
Dimensions (W×H×D)	483×88×396mm
Packing dimension	580×180×560mm

Product Detail

FP10000q is a switching power amplifier. It is very light in weight compare with traditional transformer amplifier, applicable for big show,concert,dancing party,wedding and more entertainment or business performance.

Feature:

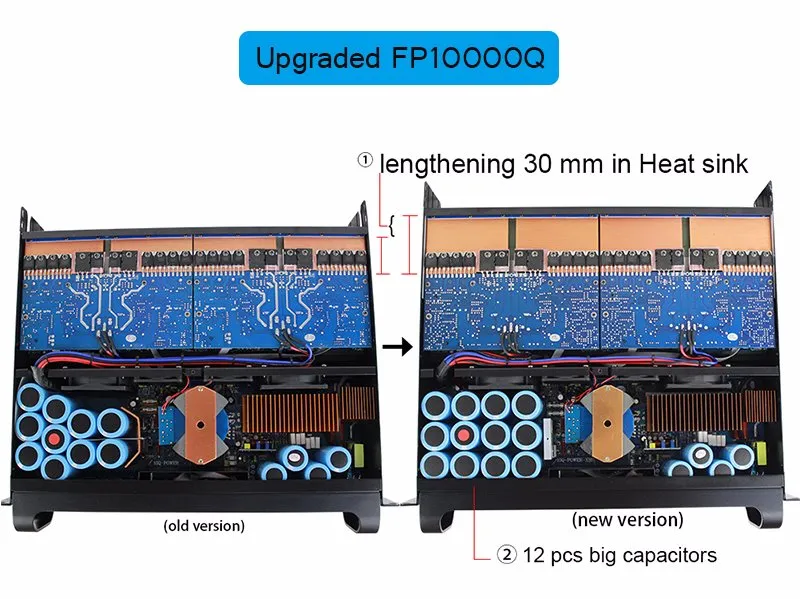

1.Use Original Siemens high-quality capacitor 3300uf 200V.
2.Use Original ONSEMI transistor.
3.Neutrik XLR*/speakon connectors.
4.High quality fans form TAIWAN.
5.4 Channel Class TD Switching power amplifier.
6.4*2100 Watts into 4Ohms,4*1350 Watts into 8Ohms.
7.Creat SUPER sound quality,good for single15"/dual15" speaker.
8.Applicable for big show ,concert,dancing party,wedding and more entertainment or business performance.
9.Separately controllable on Gain.
10.Scalable Voltage Peak Limiter (VPL).
11.The bridge-mode operation for Touring Applications.
12.Comprehensive protection scheme.
13.Bridge-mode operation for Touring Applications.
14.Extended heatsink to 69 mm.

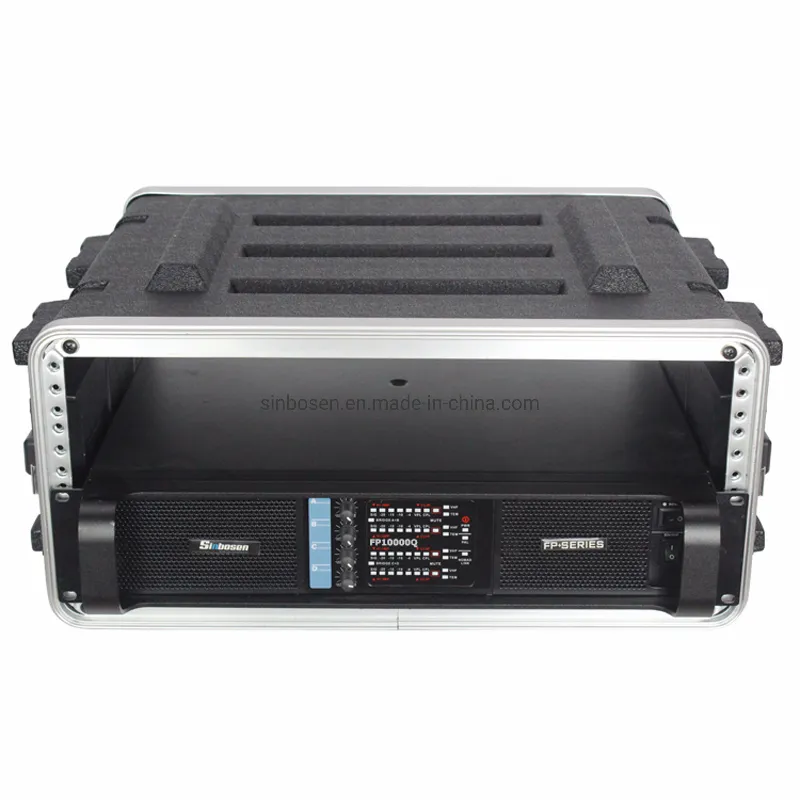

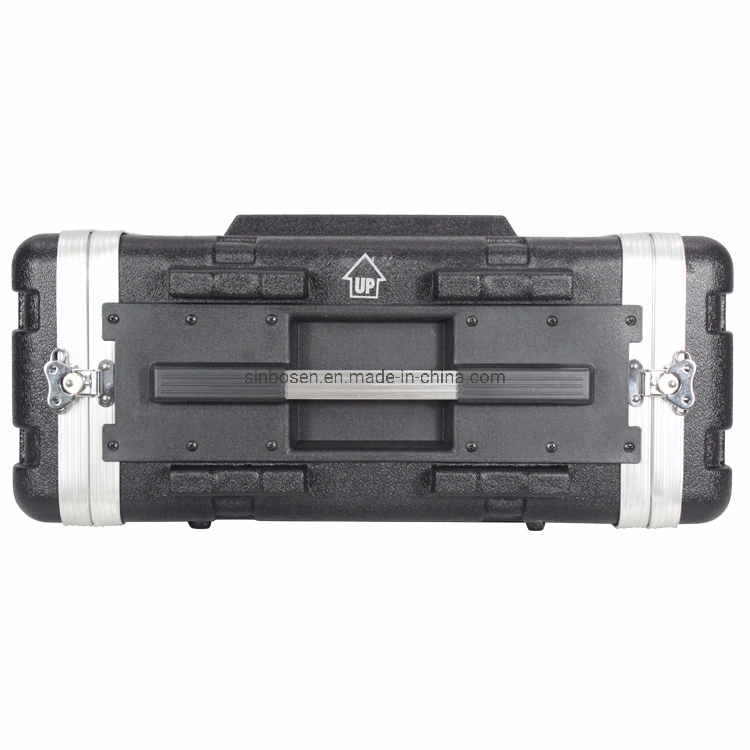

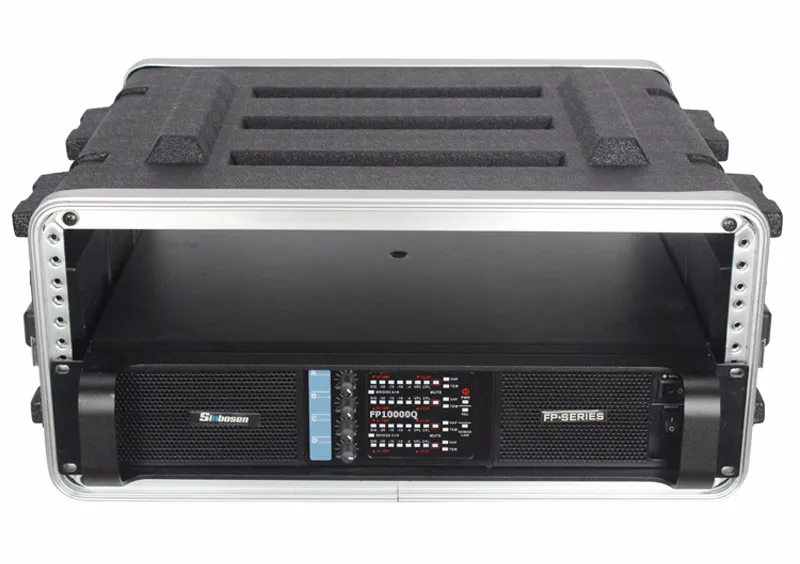

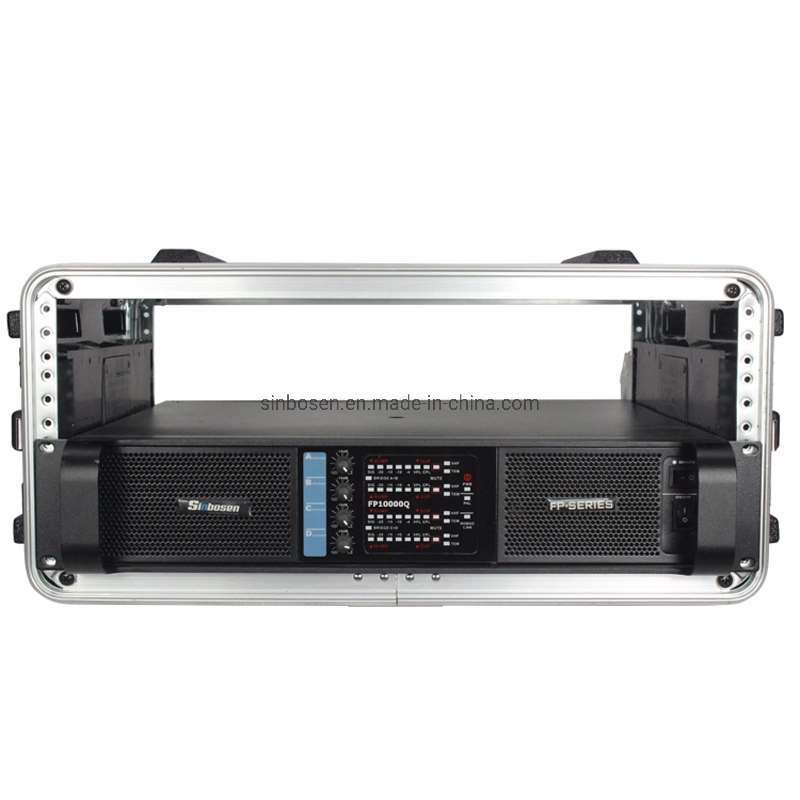

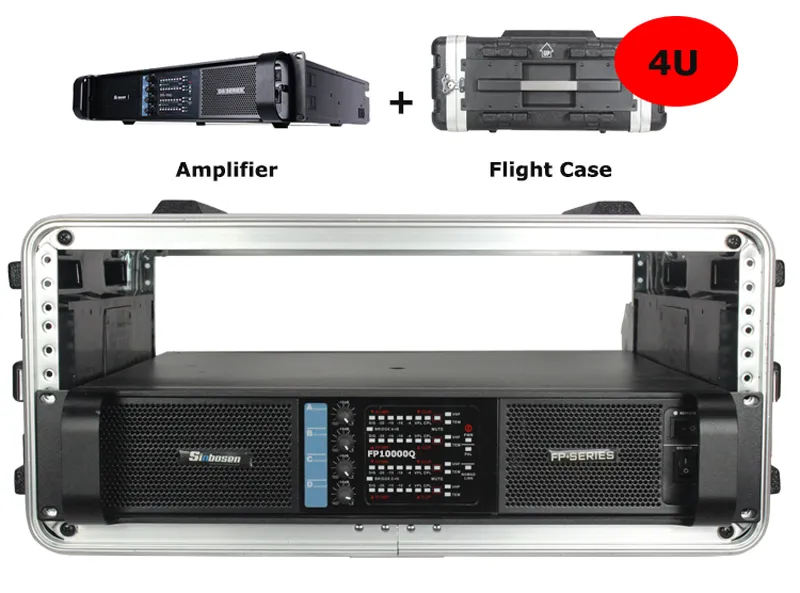

You can choose the amplifier to buy with the air box / You can also choose to buy separately

Class D Active Speaker Amplifier Module Fp10000q Power Amplifier with Flight Case

Class D Active Speaker Amplifier Module Fp10000q Power Amplifier with Flight Case
