China AMP-712 Class H 500 Watts 2u Professional Audio Power Amplifier

Product Description

Are you looking for an amplifier that work steadily under harsh situation, meanwhile, at an affordable price. then, you shall definitely give us A try.Feature:

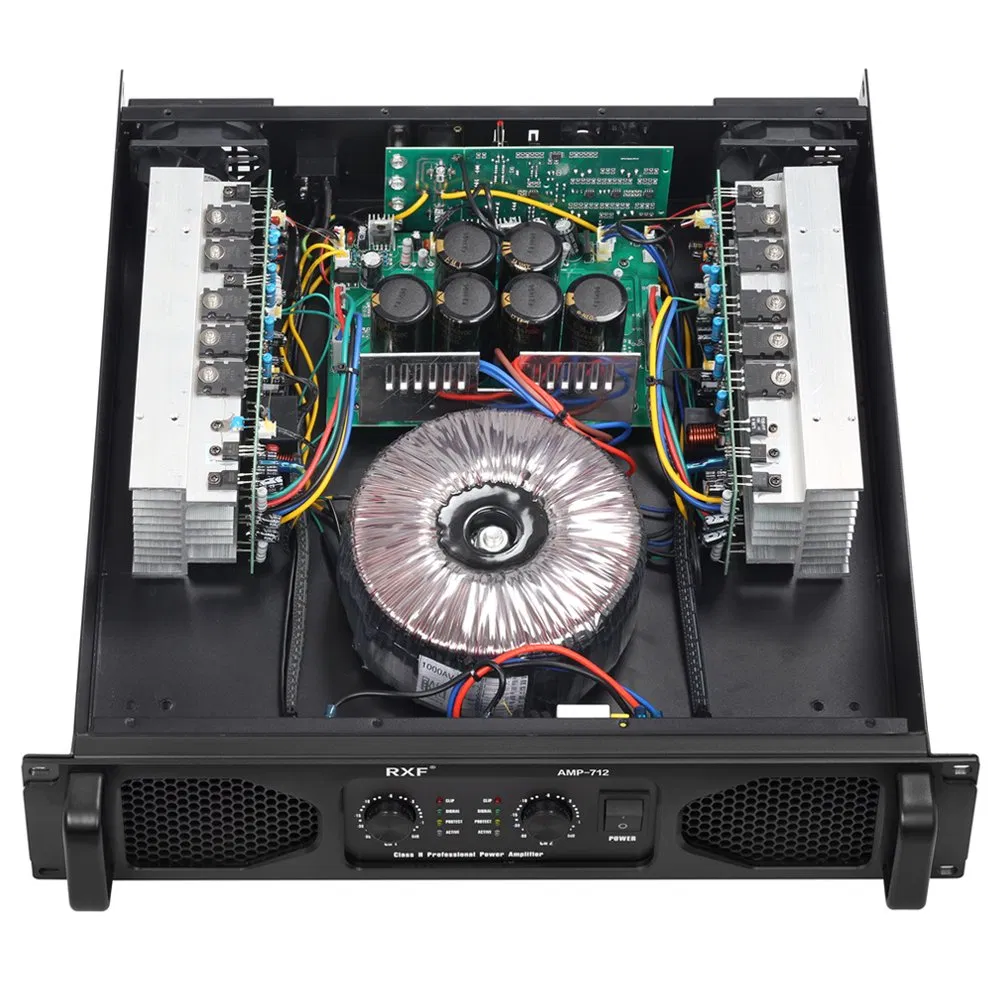

Adopts A grade toroidal transformer, very close to no EMI, and

deliver more delicate sound. Components are carefully selected to

match the circuits design.

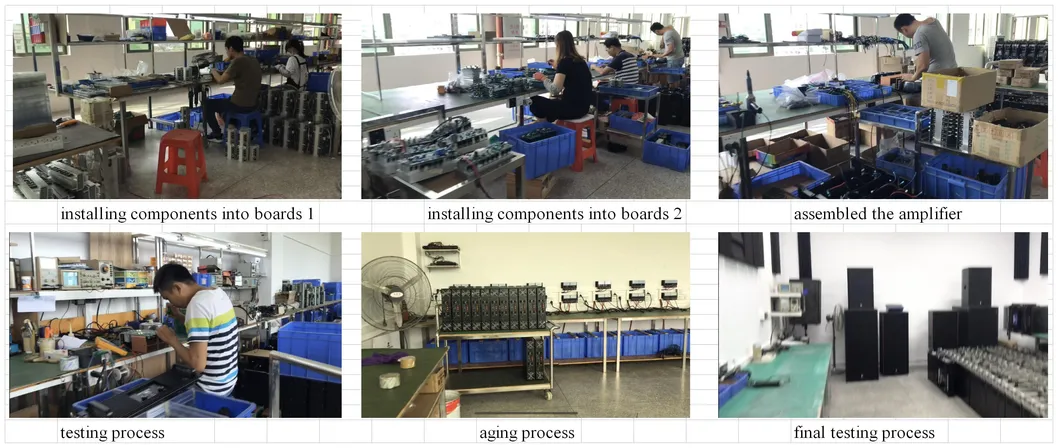

All adopts AI automated mechanical plug-in and SMD production

process. Improve the reliability and consistency of the product welding.

Deliver high-quality sound and high damping factor, with ultra fast

switching diode fan, to ensure a stable working state for a long time

performance.

This circuits design have been improved during the practical experience.

And it will be continuously updated in the future as well.

Spec	AMP-512	AMP-612	AMP-712	AMP-812	AMP-912	AMP-1200	AMP-2200	AMP-3200	AMP-5200
8 ohms Stereo Power	2x250W	2x350W	2x500W	2x600W	2x800W	2x900W	2x1100W	2xl300W	2x1500W
4 ohms Stereo Power	2x400W	2x550W	2x800W	2x1000W	2x1300W	2xl400W	2x1800W	2x2100W	2x2500W
2 ohms Stereo Power	2x650W	2x850W	2x1200W	2x1400W	2x1900W	2x2000W	2x2300W	2x2700W	2x3300W
8 BTL	750W	1050W	1500W	1800W	2400W	2500W	3300W	3900W	4500W
4 BLT	1000W	1500W	2000W	2500W	3300W	3400W	4500W	5200W	6000W
Frequency response	20-20000Hz(±0.3dB)
thd+N	>0.08%lKHz
S/N Ratio	>100dB
Slew Ratio	>30V/uS
Damping Factor	>500:1
Crosstalk InPut ImPedance	>90dB@lKHz 30Kfi(Balanced,Stereo) 15KO(Blanced,Paralled)
Input Sensitivity	0.775V/1.0V/1.4V

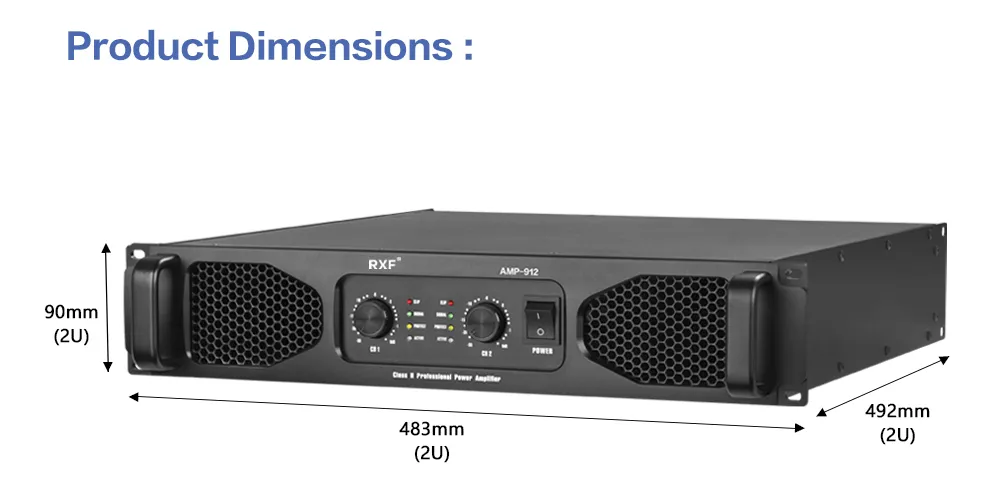

Height	2U					3U
Packinq Dimensions	590x580x170mm					648X585X205mm

AMP-712 Class H 500 Watts 2u Professional Audio Power Amplifier

we offer one year warranty for non-human damages, offer with parts and technical consultant assist to the repair.

AMP-712 Class H 500 Watts 2u Professional Audio Power Amplifier

Since established in 2012 (former company named Enping Lixing Electronics Factory), our company has been focusing on the production and sales of professional power amplifiers. Through many years of running-in with the market, we have accumulated rich production experience, our products have been continuously improved, and our quality is unanimously recognized by our customers.

We adhere to the principle of people-oriented and service-oriented, actively responds to customers' requirements, and sincerely learn from customers' suggestions.
We are expecting your kind visit and sharing ideas .
