Shal4002ltlpb Smart Phone Amplifier Triband Mobile Network Repeater Indoor Signal Booster with Outdoor Antenna
Sunhans 2G 3G 4G LTE Mobile Signal Booster 900MHz 1800MHz 2100MHz 2600MHz Cell Phone Signal Repeater with Indoor and Outdoor Antenna Signal Amplifier for HomeFeatures: 4 bands for American frequency, Max. gain 65dB;Aluminum-alloy case by CNC, anti-interference;ALC technology, Small size, Safe &......
Send Inquiry
Product Description
Sunhans 2G 3G 4G LTE Mobile Signal Booster 900MHz 1800MHz 2100MHz 2600MHz Cell Phone Signal Repeater with Indoor and Outdoor Antenna Signal Amplifier for Home
Features:
4 bands for American frequency, Max. gain 65dB;
Aluminum-alloy case by CNC, anti-interference;
ALC technology, Small size, Safe & Power saving;
Cost effective solution for weak signal zones, reduce drop/off calls;
Expansion and extension of the signal of base station. Optimization of the quality of the signal and source;
For 1 or 2 rooms,small house....
Full kit, easy to install.
Cell phone Amplifier Description:
Package contents:
1 x SHAL4002LT 4 band repeater
1 x 5m Coaxial cable
1 x 10m Coaxial cable
1 x Indoor antenna
1 x Outdoor antenna
1 x power supply
1 x user manual

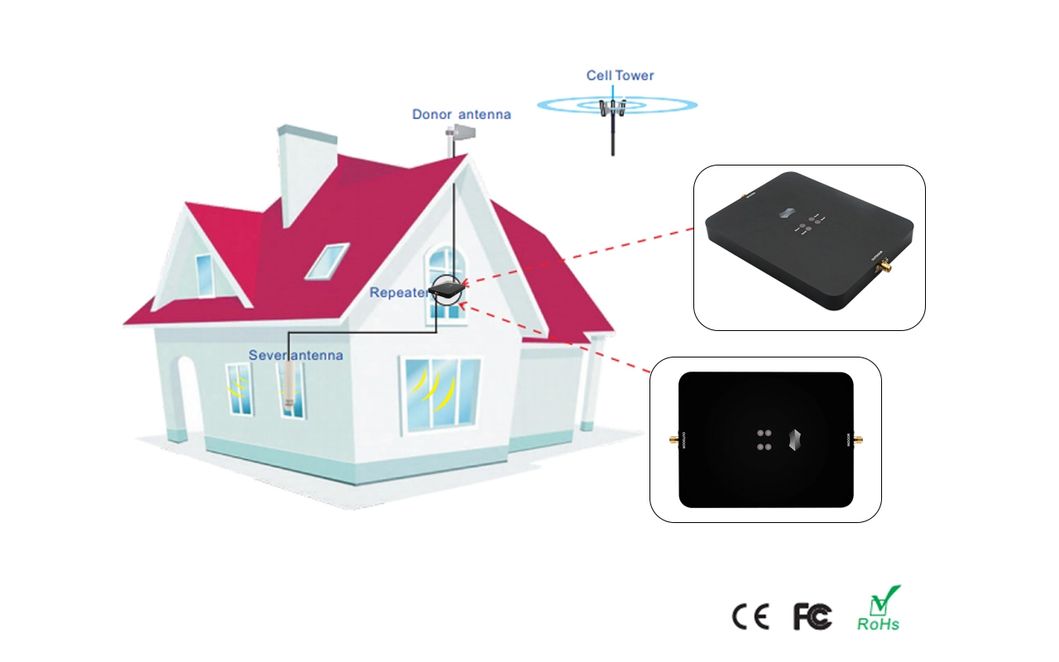

How it works?
The outside antenna (sold separately) captures a voice, signal and transfers it to the booster.
The booster receives the signal and amplifies it. Then it transfers the signal to the indoor antenna (sold separately).
Your mobile devices get a stronger signal, fast and consistent data speeds.
Problem Support;
1. If still no signal receipt after activated booster, please check whether outdoor antenna point to signal tower, or the place you install outdoor antenna have strong signal, it need be 3bar signal or more.
2. If can not call out, please adjust the direction of outdoor antenna.
3. If strength is not steady, please check whether outdoor and indoor antennas are too close. Please ensure the outdoor and indoor antenna have max distance, with a wall between and not in a same horizontal line.
About US
Our Service:
♦ Test process : every items will be testing before shipping, to make sure the quality.
♦ Short leading time: 1-2.5 working days for samples or small order, 10-15 working days for bulk order.
♦ One year warranty: for you without trouble of after-sales maintenance.
♦ Quality Guarantee: Return rate is only 0.001.
♦ Support small orders: help your business from small to big.
♦ OEM & ODM are welcome.
Features:
4 bands for American frequency, Max. gain 65dB;
Aluminum-alloy case by CNC, anti-interference;
ALC technology, Small size, Safe & Power saving;
Cost effective solution for weak signal zones, reduce drop/off calls;
Expansion and extension of the signal of base station. Optimization of the quality of the signal and source;
For 1 or 2 rooms,small house....
Full kit, easy to install.
| 4 Band Repeater (Band8/3/7/1): | |
| Frequency | |
| BAND8 900MHz | |
| Up Link (RX) | 880- 915MHz |
| Down Link (TX) | 925- 960MHz |
| BAND3 1800MHz | |
| Up Link (RX) | 1710- 1785MHz |
| Down Link (TX) | 1805- 1880MHz |
| BAND1 2100MHz | |
| Up Link (RX) | 1920- 1980MHz |
| Down Link (TX) | 2110- 2170MHz |
| BAND7 2600MHz | |
| Up Link (RX) | 2500- 2570MHz |
| Down Link (TX) | 2620- 2690MHz |
Cell phone Amplifier Description:
| SKU | 0404SH100518 |

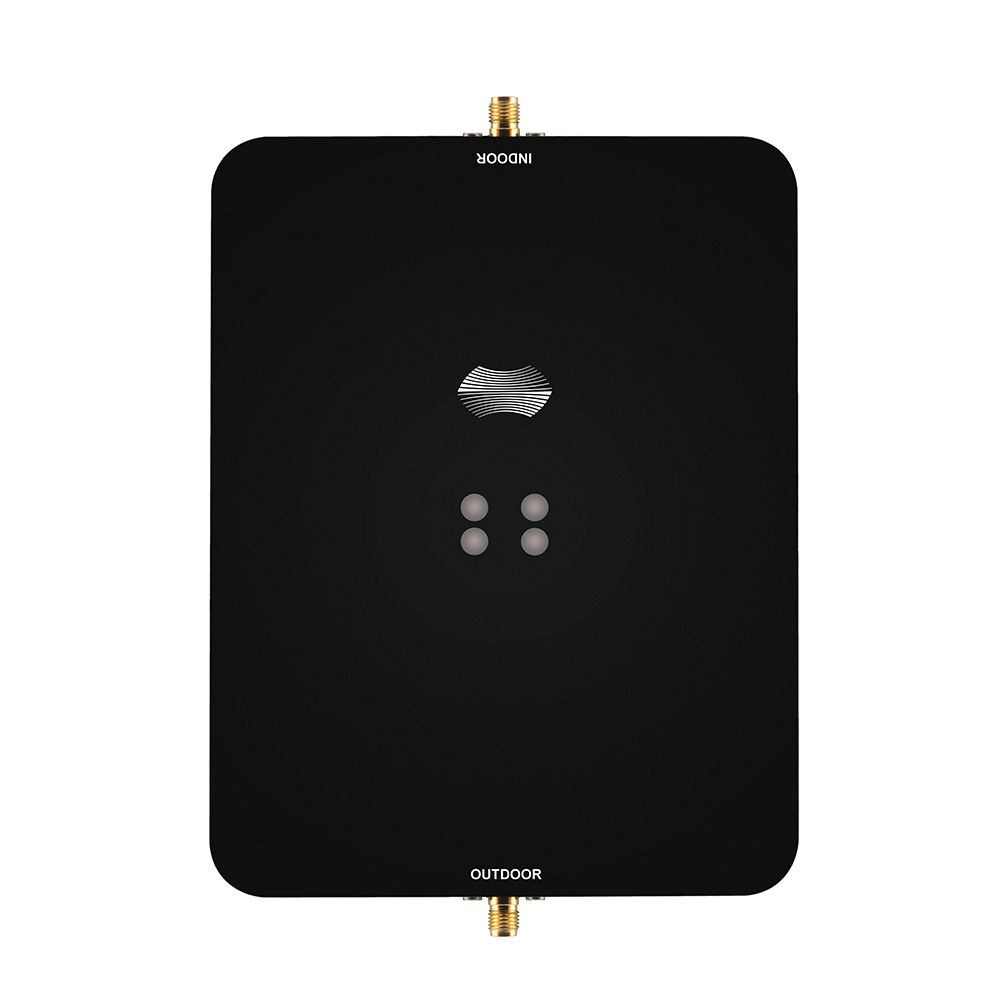

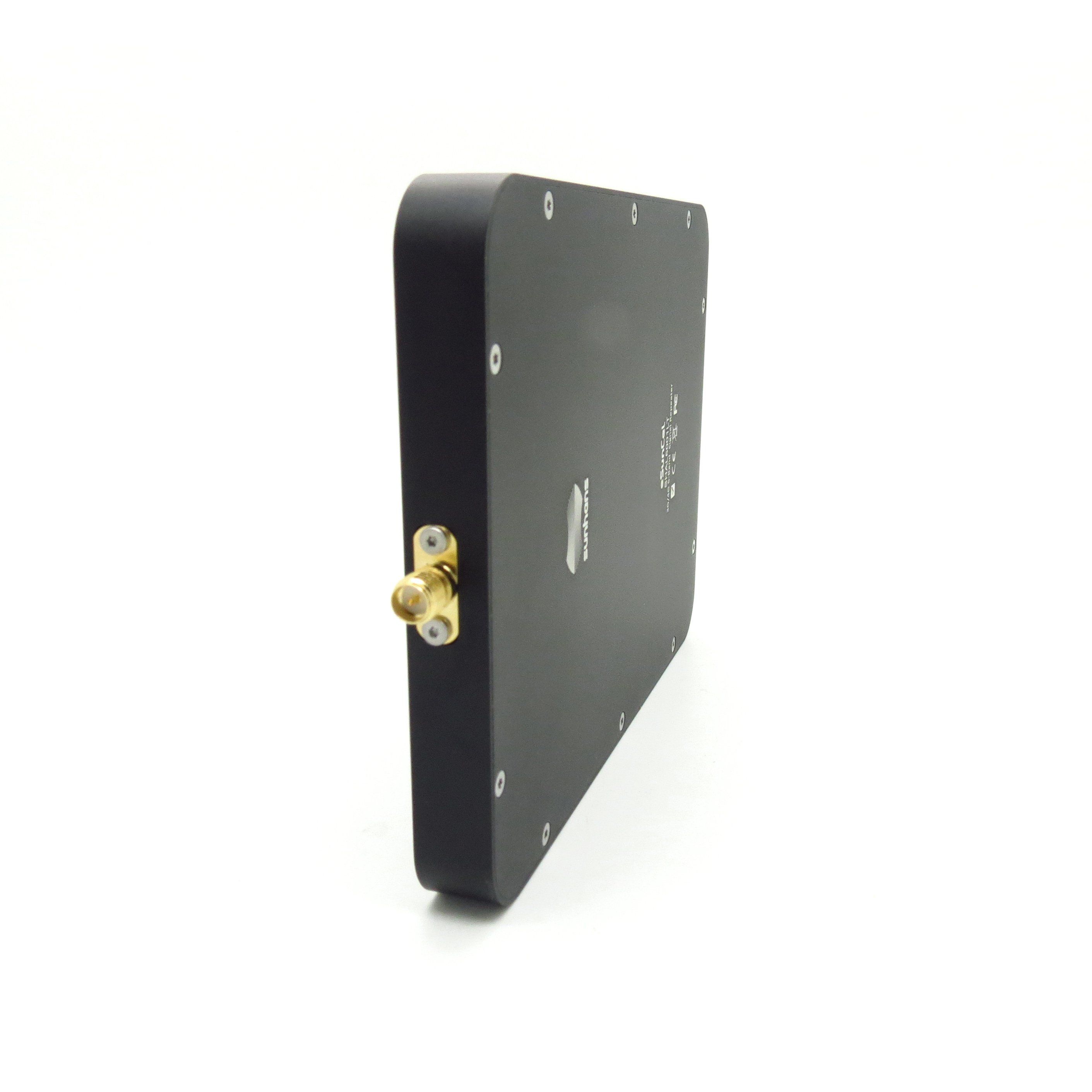

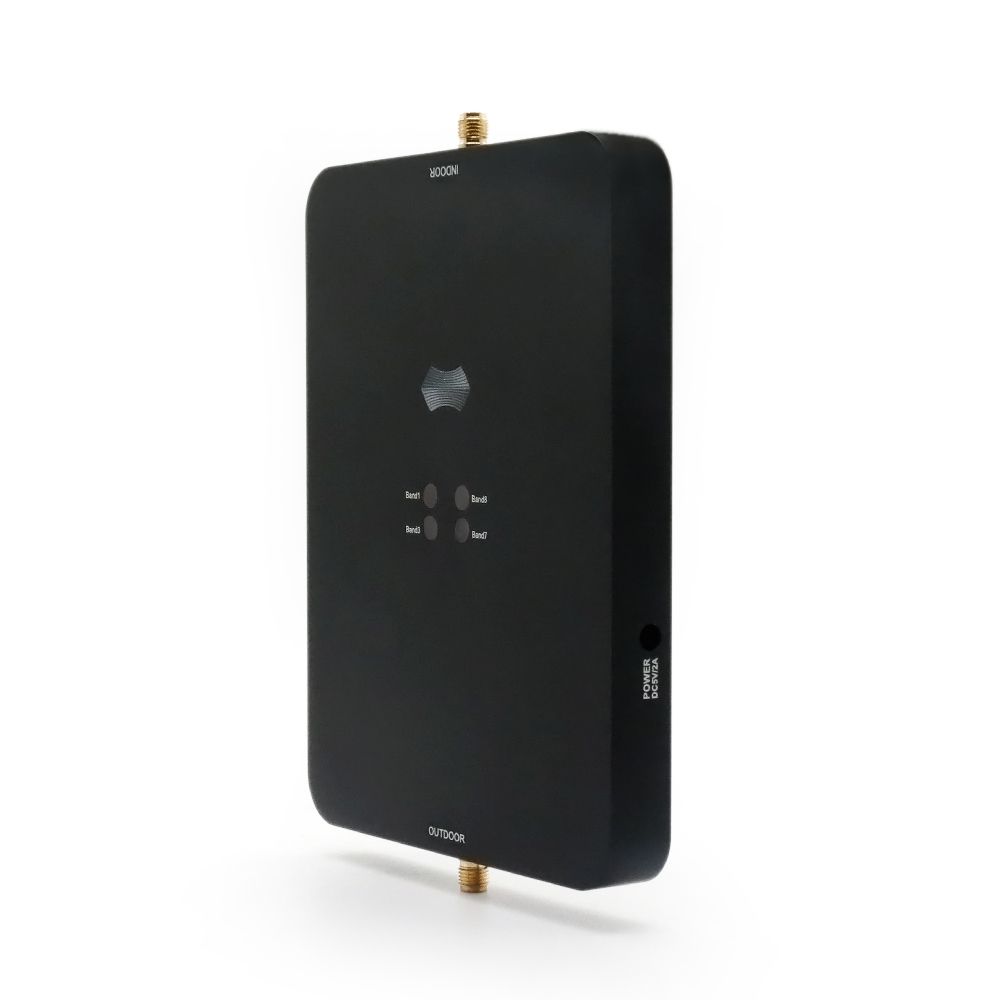

| Model | SHAL4002LTLPB |
| Input power | -70 ~ -40dBm |
| Max Up link gain | 65dB±3dB |
| Max Down link gain | 65dB±3dB |
| Max output power | 10± 2dBm |
| Impedance | 50 Ohms |
| Isolation | >70dB |
| Connector type | SMA |
| Power supply | 5V/2A DC, 100~240V |
| Repeater size | 15.2 x 10.2 x 1.4cm |
| Compact design | Indoor use |
| Repeater weight | 300g |
| Indoor antenna: | |
| Model NO. | SH-MBF-A15 |
| P/N | MBFA15015 |
| Barcode | 6958917601510 |
| Frequency range | 690~2700MHz |
| VSWR | ≤1.5 |
| Gain | 15dBi |
| Half-power beam width(°) | H:360 V:55/30 |
| Polarization type | Vertical |
| Radiation | Omni |
| Maximum input power | 100W |
| Input impedance | 50 Ohms |
| Cable type | RG174 (best) 100% cooper |
| Cable length | 90cm |
| Dimensions | Φ5*25cm |
| Weight | 500g |
| Outdoor Antenna: | |
| Model NO. | SH-L8025-9 |
| Frequency Rang | 690~2700MHz |
| Gain | 9dBi |
| VSWR | ≤1.5 |
| Beam width | H:90/70° V:60/55° |
| Input Impedance | 50Ω |
| Max power | 50W |
| Polarization | Vertical |
| Lightning protection | DC ground |
| Connector model | N Female |
| Cable length | 30cm |
| Mounting way | mount on the wall or hold in the pole |
| Product Size | 29.5*20.5*6.5cm |
| Weight | 750g |
| Color | white |
| Cable: | |
| Type | RG58 50-3 ROHS Coaxial cable |
| Impedance | 50 Ohms |
| Cable Color | white |

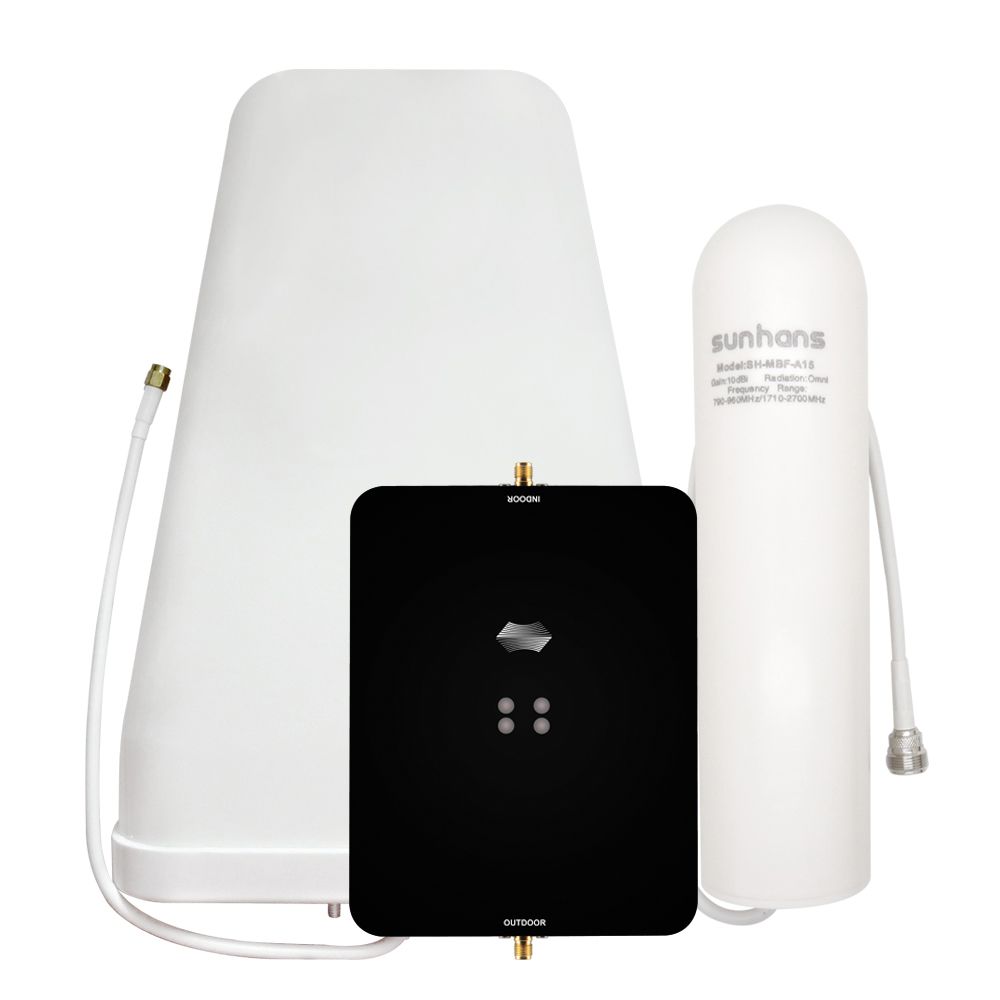

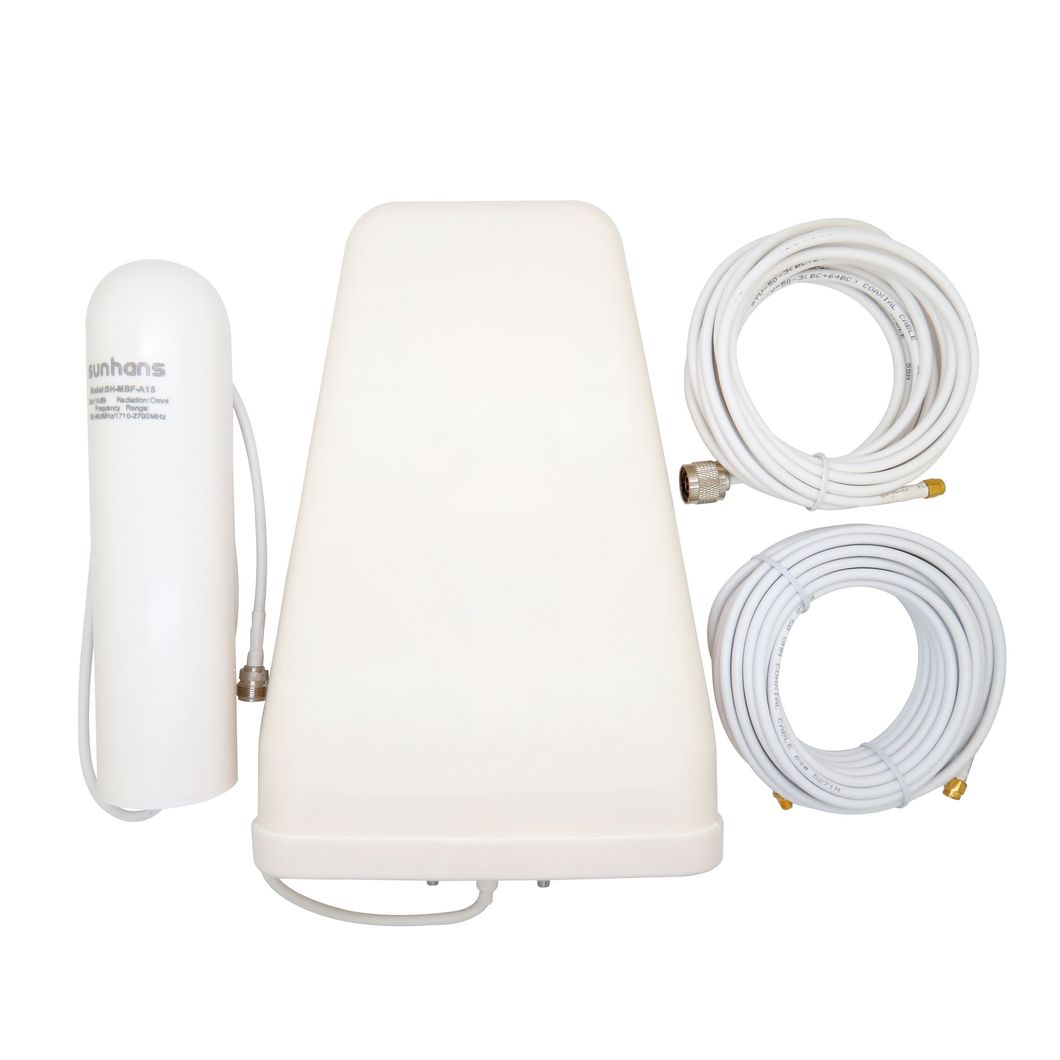

Package contents:
1 x SHAL4002LT 4 band repeater
1 x 5m Coaxial cable
1 x 10m Coaxial cable
1 x Indoor antenna
1 x Outdoor antenna
1 x power supply
1 x user manual
| The repeater makes the signal stronger in places with poor signal coverage such as: |
| 1. Underground areas: basements, parking lots, tunnels, subway, suburb; |
| 2. Other places where cellular signal is shielded by metal or concrete walls: offices, supermarkets, cinemas, hotels; |
| 3. Places distant from the BTS like private houses. |
| Easy Installation |
| 1. Fix up outdoor antenna reception on housetop and point to signal tower. |
| 2. Connect outdoor antenna to "BTS" Port on the Booster through cable. |
| 3. Connect indoor antenna(s) to "User" or "Mobile" Port on the Booster directly or through cable.also. |
| 4. Plug Power Adaptor into AC power socket and finish installation. |
How it works?
The outside antenna (sold separately) captures a voice, signal and transfers it to the booster.
The booster receives the signal and amplifies it. Then it transfers the signal to the indoor antenna (sold separately).
Your mobile devices get a stronger signal, fast and consistent data speeds.
Problem Support;
1. If still no signal receipt after activated booster, please check whether outdoor antenna point to signal tower, or the place you install outdoor antenna have strong signal, it need be 3bar signal or more.
2. If can not call out, please adjust the direction of outdoor antenna.
3. If strength is not steady, please check whether outdoor and indoor antennas are too close. Please ensure the outdoor and indoor antenna have max distance, with a wall between and not in a same horizontal line.
About US
Our Service:
♦ Test process : every items will be testing before shipping, to make sure the quality.
♦ Short leading time: 1-2.5 working days for samples or small order, 10-15 working days for bulk order.
♦ One year warranty: for you without trouble of after-sales maintenance.
♦ Quality Guarantee: Return rate is only 0.001.
♦ Support small orders: help your business from small to big.
♦ OEM & ODM are welcome.
