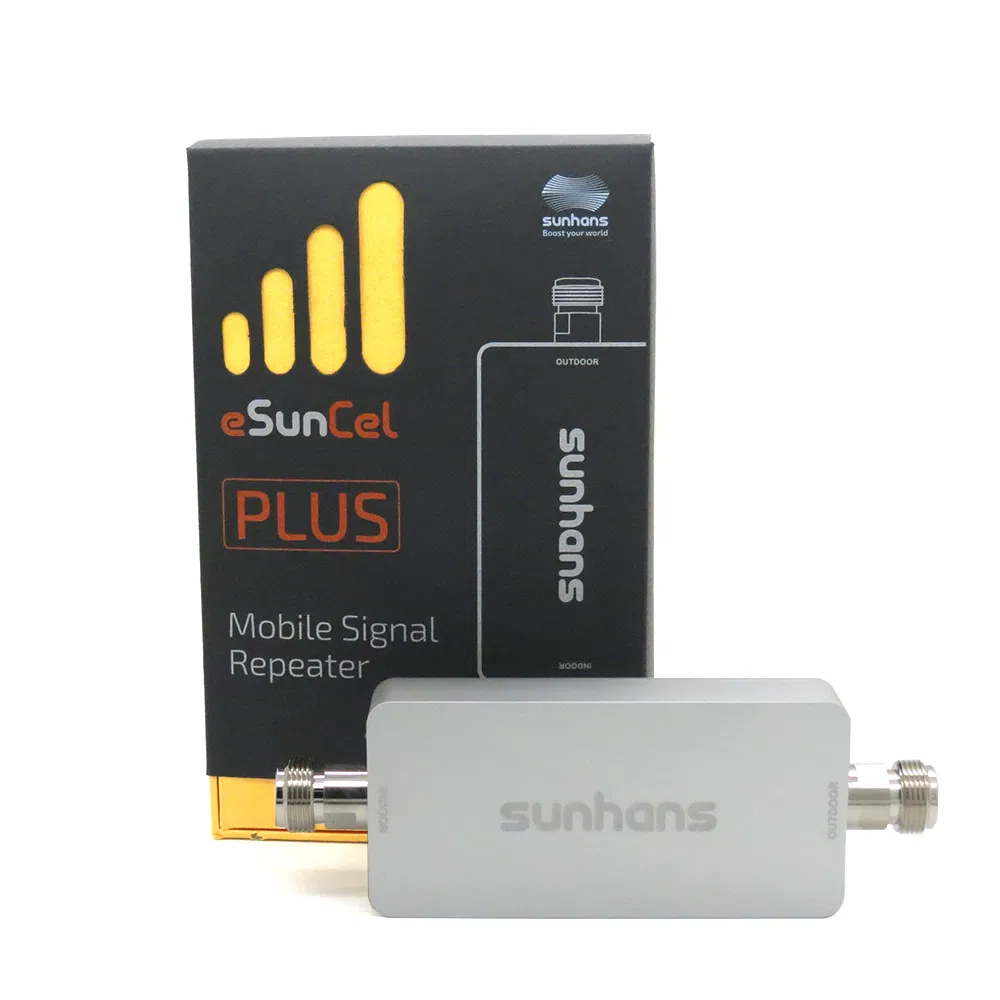

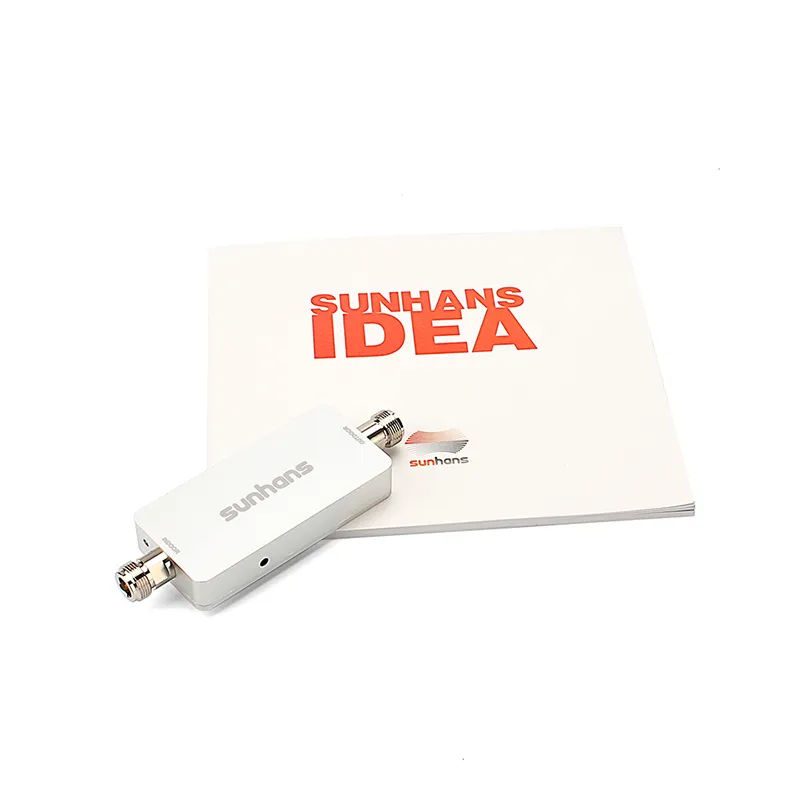

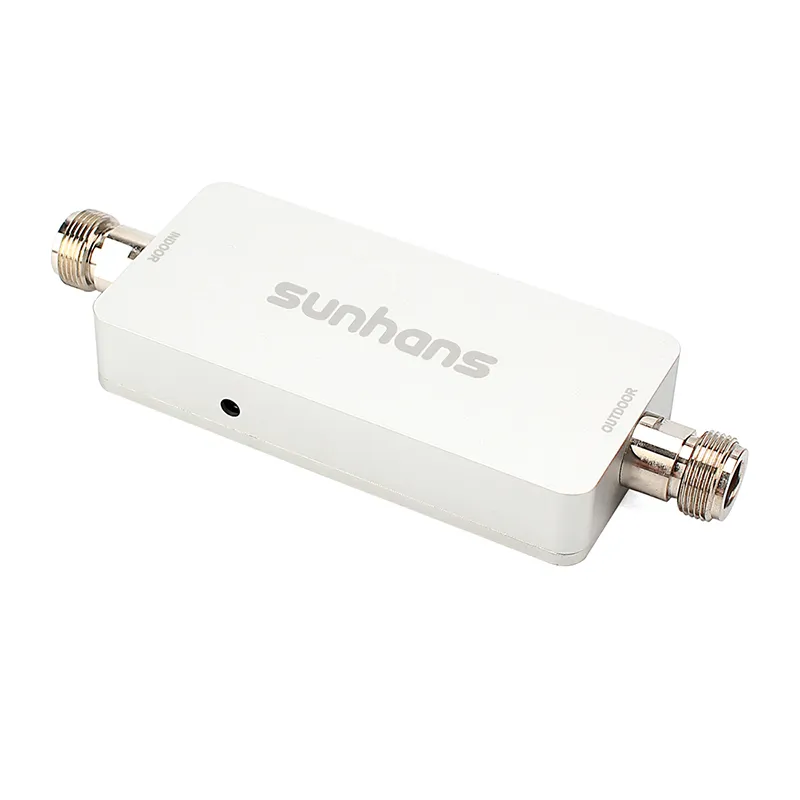

Sunhans 900MHz Mobile Wireless Amplifier Portable 4G Lte Signal Booster
Sunhans 2G 3G 4G LTE Super Extending GSM 900MHz Mobile Signal Booster Cell Phone Repeater Amplifier for office HomeFeatures: Single bands for GSM 900MHz frequency, 3G 4G LTE, Max. gain 65dB, suitable for most of countries;Aluminum-alloy case by CNC, anti-interference;ALC technology, Small size, Sa......
Send Inquiry
Product Description
Sunhans 2G 3G 4G LTE Super Extending GSM 900MHz Mobile Signal Booster Cell Phone Repeater Amplifier for office Home
Features:
Single bands for GSM 900MHz frequency, 3G 4G LTE, Max. gain 65dB, suitable for most of countries;
Aluminum-alloy case by CNC, anti-interference;
ALC technology, Small size, Safe & Power saving;
Cost effective solution for weak signal zones, reduce drop/off calls;
Expansion and extension of the signal of base station. Optimization of the quality of the signal and source;
For large areas and big house, office...
Full kit, easy to install.
Cell phone Amplifier Description:
Package contents:
1 x SH-G900-M2 repeater
1 x power supply
1 x user manual
All specifications of PA can be customized based on customer requirement.
How it works?
The outside antenna (sold separately) captures a voice, signal and transfers it to the booster.
The booster receives the signal and amplifies it. Then it transfers the signal to the indoor antenna (sold separately).
Your mobile devices get a stronger signal, fast and consistent data speeds.
Problem Support;
1. If still no signal receipt after activated booster, please check whether outdoor antenna point to signal tower, or the place you install outdoor antenna have strong signal, it need be 3bar signal or more.
2. If can not call out, please adjust the direction of outdoor antenna.
3. If strength is not steady, please check whether outdoor and indoor antennas are too close. Please ensure the outdoor and indoor antenna have max distance, with a wall between and not in a same horizontal line.
About US
Our Service:
♦ Test process : every items will be testing before shipping, to make sure the quality.
♦ Short leading time: 1-2.5 working days for samples or small order, 10-15 working days for bulk order.
♦ One year warranty: for you without trouble of after-sales maintenance.
♦ Quality Guarantee: Return rate is only 0.001.
♦ Support small orders: help your business from small to big.
♦ OEM & ODM are welcome.
Features:
Single bands for GSM 900MHz frequency, 3G 4G LTE, Max. gain 65dB, suitable for most of countries;
Aluminum-alloy case by CNC, anti-interference;
ALC technology, Small size, Safe & Power saving;
Cost effective solution for weak signal zones, reduce drop/off calls;
Expansion and extension of the signal of base station. Optimization of the quality of the signal and source;
For large areas and big house, office...
Full kit, easy to install.
Cell phone Amplifier Description:
| SKU | 0404SH100350 |

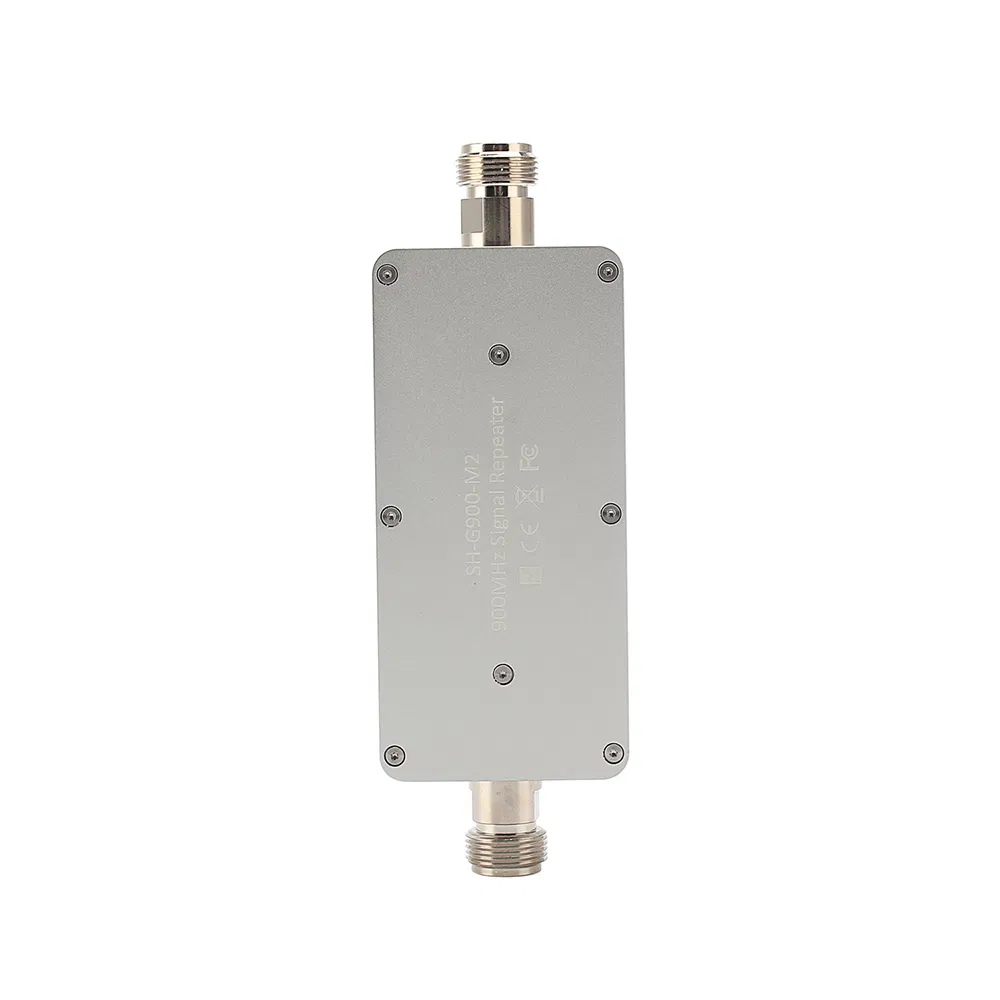

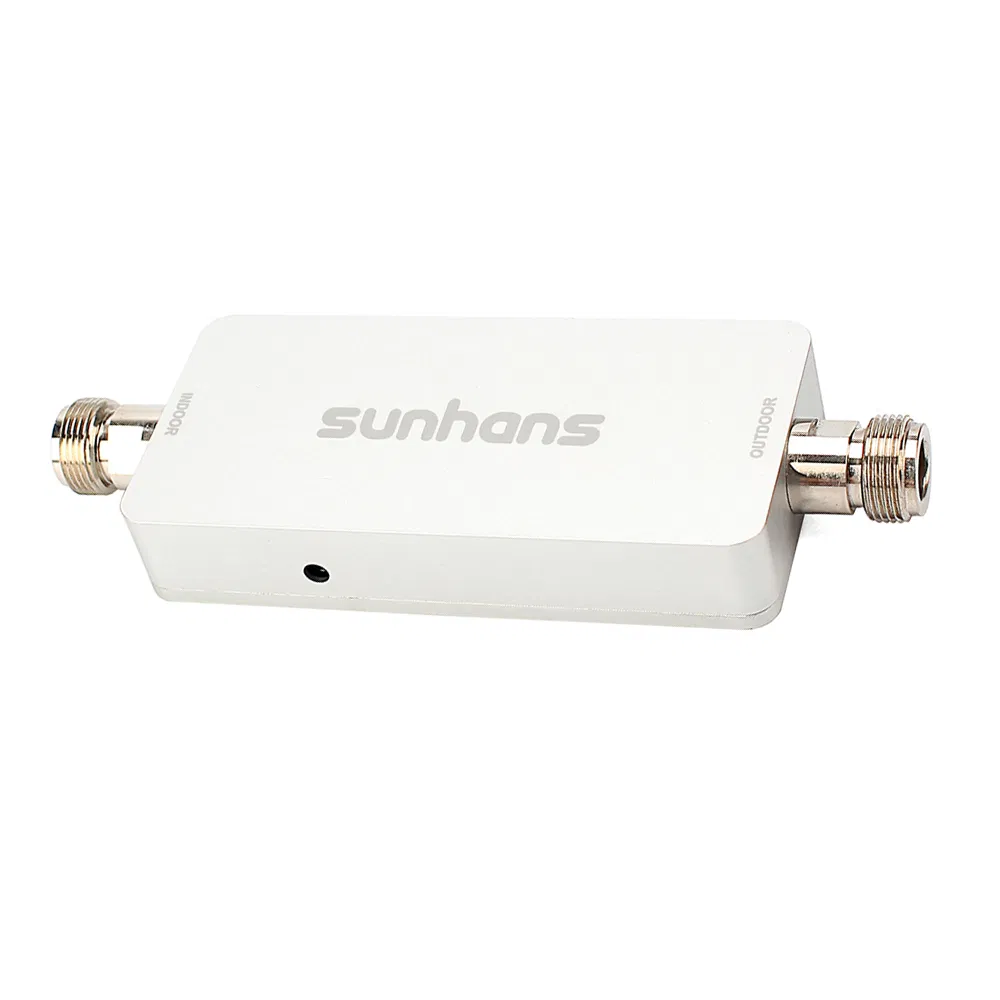

| Model | SHG900M2 |
| Up link frequency | 890 - 915MHz |
| Down link frequency | 935 - 960MHz |
| Input power | -70 ~ -40dBm |
| Max Up link gain | 62dB |
| Max Down link gain | 65dB |
| Auto Level Control (ALC) | ≥ 20 dB |
| Max output power | 17dBm |
| Impedance | 50 Ohms |
| Isolation | >70dB |
| Connector type | N-K female |
| Power supply | 5V/2A DC, 100~240V |
| Repeater size | 13.8 x 4.7 x 2.1cm |
| Compact design | Indoor use |
| Repeater weight | 220g |
Package contents:
1 x SH-G900-M2 repeater
1 x power supply
1 x user manual
All specifications of PA can be customized based on customer requirement.
| The repeater makes the signal stronger in places with poor signal coverage such as: |
| 1. Underground areas: basements, parking lots, tunnels, subway, suburb; |
| 2. Other places where cellular signal is shielded by metal or concrete walls: offices, supermarkets, cinemas, hotels; |
| 3. Places distant from the BTS like private houses. |
| Easy Installation |
| 1. Fix up outdoor antenna reception on housetop and point to signal tower. |
| 2. Connect outdoor antenna to "BTS" Port on the Booster through cable. |
| 3. Connect indoor antenna(s) to "User" or "Mobile" Port on the Booster directly or through cable.also. |
| 4. Plug Power Adaptor into AC power socket and finish installation. |

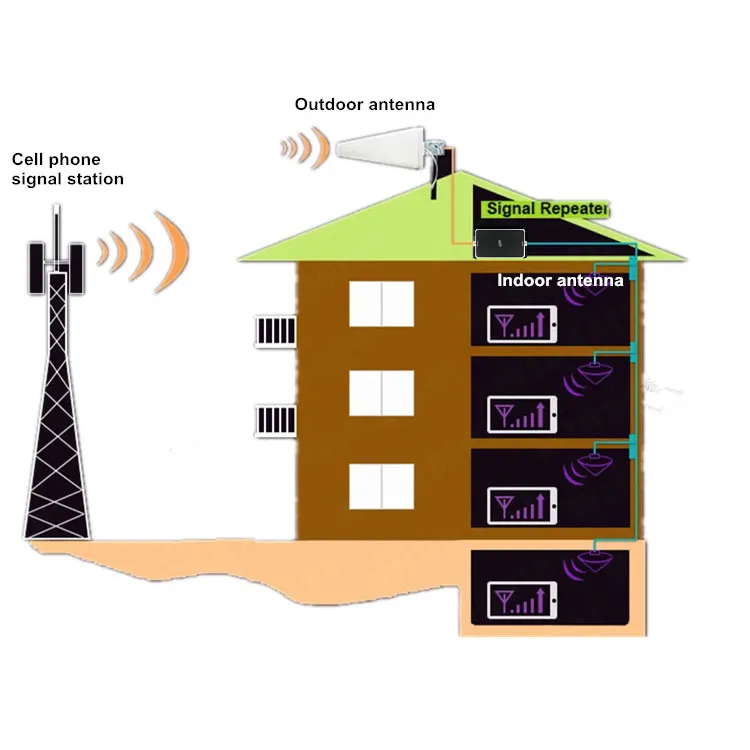

How it works?
The outside antenna (sold separately) captures a voice, signal and transfers it to the booster.
The booster receives the signal and amplifies it. Then it transfers the signal to the indoor antenna (sold separately).
Your mobile devices get a stronger signal, fast and consistent data speeds.
Problem Support;
1. If still no signal receipt after activated booster, please check whether outdoor antenna point to signal tower, or the place you install outdoor antenna have strong signal, it need be 3bar signal or more.
2. If can not call out, please adjust the direction of outdoor antenna.
3. If strength is not steady, please check whether outdoor and indoor antennas are too close. Please ensure the outdoor and indoor antenna have max distance, with a wall between and not in a same horizontal line.
About US
Our Service:
♦ Test process : every items will be testing before shipping, to make sure the quality.
♦ Short leading time: 1-2.5 working days for samples or small order, 10-15 working days for bulk order.
♦ One year warranty: for you without trouble of after-sales maintenance.
♦ Quality Guarantee: Return rate is only 0.001.
♦ Support small orders: help your business from small to big.
♦ OEM & ODM are welcome.
