Product Description

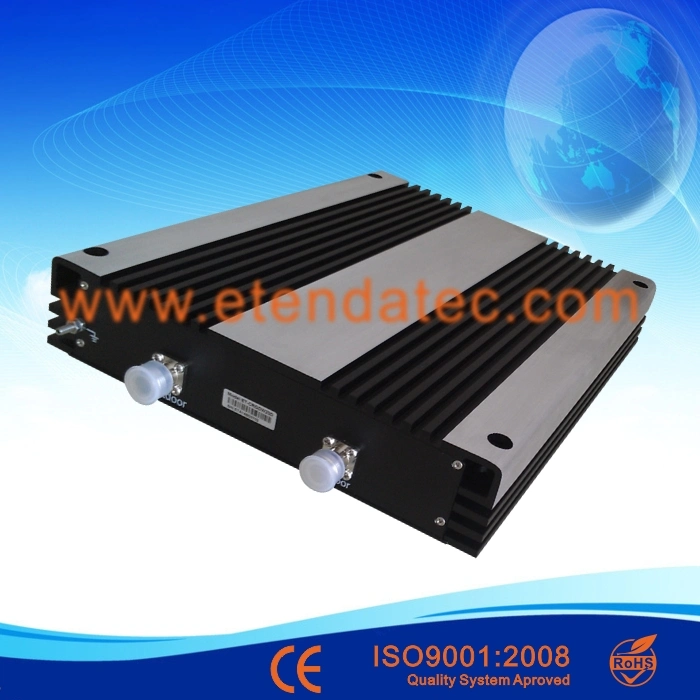

4G LTE 2600M mobile phone signal booster repeater
Certification CE0700 and RoHS

What is a signal booster?

A signal booster is a wireless signal relay transmission device that helps to extend the cellular coverage footprint in areas of weak or poor coverage.

Introduction:
It is ideal for use where a larger coverage range is required and for use in buildings where the signal may be interrupted by metal structures, thick walls, etc., such as found in commercial buildings, villages and industrial areas.
It can support any dual band system of CDMA450,TETRA,CDMA,IDEN,EGSM,GSM,DCS, PCS,WCDMA,AWS,LTE.

The repeater improves indoor cellphone coverage by capturing and repeating the outside signal, bringing it into the building and enhancing it.You can get a better call experience and faster data download speed,while can save your phone battery life.

A typical repeater system consists of a donor/outdoor antenna that receives and transmits signal from nearby cell towers, coaxial cables, a signal repeater, and an indoor rebroadcast/service antenna.

Coverage:
3000-4000sq.M coverage.

Features:
1.Elegant and Compact design,good isolation and heat dissipation for long time operation.
2.Built-in AGC and ALC circuits, which can automatically control the gain of the repeater depending upon the strength of input signals.
3.31dB MGC(Manual gain control) 1dB one step available for both uplink and downlink to adjust the gain value for proper coverage during installation or maintenance.
4.Limit output power for both uplink and downlink to avoid deep self-oscillations from jamming the towers, saving your trouble from operators.
5.Wide input power range,low power consumption.
6.With good IMD3,it can have more antennas for covering without affect towers.
7.Intermediate IF SAW filter technology,good out of band rejection,amplify only specific your required signals and reject all the others.
8.Output power can be from 10dbm to 30dbm and gain can be 60db to 85db,band can be full band,band selective or industrial standard.

Specifications:

RF Specifications
Items		Specifications
		Uplink	Downlink
Frequency Range	CDMA450	452.5 ~ 457.5MHz	462.5 ~ 467.5MHz
	CDMA850 or LTE	824 ~ 849MHz	869 ~ 894MHz
	GSM900 or LTE	890 ~ 915 MHz	935 ~ 960 MHz
	EGSM900 or LTE	880 ~ 915 MHz	925 ~ 960 MHz
	DCS1800 or LTE	1710 ~ 1785 MHz	1805 ~ 1880 MHz
	PCS1800 or LTE	1850 ~ 1910 MHz	1930 ~ 1990 MHz
	WCDMA2100 or LTE	1920 ~ 1980 MHz	2110 ~ 2170 MHz
	AWS2100 or LTE	1710 ~ 1755 MHz	2110 ~ 2155 MHz
	LTE	698 ~ 716MHz	728 ~ 746MHz
		746 ~ 757MHz	776 ~ 787MHz
		791 ~ 821MHz	832 ~ 862MHz
		2500 ~ 2570 MHz	2620 ~ 2690 MHz
		As developed
	IDEN800	806MHz ~ 821MHz	85lMHz ~ 866MHz
	TETRA	380 ~ 385MHz (or customized)	390 ~ 395MHz (or customized)
Gain	ET-CR27S-F	≥ 75dB	≥ 80dB
	ET-CR30S-F	≥ 80dB	≥ 85dB
Output power	ET-CR27S-F	≥ 20dBm	≥ 27dBm
	ET-CR30S-F	≥ 23dBm	≥ 30dBm
Band width		Wide Band
MGC ( Step Attenuation )		≥ 31dB / 1dB step
Automatic Level Control		≥ 40dB
Gain Flatness		≤3-5dB(P-P) depend on the frequency and bandwidth
Noise Figure		≤6dB
VSWR		≤1.6
Group Delay		≤6μs
Frequency stability		≤0.01ppm
Spurious Emission & Output inter-modulation		GSM Meet ETSI TS 151 026 V6.1.0
		WCDMA Meet 3GPP TS 25.143 ( V 6.2.0 )
		CDMA Meet IS95 & CDMA2000
MTBF		>50000 hours
Power Consumption		< 25W
Power Supply		Input AC90~264V,output DC9V / 6A
Impedance		50 ohm
Mechanical Specifications
I /O Port		N-Female
Operating Temperature		-25ºC~+55ºC
Environment Conditions		IP40
Dimensions		270x240x55mm/10.6x9.4x2.2inch
Weight		≤ 4Kg
