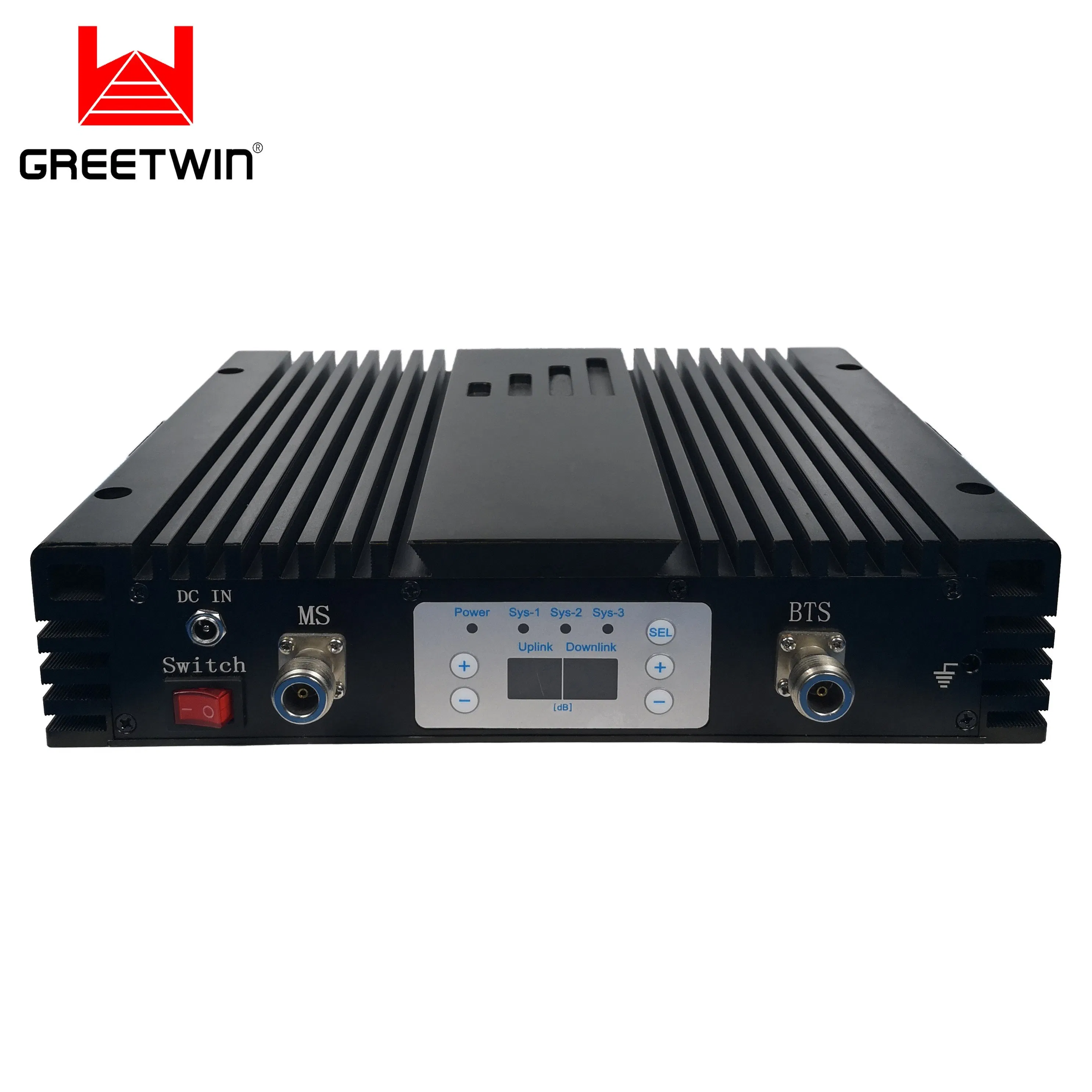

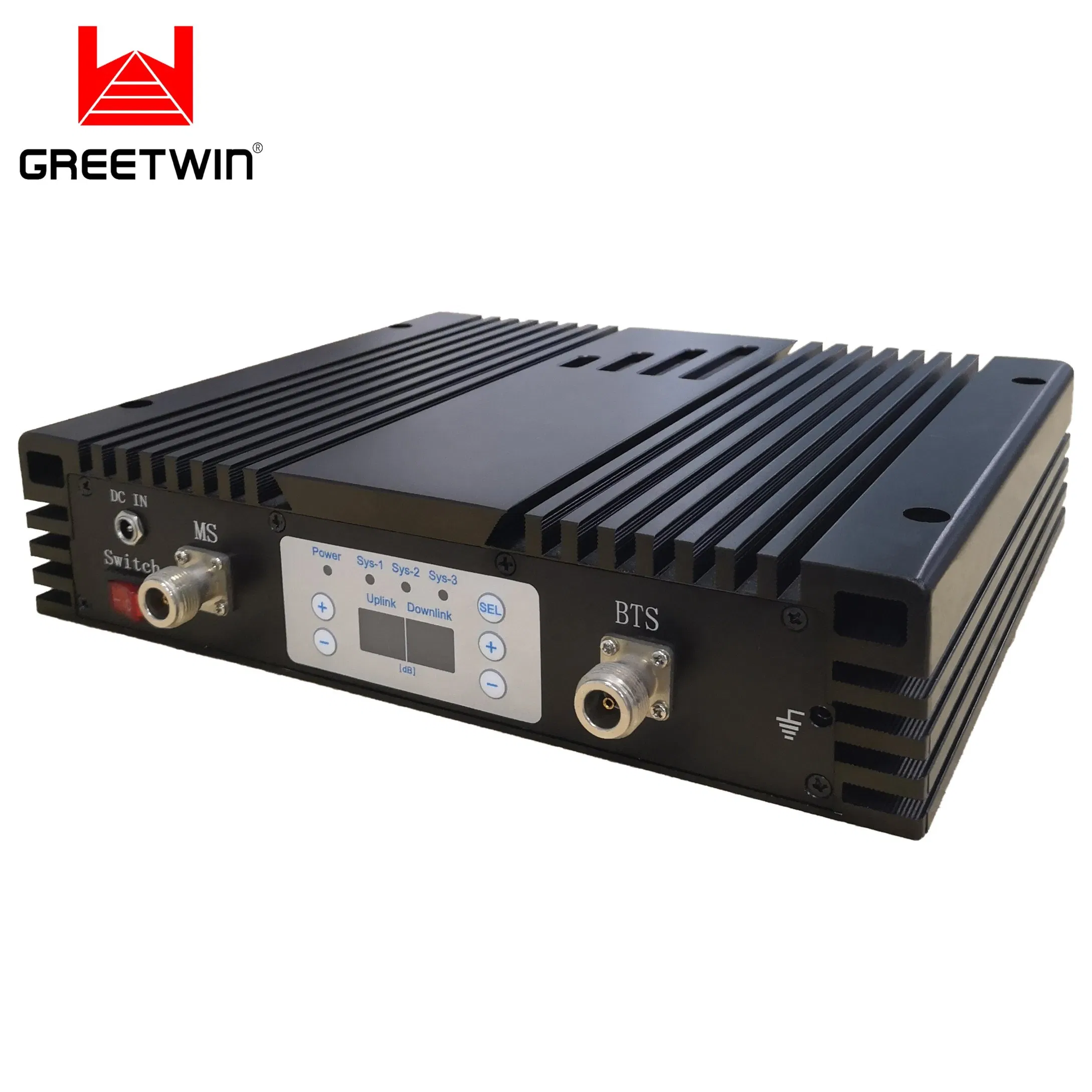

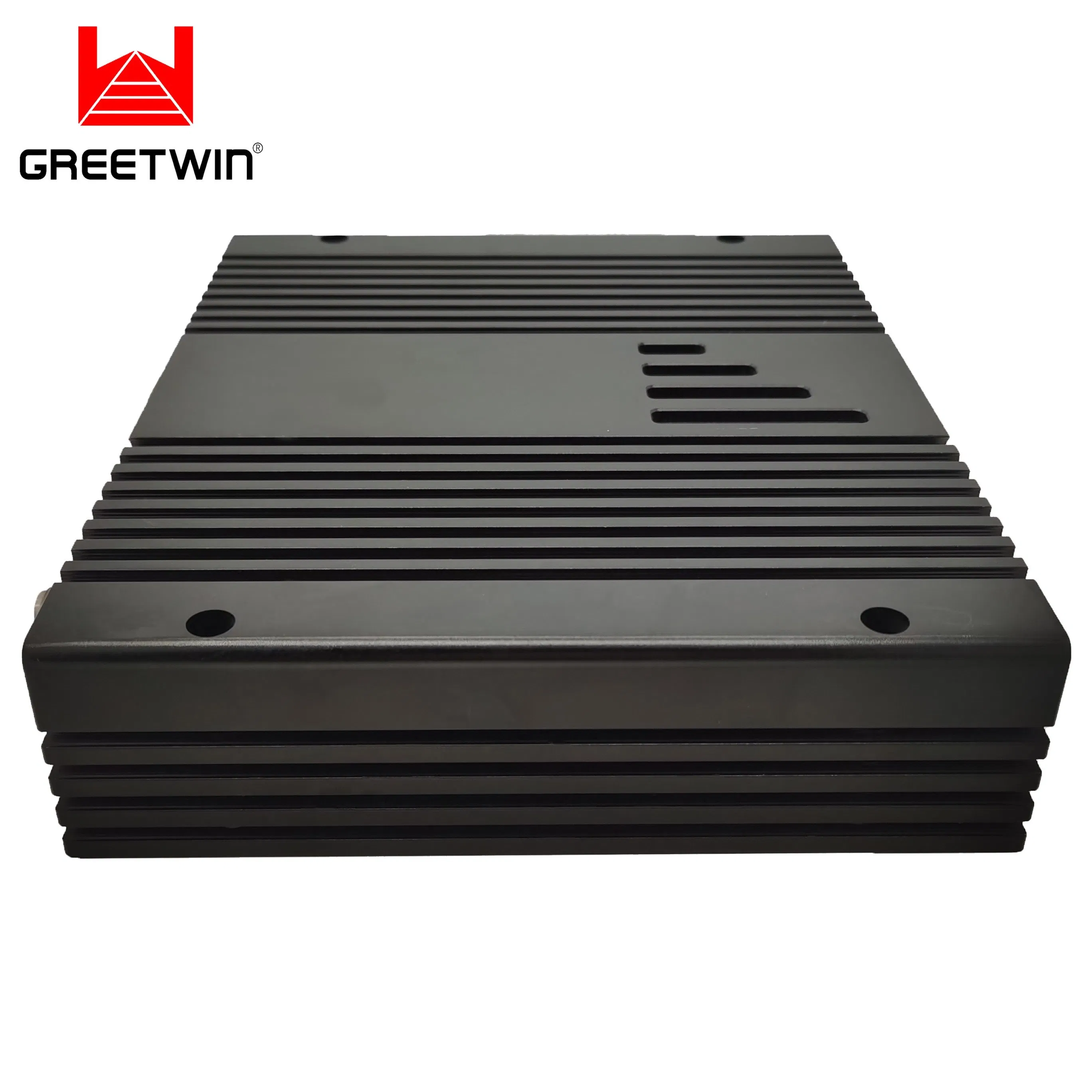

27dBm Single Band Dcs1800MHz 2g/4G Booster Mobile Signal Repeater (GW-27DCS)
27dBm Single Band Dcs1800MHz 2G/4G Booster Mobile Signal Repeater (GW-27DCS)Model: GW-27DCSIndoor Pico Repeater (Signal Booster) series is an ideal solution for small/medium businesses and home users looking to enhance indoor wireless connectivity. It is connected via coaxial cable to Donor Antenna ......
Send Inquiry
Product Description
Model: GW-27DCS

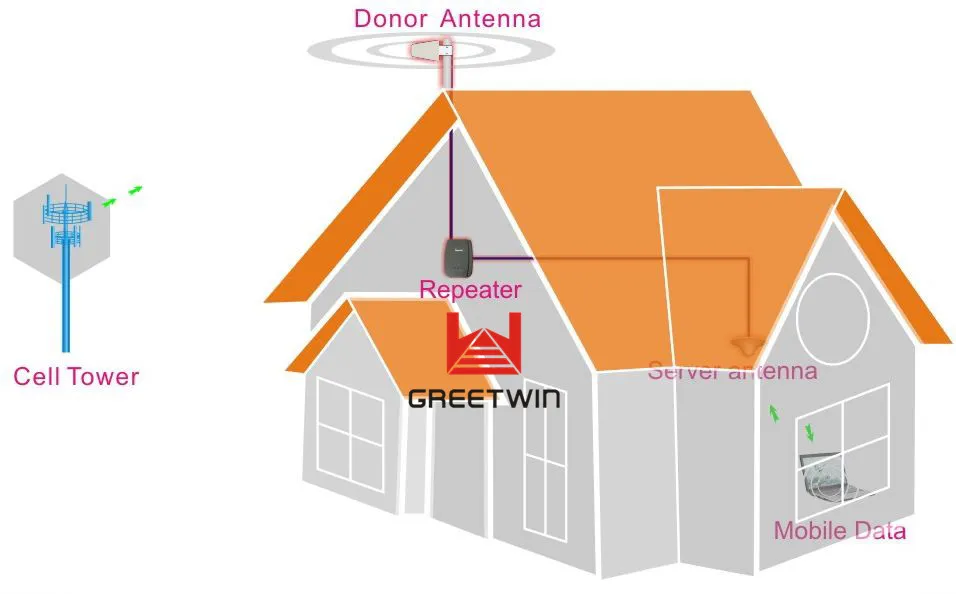

Indoor Pico Repeater (Signal Booster) series is an ideal solution for small/medium businesses and home users looking to enhance indoor wireless connectivity. It is connected via coaxial cable to Donor Antenna and Service Antenna, Donor Antenna is placed outside the building where it has easy access to a BTS signal, and the Service Antenna is placed in the building where it can extend radio coverage to the blind area.
Features:
1. Cost effective solution for weak signal zones, reduce drop/off calls.
2. Compact size, low power consumption, easy installation, great cover.
3. Cover about 1000~5000m² without block or obstruct.
4. High linear design, ALC function design, low interference to BTS.
5. Support any cellular devices (voice & data & video)
6. Wide band signal booster, or customize selective band booster.
7. Single system CDMA450, LTE800, iDEN, CDMA800,GSM,EGSM,AWS1700, DCS, PCS,
WCDMA, LTE2600,etc
8. Expansion and extention of the signal of base station.
Optimization of the quality of the signal and source
Standard Package:
1) AC90-264V, DC9V/5A power supply adapter 1PCS
2) AC power cord (EU/US/UK/SA/China standard, etc) 1PCS
3) Installation kit 1PCS
4) User manual 1PCS
Recommended Accessories:
1)Donor antenna: Log Periodic Antenna (9dBi@806-960/1710-2700MHz)
2)Service antenna: Omni Ceiling Antenna (3dBi@806-960/1710-2700MHz)
3)5D-FB coaxial cable with connecter (Cable length optional)
Advantages:
smart function called which can be activated via the front panel.
users can adjust gain and choose working band by LED panel, This smart function is easier than DIP Switch, can set up parameters,It is a simple, safe and effective way.
2. Auto Level Control
The 30dB ALC is used to maintain steady output power even when the donor source signal fluctuates.
Advantages:
smart function called which can be activated via the front panel.
users can adjust gain and choose working band by LED panel, This smart function is easier than DIP Switch, can set up parameters,It is a simple, safe and effective way.
2. Auto Level Control
The 30dB ALC is used to maintain steady output power even when the donor source signal fluctuates.
Application:
To expand signal coverage of fill signal blind area where signal is weak or unavailable.
Indoor: Hotels, Home, Basements, Shopping Malls, Offices, Parking Lots, etc.
| Frequency Range | Uplink | Downlink | |||
| iDEN | 806-824MHz | 851-869MHz | |||
| CDMA 800/GSM 850 | 824-849MHz | 869-894MHz | |||
| GSM 900 | 890-915MHz | 935-960MHz | |||
| AWS1700 | 1710-1755MHz | 2110-2155MHz | |||
| DCS 1800 | 1710-1785MHz | 1805-1880MHz | |||
| PCS 1900 | 1850-1910MHz | 1930-1990MHz | |||
| WCDMA/3G 2100 | 1920-1980MHz | 2110-2170MHz | |||
| Max. Gain | 75dB | 80dB | |||
| Max. Output Power | 24dBm | 27dBm | |||
| Band width | Wide Band | ||||
| Manual Gain Control | 31dB / 1dB Step | ||||
| Automatic Gain Control | >20dB | ||||
| Ripple in-band | ≤ 6dB | ||||
| Return loss | ≤ -10dB | ||||
| Noise Figure | ≤ 6dB | ||||
| Spurious Emission &Intermodulation | 9KHz~1GHz | ≤ -36dBm | |||
| 1~12.75GHz | ≤ -30dBm | ||||
| WCDMA | Spurious Emission Mask | Meet 3GPP TS 25.143 ( V 6.2.0 ) | |||
| Modulation Accuracy | ≤ 12.5% | ||||
| Peak Code Domain Error | ≤ -35dB@Spreading Factor 256 | ||||
| Time Delay | ≤ 1.5 μs | ||||
| Frequency stability | ≤ 0.01ppm | ||||
| MTBF | > 50000 hours | ||||
| Power Supply | AC100-240V,DC9V/5A | ||||
| Power LED | Power indicator | ||||
| Alarm LED | Red | Autoexcitation or High Power | |||
| Green | Standard | ||||
| Mechanical Specification | |||||
| RF Connector | N-Female | ||||
| Switch | Power Switch\Manual Gain Control Switch | ||||
| Cooling | Heatsink Convection cooling | ||||
| Impedance | 50 ohm | ||||
| Humidity | < 90% | ||||
| Operating Temperature | -10°C~55°C | ||||
| Environment Conditions | IP40 | ||||
| Size | 268mm*58mm*189mm | ||||
| Weight | < 3Kg | ||||
Q1. Could I get a sample before bulk order?
Yes, we offer the sample for all models but charged.
Q2. What should I do if I don't know about frequency in my country?
Please feel free to contact us with your inquiry, we will find the frequency you need and address your problems.
Q3. Do you accept OEM/ODM order?
Yes, we can customize the brand logo, colors, and frequencies.
Q4.Shipment Date
| Sample | 3-5 business days |
| <20 pcs | 7-15 days |
| 20-50 pcs | 15-24 days |
| >50 pcs | Negotiate |
Q5: Delivery Date of the sample by DHL/FedEx
| USA/Canada/Europe/Asia | 3-5 days |
| Middle East/Latin American | 5-7 days |
| African | 3-7 days |
Q6.Payment Method
T/T, Western Union, Paypal, and Credit Card are available,
but we suggest paying by Alibaba Trade Assurance, the most favor, and security method.
*Other methods please contact us with more details.
Q7.Others
(1)Frequency
We can customize Single/Double/Triple/Quand/Penta Band for cellphone signal like 2G/3G/4G(GSM/CDMA/DCS/PCS/WCDMA/LTE, etc,)
(2)Output Power &Coverage Areas
| Output Power | Coverage Areas |
| 20dBm | 500-1500m² |
| 23dBm | 1500-2500m² |
| 25dBm | 2500-4000m² |
| 27dBm | 3000-5000m² |
| 30dBm | 5000-8000m² |
*Coverage is related to local signal strength, please contact us with your local condition, we can offer the best solution.
(3)Antenna
Cellphone signal booster must attach one indoor antenna and one outdoor antenna by two coaxial cables.
Website's price only includes a signal booster, please contact us if you need one set of devices with antenna, splitter, and coupler.
