Product Description

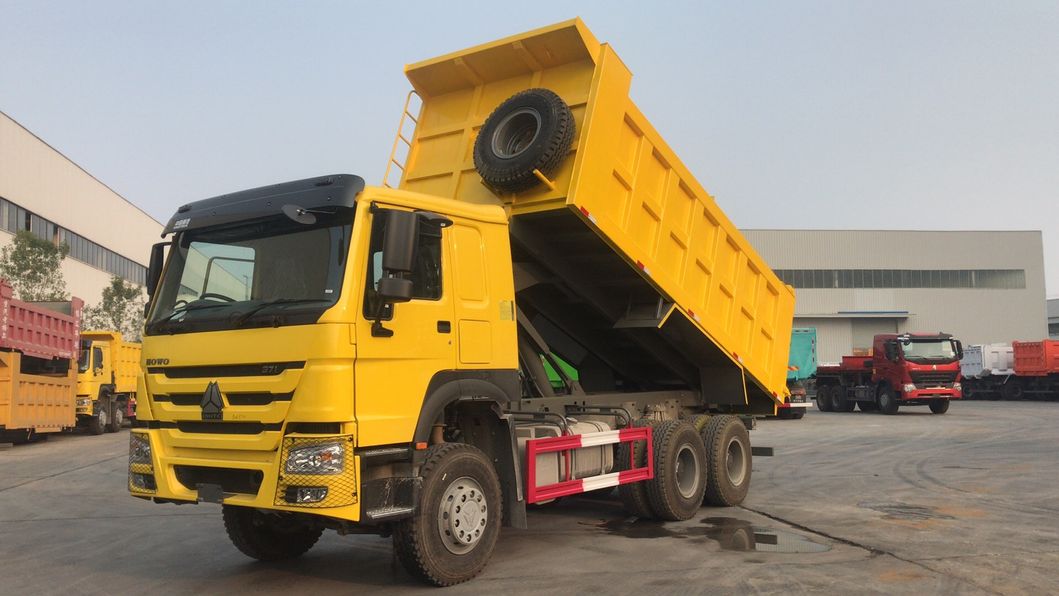

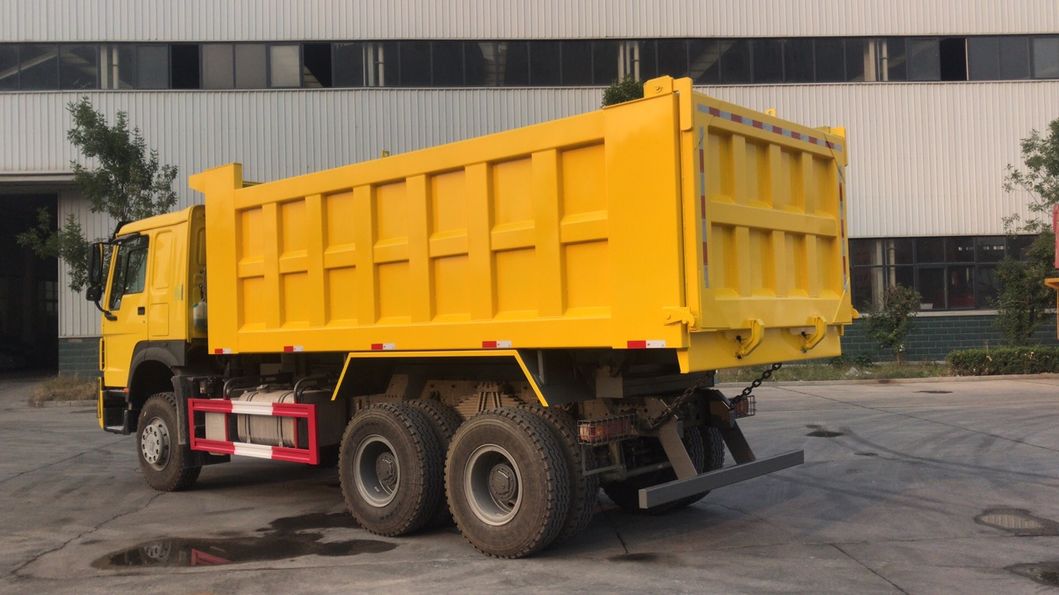

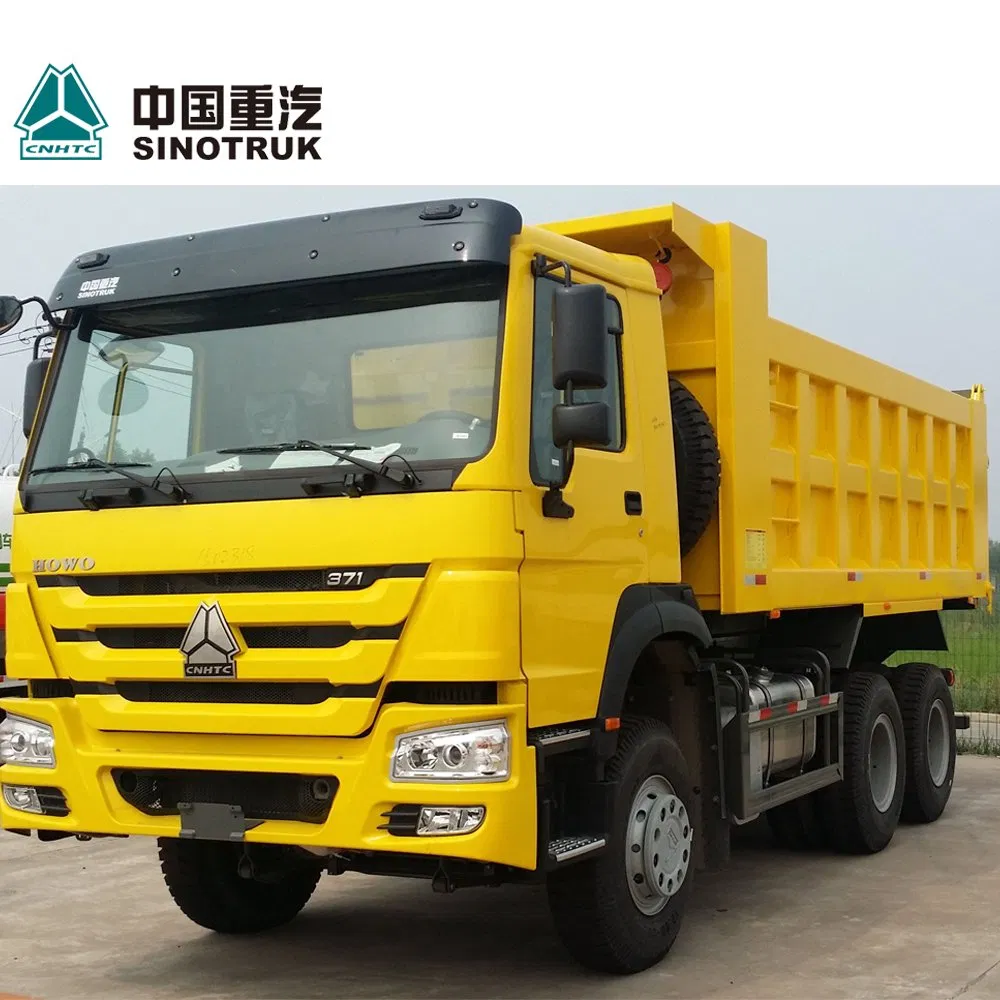

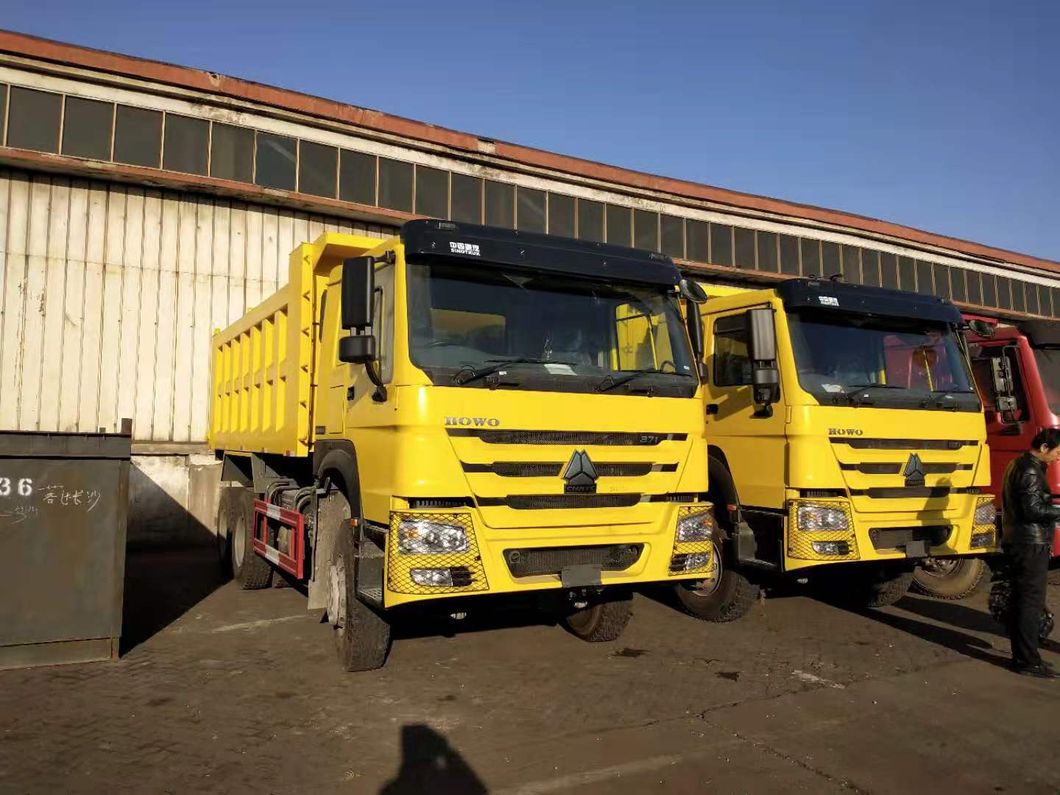

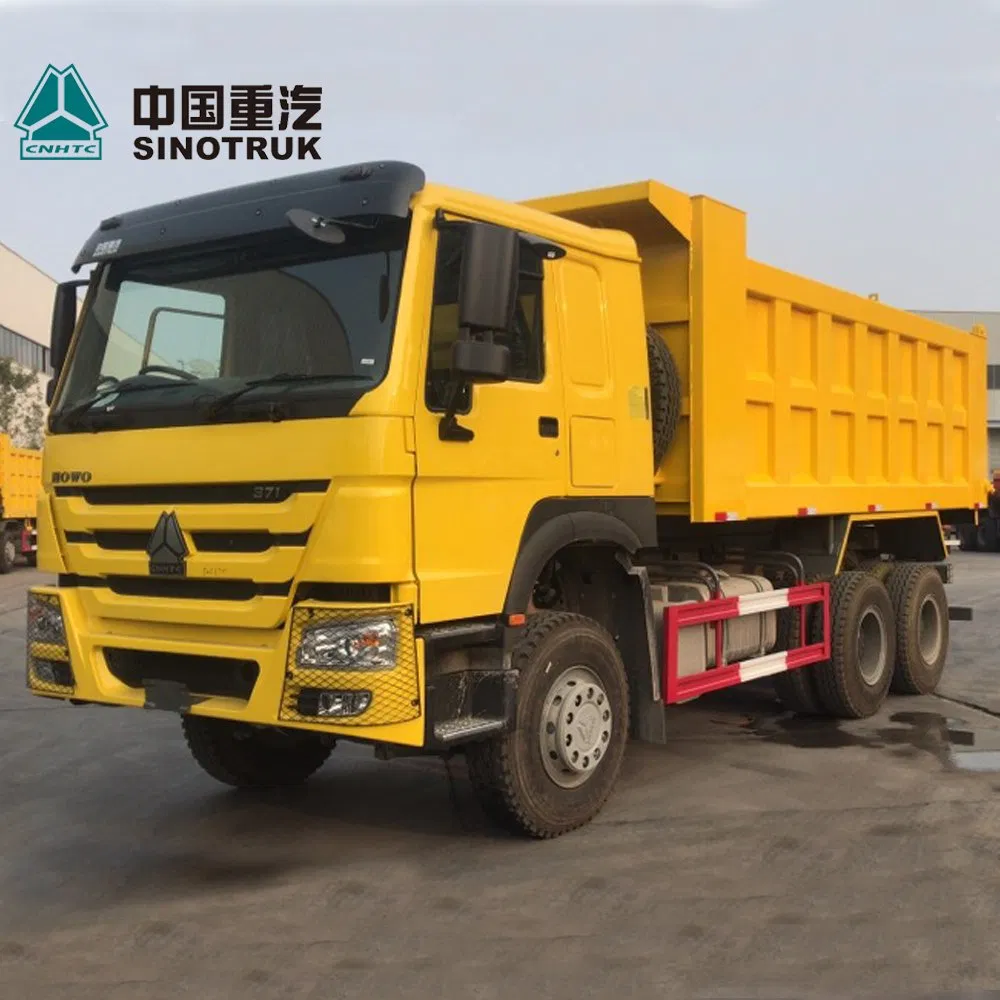

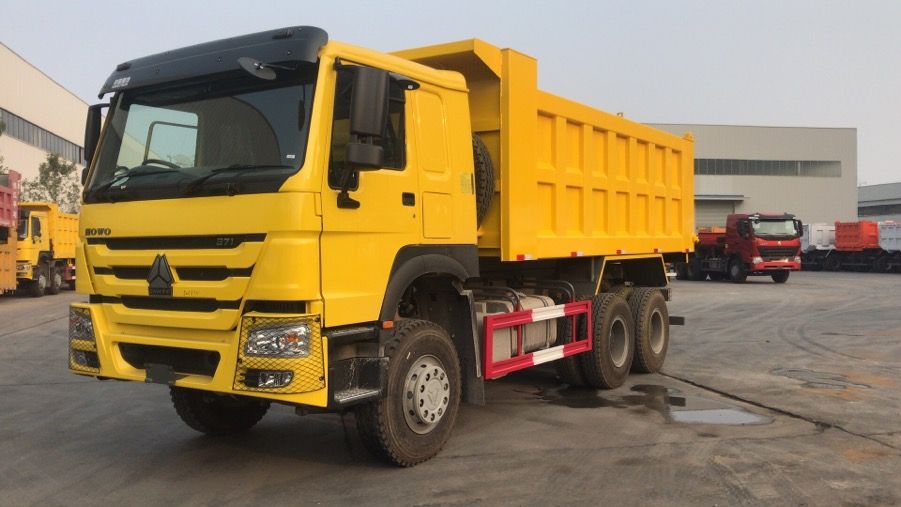

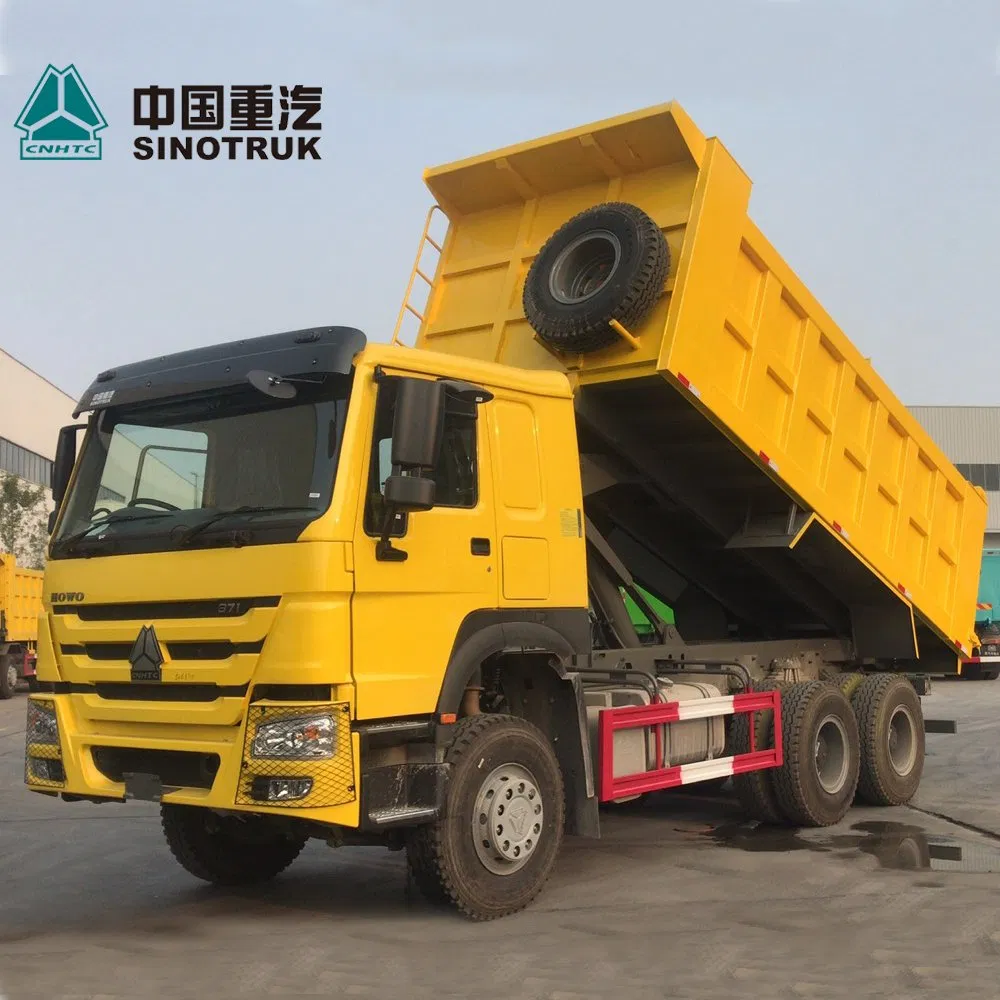

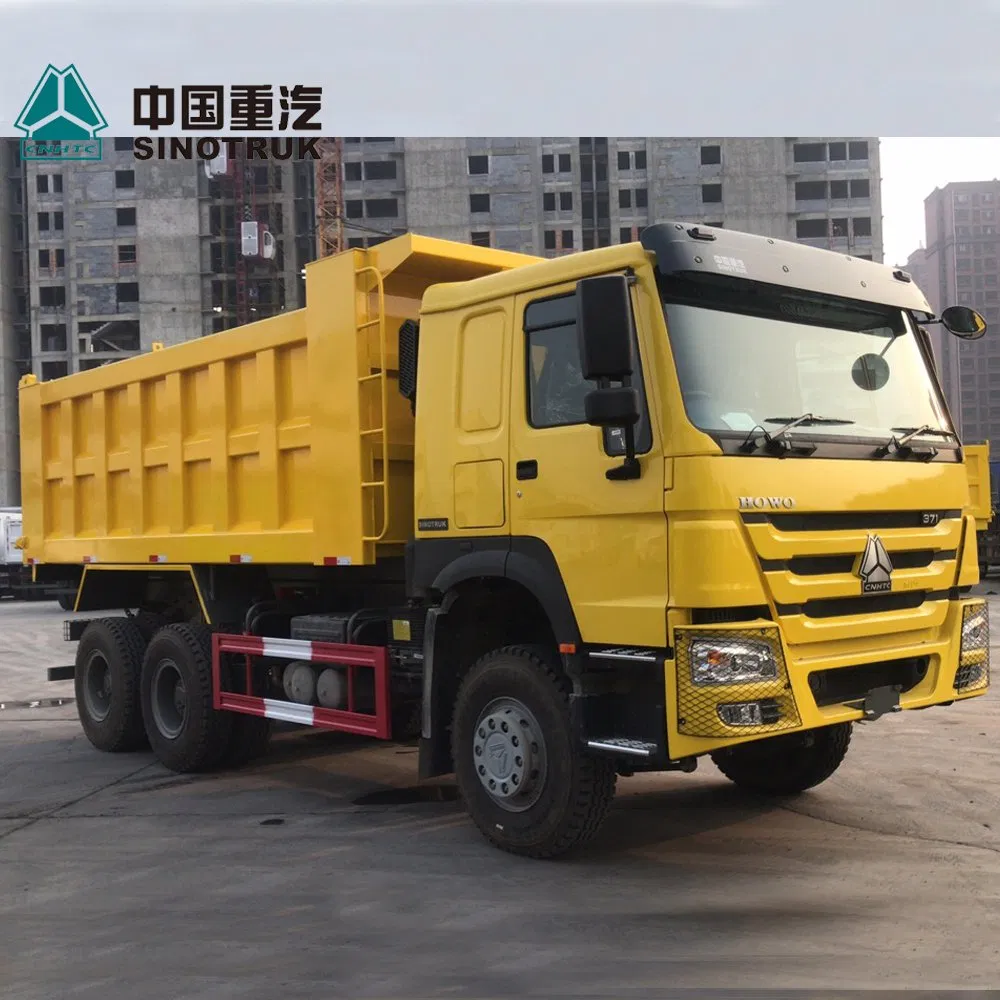

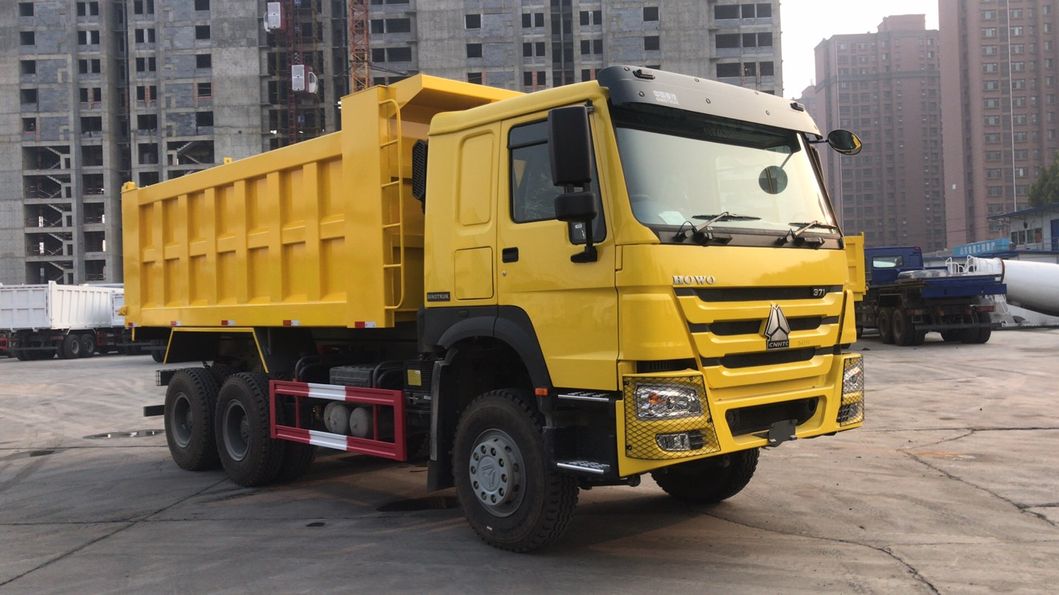

Sinotruk HOWO Dumper 371HP 6X4 10 Wheels Tipper Used Dump Truck for Sale

ZZ3257N3847A howo tipper truck adopts the key advanced technology of truck field and is used to transport those materials such as sand, stone, soil, garbage, building materials, coal, ore, grain and farm products. The biggest advantage is that it helps achieve the goal of unloading mechanization, thus enhancing the unloading efficiency and reducing the labor intensity. This product is applicable to many fields such as transportation and construction. ZZ3257N3847A howo tipper truck is equiped with WD615 series engine,The engine power is from 336HP to 371Hp,The compartment length is 5.6 meters,Width is 2.3 meters,Max. Driving Speed is 75 km/h, Gearbox is HW19710.

ZZ3257N3847A
Body	Carriage Internal Dimensions(mm)			5600x2300x1500
	Cubage (m3)			19.3
	Steel thickness of Carriage(mm)			Floor:8mm/Side:6mm
	Steel			Q235
	Hydraulic Lift of Carriage			Middle Lift
Weight in kg	Kerb weight (Kg)			12270
	Gross vehicle weight (Kg)			30000
Dimension(mm)	Dimensions(mm)	Length(mm)		8245
		Width(mm)		2550
		Height(mm)		3450
	Wheel base (mm)			3800+1350
Performance	Maximum driving speed (km/h)			75
	Fuel consumption (1/100 km)			38
Cab	Model		SINOTRUK HW76 cab Single bunk,new type seat,adjustable steering wheel,EURO new type heating & ventilating system,German VDO instruments,safety belts, exterior sun visor,stereo radio/cassette recorder,left driving,air conditioner
Engine	Model		WD615.47(Euro 2)
	Type		6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection
	Horsepower		371
	Maximum output Kw/r/min		273/2200
	Maximum torque N.m/r/min		1460/1300-1600
	Bore x Stroke		126x130mm
	Valve		2
	Displacement		9.726L
	Make SINOTRUCK (CNHTC), Euro II emission standard, Thermostat with 80ºC opening begin, Rigid fan
Transmission	SINOTRUK HW19710 transmission ,10 forward and 2 reverse
Clutch	SINOTRUK Φ430 diaphragm-spring clutch,hydraulically operating with air assistance
Steering	ZF8118 Steering Gear Box ,hydraulic steering with power assistance.(Left hand driving)
Front Axle	SINOTRUK HF9 Front Axle,new 9-ton front axles of equipped with drum brakes.
Rear Axles	SINOTRUK HC16 Heavy reduction drive axle,STR hub-reduction with differential locks between wheels and axles, enforced STR axle,ratio:5.73;The basic configuration of HOWO series construction vehicle can be used in such bad environment as bad road condition, heavy impact and overloading, which is the best choice for heavy construction vehicle customers.
Brake System	Service brake:dual circuit compressed air brake Parking brake (emergency brake):spring energy,compressed air operating on rear wheels
Wheels & Tyres	Rims:10 hole-steel ;Tyres:12.00R20 radial tyre with 1 Spare tire.
Electrics	Operating voltage:24V,negative grounded Starter:24V,7.5 Kw Alternator:3-phase,28V,1500 W Batteries:2x12 V,165 Ah horn,headlamps,fog lights,brake lights,indicators and reverse light
Oil Tank	Square type-300L Aluminum alloy fuel tank
