            Product Description

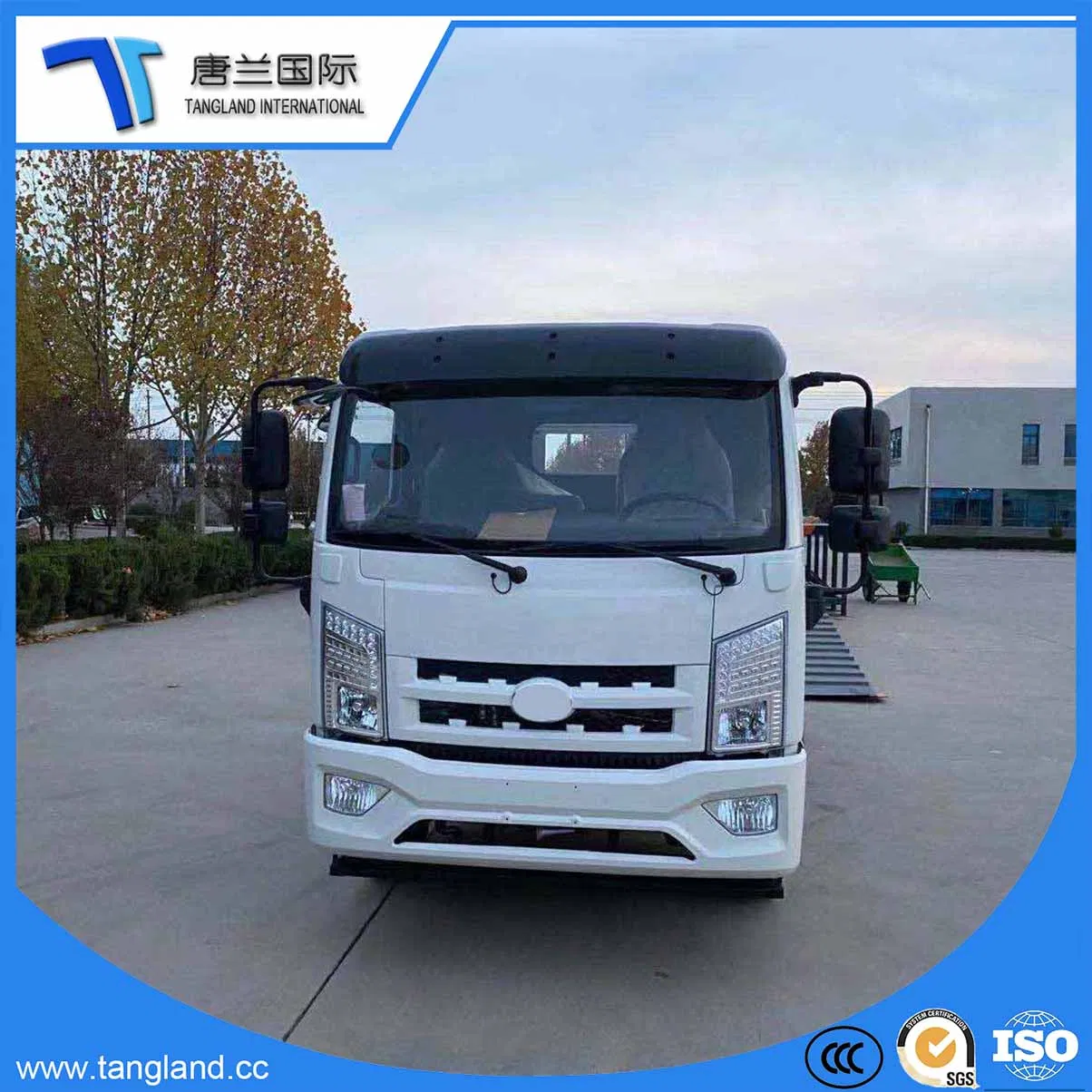

            Light Cargo 4X2 Tipper Dump Truck from China

            Technical Parameters

            Description

            FC1800 1.5 Cabin Dump Truck

            Item

            FENG CHI 1800

            Model

            SSF3042DDP53-1

            Cabin

            ONE AND HALF ROWS CABIN

            whole
            vehicle
            main
            dimension



            Overall dimensions (L*W*H)mm

            5680×2030×2440

            Dimensions of cargo body  (L*W*H)mm

            3400×1870×(490+200)

            Driving type

            4×2

            Wheel base

            3000

            Wheel track(F/R)mm

            1170/1510

            Min ground clearance (mm)

            190

            Weight
            data

            Curb weight (kg)

            3020

            Rated payload(kg)

            4000

            Person in cab (persons)

            3

            whole
            vehicle
            main
            performance

            Max.speed(km/h)

            90

            Max.slope of climb(%)

            25

            Min.turning radius (m)

            7.5

            Engine

            Engine model

            4DW93-84E5

            Engine type

            Vertical, water-cooled, four-stroke,
            turbocharged and inter cooled

            Fuel injection equipment

            Common-rail with EDC+DPF

            Emission standard

            Euro5

            Displacement (L)

            2.54

            Rated power (KW)

            64

            Max torque (N.m/rpm)

            220N.M/ 1900-2100 r/min

            Steering gear type

            Power steering

            Brake system

            Service brake and boosting type

            Air brake

            Parking brake

            Central drum brake

            Auxiliary brake

            Air brake

            Wheels and tyre size

            7.50-16/7.50-16

            Electric system

            Rated voltage

            24V

            Battery

            100Ah


            Light Duty Commercial Vehicle (LCV) /Tip/Tipping/Tipper Trucks
            Light Duty Commercial Vehicle (LCV) /Tip/Tipping/Tipper Trucks
            Light Duty Commercial Vehicle (LCV) /Tip/Tipping/Tipper Trucks
            Features

            1. Strong power,China famous brand engine-Weichai or FAW Engine
            2.  Comfortable driving: One&half rows sleep cabin, with air conditioning(cooling&heating), power steering
            3. Thicken and heighten cargo body,large capacity and more durable
            4. Safety: ABS, air brake

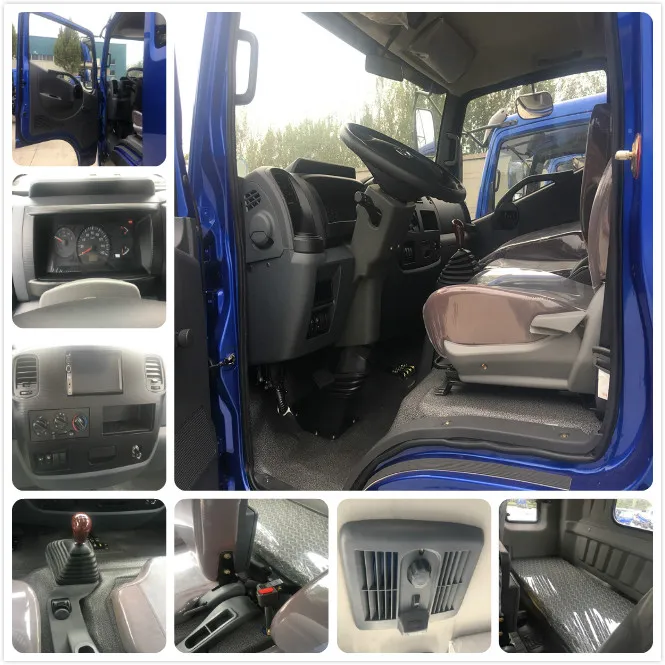

            Cabin details
            Light Duty Commercial Vehicle (LCV) /Tip/Tipping/Tipper Trucks


            Company Profile

            TANGLAND International Company, is a wholly-owned subsidiary of TANGLAND GROUP, is the professional
            company for Trading & International Exchange and cooperation. We set up branches in Beijing, Shanghai and Qingdao, as well as overseas assembling plant, or/and showing room and service centre, in Pakistan, UAE, and some Asian & African countries. TANGLAND GROUP is a comprehensive company including manufacturing, assembling, Casting & Foundry, producing Casting parts, Electric Vehicle, Tractor, Light truck, Semi-trailer, Steel ball and Nylon 6 products, Running an Industrial products'Information & Exchange Platform, the headquarter is in Ji'nan, Shandong, and assembling, machining & foundry and castingplants are in Liaocheng, Jining, Tai'an and Weifang, theInformation and Exchange platform named-TANGLANDINFORMATION & TECHNOLOGY COMPANY. TANGLAND INTERNATIONAL,

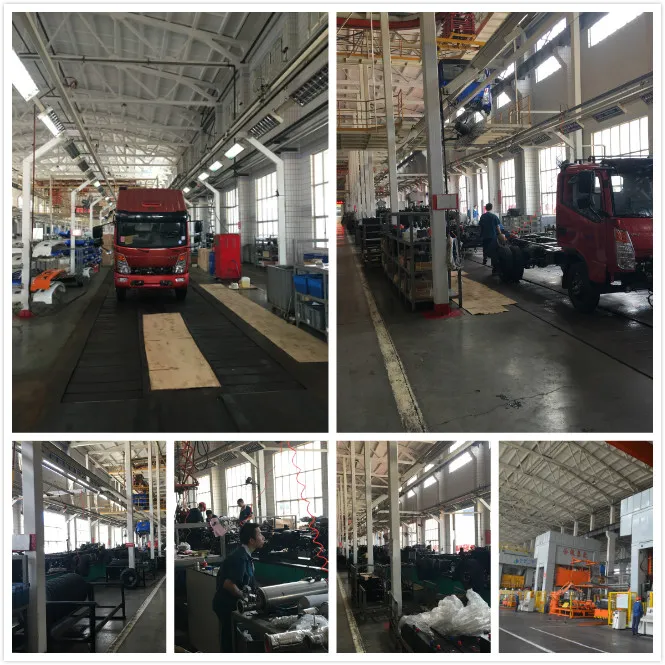

            Truck Workshop

            Light Duty Commercial Vehicle (LCV) /Tip/Tipping/Tipper Trucks

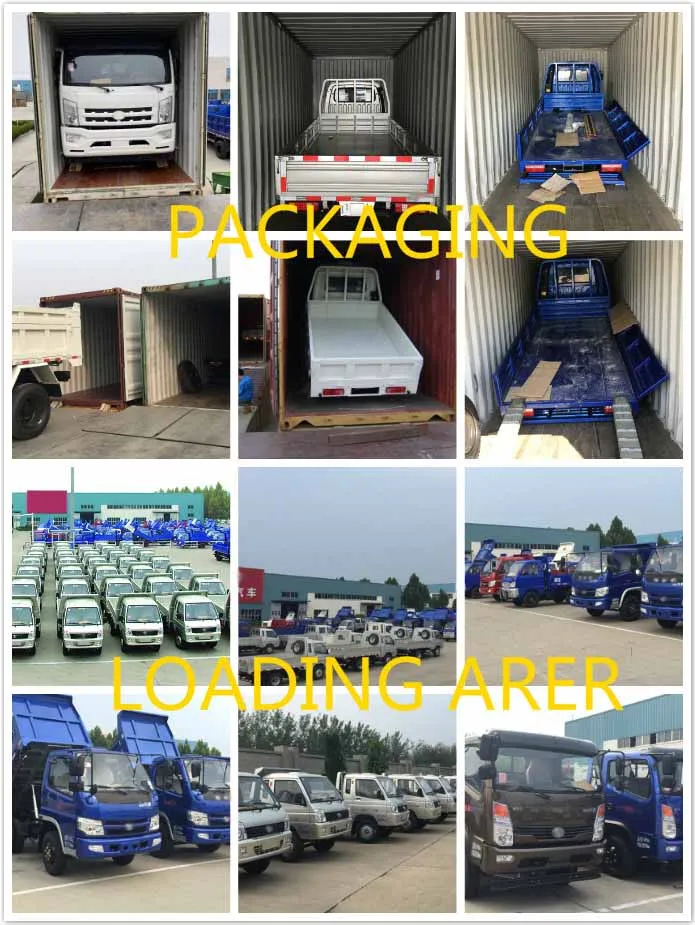

            Packaging & Shipping

            Packing quantity:
            A 20feet container: 1 units;
            A 40HQ container : 2 units(FC series truck); 3 units(FS series truck); 4 units(FL&FY series truck).

            Packing way: CBU or CKD(tyres or cargo box)


            Light Duty Commercial Vehicle (LCV) /Tip/Tipping/Tipper Trucks

            Service

            Pre-sales service

            1, 24 hours online .Your inquiry will be quick reply  by email .
             Also can go through all questions with you by any online chatting tools
            2,Professionally and patiently introduction,details pictures and working video to show machine .
            3,Visting our factory.


            Service on sales

            1,Test every machine and inspect the machine seriously .
            2,Send the machine picture which you order , then packing it with standard export package after you confirm the machine is ok .
            3,Delivery:If ship by sea .after delivery to seaport .Will tell you the shipping time and arrival time . Finally, send all original documents to you by Express. We will tell you the tracking number after we post the documents.


            After-sales service

            1, 24 hours online to solve any problem . Supply you English manual book and technical support , maintain and install video to help you solve the problem, or dispatch worker to your factory.
            2 Training how to install the machine, training how to use, maintain and repair the machine.


            FAQ

            1,What is the voltage/phase for this machine ?
            220V 50Hz/single phase ,380V 50Hz/three phase .We also could produce according to customer's requirement.
            2.What is your terms of payment?
            T/T 30% as deposit, and 70% before delivery. We will show you the photos of the products and packages before you pay the balance.
            3.What your terms of delivery?
            EXW,FOB,CFR,CIF,DAF.
            4.How about your delivery time?
            Generally, it will take about 13 days after receipt of deposit payment. The specific delivery time depends on the items and the quantity of your order.
            5 ,What's your MOQ?
            1 set
            6, How should I do if meet some trouble while using?
            We can supply English manual book and also take a video for showing how to resolve the problems
            or dispatch our worker to your factory.
