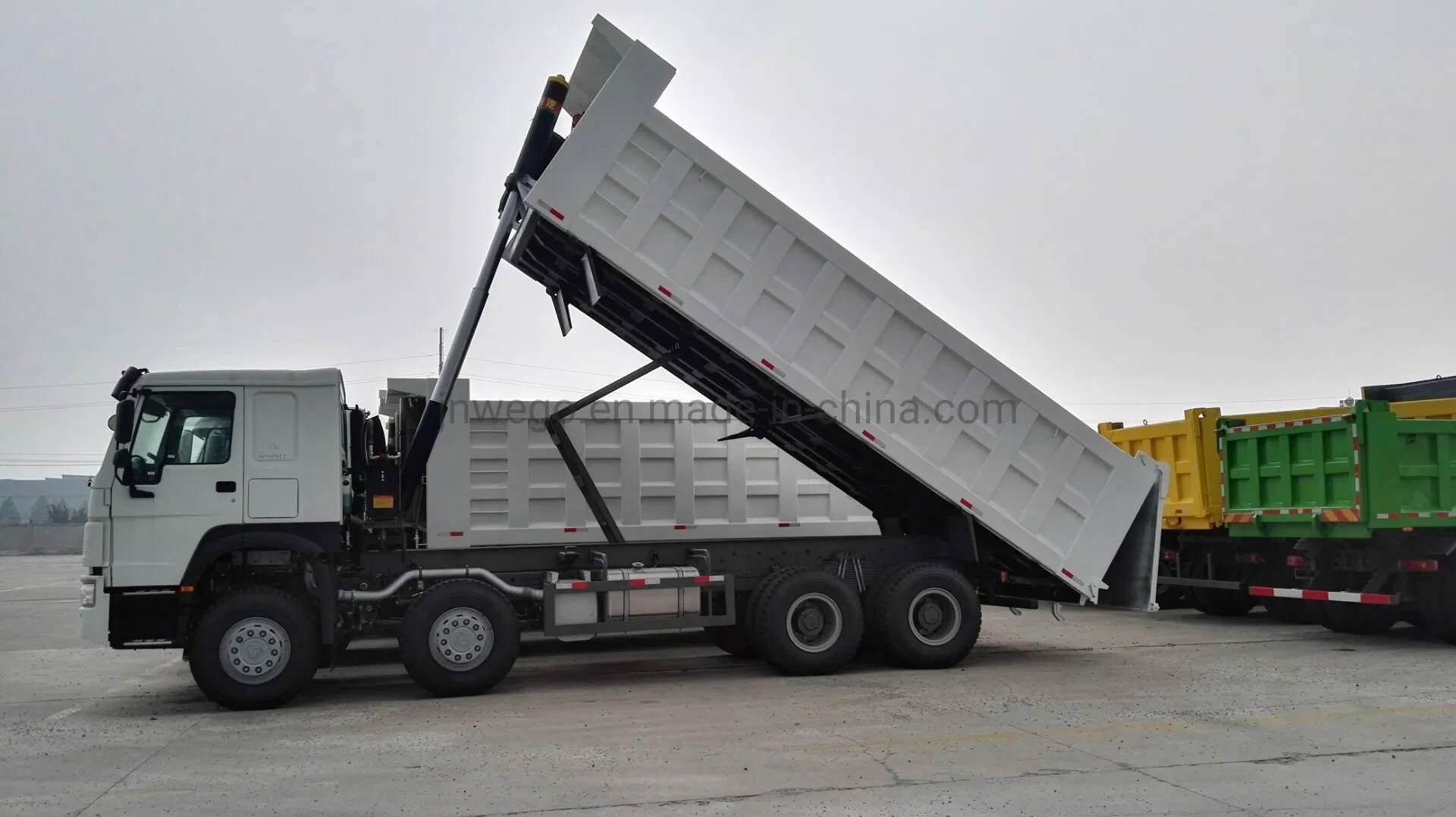

China 8X4 Tipper/Dump Truck Camion Volquete 30cubic
Sinotruck HOWO 8X4 Tipper/Tractor Truck for 50tonswe also can offer all series trucks, including dump truck, tractor truck, concrete mixer, semi-trailer and other truck products manufactured by SINOTRUK.they can be customized Product ParametersThe Products ParametersCabin HW76 cabin with A/C and on......
Send Inquiry
Product Description

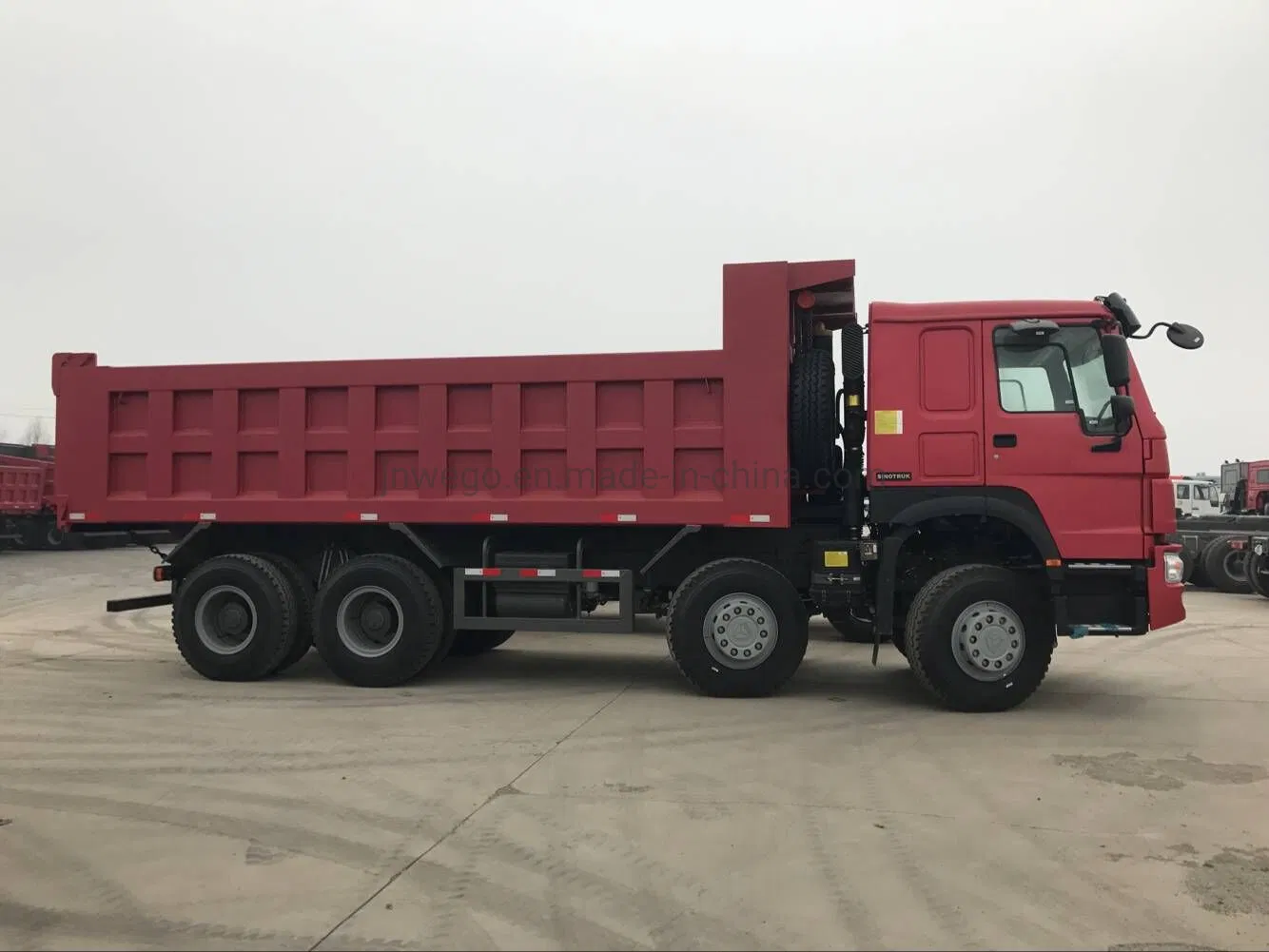

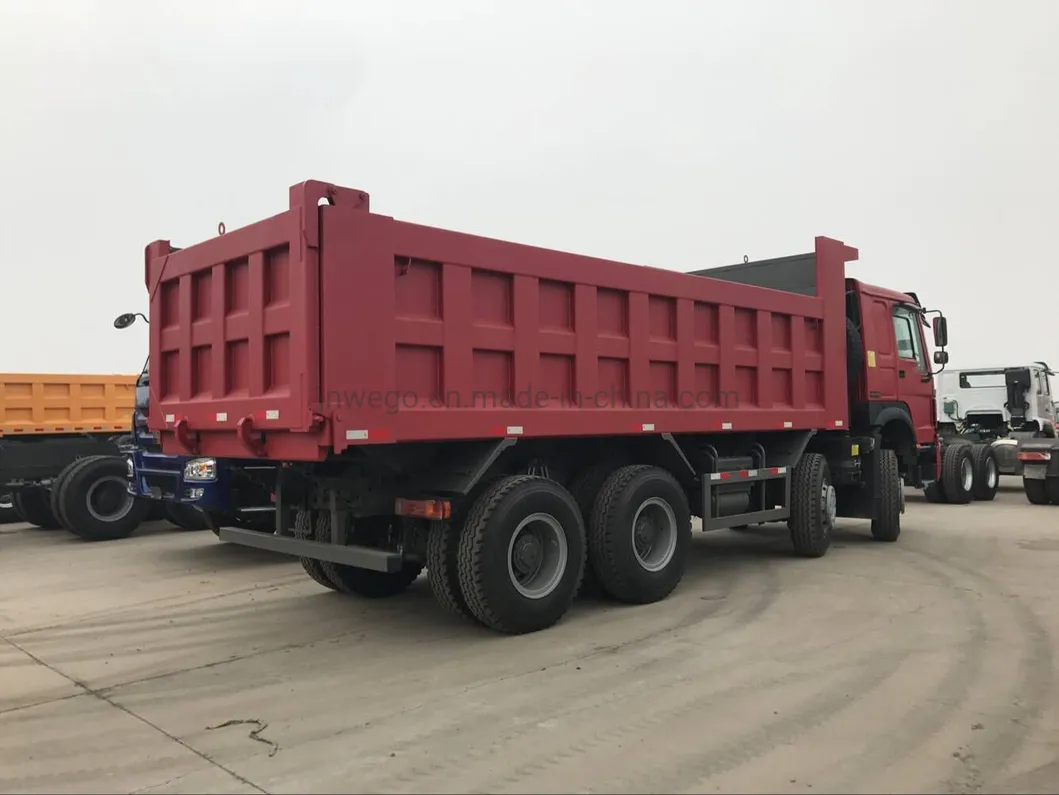

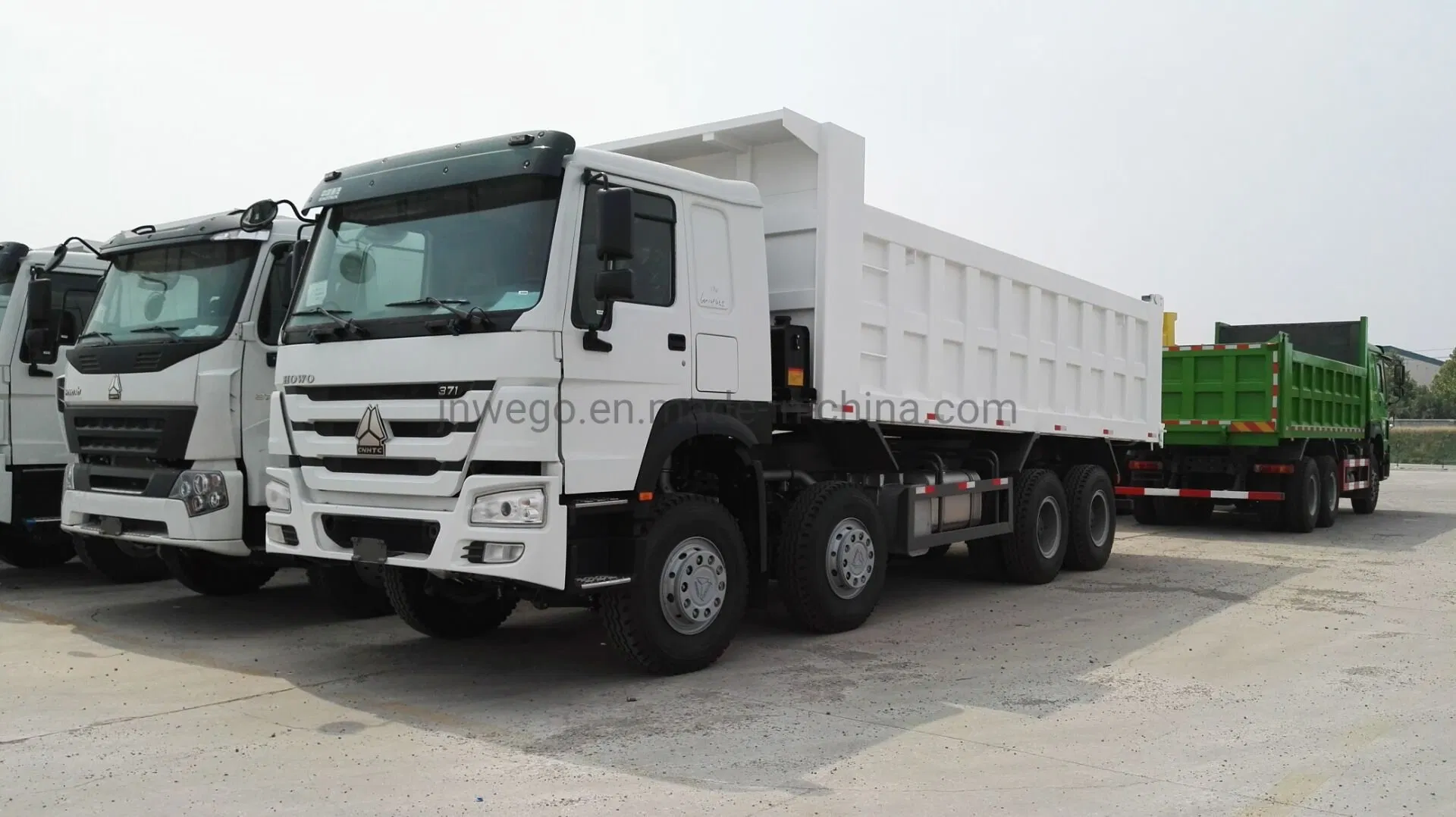

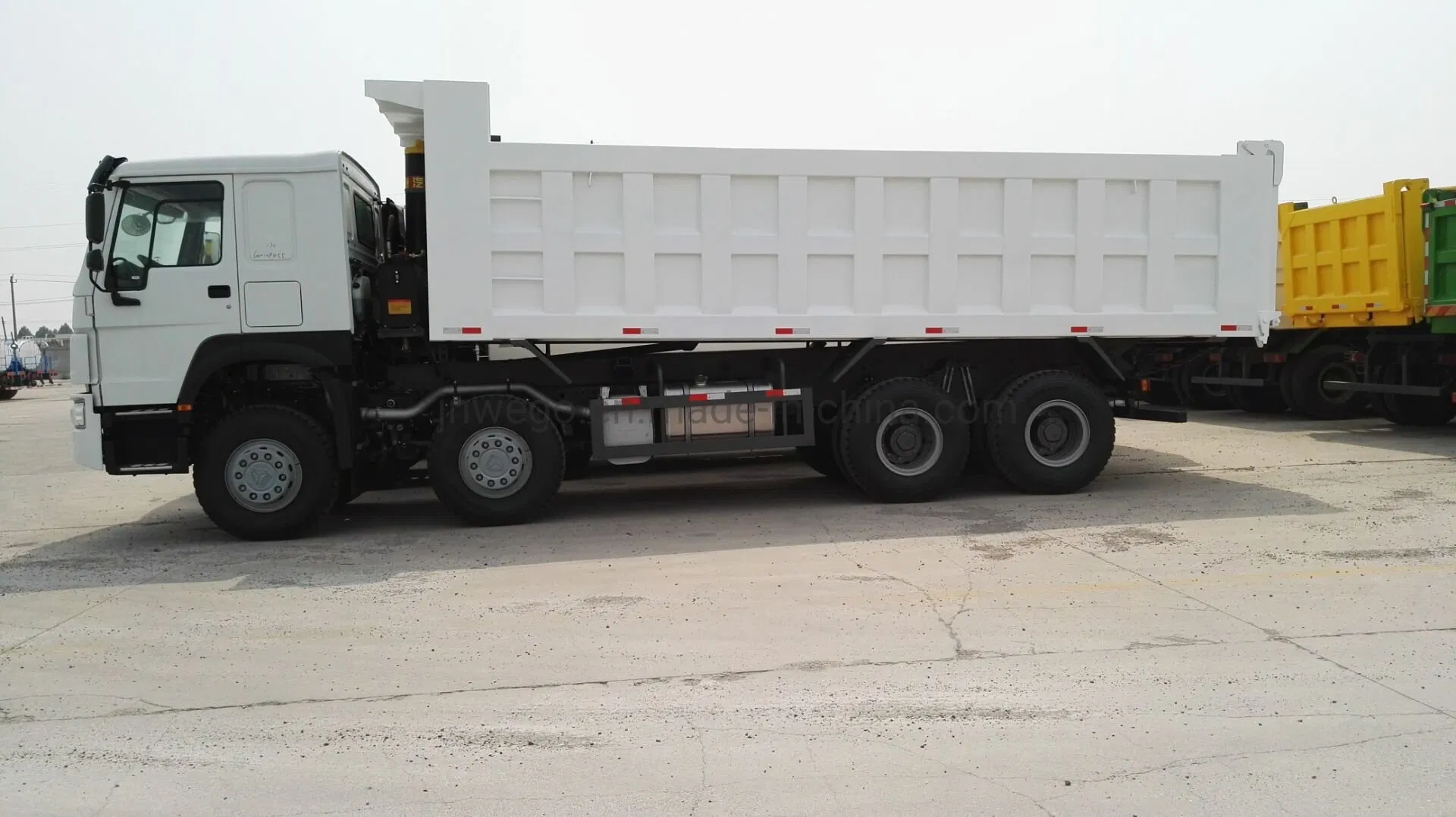

Sinotruck HOWO 8X4 Tipper/Tractor Truck for 50tons
we also can offer all series trucks, including dump truck, tractor truck, concrete mixer, semi-trailer and other truck products manufactured by SINOTRUK.
they can be customized
The Products Parameters
| Cabin | HW76 cabin with A/C and one sleeper, 70°hydraulically tillable to the front as attached photo for ref. | |
| Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 11300×2500×3450 |
| Wheel base (mm) | 4200 | |
| Weight in KGS | Tare Weight | 14500 |
| Payload | 25000 | |
| Front axles loading capacity | 2x9000 | |
| Rear axles loading capacity | 2x16000 | |
| Max. driving speed(km/h) | 85 | |
| Engine | Brand | SINOTRUK |
| Model | WD615.47 | |
| Type | Euro-2 emission, intercooler, turbocharge | |
| Horse Power | 371 HP | |
| Max Torque | 1500 N.m | |
| Gearbox | HW19710, 10-forward & 2 reverse gear | |
| Brake | Service brake:Dual circuit compressed air brake Parking brake :(emergency brake): spring energy, compressed air operating on rear wheel | |
| Steering | ZF 8118,power steering, hydraulic steering with power assistance | |
| Clutch | Reinforced diaphragm clutch, diameter 430mm | |
| Tire | 12R22.5 tubeless tyre, 11 pieces including one spare tire | |
| Axle | Front axle: HF9 Rear axle:HC16 ,ratio 5.73 | |
| Cargo Body | 7800*2300*1700 mm made of high tensile steel, side is 8 mm, and bottom 10mm, effective volume 30 cbm | |

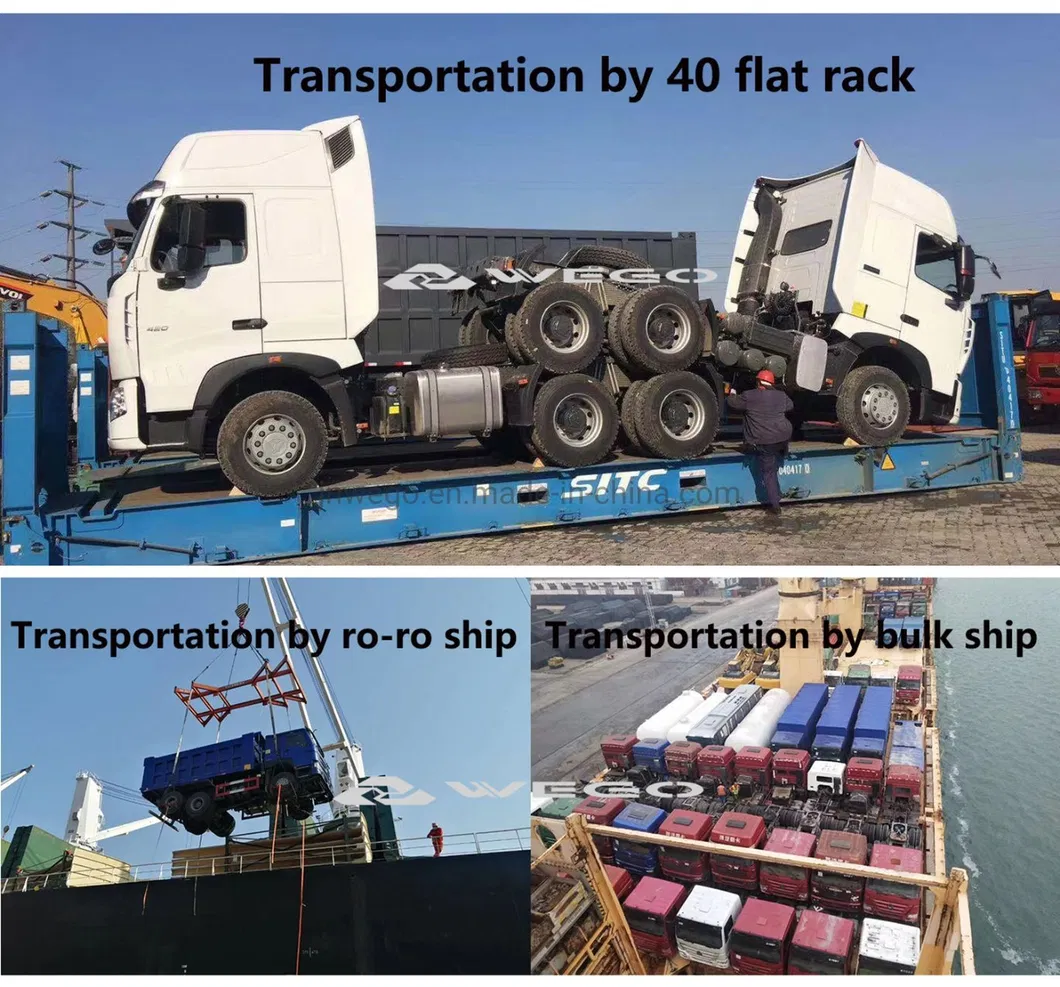

We will choose the most suitable cost-saving method to ship for customers
Q1: How long is the warranty of your products?
A1:We provide 12 months or 2000 working hours warranty as standard,whichever comes first.
Q2: What payment terms do you accept?
A2: Our standard payment term is 30% in advance and 70% in balance by TT before delivery or againest BL copy. Meanwhile,we also accept the irrevocable L/C at sight.
Q3: How long can I get my order finished?
A3: 30days for chassis ,10days for carriage, 7 work days for spare parts.
Q4: Can you customize the configurations / logo/ label/ color according to your requests?
A4: Yes.
Q5: Do you accept small order?
A5: Yes. the MOQ is 1 units for all of products. For very small spare parts,we can check case by case.
Q6: Can you offer second hand trucks?
A6: Yes. We can check the better quality of second hand trucks to meet our customer's requirment.
