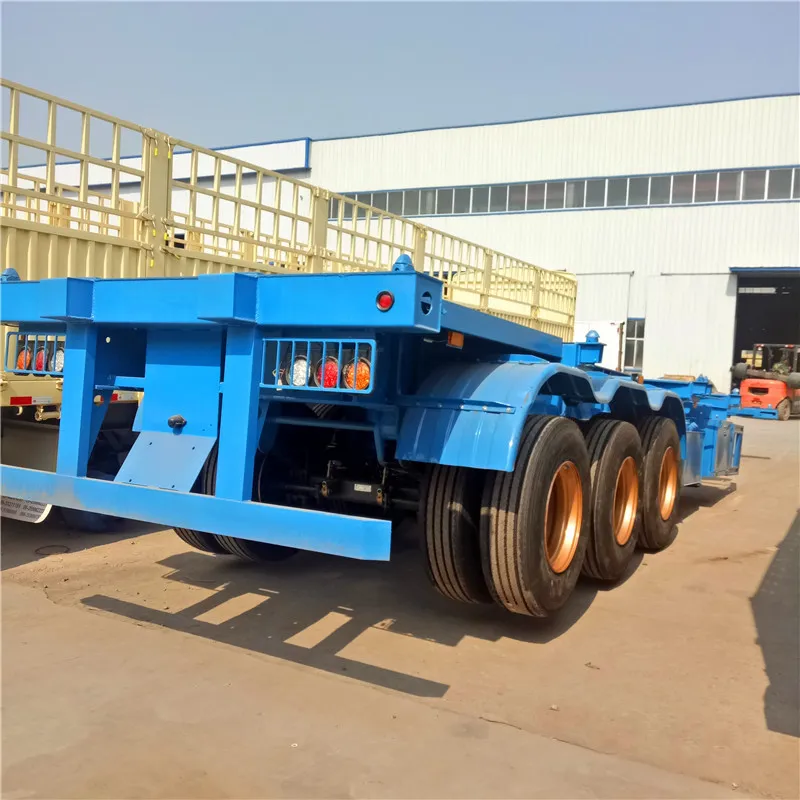

Popular Low Price 20FT 40FT Container Chassis Skeleton Semi Trailer Price
Product Specification This trailer is skeleton trailer .three axle (BPW,FUWA,YORK can be choosed) and single tire(385/65R22.5 or other twin tire 10.00-20,11.00-20,12.00-20, 10.00R20,11.00R20,12.00R20), if you need this series ,feel free to give us your detailed request. we will give you the best pr......
Send Inquiry
Product Description

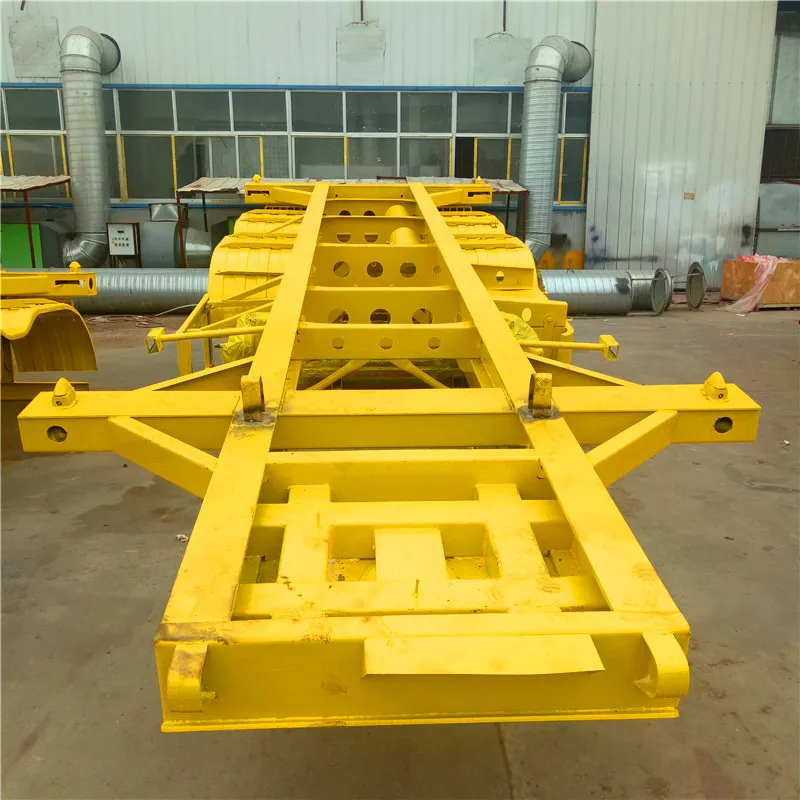

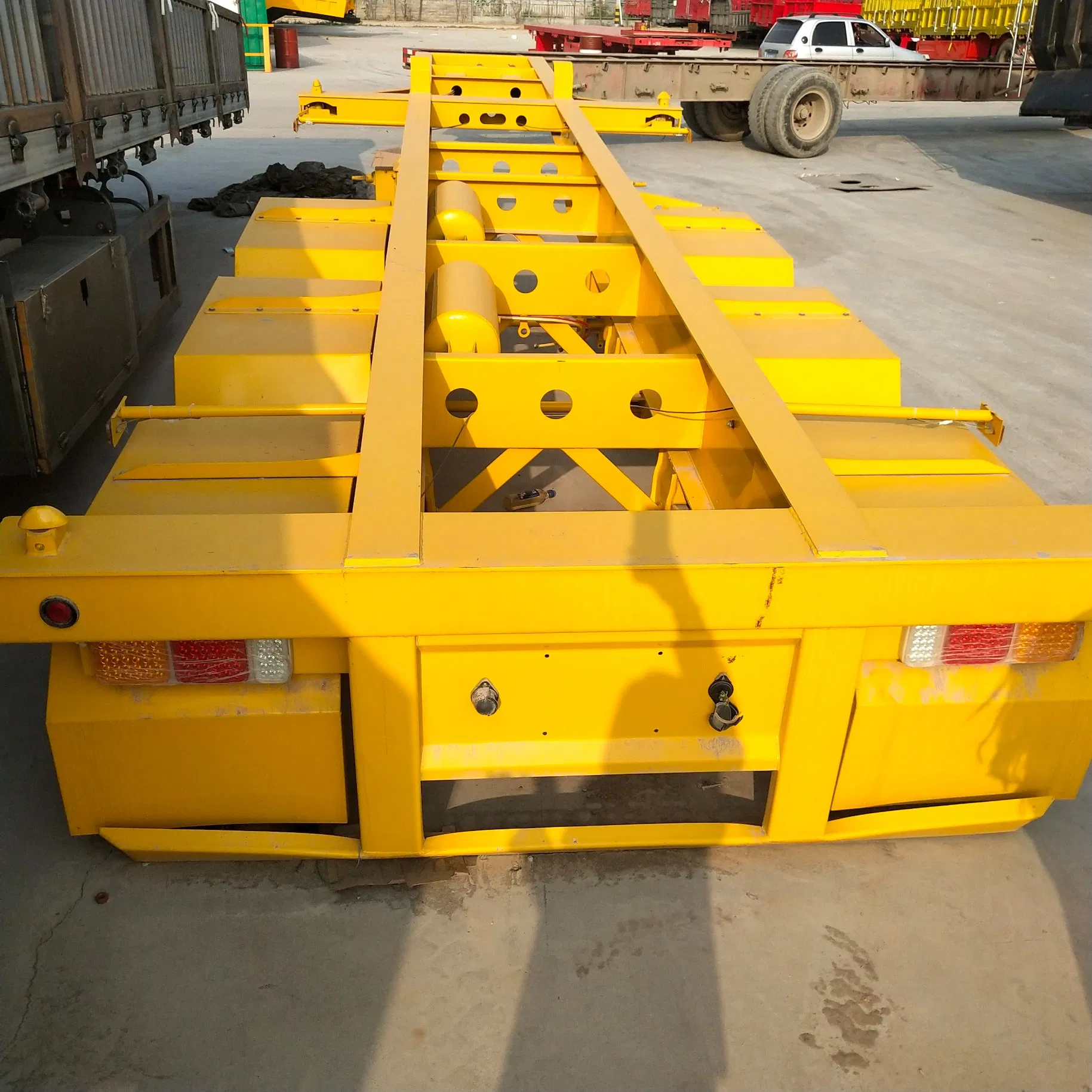

This trailer is skeleton trailer .three axle (BPW,FUWA,YORK can be choosed) and single tire(385/65R22.5 or other twin tire 10.00-20,11.00-20,12.00-20, 10.00R20,11.00R20,12.00R20), if you need this series ,feel free to give us your detailed request. we will give you the best products,competitive price and best servise..Looking forward to your kindly reply.And you are welcome to visiting us.
We also can produce special products according to customers' requirements
The quality of our products is very good, welcome to our factory
Vehicle Use | Mainly used to transport slags, gravels, coal, ores, mineral, building material, construction materials, dinas, stone, clay, loose cargo transport |
Dimensions | 12500*2500*1550mm(optional) |
Loading Capacity | 30T ~ 100T, 24m3 ~ 45m3 |
Floor | Material Q345B, |
Main Beam | Height: 450mm-520mm, upper plate thickness is 14mm-25mm, middle plate thickness is 8mm-12mm, down plate thickness is 16mm-25mm; Material is Q345B Carbon Steel. |
Side Wall | Thickness 3~6mm |
Dumping Side | One side/ Two sides /Rear Dumping |
Axle Weight Load | 13T/16T/20T |
Axle Brand | BPW / FUWA or optional |
Suspension System | Mechanical Suspension, Air Suspension |
Wheel Rim | 8.00-20/8.5-20/8.8-20 China Brand |
Tire | 12R22.5/11R22.5/13R22.5/11.00R20/12.00R20(specificationcan be Optional) |
King Pin | JOST 2.0 inch (50mm)/3.5 inch (90mm) |
Landing Gear | JOST / FUWA 28T or according to your request |
Brake System | WABCO Valve with big chamber |
ABS | Customer optional |
Lights | Tail lamp with turn signal, brake light & reflector, side lamp etc |
Voltage | 24V |
Receptacle | 7 ways (7 wire harness) |
Tool Box | 1set standard tool box( waterproof type) |
Spare Tire Carriers | 1 pieces( Patent type) |
color | Optional |
Packing | Nude Packing (by Bulk Cargo Ship, Container Transportation, Ro-ro Ship, or Land Transportation) |

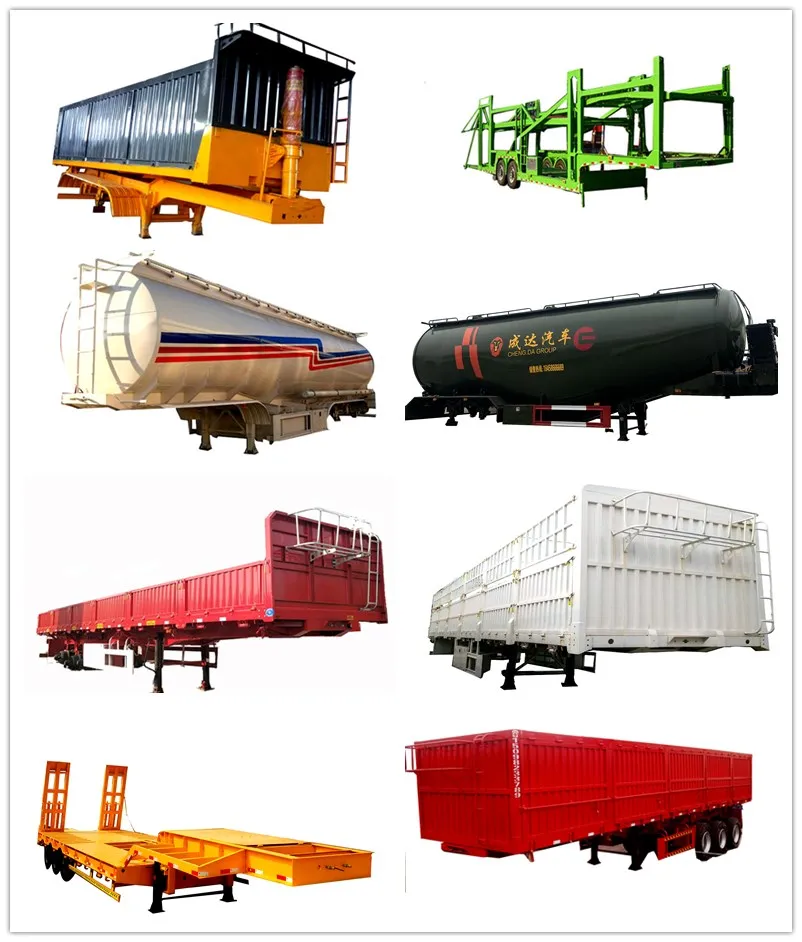

The pictures and configurations are just for your reference . We can produce many kinds of semi
trailers , like container transport semi-trailer, side wall cargo transport semi trailer and fence semi
trailer . If you have any need for semi truck, you can contact me directly, tell me your specific
requirements, the semi trailer can be customized according to your requirements.
Features
1>Strong trailer frame was made from T700 steel with lighter tare weight.
2>All cross beams are completely reinforced
3>Heavy duty type suspension:Mechanical, airbag, and bogie suspension to meet your transportation demand.

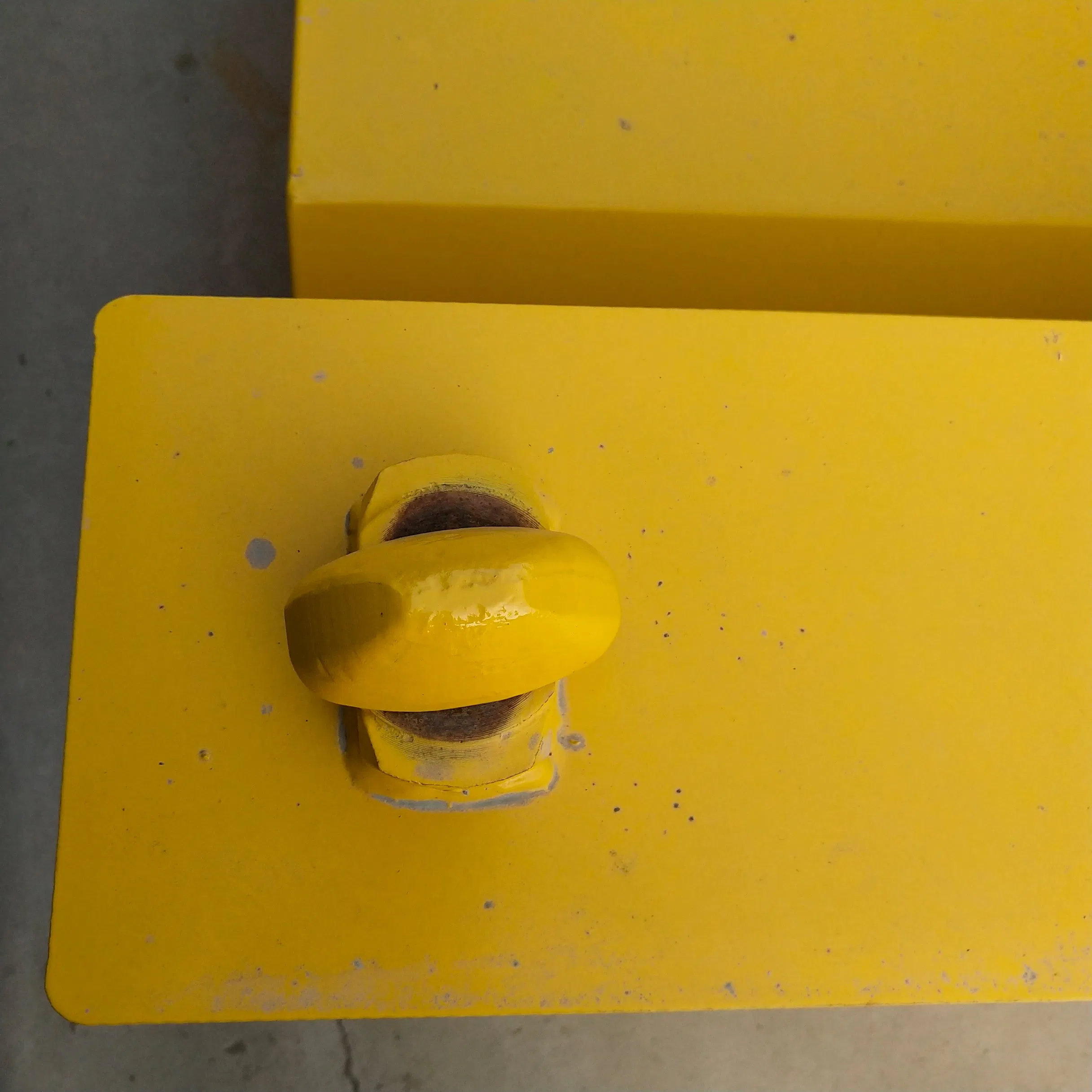

4>Strong container lock standard,ISO type,Korea type optional
5> Two pieces spare tire carriers, water tank, fuel tank, etc, are optional accessories which build modern transportation.

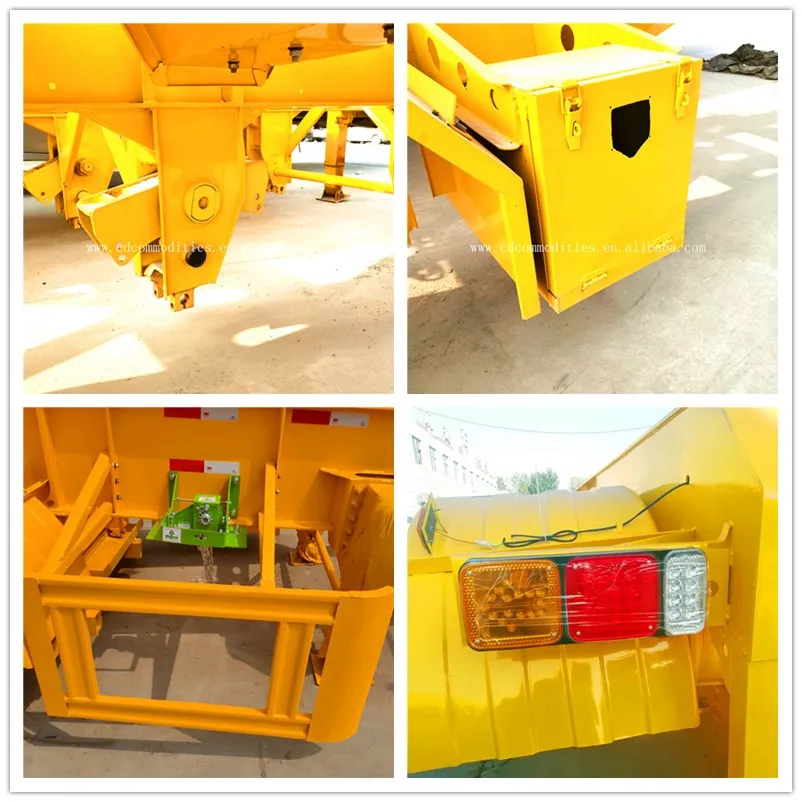

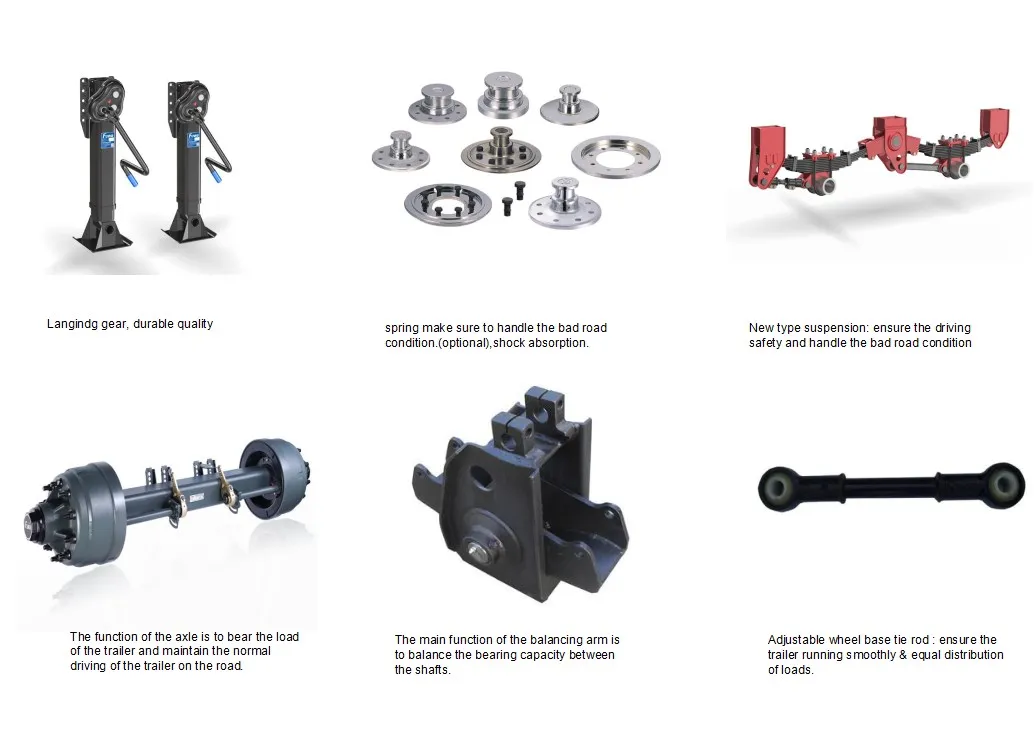

Main Parts
Company Information

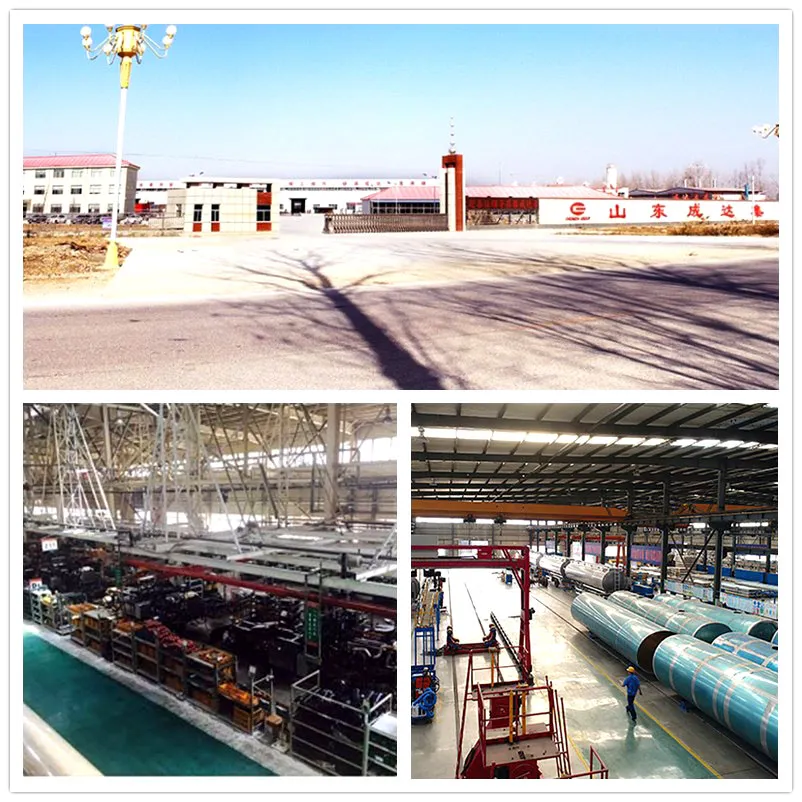

Shandong Chengda Trailer Manufacturer Co.,Ltd. established in 2005 is one of the qualified manufacturers of various trailers. Integrated production, scientific research & development and professional sales teams, all those advantages can provide the full service of trailers, semi-trailers, tractor head, dump truck, engineering machinery and trailer parts, our company is a leading provider in this industry, with annual export value reaching above 50 million dollars and revenue almost 600 million yuan RMB.With high standard machinery and automatic equipment, powerful R&D team and elite sales team, We have built a long business relationship with many world famous enterprises such as SINOTRUK,SHACMAN,FAW,DFAC,XUGONG Group,LIUGONG Group,SEM Group etc. Besides mature after-sale systems, we can meet different needs of customers both home .
Certification
1.CCC is shorted for China Compulsory Certificates, which is similar to others certificates for product quality standardization, such as European CE system. In order to obtain the CCC certificates, the manufacturer is required to do the product testing and factory audits.
2. WMI is short for World Manufacturer Identifier. Every vehicle manufacturer all over the world has one unique or several WMI.
3.All the semi trailers manufactured in our factory is in conformity with quality management system standard:GB/T19001-2008 idt ISO 9001:2008.
Shipping

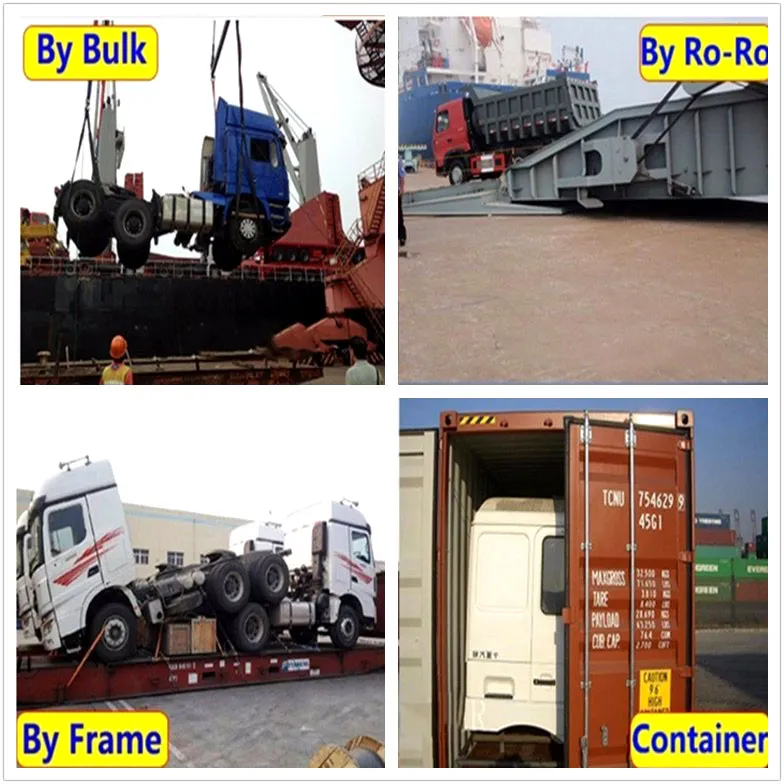

1.By bulk/Ro-Ro:If the trailers's size over the container size, we can ship it by RoRo or bulk ship,also inland transportation can be packed in nude, pulling by truck head to border.
2.By container:If the ordinary trailer within 11.8m,can be loaded by 40ft HC;tankers within 40000 liters or 40CBM also application for this transportation method.
Related products
Our advantages
1. The frame of the Trailer adopts the space frame structure of welding the longitudinal beam and the integral through type cross beam. It is outstanding in strength, rigidity, toughness and bearing capacity. Meanwhile, the frame won't come out with permanent deformation.
2. The height of side wall can adopts 800mm and the height of trailer is 300mm, the side wall without removing when carry the 40ft 20ft containers.
3. trailer adopts excellent brake effects.the axles are equipped with WABCO emergency brake valve also dual-brake chambers also widen brake pads.
4. chengda Trailer adopts premium steel material, advanced technology and strict production to our semi-trailer. The trailer chassis automatic submerged arc welding to ensure the welding seal solid.
Our services
Service:Customers can enjoy great purchase process from our professional sales team. With professional and mature after-sales systems, our service to you does't end after you receive the cargo from our company, it is just a new beginning of our cooperation.
Main Markets:Our company has enjoyed great preference by customers from African, South America, middle east, North Asia, South Asia and South east Asia. So far we have export to Philippines, Malaysia, Indonesia, Bangladesh, Myanmar, Vietnam, Angola, Tanzania, Congo, Nigeria, Mozambique, Uganda, Fiji, Ethiopia, Somalia, Iraq, Djibouti, Namibia, Zimbabwe, Liberia, Chile, Peru, Uruguay, Argentina etc.
Our company's future vision: become a globally-famous and long-standing corporation.
Our company's Mission: Share interests and happiness with all partners.
Warranty
| Warranty | Item Name | Warranty | ||||
| Main Frame | Frame | 12 Months | Running Gear | Axles | 6 Months | |
| King Pin | 12 Months | Tires | 6 Months | |||
| Suspension | 6 Months | Axle Bear | 3 Months | |||
| Balance Arm | 3 Months | Wheel Hub | 3 Months | |||
| Item Name | Warranty | Item Name | Warranty | |||
| Braking Device | Air Reservoir | 6 Months | Support Device | Landing Gear | 6 Months | |
| Braking Chamber | 3 Months | Spare Wheel Carrier | 6 Months | |||
| Braking Drum | 3 Months | |||||
| Item Name | Warranty | |||||
| Other Item | Leaf Spring | 3 Months | ||||
