Multiple Hydraulic Jacking Tanks Side Unload Dump Tipping Trailer 40-120cbm 3 Axles 60ton Side Tipper Truck Trailer
Multiple Hydraulic Jacking Tanks Side Unload Dump Tipping Trailer 40-120CBM 3 Axles 60Ton Side Tipper Truck TrailerParameters Information Product ProductDump/Tipper trailer TIPPING TRAILER Brand NameCHHGC BrandModel NumberZCZ9400ZZXHJDOEM partsAvailablePlace of OriginHenan province, ChinaColorAny c......
Send Inquiry
Product Description
Multiple Hydraulic Jacking Tanks Side Unload Dump Tipping Trailer 40-120CBM 3 Axles 60Ton Side Tipper Truck Trailer
Parameters
Our Products
Workshop
Applications
1. This series dump trailer,dumper trailer,dumping trailer ,tipping trailer,tipper trailer,tip semi trailers, are mainly used in heavy duty transportation for c bulk cargo transporting such as sand,grain,stone or fruit.Also the side wall of them are detachable.So you we can use it transport standard containers.
2. The capacity is for 10tons-200tons , we can manufacture it according to your needs.
3. The axles can be Fuwa / Bpw with different tonnages by your need with price differences.
4. The suspensions can be: Air suspension, mechanic (leaf spring suspension), bogie suspension, etc
5. The loading deck can be concave beams, tire appeared cover, totally flatbed, or extendable.
6. The loading ramps can be rear end designed, or front loading ladders, which can be mechanic spring ladders and hydraulic loading ramps by different needs.
Product Advantages
1.The steel material f the superstructure is completely upgraded to mangannese steel and 610L steel;
2.Widened and thickened pillars and ribs;
3.The longitudinal beams of the frame sufficiently utilized the height;
4.Wide tail+middle balance stand structure;
5.Powerful pump and large pipes of hydraulic system;
6.Ultra-large cast steel lock hook+manual hook of the rear body;
7.The thickened channel steel of rear body+full welds;
8.Safety,energy-saving,high efficiency,elegance,practical and environment-friendly;
9.The subframe adopts retangular tube longitudinal beams;
10.The tilting seat adopts enlarged and thickened cast steel part to realize stable and smooth lifting.
The main components of the warranty period(See table):
Packaging & Delivery
FAQ
1. Can i have samples of this type of trailer to test the quality?
Yes, you can buy any samples to test the quality, our MOQ is 1 set.
2. What's the delivery time and can you lower the price?
It depends on your order. The delivery time is within 15 workdays after we received your prepayment. If you have place an order of large quantities, then, of course, the price can be lowered.
3. Can i customize the painting and the logo?
Yes, we offer customized logo for any type.
4. What's the payment method?
TT 30% as Deposit, Balance Before shipment by TT or L/C at sight.
Why US?
1- Since 1995, With over 20yrs experience
2- 2 Years Guarantee for all the the beam of trailers
3- Reliability, Safety and Economic Transport solutions.
4- Custom Production according to demand
5- Strict quality control, out-standing quality assurance
6- Stock Trailers and immediate delivery
7- After-sale service available, Email will be reply within 8 hours.
Our Advantages
1- With well experienced semi trailer production company to offer high quality and competitive prices semi trailer to our worldwide valuable customers.
2- An professional team which is experienced with international market and has strong technical capability to customized cost effective.
3- Sell well in the international markets, such as African market ( Sudan, Angola, Zimbabwe, Liberia, Djibouti, Congo, Kenya, Ghana ect. ), Middle East, South Asia and South-America market.
4- 2 Years Guarantee for all the the beam of trailers, timely shipment.
Quality Control
1- For Each trailer, we should do the testing and inspect the quality.
2- We give inspection certificate according to customer demand for every trailer which given by an independent third party certification company.
3- We provide out-standing quality assurance.
4- No any quality complaints for 9 years.
Perfect Service & Support
1- Whenever reliability, safety and economic is needed, there is a a solution. CHHGC provides the best possible quality semi trailers to worldwide valuable customers.
2- With a full range of trailer spate parts support, spare parts supplying within 3 days.
3- Seriously consider customer's requirements, and welcome different cooperation mode.
4- Provide professional trailer drawing.
5- Considerate after-sales service & product maintenance.
Feel free to contact and looking forward to your visiting factory.
Parameters
| Information Product | |||||
| Product | Dump/Tipper trailer TIPPING TRAILER | | |||
| Brand Name | CHHGC Brand | ||||
| Model Number | ZCZ9400ZZXHJD | ||||
| OEM parts | Available | ||||
| Place of Origin | Henan province, China | ||||
| Color | Any color will be available | ||||
| Manufacturer | Henan Haiheng Import and Export Co., Ltd | ||||
| Product Specifications | |||||
| Parameter | |||||
| Outside Dimensions (L*W*H) | 9000*2490*3460(mm) | ||||
| Rated Load | 60ton | ||||
| Tare Weight | More than7000kgs | ||||
| Wheel Base | 8480+1310 (mm) | ||||
| Hydraulic cylinder | HAYA or customized | ||||
| Running Gear | |||||
| Tires | specification | 12R22.5 ,11.00R20 or depends on customer | |||
| No. of tires | 8,12,16 or more than 20 | ||||
| Brand | Double coin,Bridge stone,Tri-angle or Michelin | ||||
| Spare tire carriers | 2 or 1 including a riser. | ||||
| Axles | Brand : | FUWA (BPW German optional or JINSHENG) | |||
| No. of axles: | 2,3 4 or more than 5 | ||||
| Axle-load | 13000kgs | ||||
| Wheel rim | 8units of 7.50-20 rim or 8.00 | ||||
| Suspension | Rigid suspension and air suspension | ||||
| Pieces of leaf-spring | 10/10/10 | ||||
| Brakes | brand | TKL brand | |||
| Brake chamber | 4 double chamber | ||||
| System | Dual line braking system /ABS | ||||
| Under Frame | |||||
| Departure Angle | 14 | ||||
| Front/Rear Overhang | 1670mm | ||||
| Main Beam | material | I beam ,Q345B , automatic submerged arc welded | |||
| specification | Height is 500mm,upper plate is14mm,lower plate is 16mm,middle is 10mm | ||||
| Cross Beam material | Q235B | ||||
| Side beam | 16# channel steel | ||||
| Plate form | Steel Sheet 5mm thickness or diamond plate(Also can choose other thickness ,such as 2mm,2.5mm,3mm,4mm,5mm,6mm) | ||||
| King Pin | 50# or 90# | ||||
| Landing gear | Single side operation or double side operation, Static capacity 28Ton | ||||
| Accessory | One tooling box with a set of standard trailer tool | ||||
| Electrical | |||||
| Voltage | 24V | ||||
| Receptacle | 7 ways (7 wire harness) | ||||
| Lights | Front corner marker lamp :red ;reflector lamp :white | ||||
| Side marker :orange | |||||
| Rear lamp :red; rear reflector :white; turn single lamp :orange | |||||
| Other | |||||
| Usage | The height of the cargo's carrying platform is 800-1290mm, is suitable For the transportation of the large and non-dismantled objects. | ||||
| Other Specifications | The max height of the rear guard from ground is 420mm | ||||
| Other Descriptions | The whole body of tipping trailers adopts steel with good quality, and be manufactured by advanced skills and strict producing managerial processes. The frame is wearing structure, webs made from manganese plates from 400mm to 550mm high welded the upper and lower flange plates together, and the beam runs through the longitudinal beam makes the two parts a very strong unit by automatic submerged arc welding. Frame using peen-forming processing. | ||||
| Painting ,marking and side guard can according to the customer's requirement | |||||

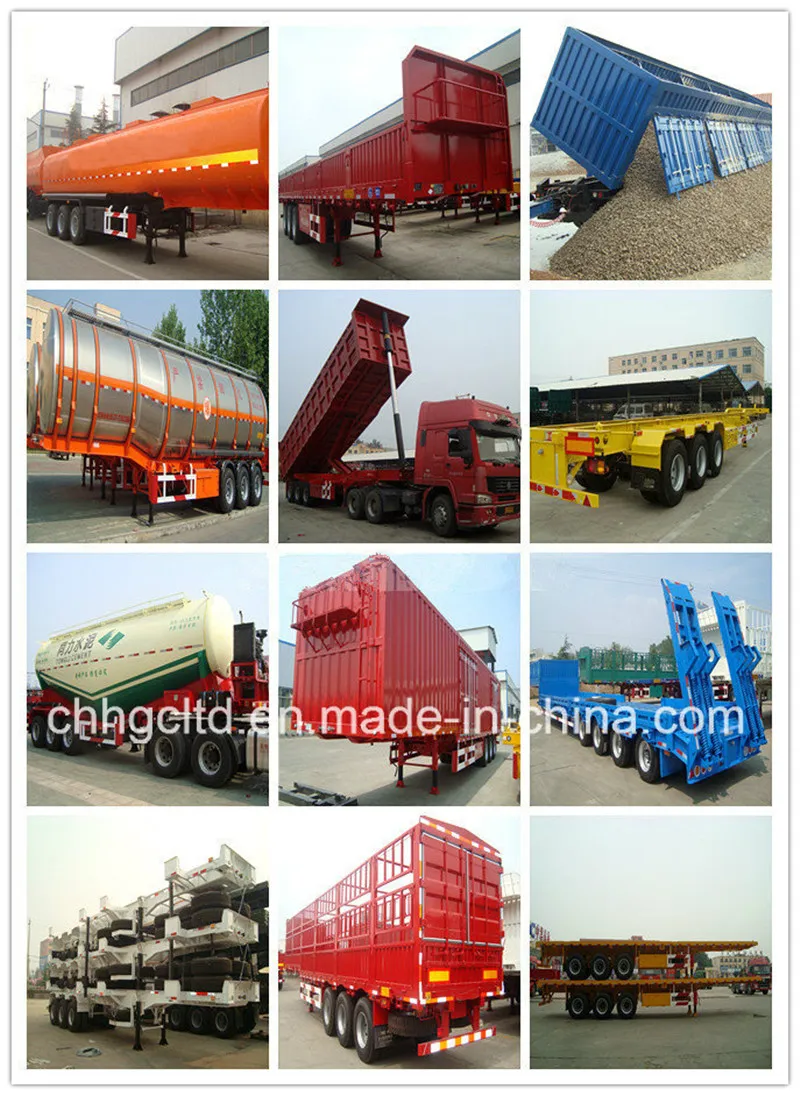

Our Products

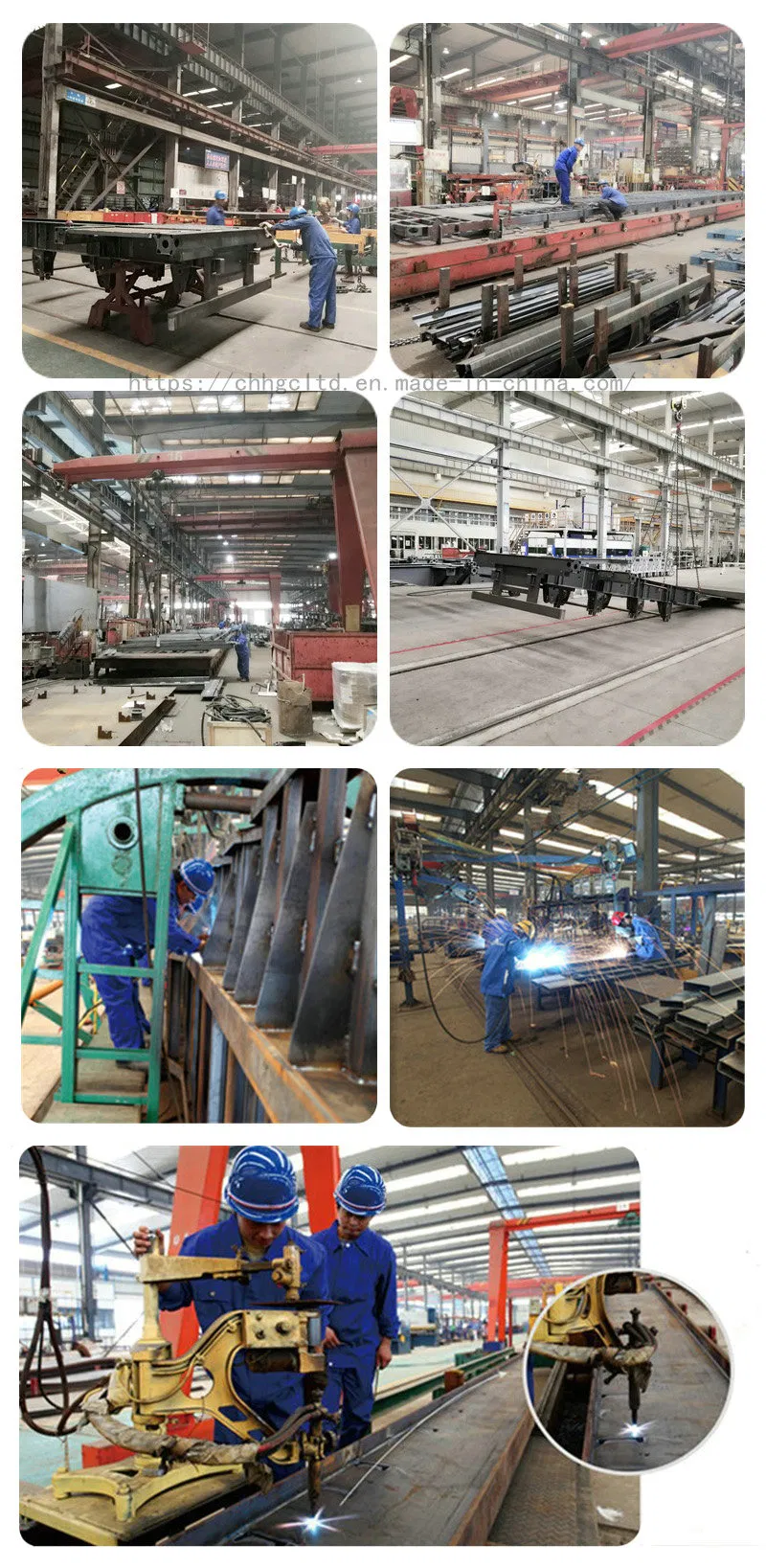

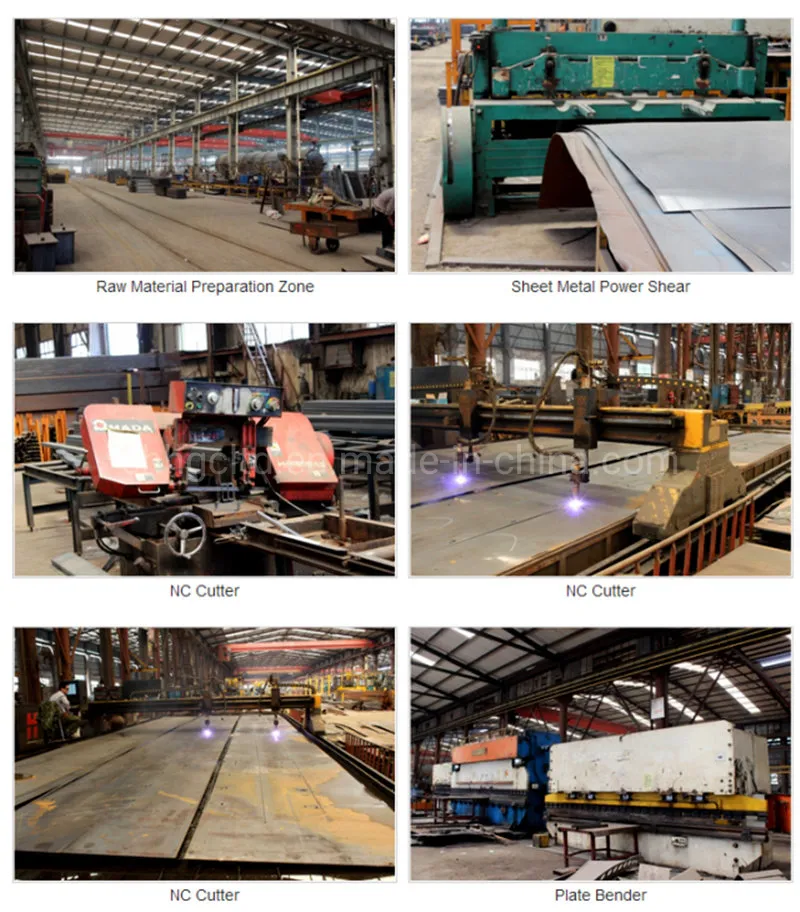

Workshop
Applications
1. This series dump trailer,dumper trailer,dumping trailer ,tipping trailer,tipper trailer,tip semi trailers, are mainly used in heavy duty transportation for c bulk cargo transporting such as sand,grain,stone or fruit.Also the side wall of them are detachable.So you we can use it transport standard containers.
2. The capacity is for 10tons-200tons , we can manufacture it according to your needs.
3. The axles can be Fuwa / Bpw with different tonnages by your need with price differences.
4. The suspensions can be: Air suspension, mechanic (leaf spring suspension), bogie suspension, etc
5. The loading deck can be concave beams, tire appeared cover, totally flatbed, or extendable.
6. The loading ramps can be rear end designed, or front loading ladders, which can be mechanic spring ladders and hydraulic loading ramps by different needs.
Product Advantages
1.The steel material f the superstructure is completely upgraded to mangannese steel and 610L steel;
2.Widened and thickened pillars and ribs;
3.The longitudinal beams of the frame sufficiently utilized the height;
4.Wide tail+middle balance stand structure;
5.Powerful pump and large pipes of hydraulic system;
6.Ultra-large cast steel lock hook+manual hook of the rear body;
7.The thickened channel steel of rear body+full welds;
8.Safety,energy-saving,high efficiency,elegance,practical and environment-friendly;
9.The subframe adopts retangular tube longitudinal beams;
10.The tilting seat adopts enlarged and thickened cast steel part to realize stable and smooth lifting.
The main components of the warranty period(See table):
ITEM NAME | WARRANTY | ITEM NAME | WARRANTY | |||
| MAIN FRAME | FRAME | 1 YEAR | RUNNING GEAR | AXLE | 6 MONTHS | |
| SUSPENSION | 6 MONTHS | AXLE BEARING | 3 MONTHS | |||
| KING PIN | 1 YEAR | WHEEL HUB | 3 MONTHS | |||
| BALANCE ARM | 3 MONTHS | TIRE | 6 MONTHS | |||
| ITEM NAME | WARRANTY | ITEM NAME | WARRANTY | |||
| BRAKING DEVICE | BRAKE DRUM | 3 MONTHS | SUPPORT DEVICE | LANDING GEAR | 6 MONTHS | |
| BRKE CHAMBER | 3 MONTHS | SPARE WHEEL CARRIER | 6 MONTHS | |||
| AIR RESERVOIR | 6 MONTHS | |||||
| ITEM NAME | WARRANTY | |||||
| OTHERS | LEAF SPRING | 3 MONTHS | ||||
| BRAKE CHAMBER DIAPHRAGM | 3 MONTHS | |||||
| EMERGENCY RELAY VALVE | 3 MONTHS | |||||
| BRAKE SHOE | 3 MONTHS | |||||
| RELAY VALVE | 3 MONTHS | |||||
Packaging & Delivery
Packaging Details: | N/M,in nude, or make the packaging according to custom's requiryment. |
|---|---|
| Delivery Detail: | within 20 workdays after deposit |
FAQ
1. Can i have samples of this type of trailer to test the quality?
Yes, you can buy any samples to test the quality, our MOQ is 1 set.
2. What's the delivery time and can you lower the price?
It depends on your order. The delivery time is within 15 workdays after we received your prepayment. If you have place an order of large quantities, then, of course, the price can be lowered.
3. Can i customize the painting and the logo?
Yes, we offer customized logo for any type.
4. What's the payment method?
TT 30% as Deposit, Balance Before shipment by TT or L/C at sight.
Why US?
1- Since 1995, With over 20yrs experience
2- 2 Years Guarantee for all the the beam of trailers
3- Reliability, Safety and Economic Transport solutions.
4- Custom Production according to demand
5- Strict quality control, out-standing quality assurance
6- Stock Trailers and immediate delivery
7- After-sale service available, Email will be reply within 8 hours.
Our Advantages
1- With well experienced semi trailer production company to offer high quality and competitive prices semi trailer to our worldwide valuable customers.
2- An professional team which is experienced with international market and has strong technical capability to customized cost effective.
3- Sell well in the international markets, such as African market ( Sudan, Angola, Zimbabwe, Liberia, Djibouti, Congo, Kenya, Ghana ect. ), Middle East, South Asia and South-America market.
4- 2 Years Guarantee for all the the beam of trailers, timely shipment.
Quality Control
1- For Each trailer, we should do the testing and inspect the quality.
2- We give inspection certificate according to customer demand for every trailer which given by an independent third party certification company.
3- We provide out-standing quality assurance.
4- No any quality complaints for 9 years.
Perfect Service & Support
1- Whenever reliability, safety and economic is needed, there is a a solution. CHHGC provides the best possible quality semi trailers to worldwide valuable customers.
2- With a full range of trailer spate parts support, spare parts supplying within 3 days.
3- Seriously consider customer's requirements, and welcome different cooperation mode.
4- Provide professional trailer drawing.
5- Considerate after-sales service & product maintenance.
Feel free to contact and looking forward to your visiting factory.
