Machinery Carrier 3 Axle Lowbed Truck Semi Trailer
machinery carrier 3 axle lowbed truck semi trailer Trailer Features :1. SINOTRUK brand and CCC/ISO9001 certificate approved;2. BPW/FUWA/HJ/AQ brand 12/13/14/15/16 ton axles optional;3. Specialized mechanical suspension for low bed trailer reduces deck height;4, 2x250 mm movable plates on each more......
Send Inquiry
Product Description
machinery carrier 3 axle lowbed truck semi trailer

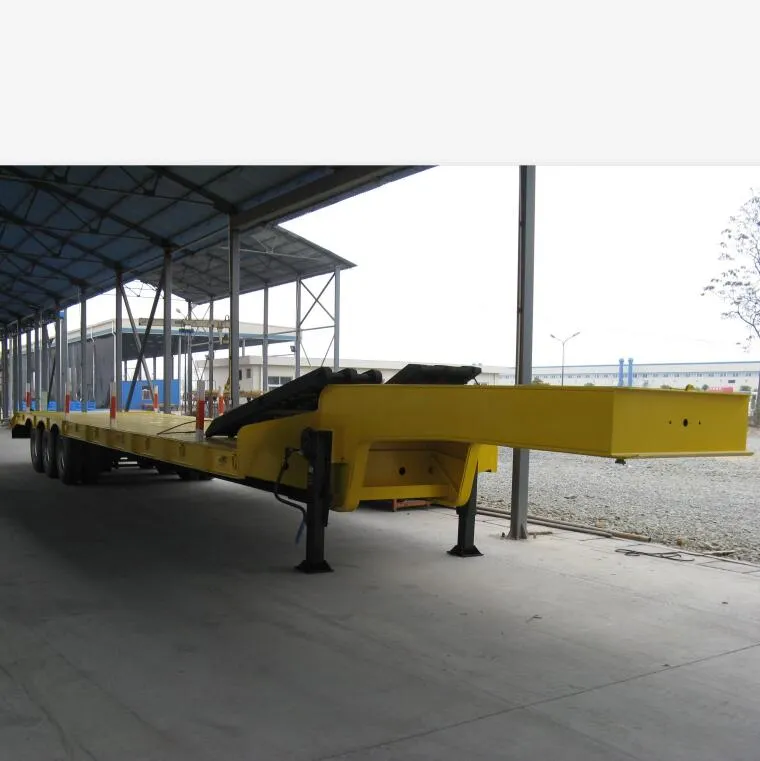

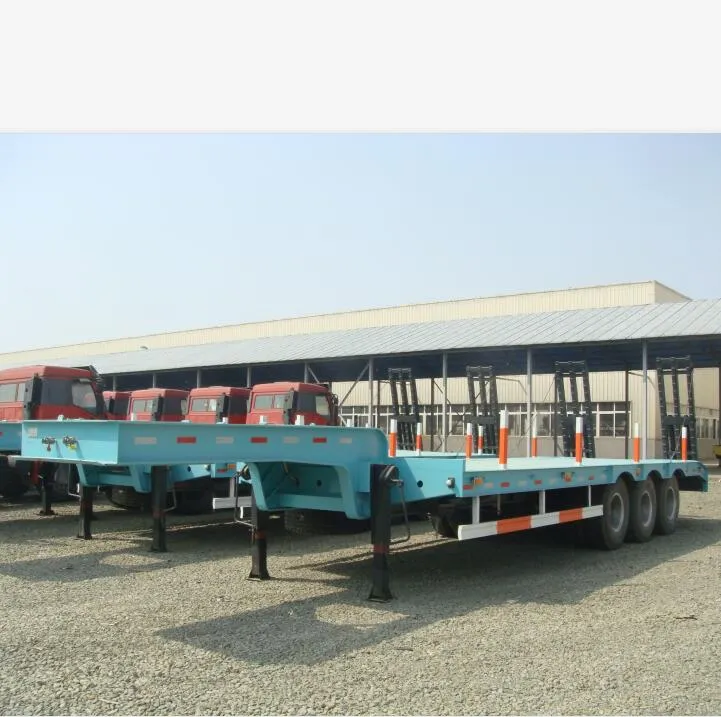

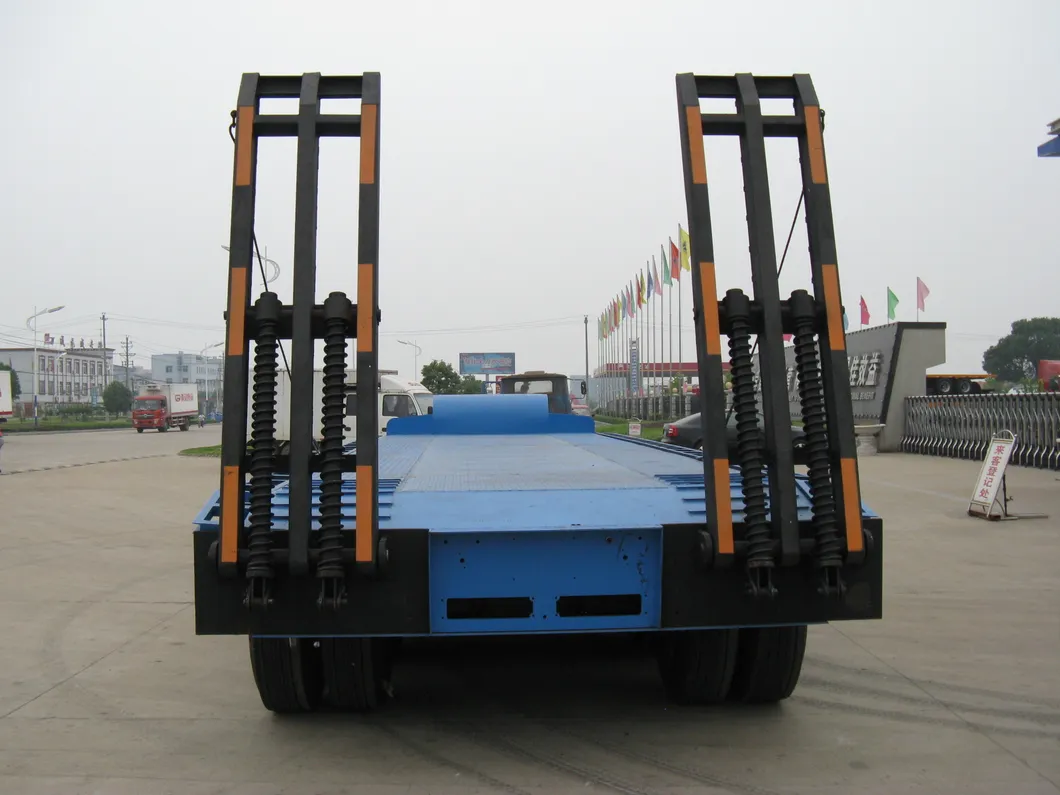

Photo of Products

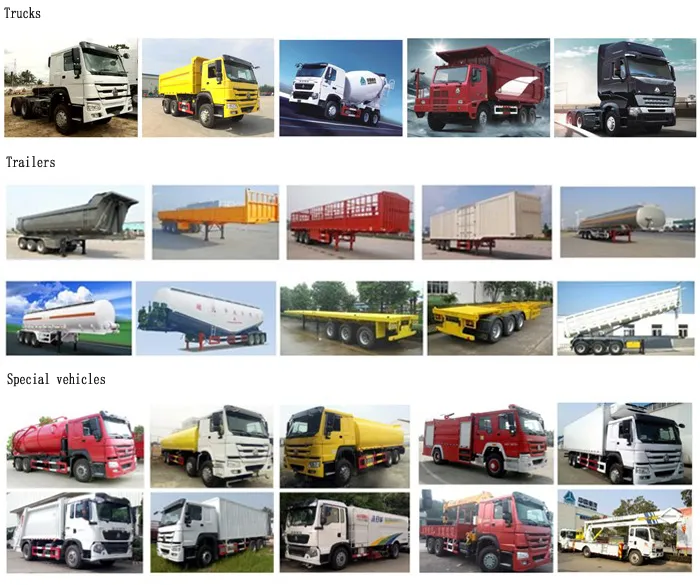

Popular products:
Shipment:
Why choose us:
SINOTRUK HUAWIN is key branch factory of SINOTRUK Group. SINOTRUK HOWO and A7 are sold well in overseas market with good feedback. SINOTRUK HQ makes truck chassis and we make the truck body and trailers. Our trailers have been provided to Australia since 2009.

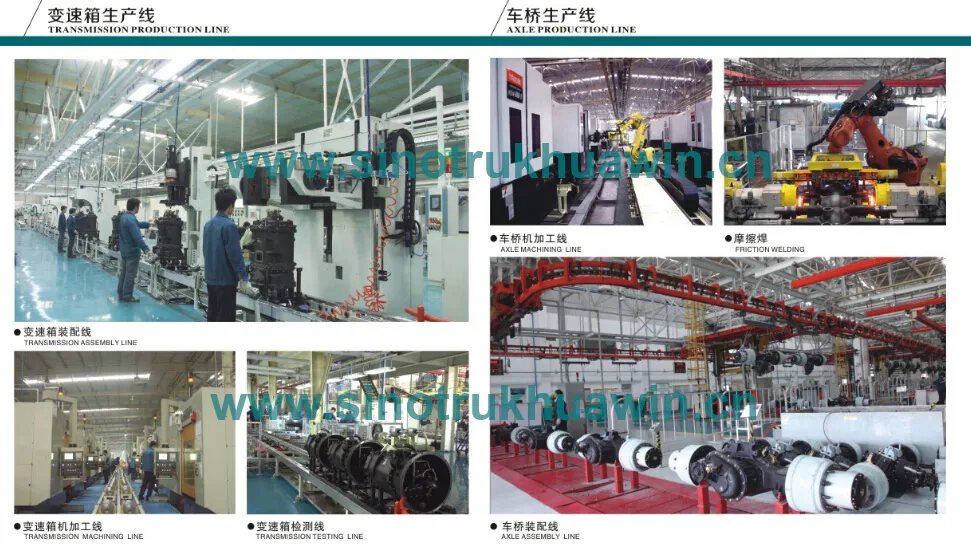

Welcome to our factory!

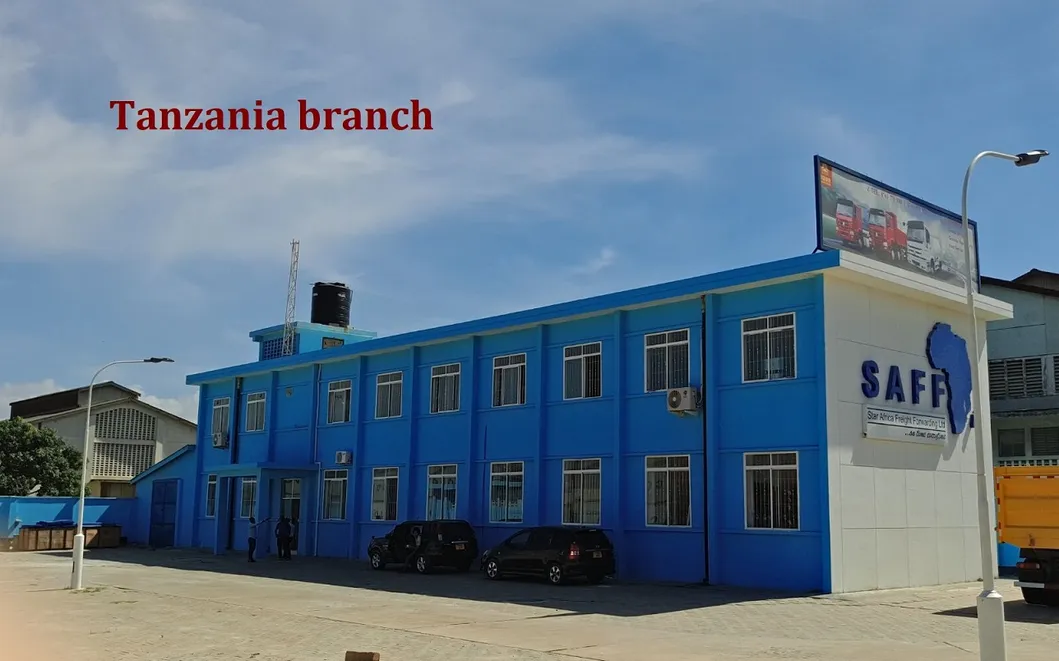

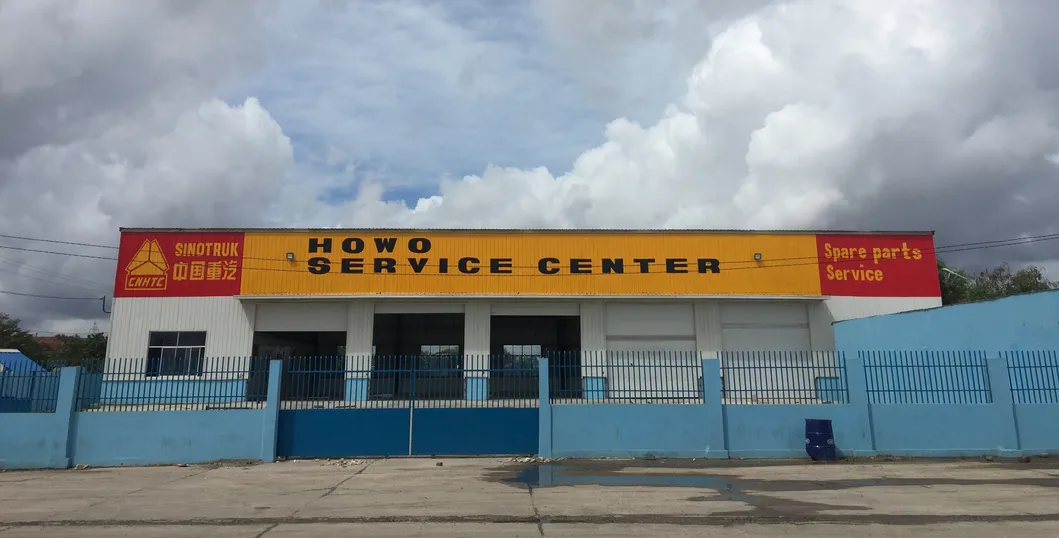

Tanzania Branch:
Trailer Features :
1. SINOTRUK brand and CCC/ISO9001 certificate approved;
2. BPW/FUWA/HJ/AQ brand 12/13/14/15/16 ton axles optional;
3. Specialized mechanical suspension for low bed trailer reduces deck height;
4, 2x250 mm movable plates on each more practical;
5, 1-line/2-axle structure optional;
6, 40 years experience in design and manufacture.
Technical Parameters
| DIMENSIONS | |||
| Tare Weight | 9000-13000 kg | ||
| Overall Length | 12000-17000 mm | ||
| Overall Width | 3000-4000 mm | ||
| Payload | 40000-60000 kg | ||
| SPECIFICATIONS | |||
| I Beam & Chassis | Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 18-25 mm; Middle Flange10-14 mm, Bottom Flange 20-25 mm. | ||
| Axle | 3 axles | ||
| BPW/FUWA/HJ 12/13/14/15/16 ton axles | |||
| Suspension | Heavy duty air/mechanical suspension | ||
| Floor | 3-6 mm checker plate | ||
| King Pin | JOST brand 2" or 3.5" Bolt-in King Pin | ||
| Landing Gear | JOST brand Two-speed, manual operating, heavy duty landing gear | ||
| Wheel Rim | 5.5-15,8.25-22.5, 9.0-22.5, wheel rim 12 pieces | ||
| Tire | 8.25R15, 295/80R22.5,11R22.5 tire, 12 pieces | ||
| Ramp | Mechanical /hydraulic ramp | ||
| Spare Tire | One set of spare tire including a carrier | ||
| Braking System | WABCO RE 4 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks | ||
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint | ||
| Accessories | One standard tool box | ||

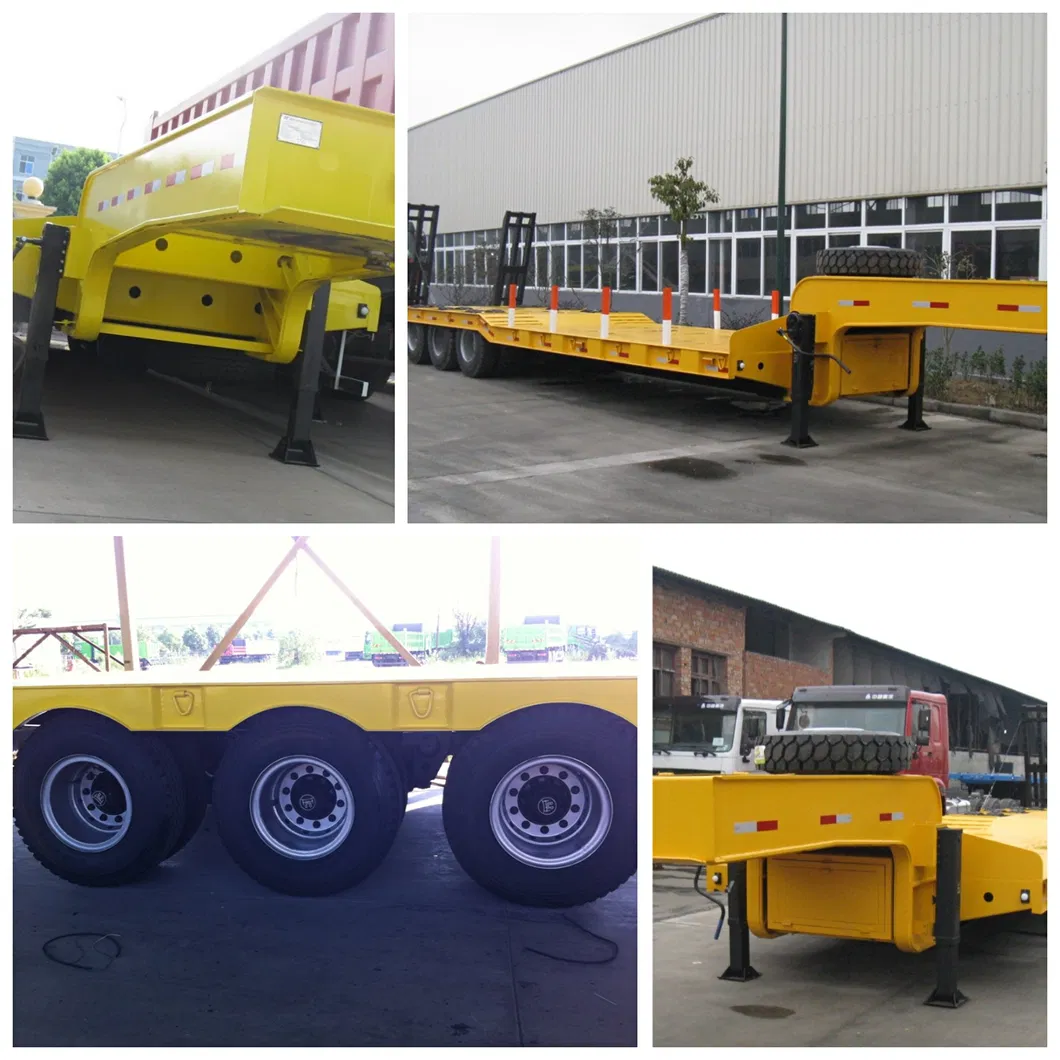

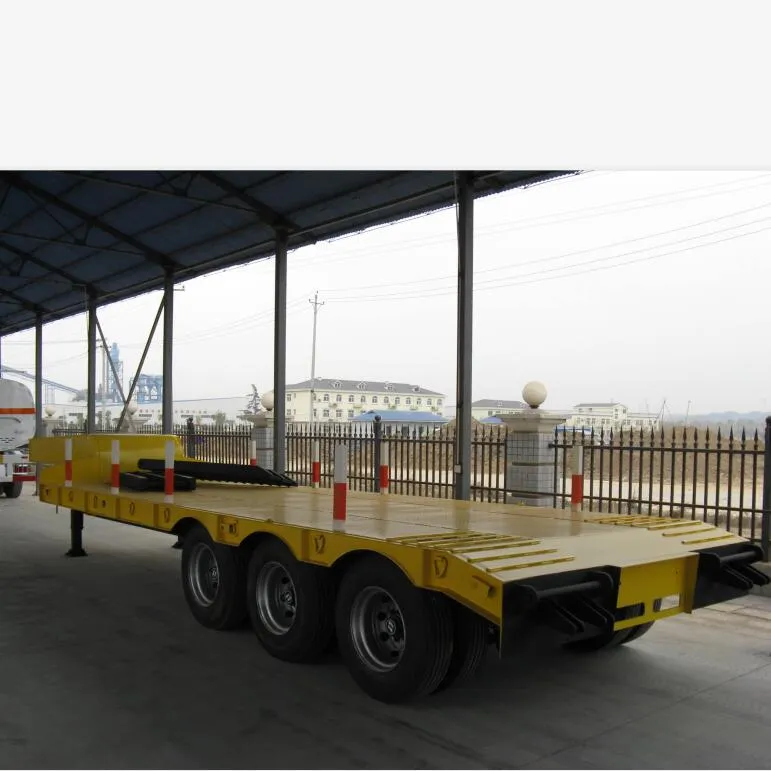

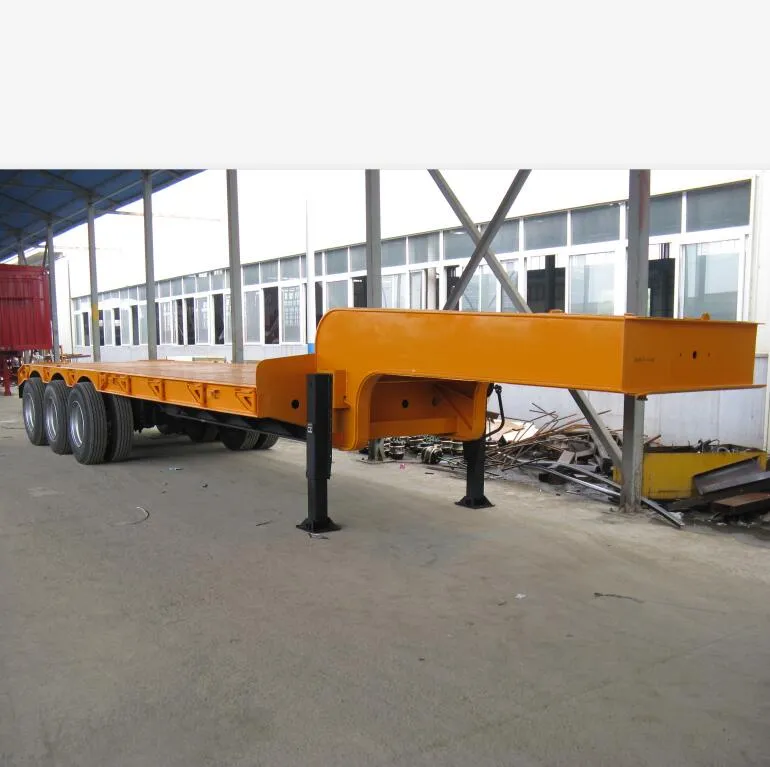

Photo of Products
Popular products:
Shipment:
Why choose us:
- SINOTRUK is the oldest and NO. 1 factory in China heavy-duty truck field. We work with Steyr and MAN.
- As branch factory of SINOTRUK Group, we'll provide you factory-direct prices.
- Mature technology, advanced production equipment, Strict quality control.
- SINOTRUK has branches in over 40 countries, over 160 distributors, over 330 service centers and over 310 spare parts showrooms in overseas market.
- Competitive factory price and excellent quality
- More than 20-year experience as a manufacturer
- Products quality certification SGS CCC ISO
- Perfect after-sale service
- Customized products available with us
- Export to more than 50 countries and regions
- Oversea warehouse with more than 100,000 US dollars spare parts in stock
- Oversea office with more than 15 professional engineers to help local customers
- One year / 100,000KM quality guarantee for three key parts (engine, transmission, axles), whichever comes first.
- Other spare part could be supplied by OEM at cost price.
- Regularly callback to know the vehicles working status.
- Overseas engineers are always ready to be at service
SINOTRUK HUAWIN is key branch factory of SINOTRUK Group. SINOTRUK HOWO and A7 are sold well in overseas market with good feedback. SINOTRUK HQ makes truck chassis and we make the truck body and trailers. Our trailers have been provided to Australia since 2009.

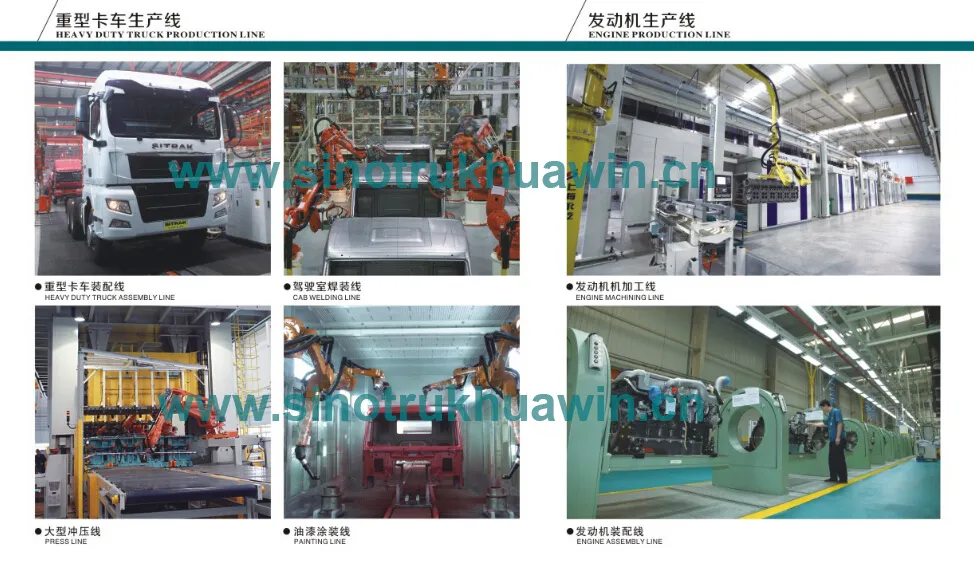

Welcome to our factory!
Tanzania Branch:
