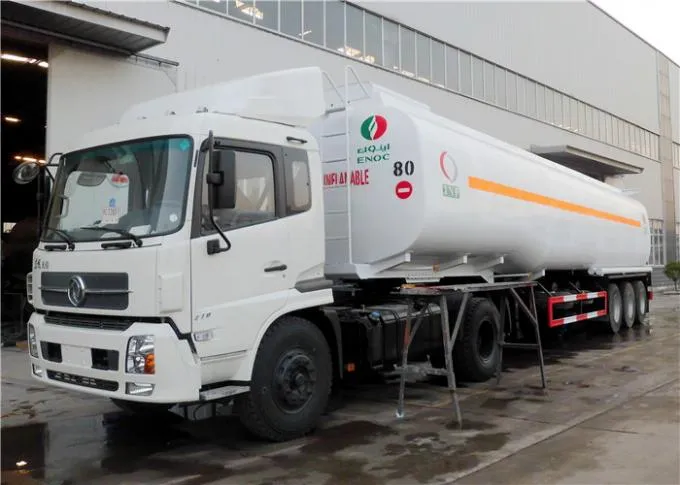

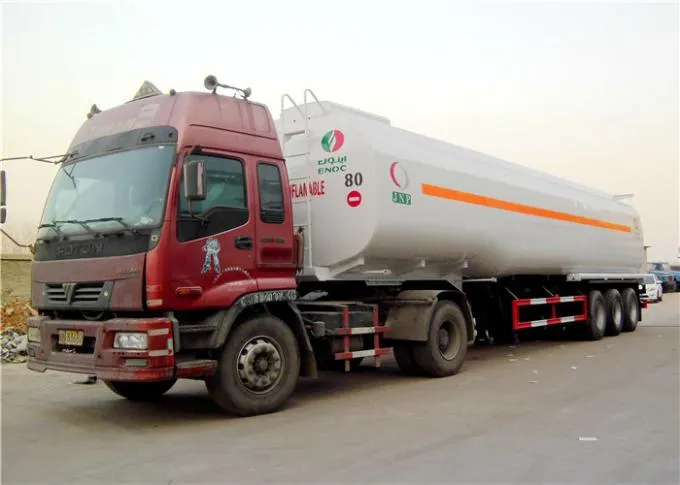

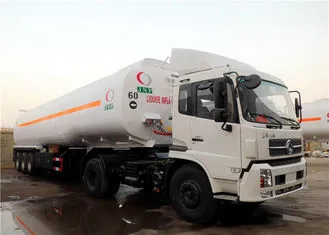

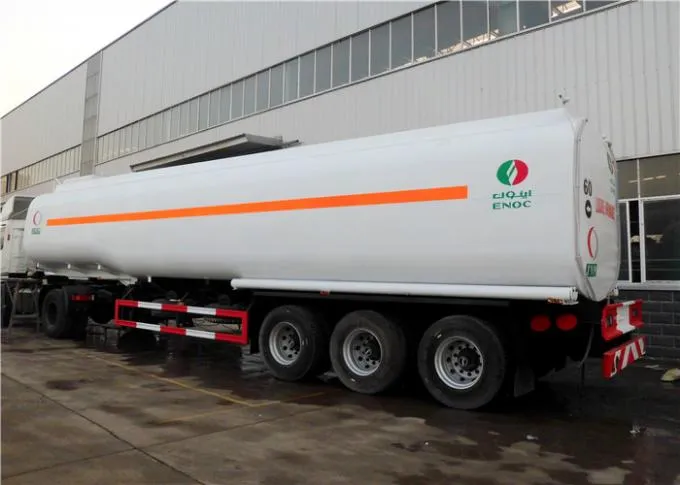

Heavy Duty 3 Axle 60000L 60m3 Oil Transport Tanker Semi Trailer, Fuel Tank Trailer
2 axle 3 axle or 4 axle 42000L oil transport tank trailer 42000L-60000L fuel tank trailer for sale, factory sale 42cbm fuel/oil tank trailer 42000L fuel/oil tank semi trailerTank material: Carbon steel, Stainless steel, aluminum alloy for option. gasoline tank trailers, gasoline trailer, fuel tank s......
Send Inquiry
Product Description
2 axle 3 axle or 4 axle 42000L oil transport tank trailer 42000L-60000L fuel tank trailer for sale, factory sale 42cbm fuel/oil tank trailer 42000L fuel/oil tank semi trailer
Tank material: Carbon steel, Stainless steel, aluminum alloy for option.
gasoline tank trailers, gasoline trailer, fuel tank semi trailer
Oil tanker truck, fuel tanker truck, petroleum tanker truck, which are mainly used for transporting oil.
some oil tanker truck could be also a refueling tank truck, with refueling device.
Our company also produce the oil tank trailer,the manufactuere standard could be according to European standard.
API device.
Currently our company produce the oil tanker truck form 3000~ 35000 liters
Oil tank trailer from 40000~70000 liters.

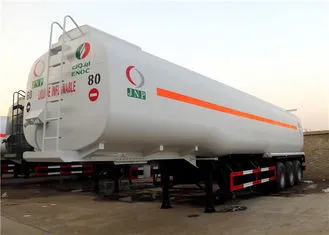

Parameter of oil tank transport semi trailer
| Main Dimensions | |||||
| Overall Length | 12900mm | ||||
| Overall Width | 2500mm | ||||
| Overall Height | 3780mm | ||||
| Tare Weight | 10600KGS | ||||
| Loading Capacity | 50m3 | ||||
| Photo only for reference, final product can be made according to exact requirements | |||||
| Tank Body | |||||
| Shape | Mono block Cylinder | ||||
| Total Volume(m3) | 50 CBM | ||||
| Tanker Body Material | 6mm carbon steel | ||||
| End plate | 6mm carbon steel | ||||
| Lifting Ladder | Including Top walkway and backside steel material | ||||
| Manhole cover | 2 manhole covers, 500mm 2 sets with 2 breather valves | ||||
| Bottom Valve | 1 sets of API Pneumatic Bottom Valve | ||||
| Top Safety Rail | 1 Set | ||||
| Discharging valve | 2 sets 100mm discharging valves | ||||
| No.of Compartment | 2 | ||||
| Discharging Pipe | 4"rubber hose, 2 pc, 6m long | ||||
| Chassis | |||||
| Main Beams | Special design I beam, connected by bolts and nuts with tanker body, removable from tanker body for separate transportation; | ||||
| Axle | 3 axles | ||||
| FUWA 13 Ton | |||||
| Landing Gear | JOST brand Two-speed, manual operating, heavy duty landing gear | ||||
| King Pin | JOST brand 2" bolt-in king pin | ||||
| Suspension | German design heavy duty mechanical suspension | ||||
| Pneumatic Braking System | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks. | ||||
| Wheel rim | 9.00-22.5 wheel rim, 13 pieces including one spare | ||||
| Tire | 12R22.5 tubeless tire with one spare tire, 13 pieces | ||||
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coats of final paint | ||||
| Accessories | One standard tool box | ||||
Other fuel tanker products we exported:

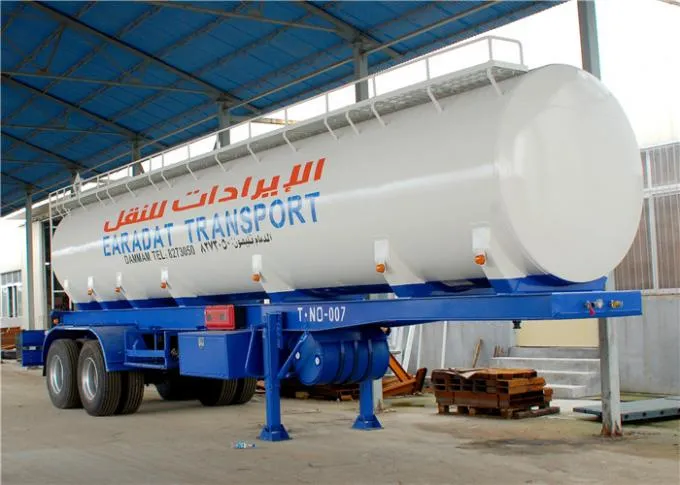

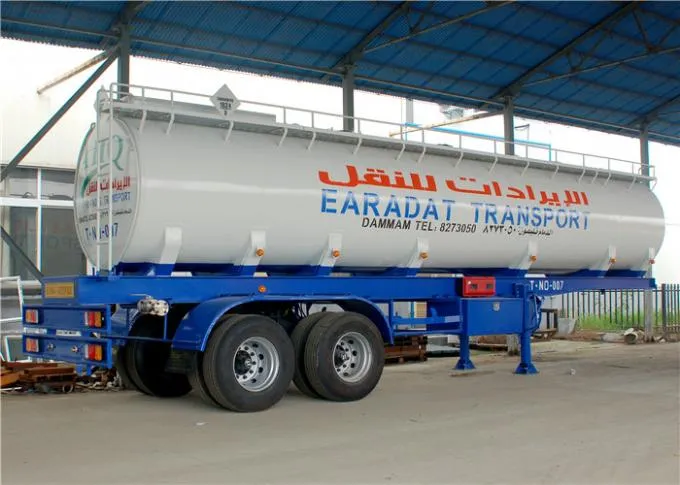

2 axle stainless steel 30000L 30M3 fuel tank trailer, oil tanker semi trailer exported Middle East

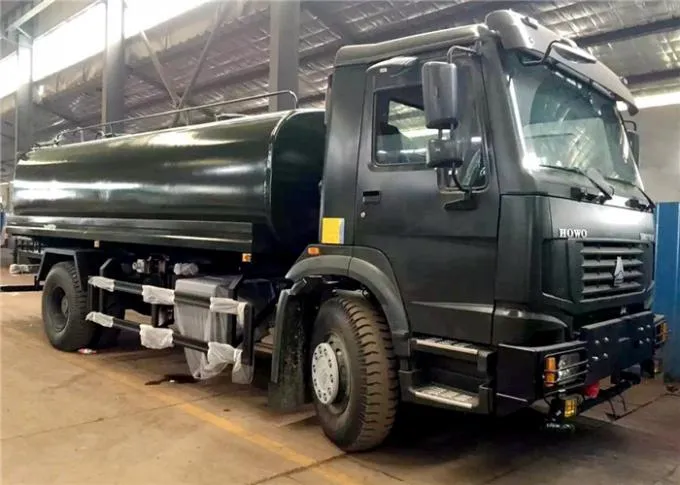

Sinotruk HOWO 4x2 266hp fuel tank truck, oil tanker truck
FAQ
1.Q: Are you a manufacturer or trading company?
A: we are manufacturer.
You are welcomed to visit our factory.
2.Q: What kind of payment do you accept?
A: We accept T/T and L/C at most.
If you want to use others payment, contact me for more info.
3.Q: What's your delivery time?
A: It depends on the products.
| Products | Delivery time |
| Low bed trailer, Container trailer, skeleton trailer, side wall trailer, | 10-15 days |
| Fuel tanker trailer, bulk cement trailer | 30 days |
| Special truck, like detachable gooseneck trailer, hydraulic modular trailer | 35 working days |
4.Q: What's warranty time?
A: Main frame, one year; Vulnerable parts,three month; Others parts, half year;
5.Q: What's your after-sale service?
A: We provide technical support for our products.
Besides, we also provide you spare parts as long as you need.

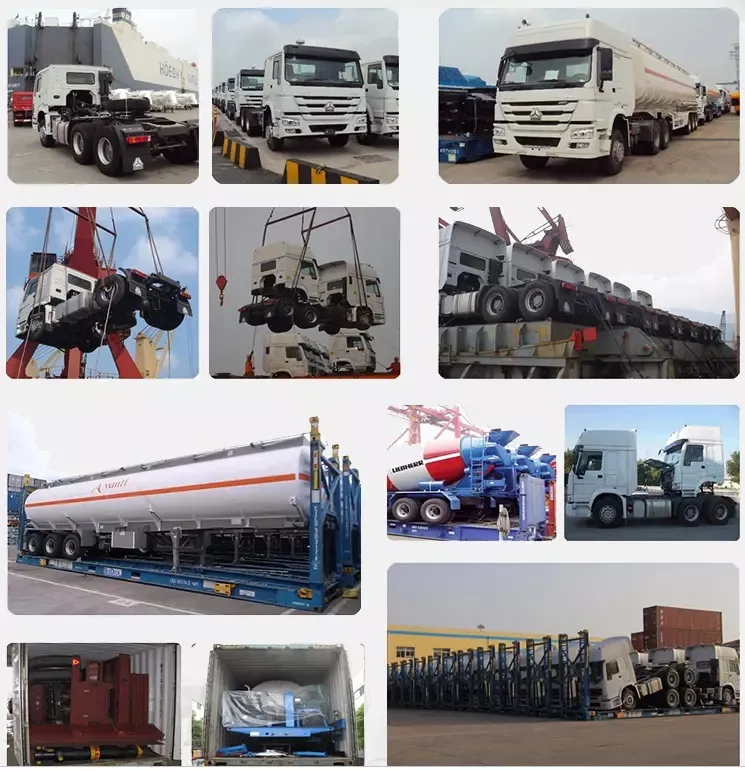

Packing & shipping
Nude and wax, shipped in bulk cargo ship, flat deck or RO-RO
(1)Wax:
Do wax spray process to against the trailer body suffer seawater corrosion during shipping
(2)Package:
Stable fixing with steel wire,to protect the trailer during shipping
(3)Shipping:
Reliable logistic service from famous freight supplier makes transport process safely and promptly
Certification
Customer visiting
Our Service
Pre-sale service:
1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
4. Data sheet and samples offer.
5. Other services, such as special packing design, factory visiting and so on.
In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
4. Free spare parts.
After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions, squares and so on.
Other Products we sell
Comany information

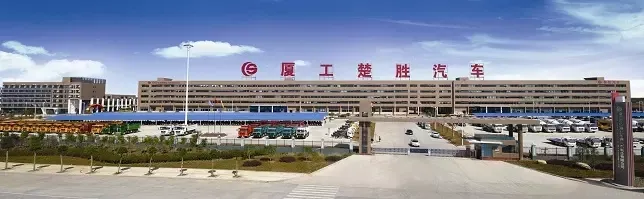

1. Xiagong Chusheng (Hubei) Special-purpose Vehicle Manufacturing Co., Ltd. is a famous and the biggest manufacturer with very professional experience in special automobile field for more than 15 years in China. We have more than 3000 workers, 400 technicians, and factory scale is more than 690,000m2.
2. Our most advantage and leading products including LPG tanker series, Water Tank, Fuel tank, Refrigerated Truck, Garbage Truck, Towing/Wrecker truck, Dump Truck, Sewage Suction Truck, Concrete Mixer Truck, Bulk Cement Truck, Van Truck, Sweeper Truck, Truck with Crane, Fire fighting Truck, High-altitude Operation Truck, Chemical Liquid Truck, Milk Transport Truck, LED Display Truck, Various Semi-trailer, Spare parts etc.
3. We have successfully exported to more than 60 countries, such as Ghana, Togo, Sudan, Kuwait, Peru, Nigeria, Benin, Angola, Tajikstan, Azerbaijan, Namibia, Burma, Korea, Iran, Afghanistan, Iraq, Philippines, Vietnam, Saudi Arabia, Mexico, Chile, Bolivia, Tanzania, Zambia, Zimbabwe, Yemen etc.
** We have strict quality control of raw material, professional management team and technical workers, advanced equipments, strict inspection before delivery, excellent packing and shipping team.
