China 3 Axle 40 Tons Side Tipper Trailer Hydraulic Cylinder Container Semi Trailer
China supplier of China 3 axle 40 tons Side Tipper Trailer Hydraulic Cylinder container Semi trailerStrict testing of weld sealing.Bearing capacity wear-resisting high elastic.Transportation with high efficiencysolid tyre, high elastic, wear-resisting.The parameter of China 3 axle 40 tons Side Tipp......
Send Inquiry
Product Description
China supplier of China 3 axle 40 tons Side Tipper Trailer Hydraulic Cylinder container Semi trailer
Strict testing of weld sealing.
Bearing capacity wear-resisting high elastic.
Transportation with high efficiency
solid tyre, high elastic, wear-resisting.
The parameter of China 3 axle 40 tons Side Tipper Trailer Hydraulic Cylinder container Semi trailer
| DIMENSIONS | |||
| Tare Weight | Approx.8500kgs | ||
| Payload | 30000kgs | ||
| Overall Length | 10000mm | ||
| Overall Width | 2480mm | ||
| Overall Height | 2840mm | ||
| Photo for reference, final produce can be made according to exact requirements and our drawing confirmed from the buyer | |||
| DUMPER BODY | |||
| Volume | Appox 25m3 | ||
| Bin and door | 5mm thickness by high tensile strength steel. | ||
| SPECIFICATION | |||
| Chassis | Heavy duty and extra durability designed Fabricated I-Beam - 345 MPa welded by automatic Submerged-Arc processes. Top Flange 16mm,width 140mm; Double Middle Flange 6mm and 8mm ; Bottom Flange 16mm,width 140mm. | ||
| Axle | 3 axles | ||
| FUWA 13Ton | |||
| Cylinder | two set of hydraulic tip cylinder Ø 150mm , door cylinder Ø 80mm Single Stage, Double Acting, Externally Mounted to each end. | ||
| Hydraulic system | One (1) Air-Operated Directional Control Valve with manual over ride. Two (2) 1" Hydraulic hoses fitted to front of sub frame with 1" BSP compatible couplings | ||
| Suspension | German design mechanical 8-piece leaf spring. | ||
| King Pin | JOST brand 2'' or 3.5'' | ||
| Landing Gear | Jost brand Two Speed, Manually operated | ||
| Wheel Rim | 8.25R22.5, 13 pieces including one spare. | ||
| Tyre | 12R22.5 tubeless tire, 13 pieces including one spare | ||
| Spare Tire Rack | Underslung accommodates 2 spares , Dual Swinging type | ||
| Braking System | 3 sets of T30/30 Spring brake chamber; 40L air tanks with two outlets to suit OZ standard, air control valve and air tube is not included | ||
| Finish | Sandblasted to grade 2.5; 2k Primer and Painted in 2-Pack to required color | ||
| Light & wire | Rear Lights, and LED Side lights. wire and 7-pin socket | ||
| Others | Road train Spec. | ||

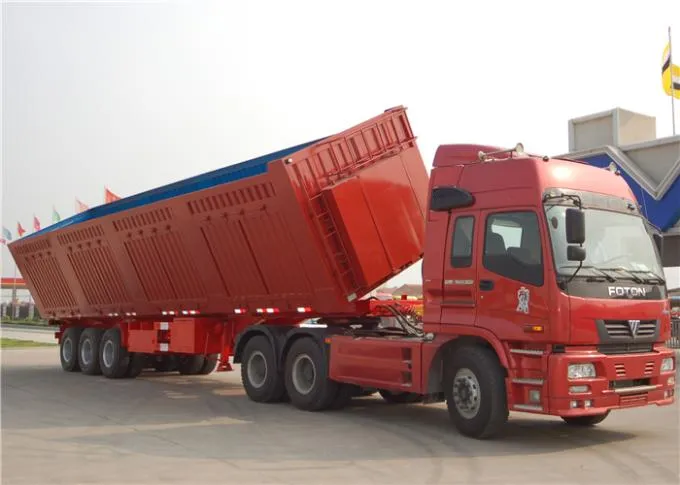

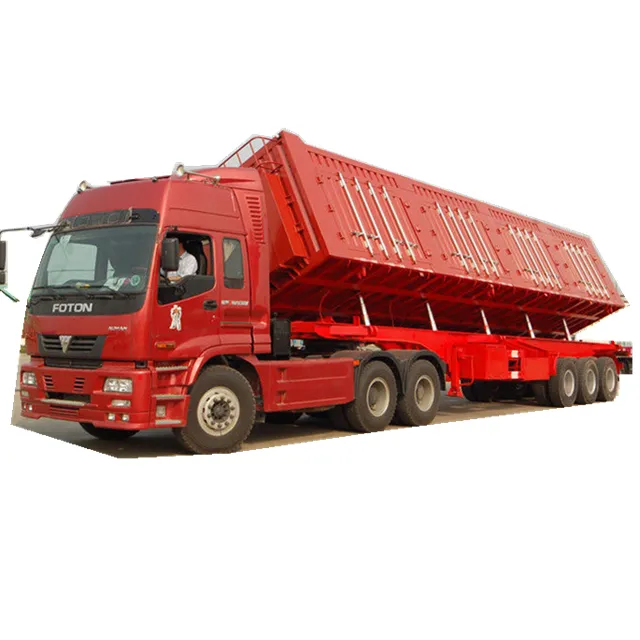

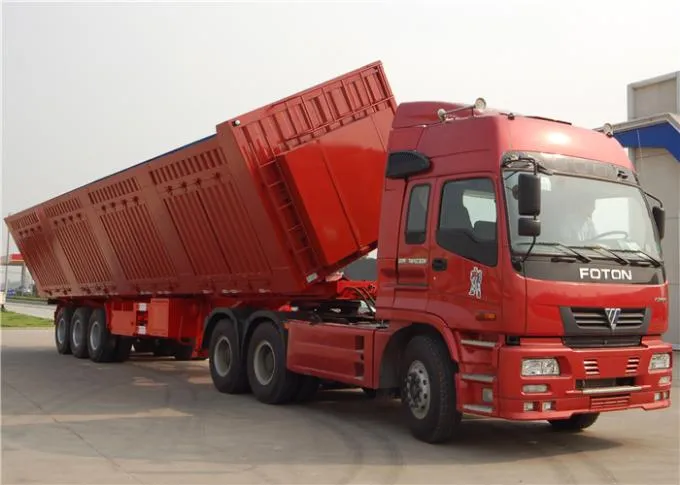

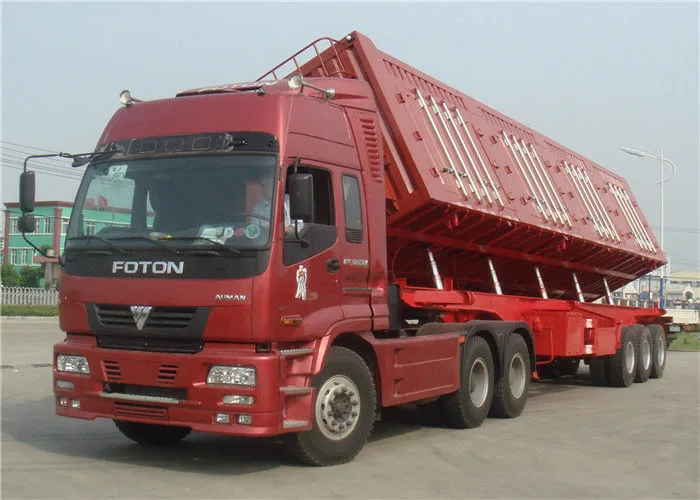

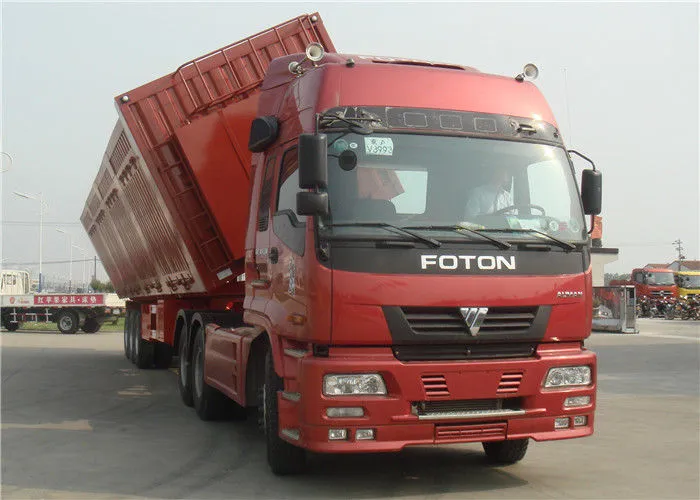

More pictures for Side Tipper Dump Semi Trailer:

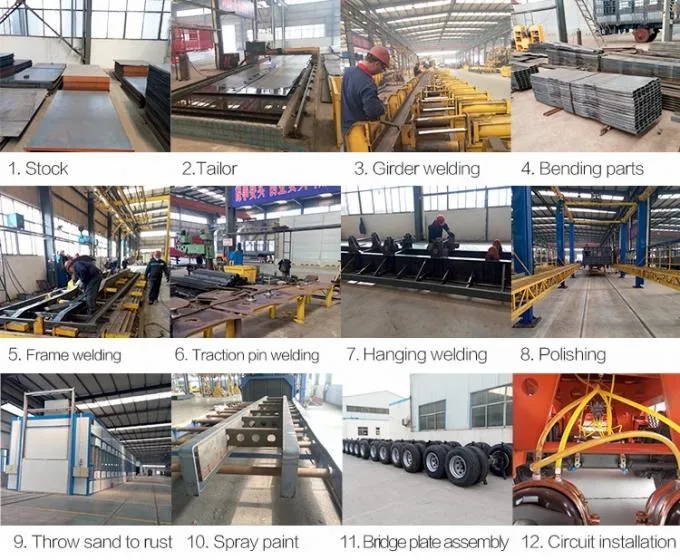

The process of producing the semi trailer:
FAQ:
Q1. What is your terms of packing?
A: Generally, we pack our trucks in nude with anti rust wax or spraying anti rust oil, spare parts be packed by neutral white boxes and brown cartons.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Our services
Pre-sale service:
1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
4. Data sheet and samples offer.
5. Other services, such as special packing design, factory visiting and so on.
In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
4. Free spare parts.
After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions, squares and so on.
Our certificate
Customer visiting
Successful cases
Packing&shipping

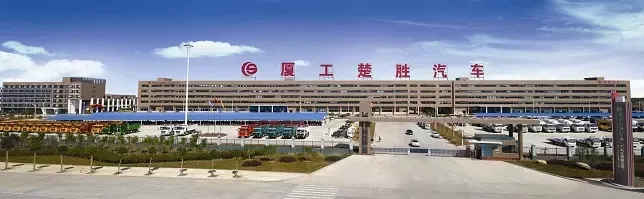

Our company
1. Xiagong Chusheng (Hubei) Special-purpose Vehicle Manufacturing Co., Ltd. is a famous and the biggest manufacturer with very professional experience in special automobile field for more than 15 years in China. We have more than 3000 workers, 400 technicians, and factory scale is more than 690,000m2.
2. Our most advantage and leading products including LPG tanker series, Water Tank, Fuel tank, Refrigerated Truck, Garbage Truck, Towing/Wrecker truck, Dump Truck, Sewage Suction Truck, Concrete Mixer Truck, Bulk Cement Truck, Van Truck, Sweeper Truck, Truck with Crane, Fire fighting Truck, High-altitude Operation Truck, Chemical Liquid Truck, Milk Transport Truck, LED Display Truck, Various Semi-trailer, Spare parts etc.
3. We have successfully exported to more than 60 countries, such as Ghana, Togo, Sudan, Kuwait, Peru, Nigeria, Benin, Angola, Tajikstan, Azerbaijan, Namibia, Burma, Korea, Iran, Afghanistan, Iraq, Philippines, Vietnam, Saudi Arabia, Mexico, Chile, Bolivia, Tanzania, Zambia, Zimbabwe, Yemen etc.
We have strict quality control of raw material, professional management team and technical workers, advanced equipments, strict inspection before delivery, excellent packing and shipping team.
