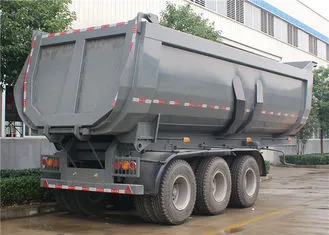

3 Axle 24cbm 24m3 Dump Trailer 40 Tons U-Shape Tipper Semi Trailer for Bauxite Transport
3 Axle 24CBM 24M3 dump trailer 40 Tons U-Shape Tipper Semi Trailer for BAUXITE TransportDump tipping semi trailer, 3-4axles, is specially designed for heavy good transportation, like stone and mining materials. It is strong enough to carry up 80T in long distance delivery, rough road situation.Frame......
Send Inquiry
Product Description
3 Axle 24CBM 24M3 dump trailer 40 Tons U-Shape Tipper Semi Trailer for BAUXITE Transport
Dump tipping semi trailer, 3-4axles, is specially designed for heavy good transportation, like stone and mining materials. It is strong enough to carry up 80T in long distance delivery, rough road situation.
Frame body Q345B high strength structure steel, automatic submerged arc welding throughout beams, and other cross-section main stringers structure for optimum carrying effect.
Well-known brand axles, suspension systems, high performance, and reliable to use, to ensure the good performance of the vehicle.
30cbm 45cbm dump tipper trailer are equipped with HYVA cylinder, which is more reliable and more safety
Full braking and electrical systems at home and abroad in accordance with ISO standard, optional ABS system, braking, lighting is absolutely safe and reliable.
We suppply tipper semi trailers with multiple customization options.
The Parameters for 3 Axle 24CBM 24M3 dump trailer 40 Tons U-Shape Tipper Semi Trailer for BAUXITE Transport.
| Tare Weight | 12700kgs | |||
| Payload | 80000KGS | |||
| Overall Length | 11800mm | |||
| Overall Width | 2465mm | |||
| Dump body size | 11600mmx2300mmx1500mm, 40 cubic meters. | |||
| Photo for reference, final produce can be made according to exact requirements | ||||
| DUMPER BODY | ||||
| Volume | 40 cbm | |||
| Side Wall | 6mm thickness, Made by Q345B High tensile strength steel | |||
| Front Wall and floor | 8mm thickness, Made by Q345B High tensile strength steel | |||
| SPECIFICATION | ||||
| Chassis | Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 14mm,width 140mm; Double Middle Flange 6mm and 8mm ; Bottom Flange 16mm,width 140mm. | |||
| Axle | 3 axles | |||
| FUWA Brand 16 ton | ||||
| Hydraulic System | One set of HYVA Brand cylinder | |||
| Suspension | German design mechanical suspension | |||
| Leaf Spring | 13-piece leaf spring. 11x100 | |||
| King Pin | JOST brand 2" Bolt-in King Pin | |||
| Landing Gear | JOST brand Two-speed, manual operating, heavy duty landing gear | |||
| Wheel Rim | 9.00R22.5 wheel rim, 13 pieces including one spare tire. | |||
| Tyre | 12R22.5 tubeless tire with one spare tire, 13 pieces including one spare tire | |||
| Spare Tire | One set of spare tire including a carrier | |||
| Braking System | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks | |||
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint | |||
| Accessories | One standard tool box | |||

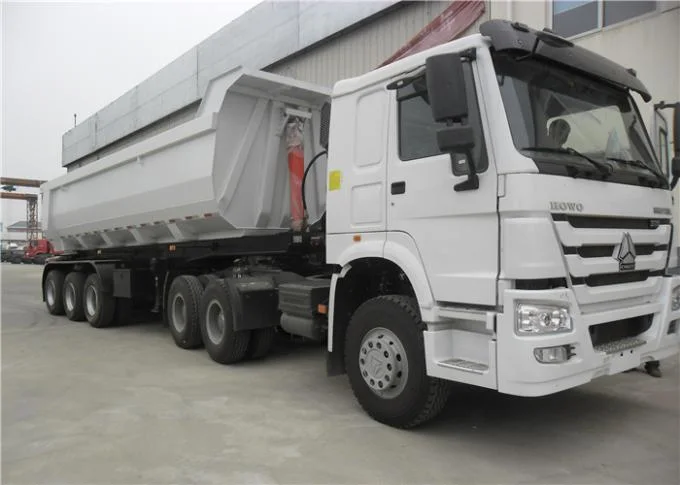

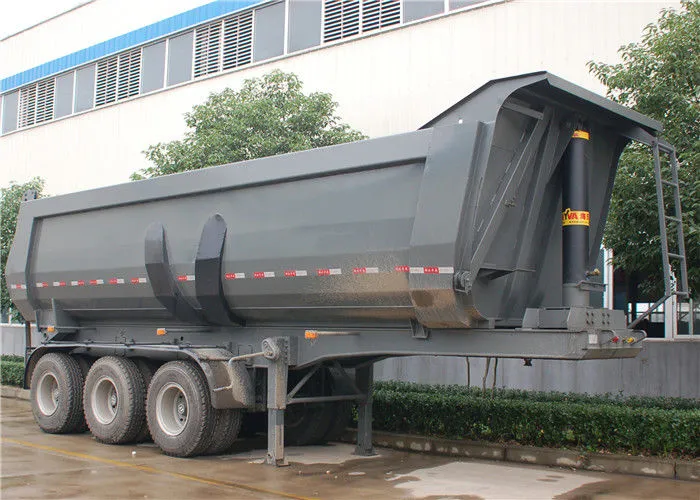

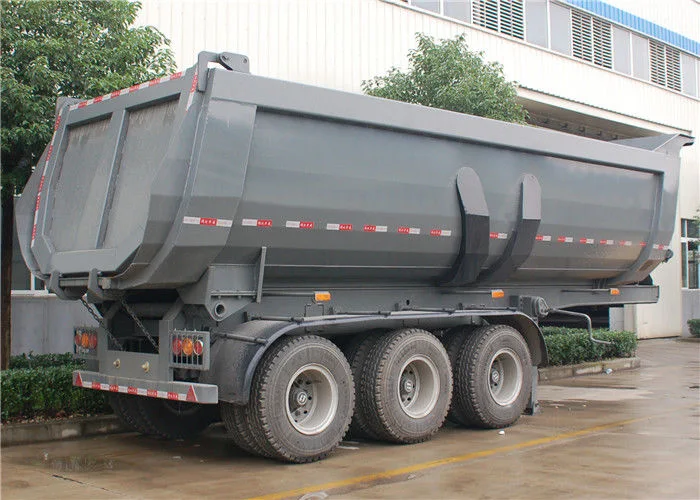

More Pictures for Dump trailer, Tiper Semi Trailer
Dump semi trailer is used to transport of bulk cargo, coal, ore and build materials. One type belong to heavy duty dump trailer, undertake the transport of large mining and engineering task, usually matched with excavator. The other type belong to light and ordinary dump trailer, mainly undertakes the transport of sand, soil, coal and other loose goods, usually matched with wheel loader.
Our services
Pre-sale service:
1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
4. Data sheet and samples offer.
5. Other services, such as special packing design, factory visiting and so on.
In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
4. Free spare parts.
After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions, squares and so on.
Our certificate
Customer visiting
Successful cases
Packing&shipping
Our company

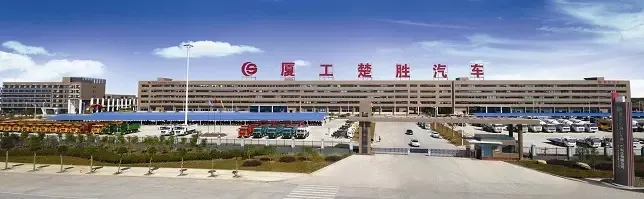

1. Xiagong Chusheng (Hubei) Special-purpose Vehicle Manufacturing Co., Ltd. is a famous and the biggest manufacturer with very professional experience in special automobile field for more than 15 years in China. We have more than 3000 workers, 400 technicians, and factory scale is more than 690,000m2.
2. Our most advantage and leading products including LPG tanker series, Water Tank, Fuel tank, Refrigerated Truck, Garbage Truck, Towing/Wrecker truck, Dump Truck, Sewage Suction Truck, Concrete Mixer Truck, Bulk Cement Truck, Van Truck, Sweeper Truck, Truck with Crane, Fire fighting Truck, High-altitude Operation Truck, Chemical Liquid Truck, Milk Transport Truck, LED Display Truck, Various Semi-trailer, Spare parts etc.
3. We have successfully exported to more than 60 countries, such as Ghana, Togo, Sudan, Kuwait, Peru, Nigeria, Benin, Angola, Tajikstan, Azerbaijan, Namibia, Burma, Korea, Iran, Afghanistan, Iraq, Philippines, Vietnam, Saudi Arabia, Mexico, Chile, Bolivia, Tanzania, Zambia, Zimbabwe, Yemen etc.
We have strict quality control of raw material, professional management team and technical workers, advanced equipments, strict inspection before delivery, excellent packing and shipping team.
