2 Axle 60t Lowbed Truck Semi Trailer for Excavator Heavy Duty Machinery Transport
2/3/4 Axle 60t Lowbed Truck Semi Trailer for Excavator Heavy Duty Machinery Transport Product name: tri-axle low bed semi trailerTare Weight10000kgsDimension13000mm*2500mm*3050mm (other dimension optional)Loading Capacity (T)60tonAxle13 T, FUWA /BPW BrandRim7.50 rim china brandTireTri angle brand ......
Send Inquiry
Product Description

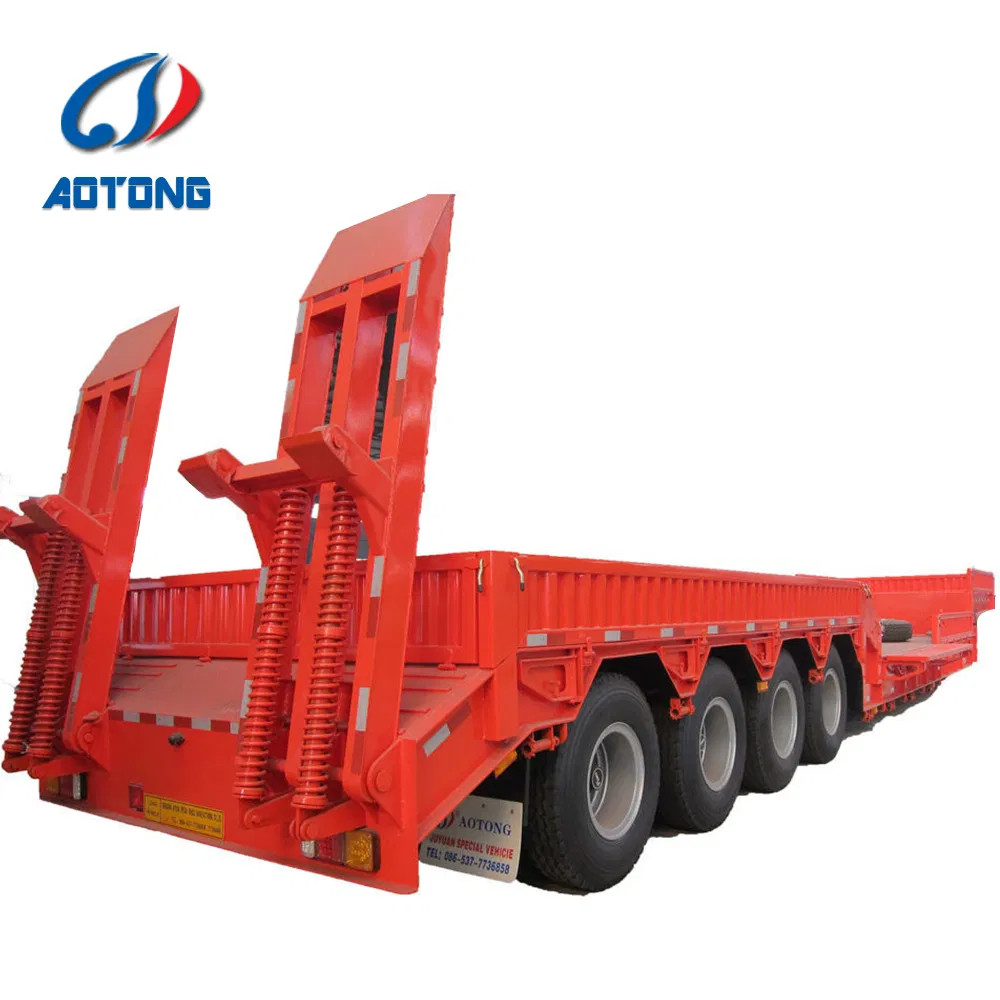

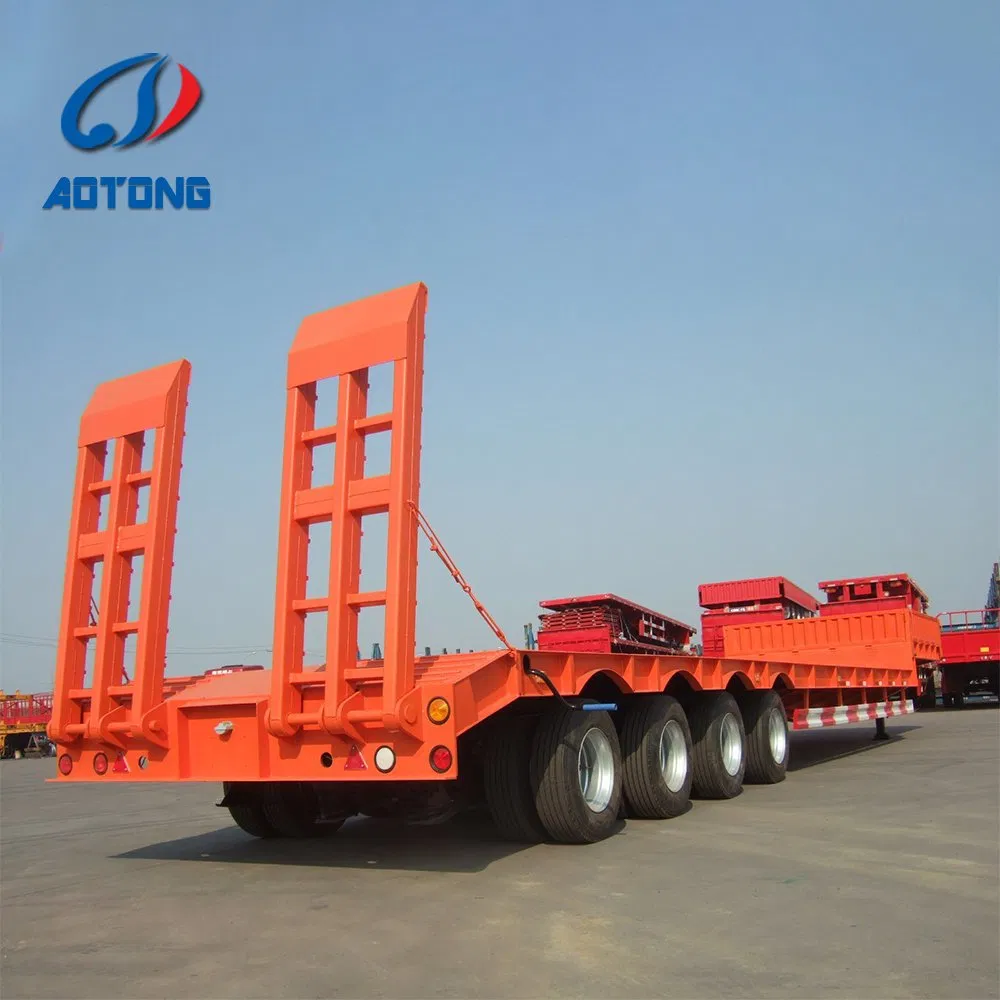

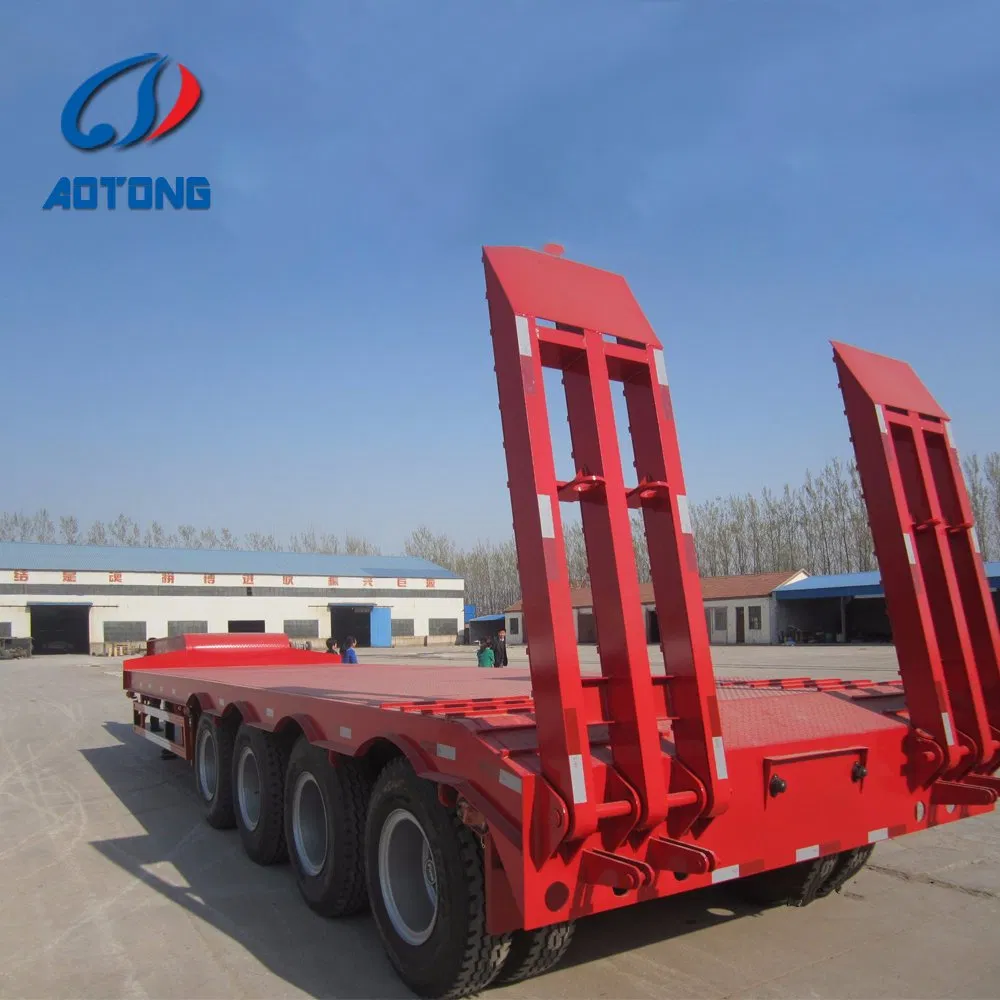

2/3/4 Axle 60t Lowbed Truck Semi Trailer for Excavator Heavy Duty Machinery Transport
Product name: tri-axle low bed semi trailer
Tare Weight | 10000kgs |
Dimension | 13000mm*2500mm*3050mm (other dimension optional) |
Loading Capacity (T) | 60ton |
Axle | 13 T, FUWA /BPW Brand |
Rim | 7.50 rim china brand |
Tire | Tri angle brand 10.00R20 |
Suspension | Mechanical suspension or Air suspension |
Spring leaf | 90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12mm |
King pin | JOST brand 2.0 or 3.5inch exchanged |
Support leg | JOST brand D200T or China brand 28Tons (Double speed) |
Main beam | Height: 450mm, upper plate is 20mm, middle plate is 10mm,down plate is 20mm ; Material is Q345B Steel . According payload changed the specification |
Side beam | 16mm channel steel ( Material is Q235steel ). |
Ladder | Manual or Hydraulic type |
Gooseneck | For choose |
Brake chamber | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber (TKL brand);Two pieces of 45L air tanks |
ABS | Optional |
Valve | WABCO valve |
Light | LED light |
Voltage | 24V |
Receptacle | 7 ways (7 wire harness) |
Tool box | One piece(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar) |
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
Date of delivery | 15 workdays after received your 30% prepayment. |
we can designed trailer model according to your requirement
view our factoryWe produce and sell all kinds of semi trailers, including: normal semi-trailers, low flatbed semi-trailers, container transport semi-trailers, tanker series semi-trailers, fecal suction trucks, concrete mixer trucks, tire and hardware, electric and auto fittings. We have big and professional design and production terms, so OEM and ODM are available. And we also have 12-month guarantee term.
