Product Description
Huaguang thermal positive CTP PLATE offset
Single Layer Thermal Ctp Plate is kind if plate specialized for violet ctp platesetters for hight-level printing ,Positive Double Layer Thermal Ctp Platecan be scanned by 410mm laser ontrolled by computer ,and mounted on the press for printing after preheating ,rising ,developing,etc. The plate isapplid many latest technologies like excellent roughed aluminum substrate,high-resolution formulation design and advanced mlti-layer coationg technology. These avanced technologiedensure the quality and stable property.
YP-II Positive Ps Plate | |
Plate type | Positive |
Application | Commercial sheetfed and rotary press printing |
Substrate | Electro-chemically grained and anodized lithographic aluminum. |
Gauge | 0.15/0.25/0.30/0.40mm |
Maximum width | 1320mm |
Spectrum scope | 350-420nm |
Sensitivity | 130-150mj/cm2 |
Safe light | UV filtered or Yellow light |
Coating color | Green |
Dot reproduction | 2%-98%@ 200lpi Depend upon capability of imaging device |
Run length | Above 100,000 |
Developer | Huaguang PD developer (concentrated solution), |
Development | 1 liter can process 15 sqm Developer dilute ratio: 1:4(machine)-1:6(hand) Developing Temperature: 24-26ºC Developing Time: 20-30secs |
Packaging | 0.15mm 100 pieces/box 0.25/0.30mm 50 pieces/box if length <1030mm; 30 pieces/box if length ≥1030mm; 25 pieces/box if the area > 1m2 |

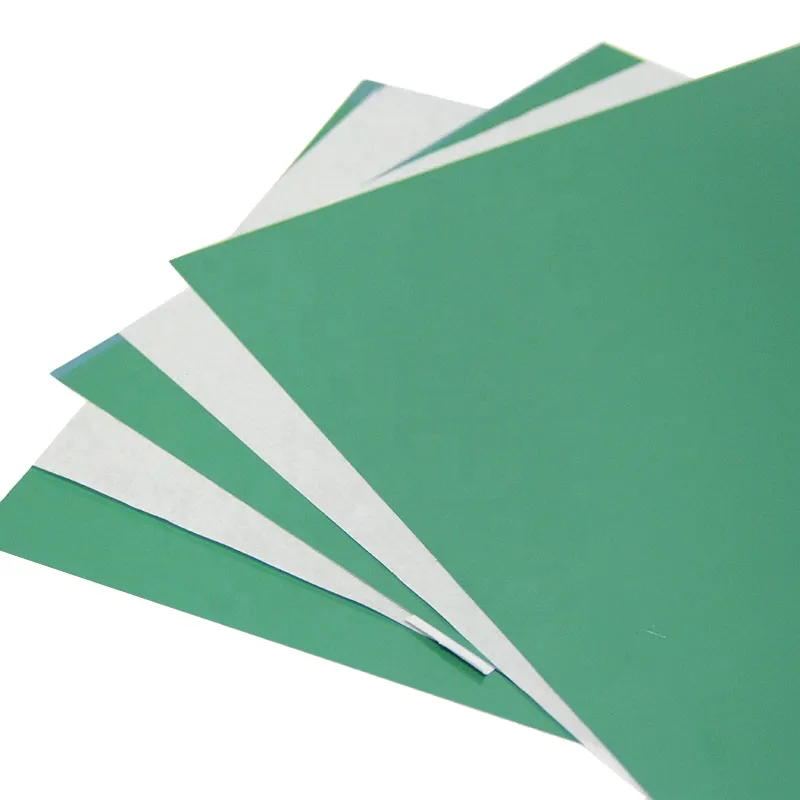

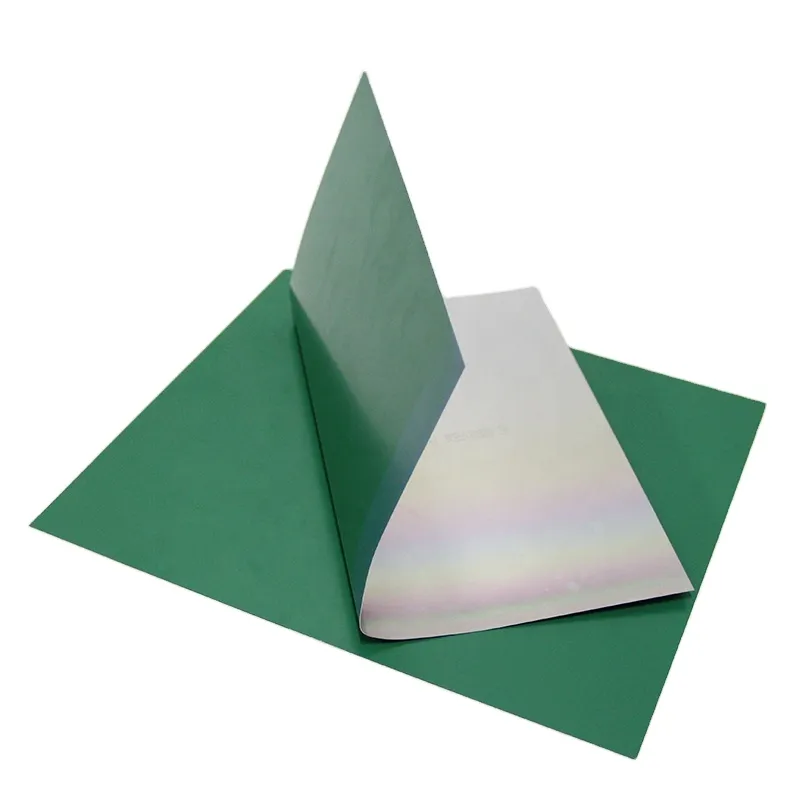

PRODUCT SHOW
