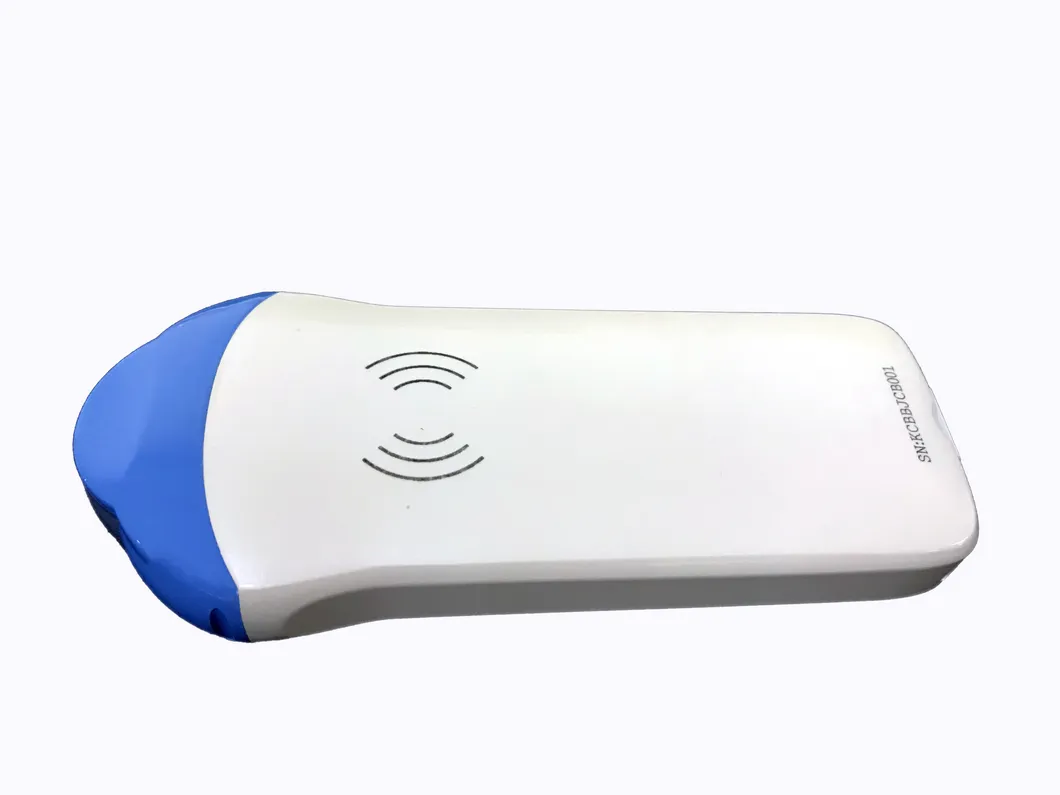

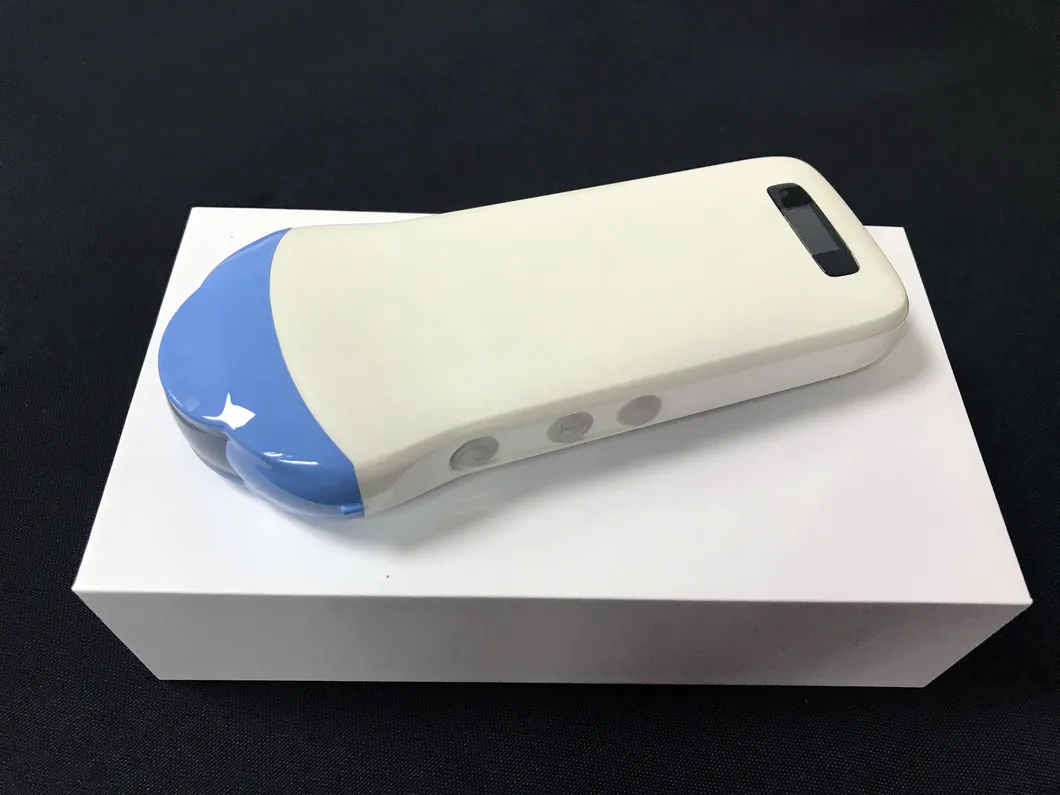

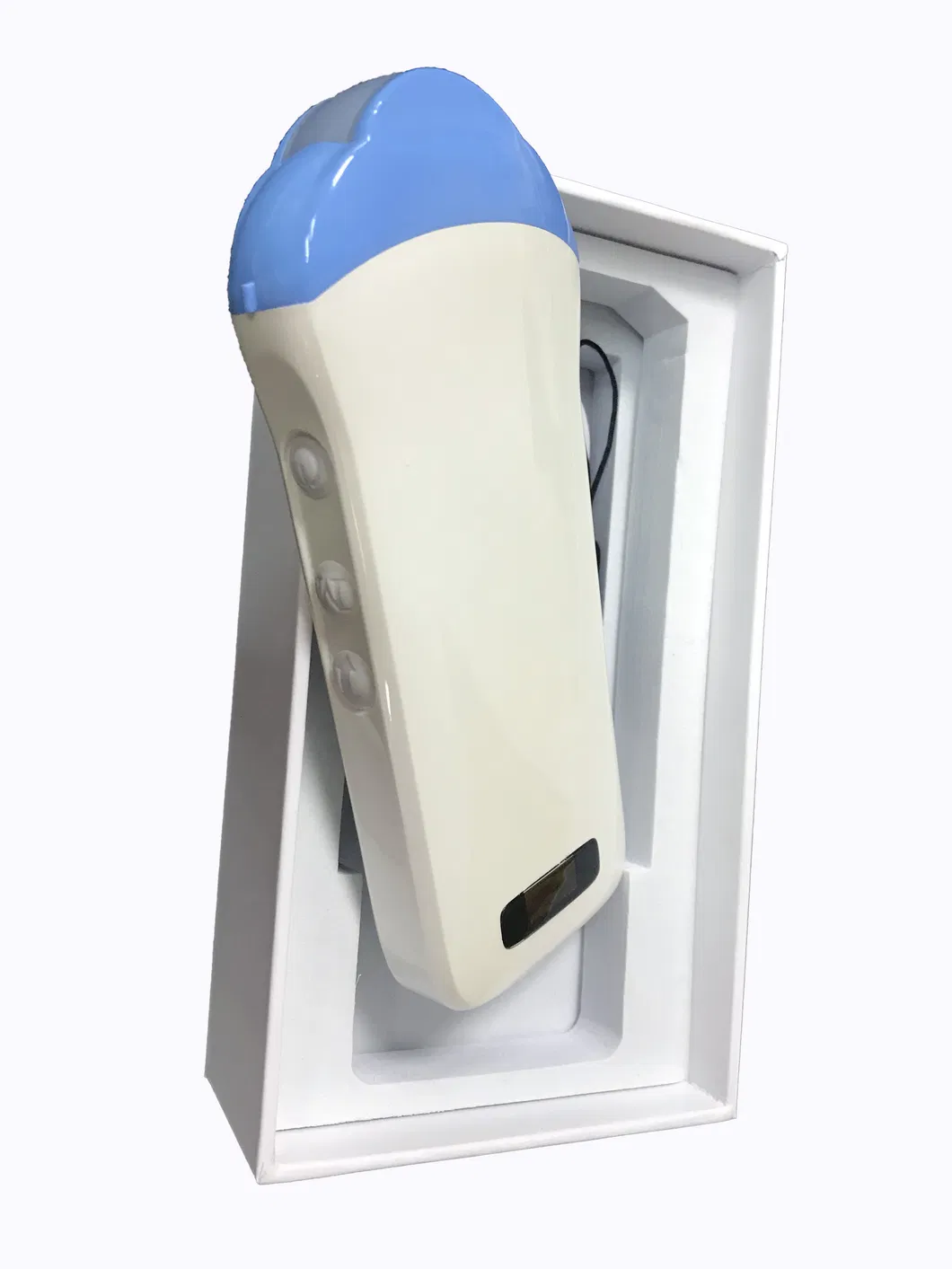

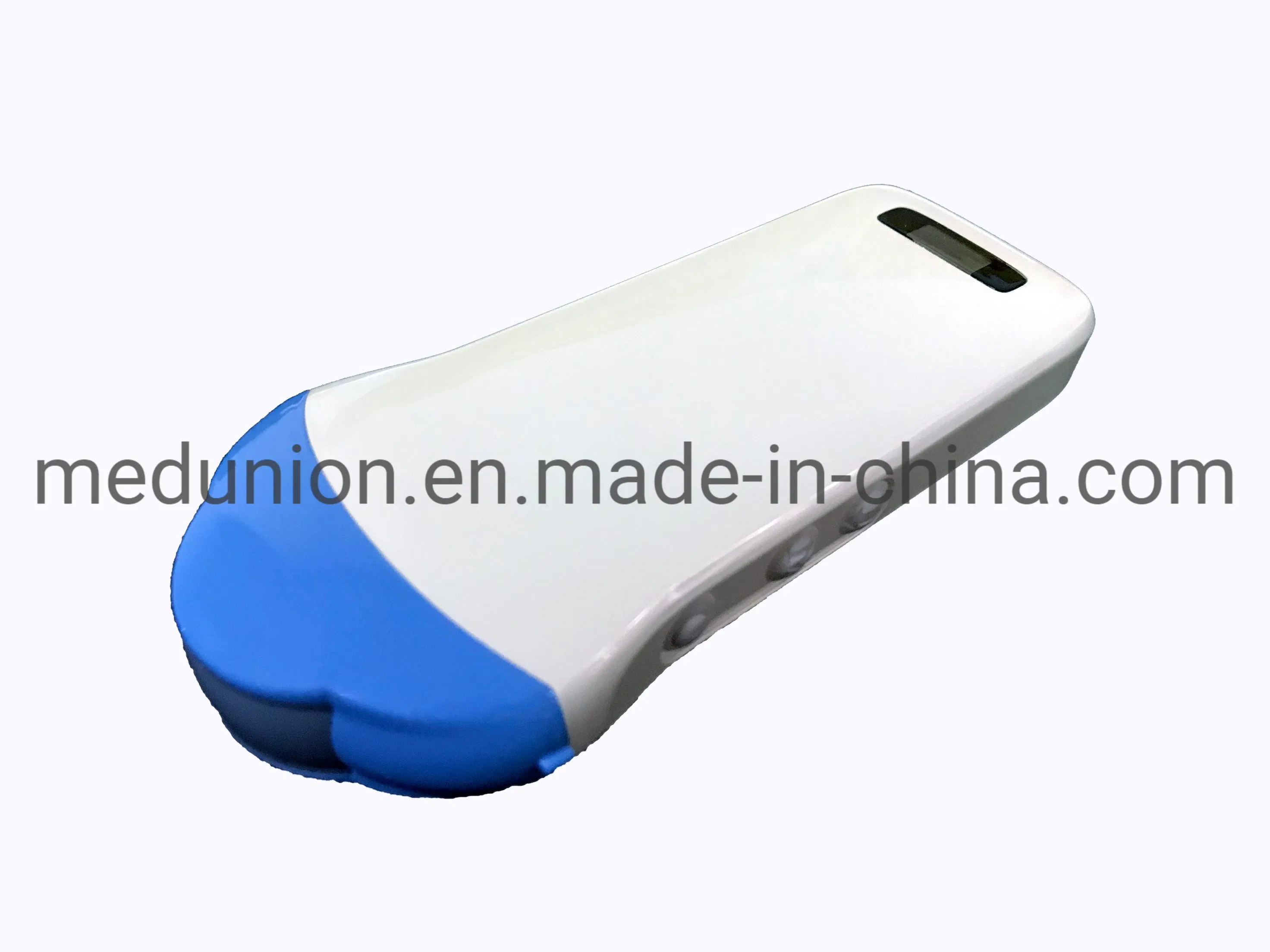

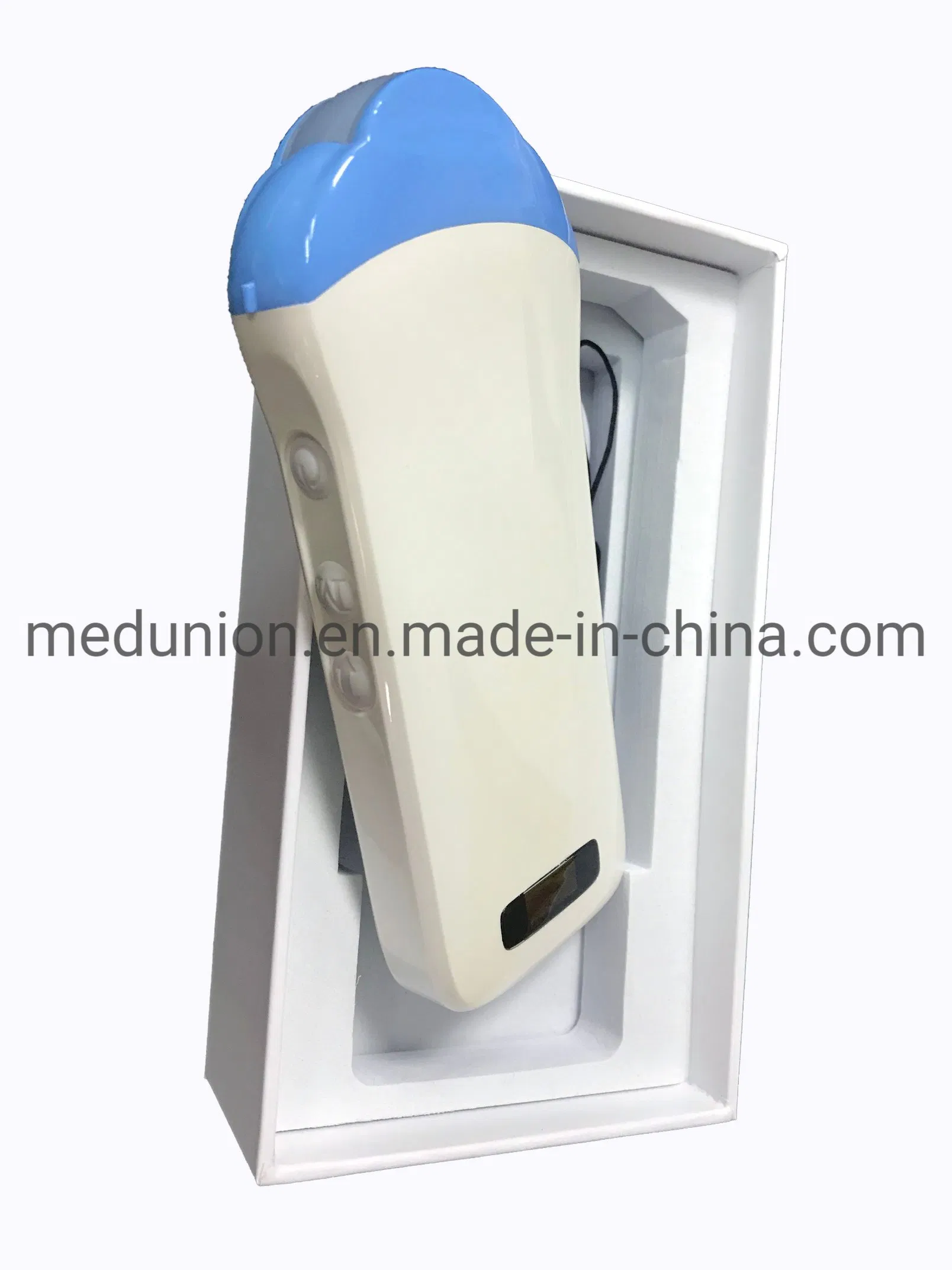

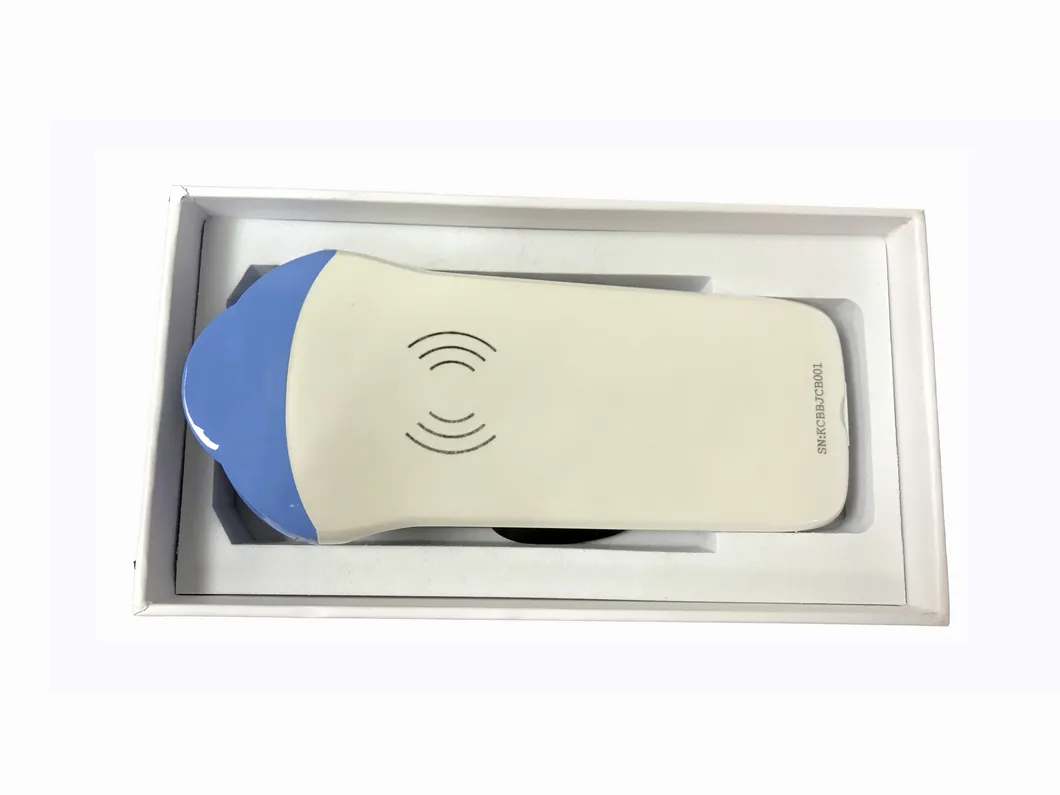

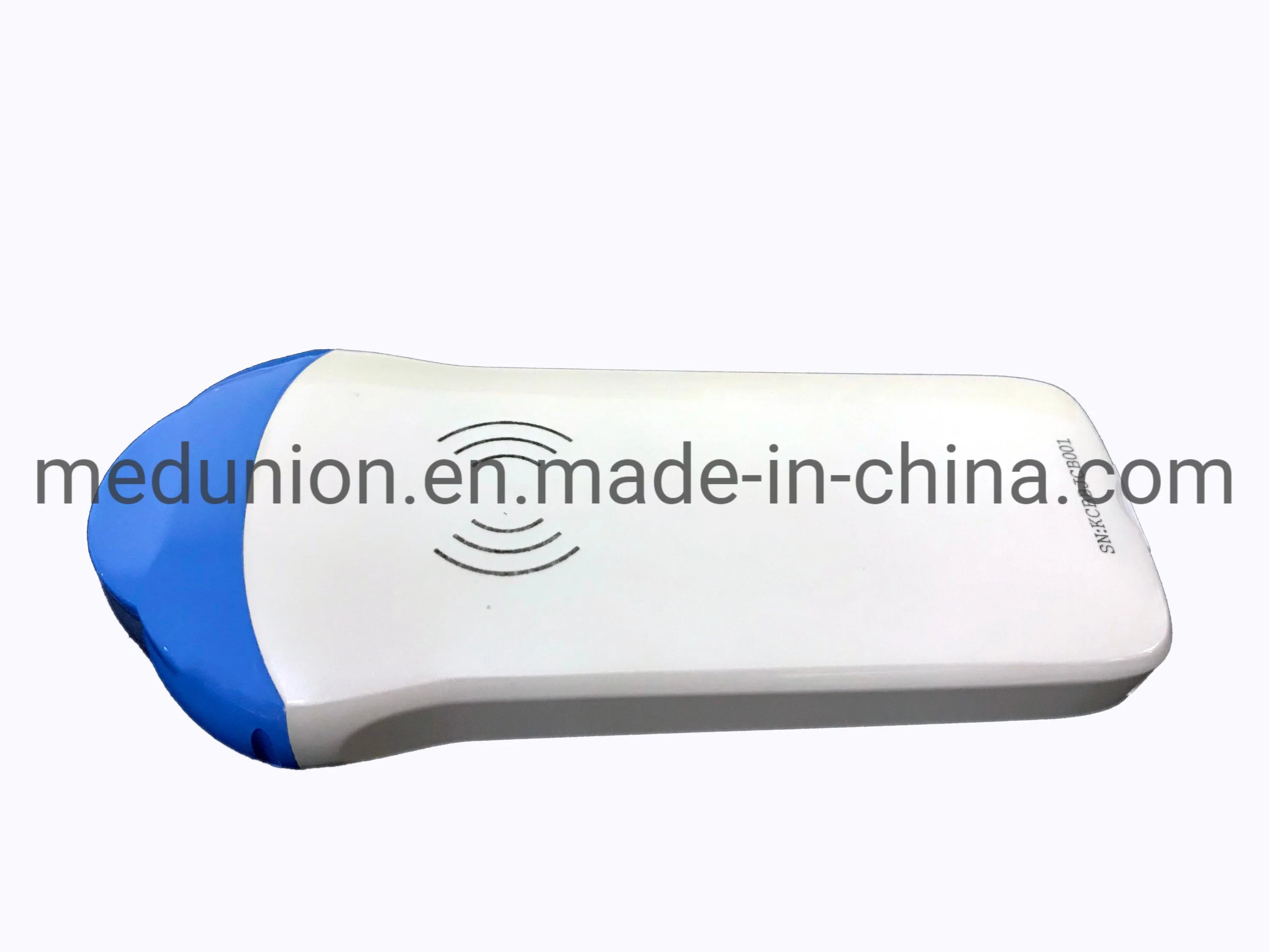

High Frequency Wireless Color Doppler Micro-Convex Ultrasound Probe Mslpu69
High Frequency Wireless Color Doppler Micro-Convex Ultrasound Probe MSLPU69Product DescriptionIntended useIt is designed to fulfill following intended uses: Obstetrics, Gynaecology, Abdominal, Small Parts (breast, thyroid, testicle, etc), Cardiology, Peripheral Vascular, Muscular-Skeletal, Nerve, Ur......
Send Inquiry
Product Description
Intended use
It is designed to fulfill following intended uses: Obstetrics, Gynaecology, Abdominal, Small Parts (breast, thyroid, testicle, etc), Cardiology, Peripheral Vascular, Muscular-Skeletal, Nerve, Urology, Orthopedic, Angiography, Physical Examinations, Digestion, Paediatrics, Paracentesis .
Contraindication
The product is not suitable for the examination of the organs containing gas, such as the stomach and intestines, lungs, etc. when burned, burned or damaged in the surface of the human body, it can not be used in this part.
This product does not apply to the eye or any situation that may cause the sound beam to pass through the eye.
| Type | Micro convex | ||
| Frequency | 5/7Mhz | ||
| Depth | 60~160mm | ||
| Elements | 192 | ||
| Radius | R20 | ||
| Length | N/A | ||
| Dimensions mm | 157(h)x70(w)x30(d) | ||

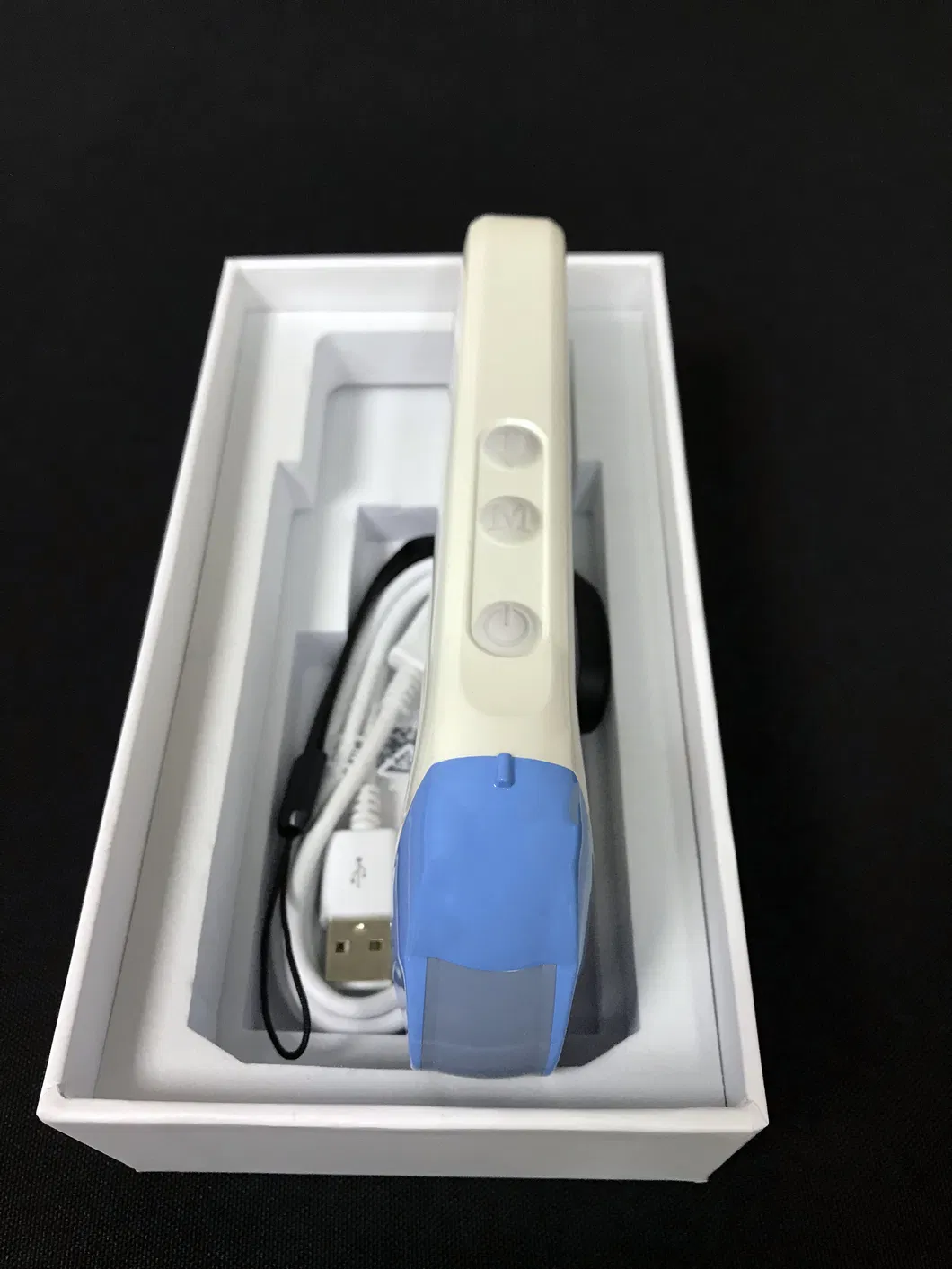

| Package size mm | 240(h)x235(w)x100(d) | ||
| Net weight | 221g | ||
| Gross weight | 1.1KGS | ||
| Wifi type | 802.11N/20MHz/5G | ||
Environment Condition | Contents | work environment | Storage and transportation environment |
| ambient temperature | 0ºC~35ºC | 0ºC~+45ºC | |
| relative humidity | 30%~85%(No condensation) | 30%~95%(No condensation) | |
| atmospheric pressure | 70KPa~106KPa | 70KPa~106KPa | |
| Working system | Android,iOS,Windows | ||

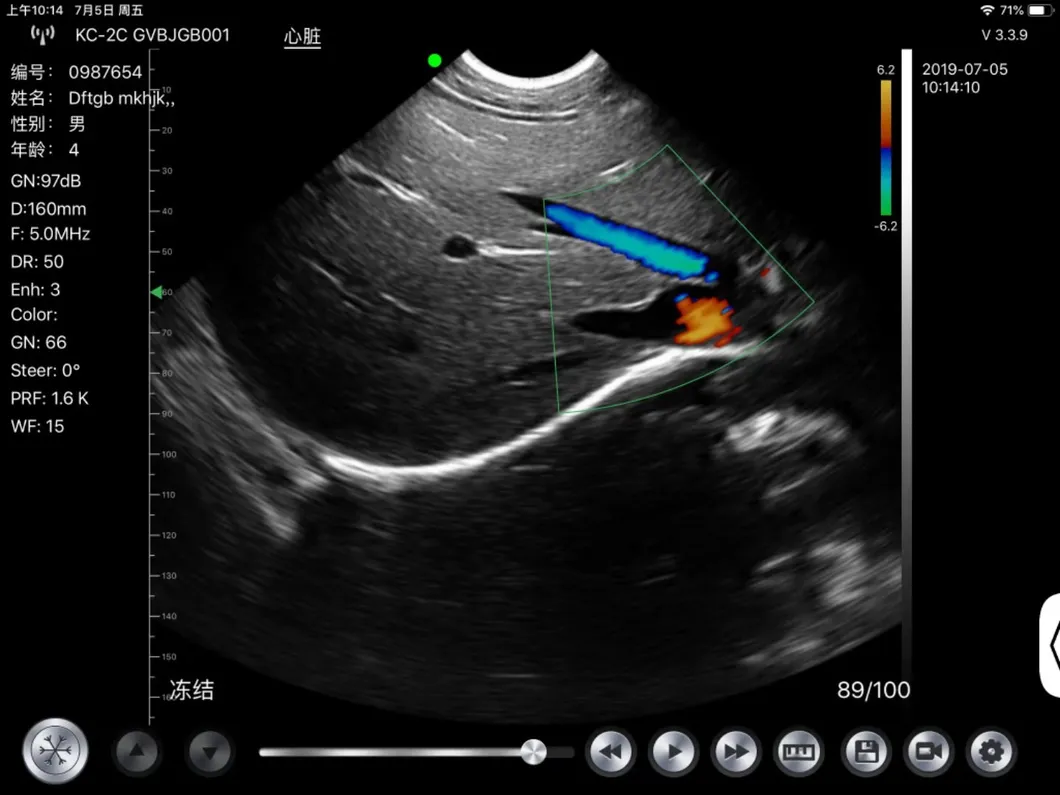

| APP interface adjustment | GN(gain) D(depth) ENH(enhancement) DR(dynamic range) F(frequency) PRF WF Mode 8TGC Measure: Length, Area, Circumference,GA(CRL,BPD,GS,FL,HC,AC) | ||
Why choose us
Professional
We have manufactured ultrasound for more than 10 years in China, including all kinds of ultrasound, such as black and white/color doppler, trolley/portable/wireless, for human or for vet. Quality and praticability is our first principle when manufacuturing.
Helpful
Clients always come first during our service. We promise to reply you within 24 hours, will not waste any of our client's precious time. We will spare no effort to answer your questions and help you solve your problems.
Truthful
We want to be your partner in business, And we want to be your partner in life even more. We are 100% truthful to you, we will never lie to our client. Not once. You can always trust on us.
1).What's your product guarantee?
Normally we offer 24 months warranty, and lifetime maintenance.
We can also extend the warranty time per client's request.?
2).Does your product has any certificate?
Almost all our medical equipment is CE, ISO approved, and some of them has FDA certificate.
3).What's your payment terms?
We can accept T/T,Western Union, Money Gram, Paypal, Alibaba Trade Assurance, L/C,cash etc
4).What's your product lead time?
Normally all our medical equipment are in stock, so we can deliver goods within 3 workdays after receipt payment.
5).How to maintenance the product if it has problem?
We have professional engineers,they will solve your problem by communicating with skype or phone.
If the machine is totally broken and can not work, send it back to us and we will send a new one to you.
6).What's your training policy?
Medsinglong offers free product training for clients.Clients can choose video,voice,email,skype for online training.
Moreover, Medsinglong has client training courses every year, client can visit Medsinglong for face to face training.
Meanwhile,Medsinglong support training in client's office as required.
