Product Description

Product Display

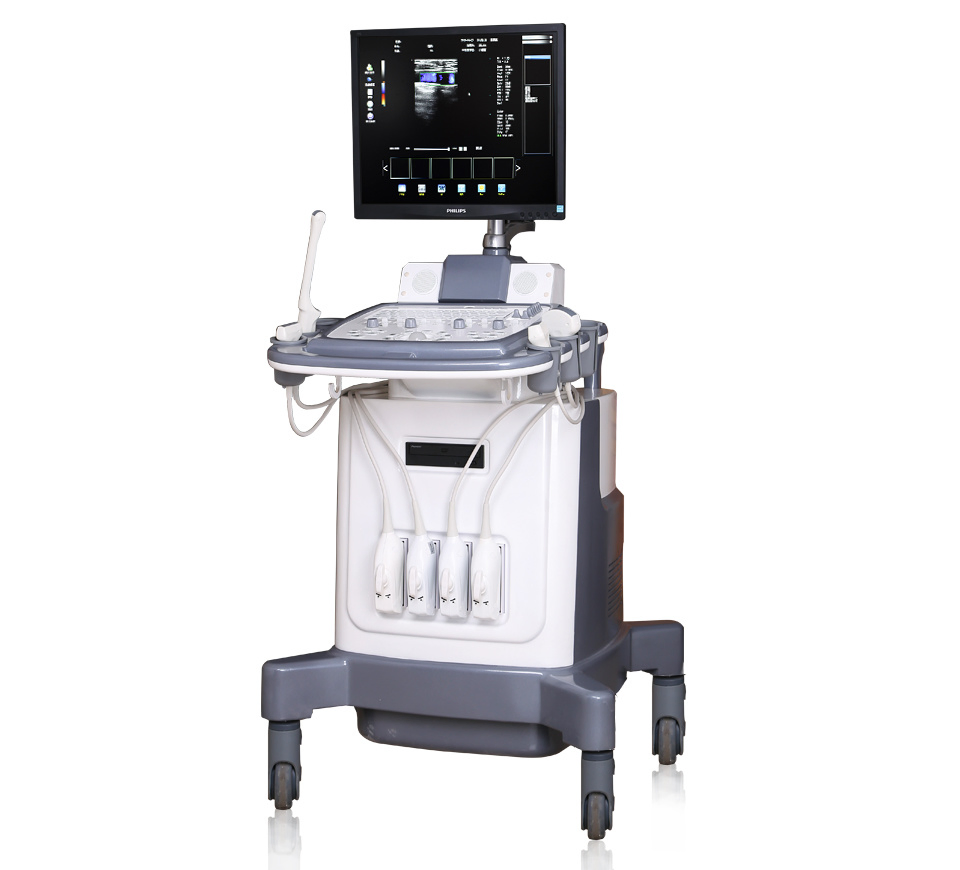

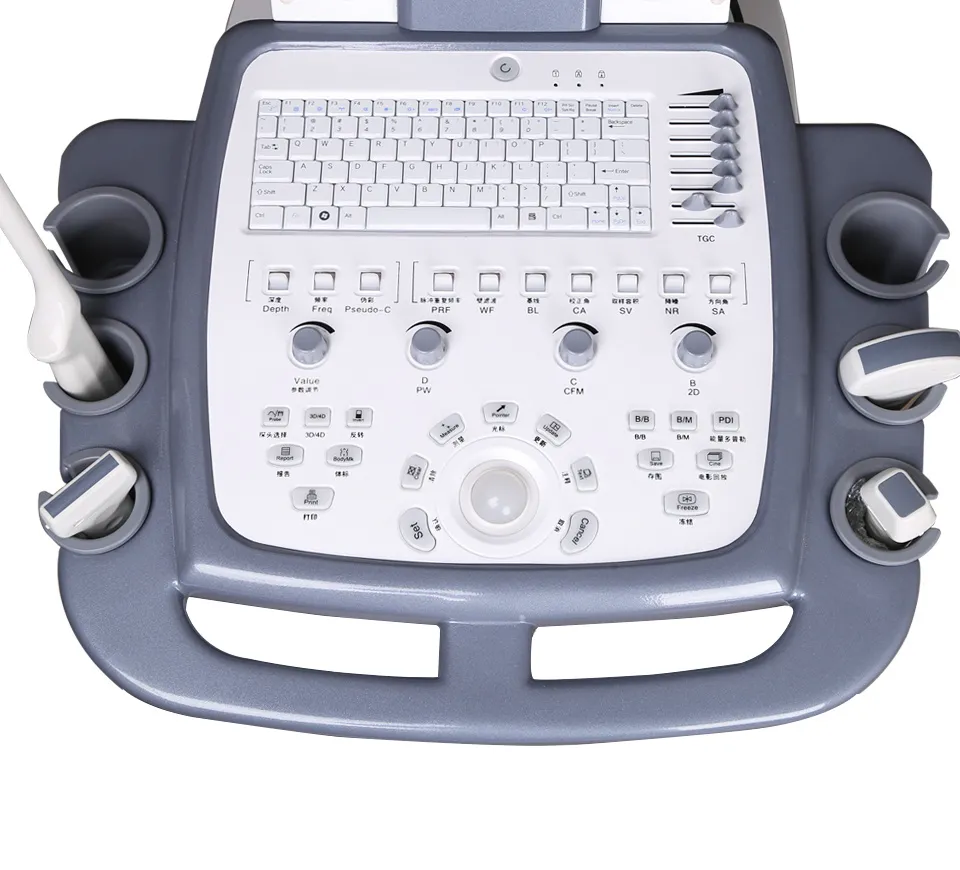

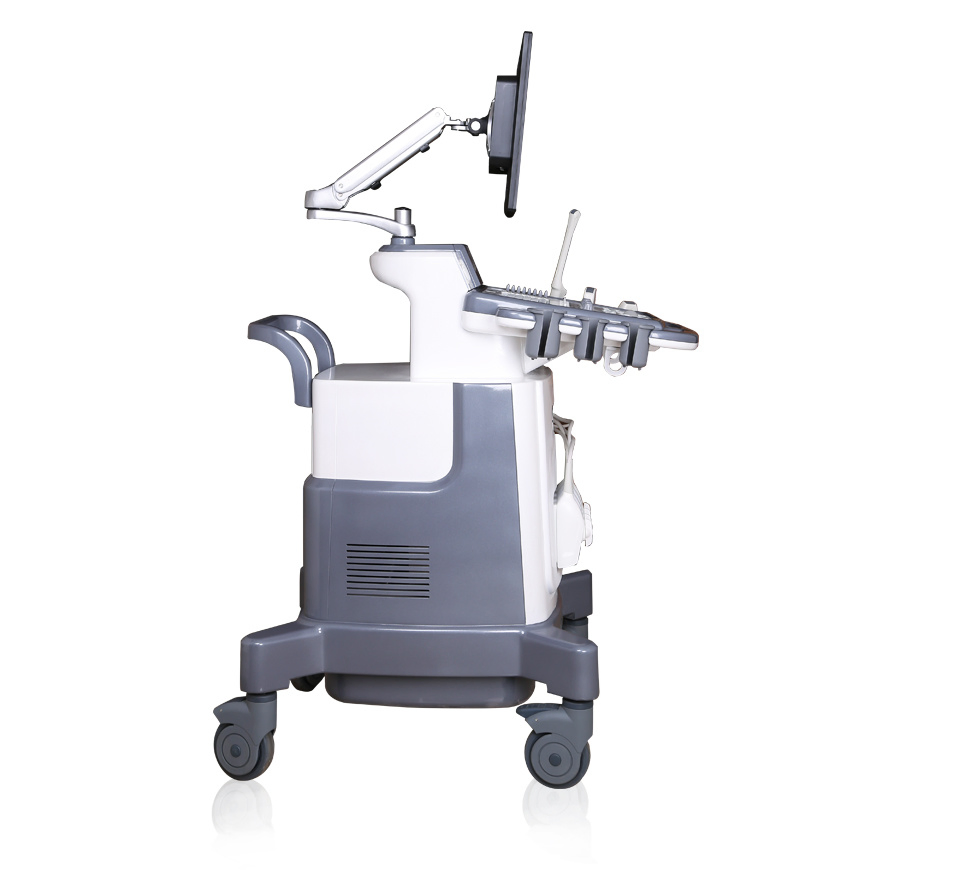

2D/3D/4D Portable Color Doppler Ultrasound Scanner

Technical Parameters:

Monitor	19" high-resolution LCD color monitor
Grayscale	256
Scanning lines	≥256
Dynamic Range	30dB-75dB
Maximum frame rate	≥65/s
Pseudo-color display	11
Cine loop	≥100 frame
Image memory	≥160G, format BMP/JPG/DCM/TIF
Partial enlarged	≥ 4 times
TGC	≥8
Image mode	B, BB, 4B, B+M, M, PWD, PwrD, CD, CWD, DirPwr, B+C+D.
Image processing	8 frame-related, 6 related to six-speed lines
Noise Reduction	32 adjustable
Wall filter	40-500 adjustable
Scan speed	8 adjustable
Gain	20dB-48dB , grading adjustable
Sample volume	0.5-10mm adjustable range 20
Pulse repetition frequency	0.5-2khz, 6 adjustable

Note: body mark and character note, body mark: ≥100
Image flip: up and down, left and right, image rotation ( 2B, 4B mode rotated 90 ° ), black and white
DICOM3.0 interface with network remote assistance software
Sampling frame size, position, and color: support B / color consistent width adjustable
Support synchronous updates automatically trace and spectral inversion
Baseline position, spectrum volume, and correction angle: adjustable
Blood flow measurement velocity:
a) Maximum blood flow velocity measurement : pulse doppler > 2m/s
b) Lowest measured blood flow velocity : <2mm /s (non-noise signals)
Port and holder: 4 activated probe ports and holders, 1 Gel heater holder
Input / Output Interface : USB2.0 , LAN , VGA , RS232 , Video, DICOM3.0, foot switch, XGA, DVD burner
Machine dimension (mm): 920*550*1450

Measurement:
Mode B (2D) measurement
a) General measurement: distance, perimeter, area, volume, distance narrower radio, area stenosis ratio.
b) Gynecological measurement: uterine size and volume, cervix size and volume, right/left ovary size and volume, endometrial thickness, right/left follicle volume.
M mode measurements: distance, heart rate.
Doppler measurements: General measurement: systolic and end-diastolic velocity, peak flow, time, blood flow, pulse index, and heart rate.

Standard Configuration:

Scanner Body: 1pc

3.5Mhz Convex Probe: 1pc

Charger with a Set of Wires: 1set

Bottle of USG gel: 1pc

User Manual: 1pc

USB disk: 1pc

Optional:

Micro-convex probe

Phased array probe

Trans-virginal probe

Linear probe

4D Volume probe

Printer

Guided probe holder
