Electric Tying Machine For  -shaped Clips is the newest patent product in our company, is the original of our country. Computer aid design and produce, reasonable in structure, easy to clean.
    the clipper machine Unusual driving mode: The machine adopts successive driving mechanism, avoids that the parts grind too early in the cycle of "start in high speed and stop immediately." At the same time, the machine adopts intermittent driving mechanism

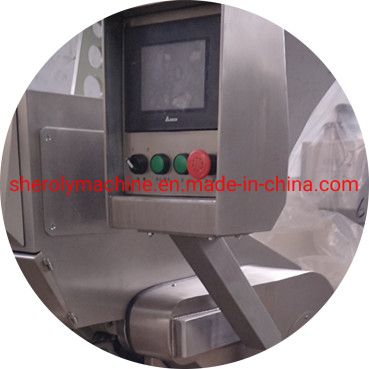

   sausage clipper  Advanced controlling system: The machine is a new type equipment with automatic technology, computer technology, communicate technology. Its core is the PLC, servomotor as drive.
    Convenient lubricating system: The machine can oil with hand pump that gain the good lubrication result.
    Unusual manufacture technology: The key parts produced by numerically controlled machine, so it ensures the precision of manufacturing and filling. Special surface treatment, highly wearproof.
     Low maintain cost: The maintain circle of the key parts change to over 2 year from 5-6 month, so the costomer can save most money.


Main technical target

Efficiency:             40-120 time/min in reality
The range of sealing:
       a. successive working style: casing flat width 40-70 mm
       b. intermittent working style:casing flat width 60-130 mm
     Adopt clip:          the range of 15 and 18
    The length of stretch:   36-100mm ( choose)

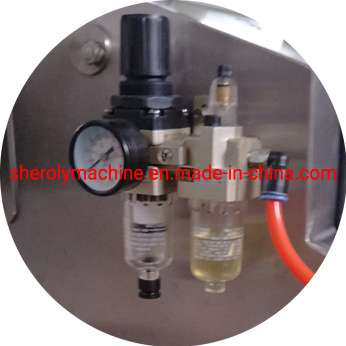

    Air pressure:        0.5-0.6 MPa
    Voltage:             220V  50Hz
    Total power:         3.0KW
    The height of sealing:980-1050 mm
    Overall dimension:   1200×900×1900mm
Weight:             560Kg


Work efficiency: normal stretch (stretching length 36mm) up to 120 times/min.
Large stretch (stretch length 100mm) up to 70 times/min.
Sealing range: the diameter of the casing is 40-170mm.
Use buckle: 15, 18 pitch to various specification card buckle.
Stretch length: 36-100 arbitrary adjustable.
Working pressure: 0.5-0.6mpa.
Working voltage: 380V 50Hz.
Total power rate: 3.0kw.
In the heart; 980-1050 - mm
Dimensions: 1086X1070X2000mm (length X width X height)


our Services

1)Design and manufacture the equipment

2)inspect and running all machine before dispatch.

3)Engineers avaliable to service machinery overseas.

4)one year quality guarantee.

5)24 hours technical support by e-mail.

6)English or need language software,user manual.

7)whether you need one machine or a complete line,we design and build machinery that delivers the most
reliable and effcient performance for your products.


FAQ:
1)Question :what is the choice of installation mode for foreign customers?
   Answer:we can provinde the video and user manual of the installation mode,
   if your need us to send someone to install it,we can provide it .

2)Do your supply factory visits?
   Answer:We welcome the customer to visit us,your can make an appointment with us in advance.

3)Question:our the comapny is a direct manufacturer or trading company.
   Answer:our company is a direct manufacturer,No middleman make the difference.we can provide your with
   best quality product at the right price.

4)What is the payment term?
  Answer:we support T/T,L/C.

5)Question:How do we choose the right model for us?
Answer:When you tell me your demand,we will help yourr to choose the right model.
