Rice bran oil mill plant rice bran oil production line machinery make rice bran oil making machine

Product Description:

What can we do?

1.Provide all kinds of oil machine: mini oil plant, oil extraction mill, oil refinery machine, small oil factionry mills, large oil processing line, etc.
2.Single oil machine and turnkey oil processing project are both available.
3.Oil plants include: coconut oil machine, palm oil mill, sesame oil plant, soya bean oil machine,rice bran oil extraction machine , peanut groundnut oil plant, rapeseed oil machine, corn germ oil machine and other vegetable oil plant.
4.Custom design for household oil machine and oil factory turnkey project with installing and adjusting.

Solvent extraction plant Advantages

High oil yield , obvious economic benefit .
(2) Residual oil rate in the dry meal .
(3) Improving the quality of the meal .
(4) Low processing cost , high labor productivity.

Residual oil in meal	≤1%
Solvent consumption	≤3Kg/T(6#solvent oil)
Crude oil moisture and volatile matter	≤ 0.30%
Power consumption	≤ 15KWh/T
Steam consumption	≤280Kg/T (0.8MPa)
Finished meal moisture	≤ 10-13% (adjustable)
Residual solvent in finished meal	≤ 300PPM (qualified detonated experiment)

Rice Bran Oil Mill Plant Rice Bran Oil Production Line Machinery Make Rice Bran Oil Making Machine

Sections of process:

A. oil making machine pre-treatment workshop introduction:

1. Raw materials cleaning
2. Raw materials softening
3. Raw materials flaking

B.solvent extraction plant price Main products:

1.Solvent pumps

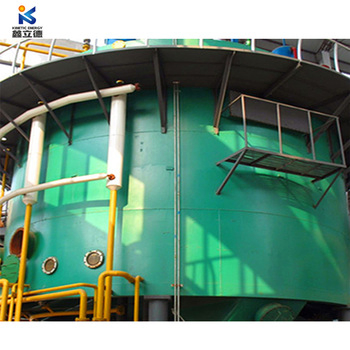

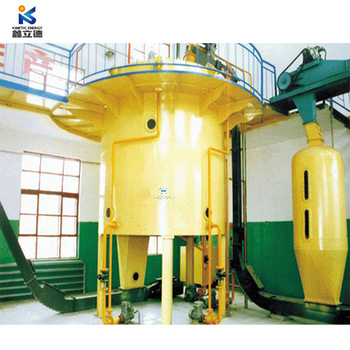

2.Roary extractor
3.DTDC
4.Miscella tank 1st
5. Miscella tank 2nd
6. Miscella stripping
7. condensers

C. oil making machine refining workshop introduction:

1. oil degumming and deacidification
2. oil decolorizing
3. oil deodorization
Details of sections:

A,oil making machine pretreatment workshop introduction:

B.Solvent extraction plant price Mian products:

1.Solvent pumps: continuously spray solvent to the rotary-type extractor
2.Roary extractor: Spray and soak the pre-pressed cake with solvent pressed cake with solvent so that oil fats can be dissolved in solvent (form miscella).After processing,you can get wet meal and miscella (mixed oil).
3.DTDC: used to separate the solvent from the wet meal.
4.Miscella tank 1st: pump the miscella (oil with solvent) in to the miscella 1ist , and then add 10% saline water to it. The phospholipid and impurities in the miscella will react with the saline water, at last the reactant precipitate, reaching the goal of purifying.
5.Miscella tank 2nd: the purified miscella will be pumped into it.
6.Miscella stripping: it will remove the remaining solvent in miscella. And the solvent will be discharged to condenser for recycling.
7.condensers: used to cooling the solvent gas separated from the wet meal and miscella for recycling.

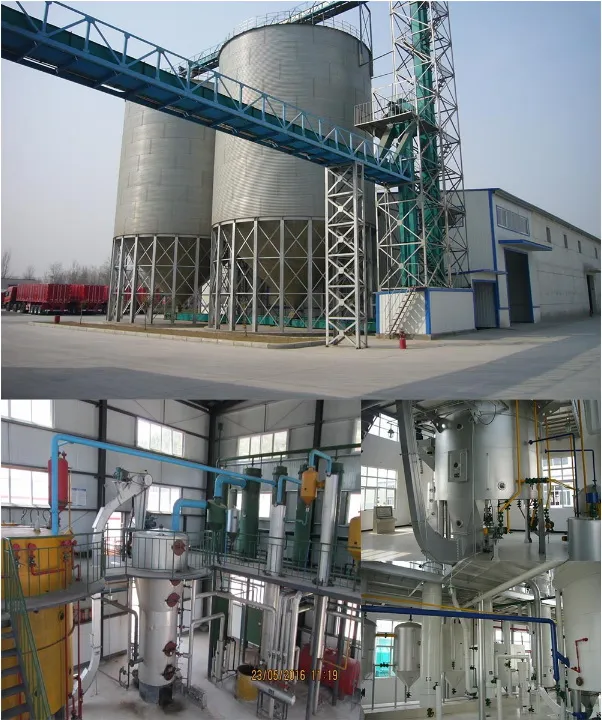

Workshop details:
leaching (extraction), evapo-separate (embryos solvent material separation), evaporation (oil and solvent separation), condensation,
exhaust gas recycling, water recovery and other systems

Working principle:
Leaching system is an oil extraction through soaking or spraying prepressed cake by a certain organic solvent. The principle of this
part is the different solubility of solvent.

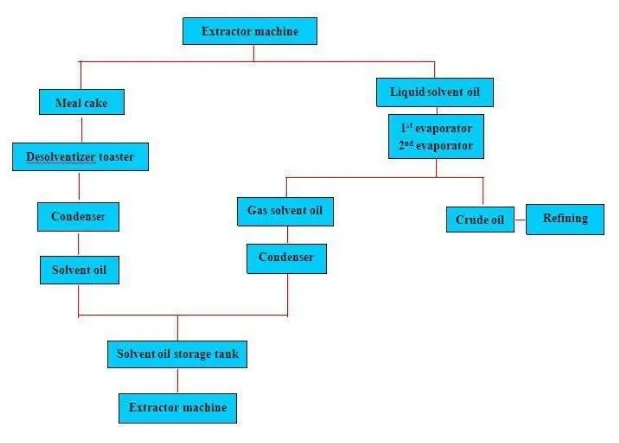

Main process:
(1) The material (for pretreatment) is sent to rotary extraction by the scraper conveyor. The material will extracted by the solvent or mix oil. After this step, we will get meal and mix oil.
(2) Meal is sent to toaster. Through the toaster, the solvent in the meal will separate from the meal. The solvent goes to condenser and is recycled to rotary extraction.
(3) After the mix oil from the rotary extraction enters into 1st evaporator and 2nd evaporator, most of the solvent in the mix oil is
separated.
(4) The mix oil from 2nd evaporator goes to stripping tower and almost all the solvent is separated. From the stripping tower, we can
get crude oil and solvent. The solvent is sent to condenser and is recycled to rotary extraction.
Rice Bran Oil Mill Plant Rice Bran Oil Production Line Machinery Make Rice Bran Oil Making Machine

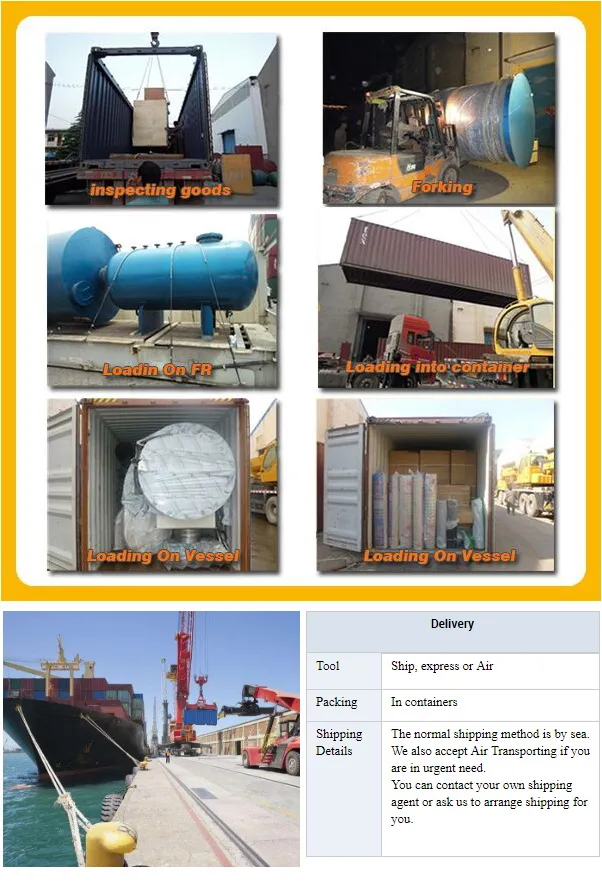

Packing and Delivery: Rice Bran Oil Mill Plant Rice Bran Oil Production Line Machinery Make Rice Bran Oil Making Machine

Our service:

FAQ:
What is the warranty of the machines?
12 months free guanantee and life long standard paid service.

What is the raw material of your machinery?
Stainless steel and carbon steel.

When can I get the price?
Within 24 hours, if urgent, please directly contact us.

How to ask quotation?
Please inform us your crude oil specifications and your target capacity per day, then we will send our proposal as soon as possible.

How many areas are required to build the plant refinery?
The land area required usually depends on the capacity of your plant. We can calculate the area needed and give you the plant designs.

How long will it take to get my products?
In general, it will take us 45-120 days to make the machinery, and 3-7days to shipping port.

Can you install the production line and train our stuffs for free?
Yes we can. We'll send engineers to help you install the equipment and train your workers freely.
