Hardware JIS 1168 Lifting Eye Screw

JIS 1168 Eye ScrewPRODUCT NAME: JIS 1168 Eye ScrewMATERIAL:Carbon Steel-C1045SIZE:M8 -- M80TECHNOLOGY:ForgedSURFACE:Electro-galv / H.D.G / SprayORIGINAL:ChinaSTANDARD:JIS 1168MAIN PRODUCTS:Wire Rope Clips / Shackle / Turnbuckle / Eye bolt and Nut / Hooks / Load BinderOTHER:Connecting Link / Thimble ......

Send Inquiry

Product Description

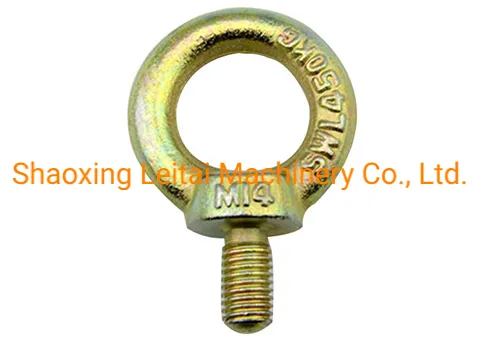

JIS 1168 Eye Screw

PRODUCT NAME:	JIS 1168 Eye Screw
MATERIAL:	Carbon Steel-C1045
SIZE:	M8 -- M80
TECHNOLOGY:	Forged
SURFACE:	Electro-galv / H.D.G / Spray
ORIGINAL:	China
STANDARD:	JIS 1168
MAIN PRODUCTS:	Wire Rope Clips / Shackle / Turnbuckle / Eye bolt and Nut / Hooks / Load Binder
OTHER:	Connecting Link / Thimble / Swivel / Chain / Wire Rope / ...
NOTED:	Special Sharped products also welcomed

	SIZE(d)							Safe Working Load kgf (KN)
	A	B	C	D	E	F	G	Vertical		45°
M8	326	20	6.3	16	12	23	393	80	0 785	80	0 785
M10	41	25	8	20	15	28	48.5	150	1 47	150	1,47
M12	50	30	1	25	19	36	61	220	2.16	220	2 16
M16	60	35	12.5	30	23	42	72	450	4.41	450	4.41
M20	72	40	16	35	28	50	86	630	6 18	630	6 18
M24	90	50	20	45	38	66	111	950	9.32	950	9 32
M30	110	60	25	60	46	80	135	1500	147	1500	147
M36	133	70	31.5	70	55	95	161 5	2300	226	2300	226
M42	151	80	35 5	80	64	109	184.5	3400	33.3	3400	33.3
M48	170	90	40	90	73	123	208	4500	44 1	4500	44.1
M64	210	110	50	110	90	151	256	9000	883	9000	883
M80	266	140	63	130	108	184	317	15000	147	15000	147
