Hf395y Drilling Rig for Photovoltaic Power Station Foundation Pile
HF395Y PV solar pillar pile driver ramming piling machineProduct Description HF395Y crawler hydraulic drilling rig, adopts unique construction technology and climbing mechanism design, which can be adjusted according to the slope height, suita......
Send Inquiry
Product Description

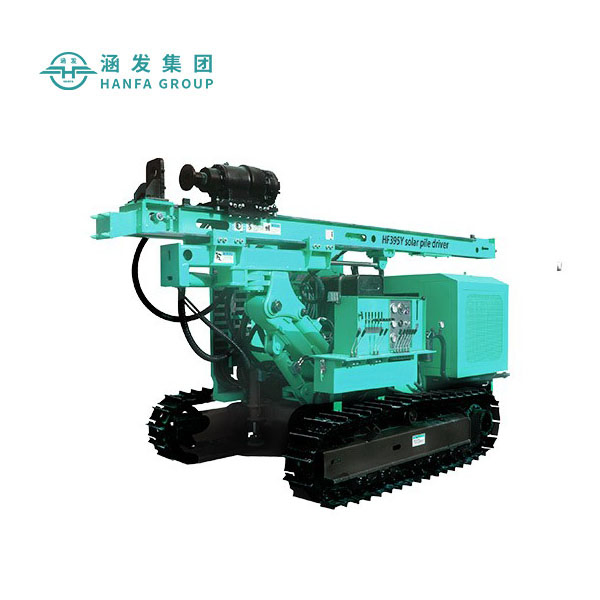

HF395Y PV solar pillar pile driver ramming piling machine
Product Description
HF395Y crawler hydraulic drilling rig, adopts unique construction technology and climbing mechanism design, which can be adjusted according to the slope height, suitable for maximum 45 degrees slope solar engineering construction, this equipment is capable for all kinds of PV constructional technologies: screw pile drilling, spiral hole drilling, rock DTH hammer, ramming pile and so on, the machine hydraulic parts adopt imported original parts, greatly improving the performance and stability of the equipment; machine has compact structure, and mast has telescopic compensation function, during working the mast are supported on the ground, it has high borehole stability . HF395Y piling machine has reliable performance, high efficiency, multifunctional applications. This HF395Y solar piling machine is currently the strongest mountainous solar drilling rig in China
The HF395Y drilling rig can also be used for anchoring, water wells, water conservancy, power plant open mining, road building and other blasting hole constructions.
Feature
1.HF395Y can work in mountain , slope degree about 45 degree angle ,in order to keep balance in mountain ,we have our special design FOR crawler chassis.
2.this machine valve we imported from italy .and hydraulic pump we use PERMCO .,we guarantee good quality machine for you.
3.diesel engine we use china famous brand yuchai engine ,strong engine power 84 KW
4. the model machine can drill H shape,U shape ,C shape pile and screw drilling project and also they can do DTH hammer drilling
5. Maximum pile height can reach 5M
6.colour you can choose green or orange.
Parameter

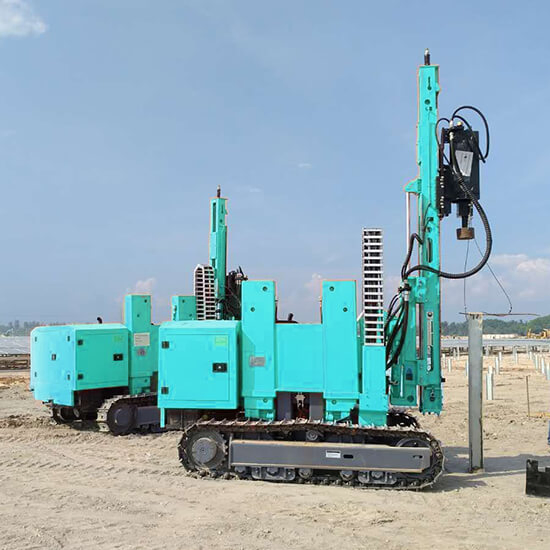

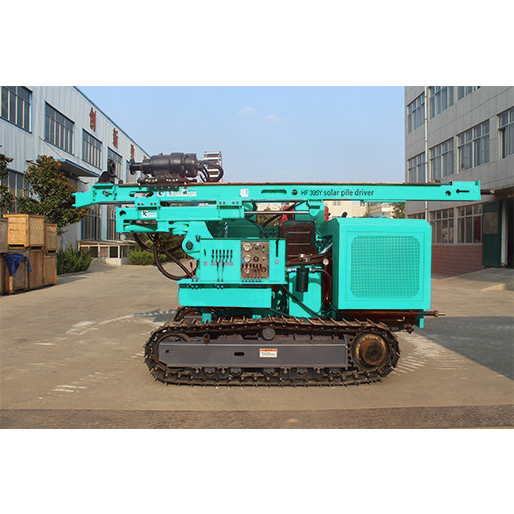

Product Display

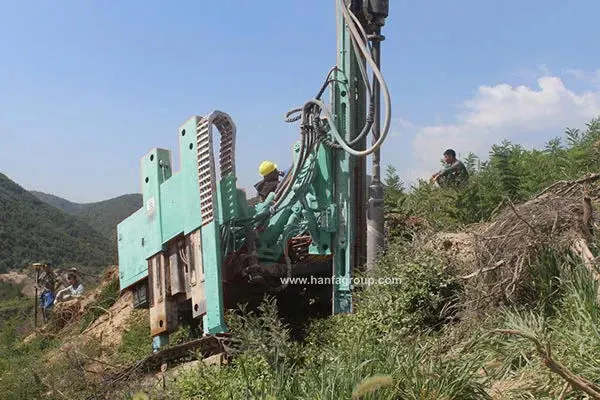

Working Site
Company Introduction
Hanfa Group established in 1998 is a key enterprise in the industry of geological exploration and water well field, with the ability to research,manufacture and market. Now, the Group pursues high standard manufacturing and qualified products. It has more than 20 species such as water well drilling rig, core drilling rig, engineering drilling rig, DTH drilling rig, horizontaldirectional drilling rig, etc. These machines are mainly used in geological prospecting, exploration of railway and highway engineering, mining, SPT, water well, geothermal well etc. Some of them won the Scientific and Technical Advance Prize or the National Scientific Research Achievement Prize. All the products have passed the quality system certification of ISO9001:2000 and are national inspection-free products.
1. More than 30 years of experience

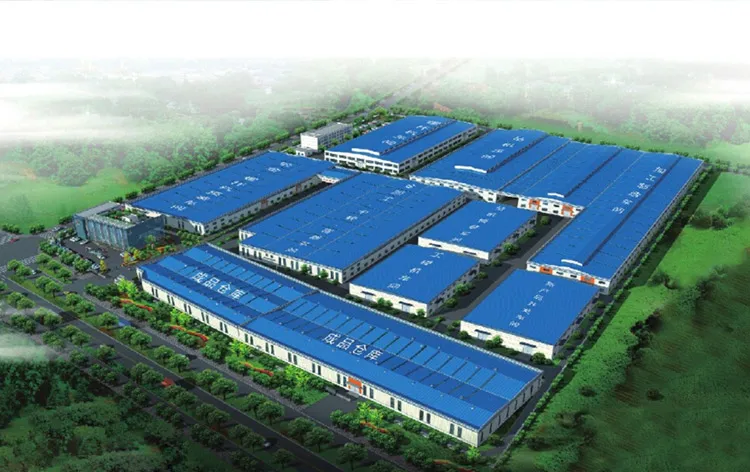

The factory is located in Henan Province, China. We are very welcome to visit our factory. If
you need it, we will arrange a pick-up.

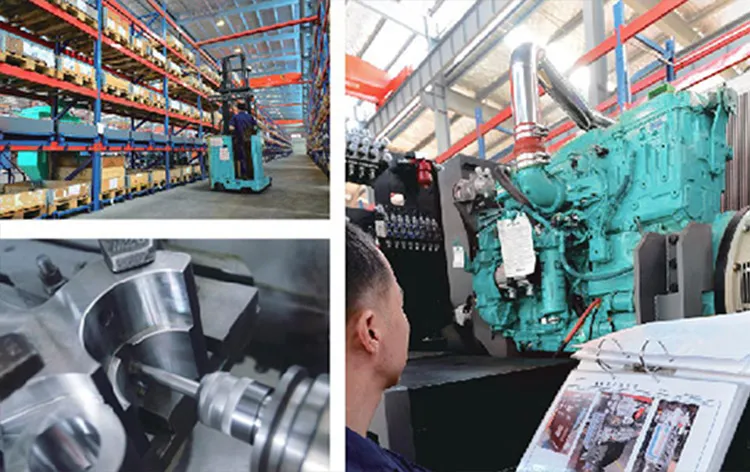

2.Top production team
The transportation and packaging will be packaged in international standards. If you have special packaging requirements, we will give you the most suitable solution.
3.Our Service
- New machine provides technical trair.
- Once anything goes wrong with the machine by normal using, our technical person must appear at the first time no matter where you are.
- When the machine should be maintained, you will receive the reminding from us.
- According to different geological conditions, we will recommend different construction plans for you
- Remind you which are wearing parts, so you can prepare enough.
- 24 hours respond to your quality problem.
FAQ
1,Are you trading company or manufacturer?
We are professional manufacturer, and our factory mainly produce water well drilling rig, core drilling rig, DTH drilling rig, piling rig, etc. Our products have been exported to more than 50 countries of Asia, South America, Africa, and get a good reputation in the world.
2,Are your products qualified?
Yes, our products all have gained ISO certificate,and we have specialized quality inspection department for checking every machine before leaving our factory.
3,How about your machine quality?
All of our machines hold the ISO, QC and TUV certificate, and each set of machine must pass a great number of strict testing in order to offer the best quality to our customers.
4,Do you have after service?
Yes, we have special service team which will offer you professional guidance. If you need, we can send our engineer to your worksite and provid the training for your staff.
5,What about the qaulity warranty?
We offer one-year quality warranty for machines' main body.
6,How long can you deliver the machine?
Generally, we can deliver the machine in 7 days.
Our Customers
Product Description
HF395Y crawler hydraulic drilling rig, adopts unique construction technology and climbing mechanism design, which can be adjusted according to the slope height, suitable for maximum 45 degrees slope solar engineering construction, this equipment is capable for all kinds of PV constructional technologies: screw pile drilling, spiral hole drilling, rock DTH hammer, ramming pile and so on, the machine hydraulic parts adopt imported original parts, greatly improving the performance and stability of the equipment; machine has compact structure, and mast has telescopic compensation function, during working the mast are supported on the ground, it has high borehole stability . HF395Y piling machine has reliable performance, high efficiency, multifunctional applications. This HF395Y solar piling machine is currently the strongest mountainous solar drilling rig in China
The HF395Y drilling rig can also be used for anchoring, water wells, water conservancy, power plant open mining, road building and other blasting hole constructions.
Feature
1.HF395Y can work in mountain , slope degree about 45 degree angle ,in order to keep balance in mountain ,we have our special design FOR crawler chassis.
2.this machine valve we imported from italy .and hydraulic pump we use PERMCO .,we guarantee good quality machine for you.
3.diesel engine we use china famous brand yuchai engine ,strong engine power 84 KW
4. the model machine can drill H shape,U shape ,C shape pile and screw drilling project and also they can do DTH hammer drilling
5. Maximum pile height can reach 5M
6.colour you can choose green or orange.
Parameter
| Bore diameter(DTH hammer)(mm) | 90-400 |
| Bore depth(m) | 20-120 |
| Air consumption(m³/min) | 10-26 |
| Air pressure(Mpa) | 0.7-1.6(medium) |
| 1.6-2.46(high) | |
| Pile diameter(mm) | 76/89/102 |
| For rock(F) | 6-20 |
| Bore diameter(screw)(mm) | Max400 |
| Bore depth(m) | 0-30m |
| Screw pile diameter(mm) | 130-410 |
| Once promotion(mm) | 2000 |
| Skid pitch(º) | 100 |
| swinging angle of skid(º) | left and right total 40 |
| boom swing angle(º) | left and right total 50 |
| Rotation speed(r/min) | 0-110 |
| Climb ability(º) | 45 |
| Dimension(L*W*H)(mm) | 5330*2110*2850 |
| weight(kg) | 7300 |
| Walk speed(km/h) | 0-2.5 |

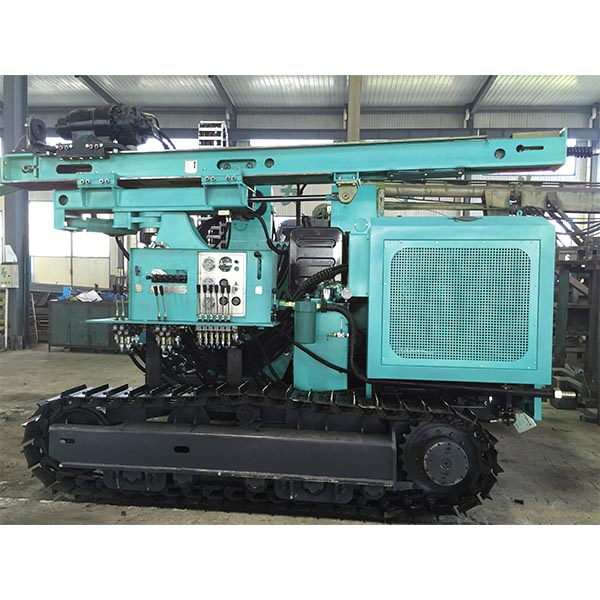

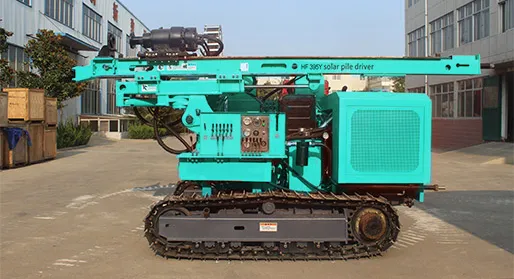

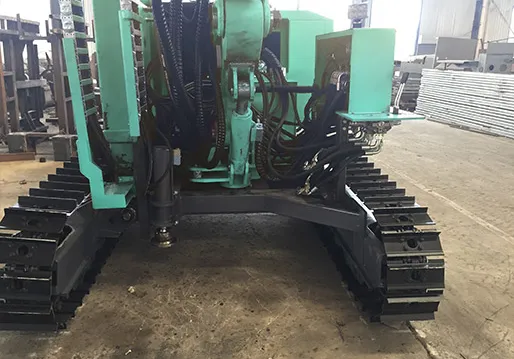

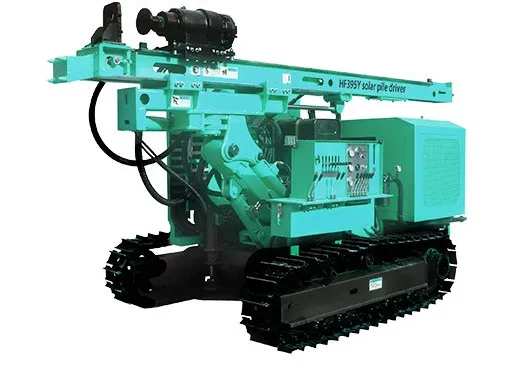

Product Display
Working Site
Company Introduction
Hanfa Group established in 1998 is a key enterprise in the industry of geological exploration and water well field, with the ability to research,manufacture and market. Now, the Group pursues high standard manufacturing and qualified products. It has more than 20 species such as water well drilling rig, core drilling rig, engineering drilling rig, DTH drilling rig, horizontaldirectional drilling rig, etc. These machines are mainly used in geological prospecting, exploration of railway and highway engineering, mining, SPT, water well, geothermal well etc. Some of them won the Scientific and Technical Advance Prize or the National Scientific Research Achievement Prize. All the products have passed the quality system certification of ISO9001:2000 and are national inspection-free products.
1. More than 30 years of experience
The factory is located in Henan Province, China. We are very welcome to visit our factory. If
you need it, we will arrange a pick-up.
2.Top production team
The transportation and packaging will be packaged in international standards. If you have special packaging requirements, we will give you the most suitable solution.
3.Our Service
- New machine provides technical trair.
- Once anything goes wrong with the machine by normal using, our technical person must appear at the first time no matter where you are.
- When the machine should be maintained, you will receive the reminding from us.
- According to different geological conditions, we will recommend different construction plans for you
- Remind you which are wearing parts, so you can prepare enough.
- 24 hours respond to your quality problem.
FAQ
1,Are you trading company or manufacturer?
We are professional manufacturer, and our factory mainly produce water well drilling rig, core drilling rig, DTH drilling rig, piling rig, etc. Our products have been exported to more than 50 countries of Asia, South America, Africa, and get a good reputation in the world.
2,Are your products qualified?
Yes, our products all have gained ISO certificate,and we have specialized quality inspection department for checking every machine before leaving our factory.
3,How about your machine quality?
All of our machines hold the ISO, QC and TUV certificate, and each set of machine must pass a great number of strict testing in order to offer the best quality to our customers.
4,Do you have after service?
Yes, we have special service team which will offer you professional guidance. If you need, we can send our engineer to your worksite and provid the training for your staff.
5,What about the qaulity warranty?
We offer one-year quality warranty for machines' main body.
6,How long can you deliver the machine?
Generally, we can deliver the machine in 7 days.
