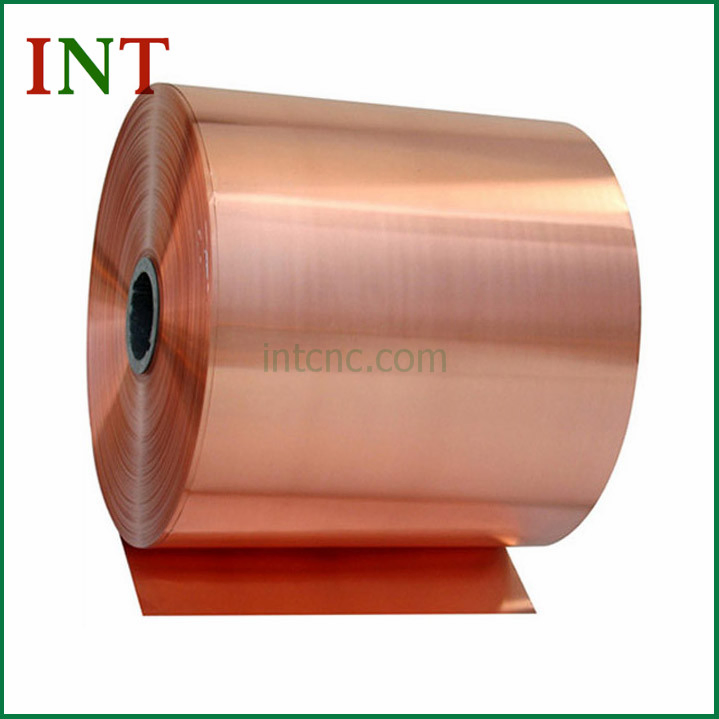

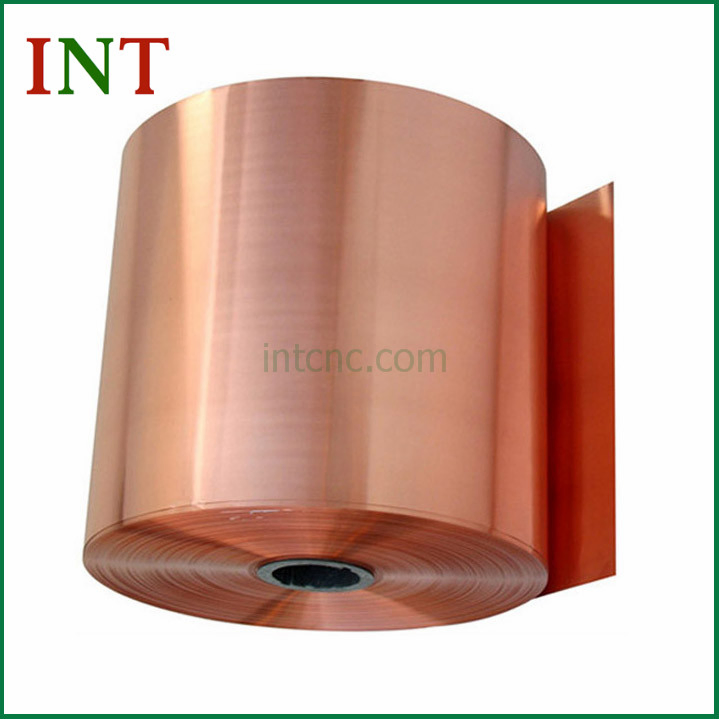

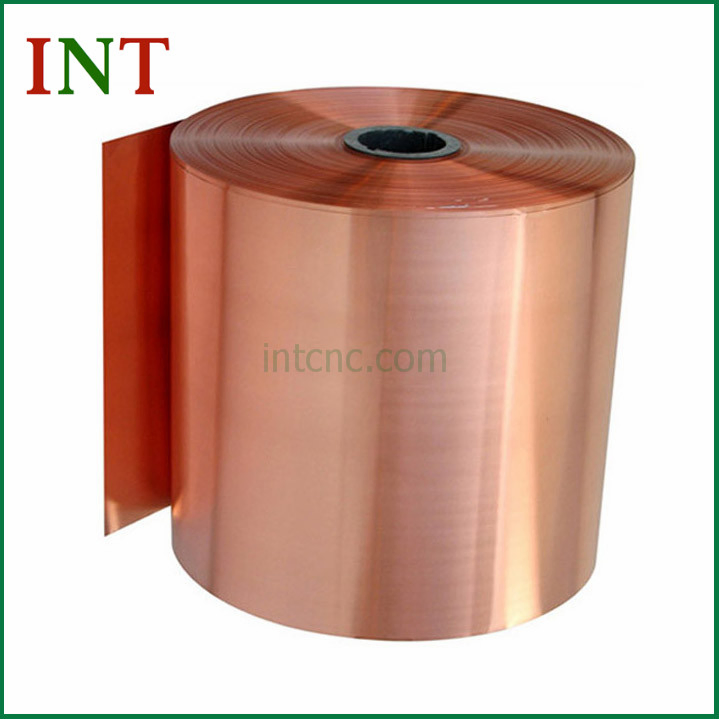

China Copper Factory C1100 Cu-ETP Pure Copper Foil

Product Description

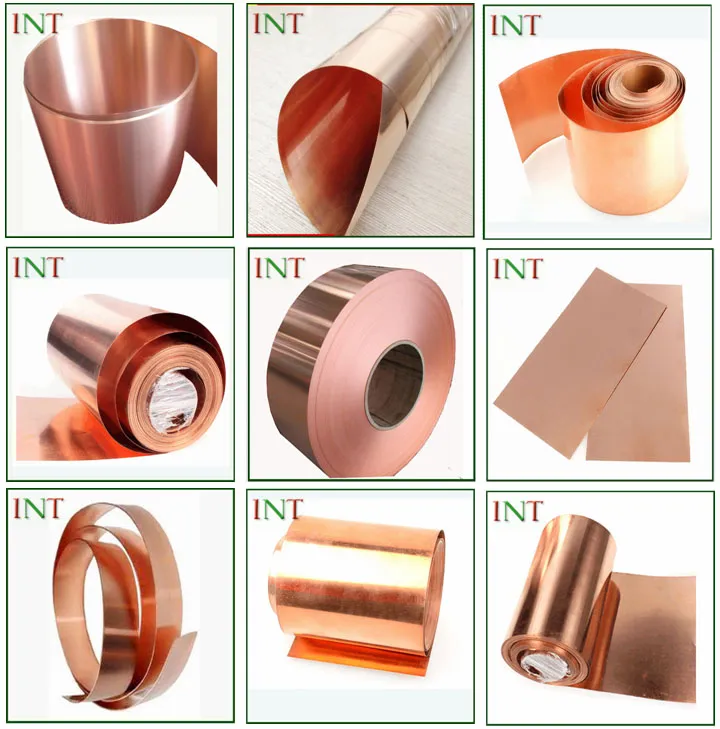

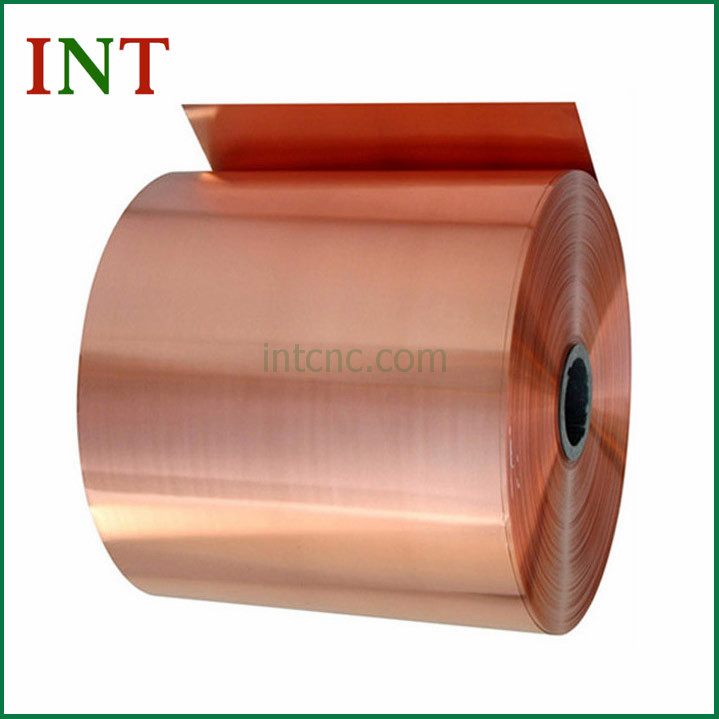

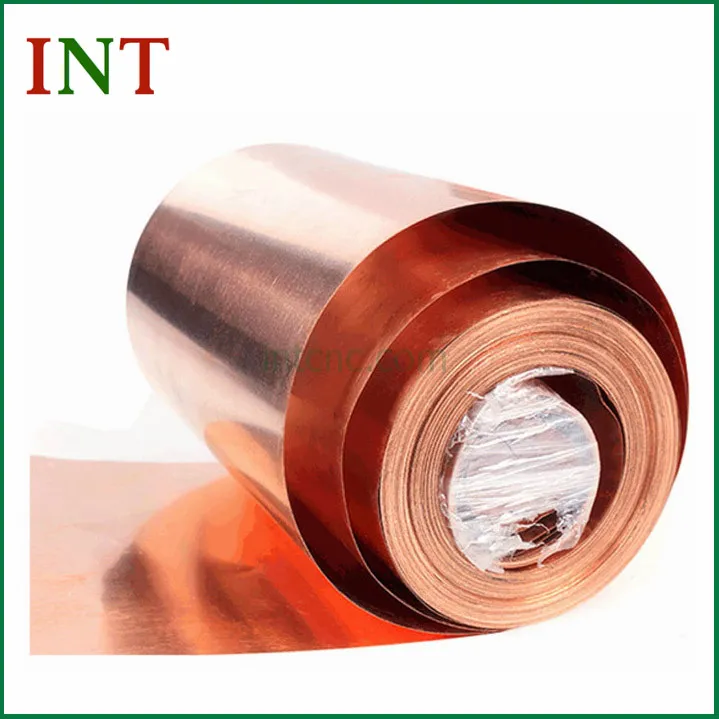

Copper factory C1100 Cu-ETP pure Copper Foil
Copper factory, more than 12 years manufacture experience, attained ISO9001, work on OEM and ODM projects..

1. Introduction of the Electromagnetic shielding Copper foil tape

Pure Copper foil has a low surface oxygen characteristics, can be attached with a variety of different substrates, such as metal, insulating materials, etc., have a wide range of temperature use.

Mainly used in electromagnetic shielding and anti-static, the conductive copper foil placed on the substrate surface, combined with metal substrate, with excellent continuity, and provide the effect of electromagnetic shielding.

Pure copper foil can be divided into two categories: rolled copper foil (RA copper foil) and point copper foil (ED copper foil)

Copper Factory C1100 Cu-ETP Pure Copper Foil

2. Grade and temper for Electromagnetic shielding Copper foil tape

Grade: T2 ,TU2, C102 , C1020, C1100 , Cu-ETP , CDA110, CDA102,
Temper: O(M), 1/4H(Y4), 1/2H(Y2), H(Y), HH(T)

3. Chemical composition of Electromagnetic shielding Copper foil tape

Cu+Ag:≥99.97
Sn :≤0.002
Zn:≤0.005
Pb:≤0.005
Ni:≤0.005
Fe:≤0.005
Sb :≤0.002
S :≤0.005
As :≤0.002
Bi:≤0.001
O:≤0.06
Impurities:≤0.1

4. Dimension and tolerance of Electromagnetic shielding Copper foil tape

Thickness : 9um -100um
Width : 10mm--1350mm

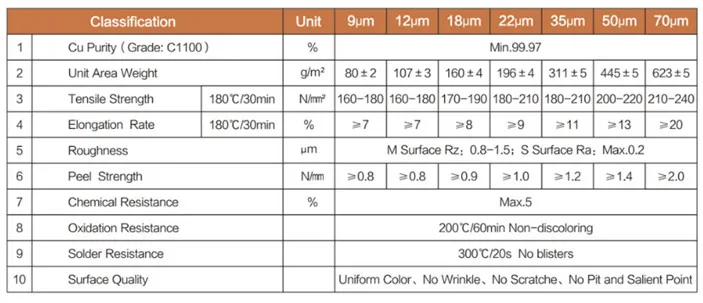

5. Mechanical properties for Electromagnetic shielding Copper foil tape

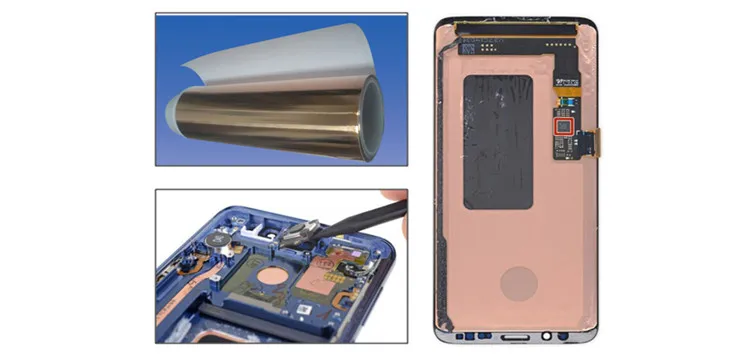

6. Application of Electromagnetic shielding Copper foil tape

It is widely used in electromagnetic shielding and anti-static, industrial calculators, Communications equipment, QA equipment, lithium-ion batteries, civilian television sets, video recorders, CD players, copiers, telephone, air conditioning, automotive electronics, game consoles.

Pure copper foil also used as decorative material. Such as: hotel hotels, monasteries, gold signs, tile mosaic, handicrafts and so on.
Copper Factory C1100 Cu-ETP Pure Copper Foil

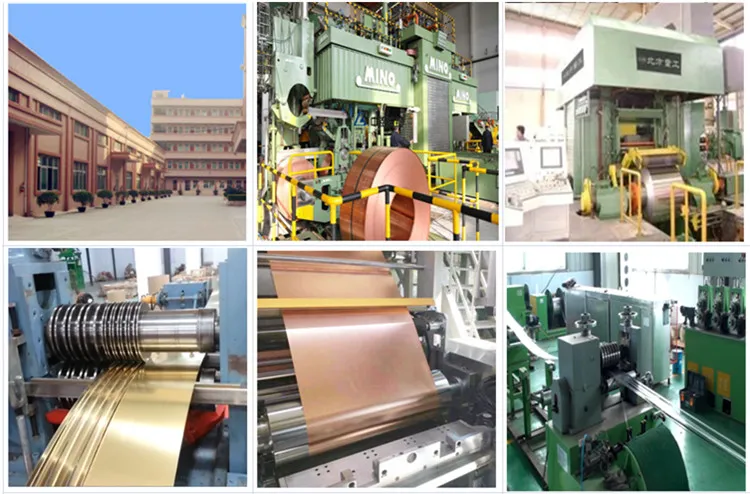

7. Manufacture plant of copper foil

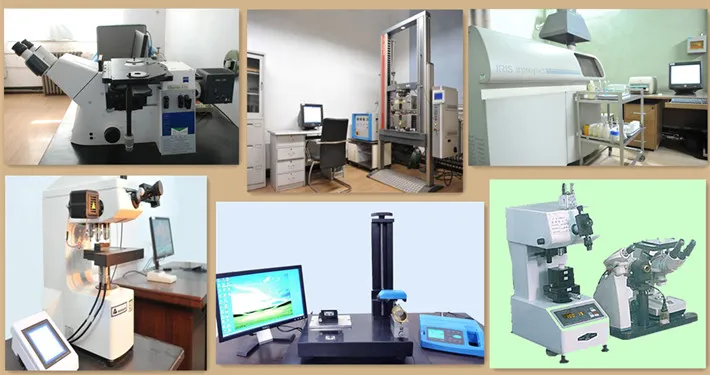

8. Tests and inspection for copper foil

Test instrument : Metallographic Microscope; Digital Light Processor; Strength Tester; Hardness Tester.

Copper Factory C1100 Cu-ETP Pure Copper Foil

9. Mill certificates for Electromagnetic shielding Copper foil tape

10. Packing and shipping for Electromagnetic shielding Copper foil tape

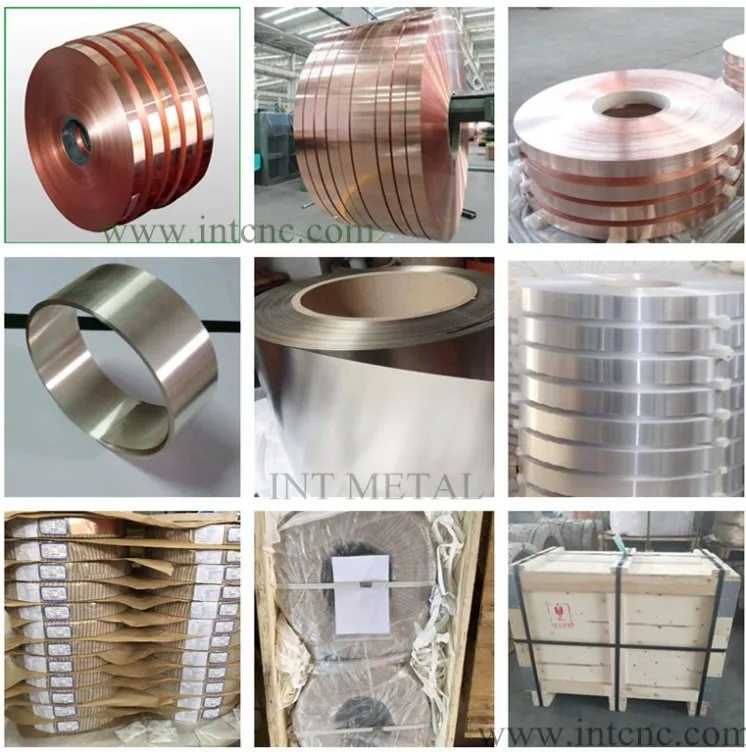

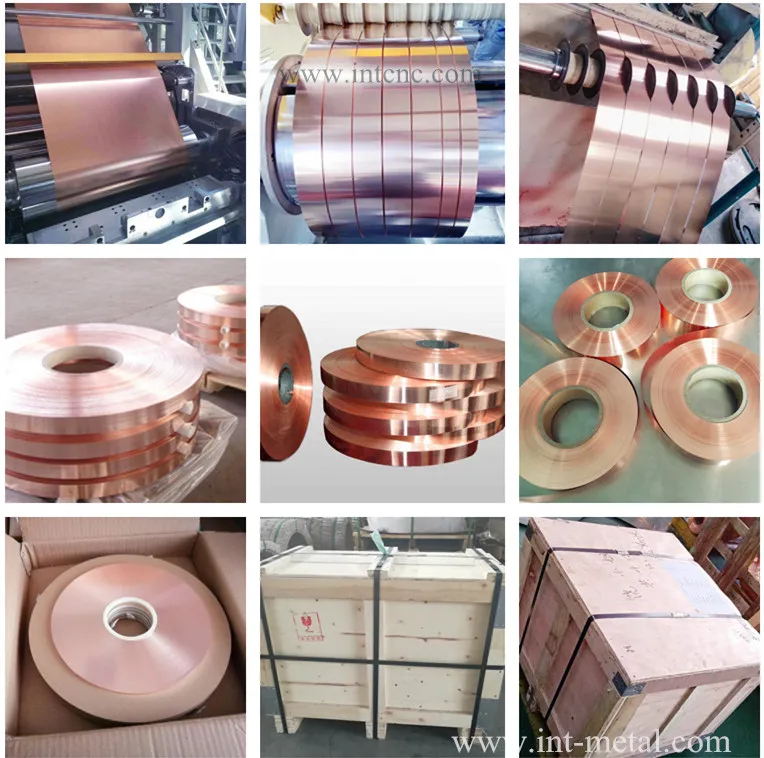

Packing:
First wrapped by anti-rust paper, second wrapped by plastic film, then packed by wooden box or wooden pallet ..

Copper Factory C1100 Cu-ETP Pure Copper Foil

Shipping:
We will choose the best way according to customer's requests.
1. By Air, to the indicated airport.
2. By Express (FedEx, UPS, DHL, TNT, EMS), to the indicated address.
2. By Sea, to the indicated sea port.
Copper Factory C1100 Cu-ETP Pure Copper Foil

11. Questions and Answers

a1. Do you have ISO certificate?
Yes, we obtained ISO9001

a2. How long is your delivery time for copper foil?
If the master coil is available, 3-7 days do slitting will be ready , if not, will need 20-25 days for new production.

a3. Can you help us to choose suitable material?
Yes, we can recommend the most suitable material according to your application.

a4. How do you control quality?

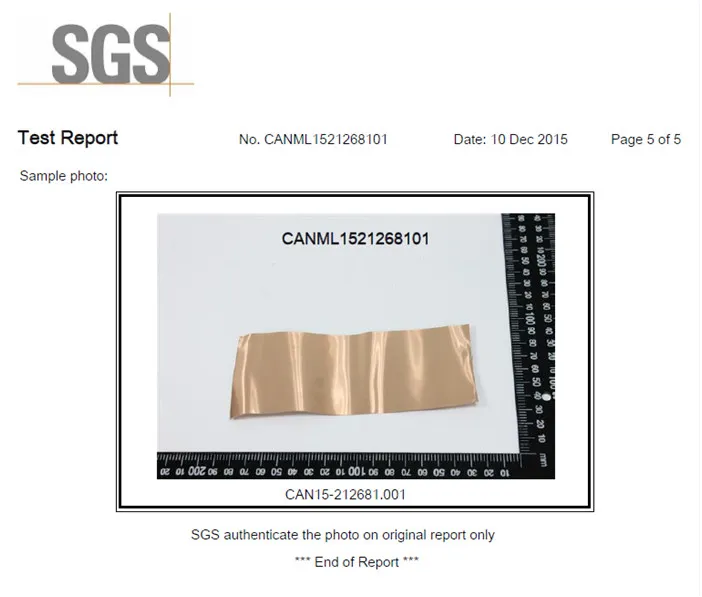

We produce strictly according to customer's drawings and requests, here are strict control plan in every process, full check of each parts, strive to provide customer 100% quality products, ROHS/SGS test report, material certificate are available.

a5. Do you provide sample? Free or charge?
Yes, if the sample in stock available, free of charge, if not, need to charge some mfg cost.
