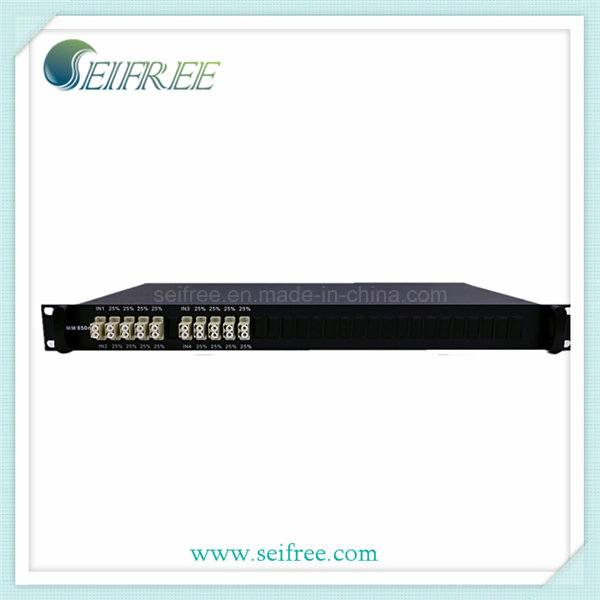

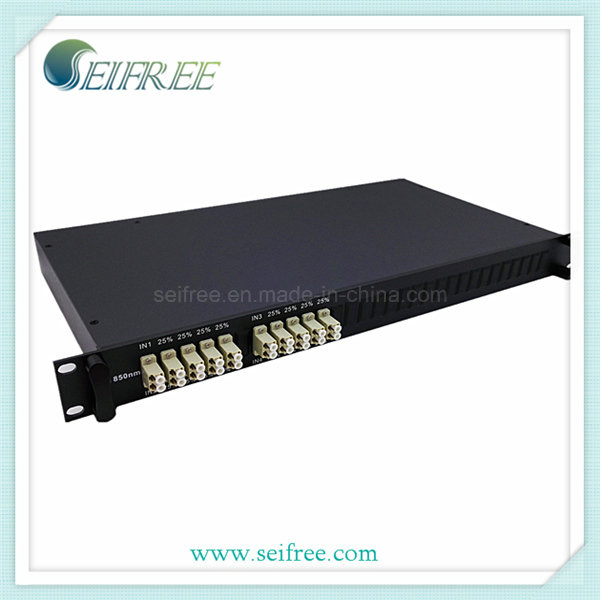

Multi-Mode Fiber Optic PLC Splitter, 19 Inches 1u Rackmount

Product Description

Description
1. Fused Biconical Taper (FBT) splitters are available with 1x2, 1x3, 1x4, 1x5, 1x6, 1x7, 1x8, 1x9, 1x10, 1x11, 1x12, 1x16, 1x18, 1x20 and 1x24 etc. configurations with single mode or multimode fiber.
2. As one of the key components for GPON FTTx networks, optical splitters can be placed in the Central Office or in one of the distribution points (outdoor or indoor).
3. FBT splitters, also called FBT couplers, are designed for power splitting and tapping in telecommunication equipment, CATV network, and test equipment.
4. Different split ratios of the optical power can be selected.

Specification

Operating Wavelength(nm)	820±20/980±40/ 1310±40/1550±40			980&1550±40/ 1310&1490&1550±40			Parameter	Unit	Value
Ports (m x n)	Insertion Loss	PDL	Uni.	Insertion Loss	PDL	Uni.	Fiber Type	/	Hi 780/ Flex 1060/ SMF-28e/ SMF-28e XB
Ports (m x n)	dB						Fiber Type	/	Hi 780/ Flex 1060/ SMF-28e/ SMF-28e XB
1x3	≤5.40	≤0.20	≤0.50	≤5.60	≤0.20	≤0.60	Directivity	dB	>55
1x4(2x4)	≤6.90(7.10)	≤0.20	≤0.70	≤7.10(7.30)	≤0.20	≤0.80	Return Loss	dB	>50
1x5	≤7.90	≤0.30	≤1.10	≤8.10	≤0.30	≤1.20	Pigtail Dia.	mm	0.9 / 2 / 3
1x6	≤8.90	≤0.30	≤1.30	≤9.10	≤0.30	≤1.50	Pigtail Length	cm	>50
1x7	≤9.60	≤0.30	≤1.40	≤9.80	≤0.30	≤1.80	Operating Tem.	ºC	-10~ +70
1x8(2x8)	≤10.4(10.6)	≤0.30	≤1.50	≤10.6(10.8)	≤0.30	≤1.70	Storage Tem.	ºC	-40~ +85

Our Service
1. We usually quote within 24 hours after we confirm the technical data of products. If you are very urgent to get the price, please call us or tell us in your email, so that we will regard your inquiry priority.
2. After price confirmation, you can require for samples to check our quality.
3. After you place the order, the samples will be finished in 3~7 days. And the samples will be sent to you via express and arrive in 3-5 workdays.
4. We accept OEM service with OEM package, you just need to send us your detailed requirements.
