Hx-1ge+1fe+WiFi Dual Mode ONU Meets Telecom Operators Ftto (office) , Fttd (Desk) , FTTH (Home) Broadband Speed
HX-1GE+1FE+WiFi Dual Mode ONU Meets Telecom Operators FTTO (office), FTTD(Desk), FTTH(Home) Broadband SpeedProduct ShowProduct descriptionHX-1GE+1FE+WiFi dual mode ONU meets telecom operators FTTO (office), FTTD(Desk), FTTH(Home) broadband speed, SOHO broadband access, video surveillance and other r......
Send Inquiry
Product Description
HX-1GE+1FE+WiFi Dual Mode ONU Meets Telecom Operators FTTO (office), FTTD(Desk), FTTH(Home) Broadband Speed

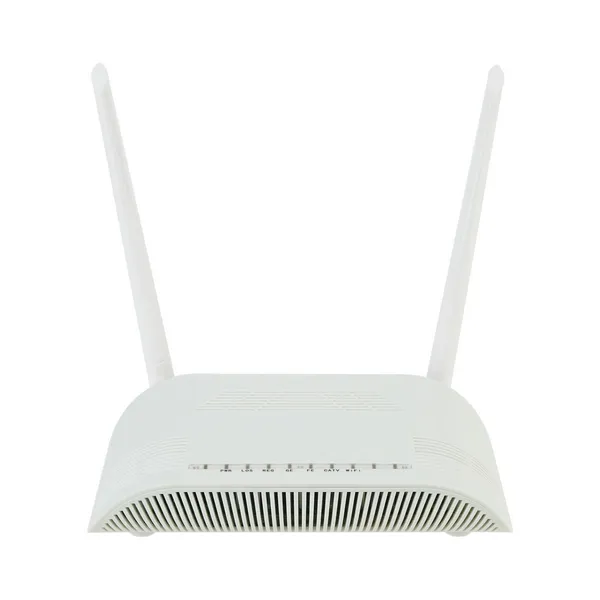

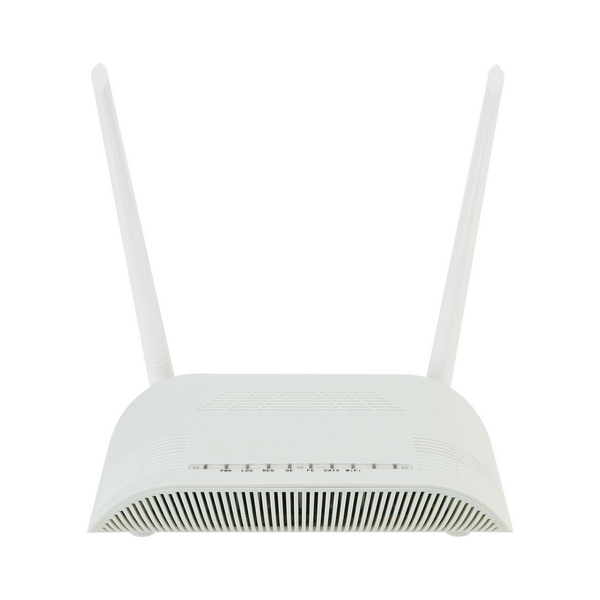

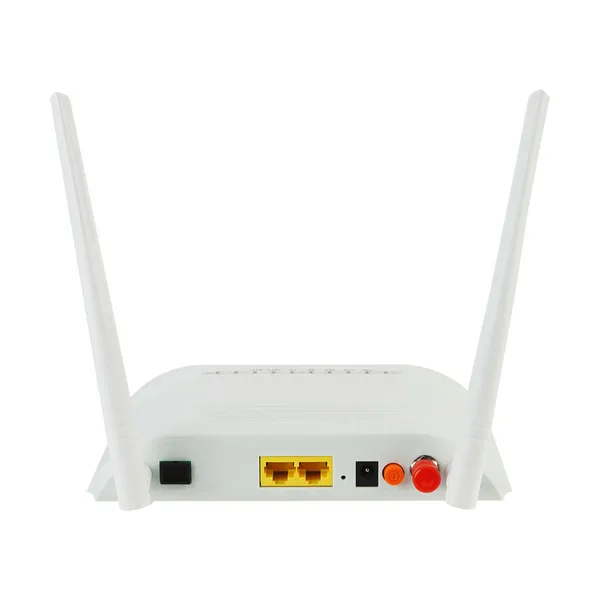

Product Show
Product description
HX-1GE+1FE+WiFi dual mode ONU meets telecom operators FTTO (office), FTTD(Desk), FTTH(Home) broadband speed, SOHO broadband access, video surveillance and other requirements and design an GPON/GEPON Gigabit Ethernet products. It is based on mature GPON and Gigabit EPON technology, and has high ratio of performance to price, stable, cost-effective, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees. It is fully compliant with GPON and EPON technical regulations such as ITU-T G.984.x, IEEE802.3ah and technical requirement of EPON Equipment
Product Features
Plug and play, features auto-detecting, auto-configuration, and auto firmware upgrade, etc.
Integrated OAM remote configuration and maintenance function.
Support rich QinQ VLAN functions and IGMP Snooping multicast features.
Fully compatibility with OLT based on popular chipset.
Support 802.11n WiFi(2T2R) function.
Support NAT, Firewall function.
Support IPv4 and IPv6 dual stack.
The WAN port supports bridge, router and bridge/router mixed mode.
Product standard
EPON IEEE802.3ah
Technical Parameters
Technical item | 1GE+1FE+WiFi |
Interface | 1 GPON/EPON interface, SC single-mode/single-fiber. |
GPON: uplink 1.25Gbps, downlink 2.5Gbps; EPON: symmetric 1.25Gbps. | |
Wavelength | PON Tx1310nm,Rx 1490nm |
LAN interface | 1x 10/100/1000Mbps Auto-negotiation Ethernet interfaces. |
1x10/100Mbps Auto-negotiation Ethernet interfaces. | |
RJ45 connector | |
Wireless | Compliant with IEEE802.11b/g/n, 300Mbps, 2T2R, 2 external antenna |
LED | 6, For Status of POWER,LOS,PON,LAN,WiFi. |
Operating condition | Temperature: -5ºC~55ºC |
Humidity: 10%~90%(non-condensing) | |
Storing | Temperature :-30ºC~60ºC |
condition | Humidity :10%~90%(non-condensing) |
Power supply | DC 12V/1A |
Power consumption | ≤7W |
Dimension | 185mm×120mm×34mm(L×W×H) |
Net weight | 0.24Kg |
