Product Description

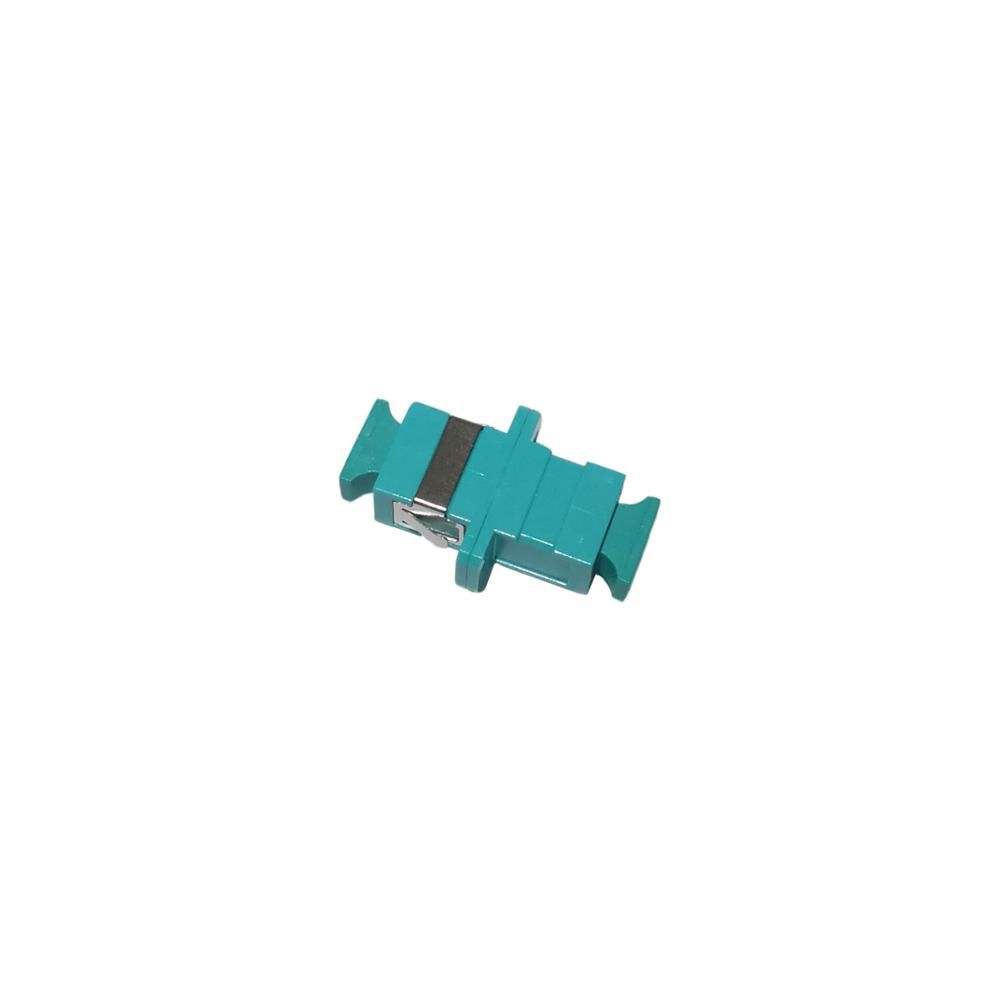

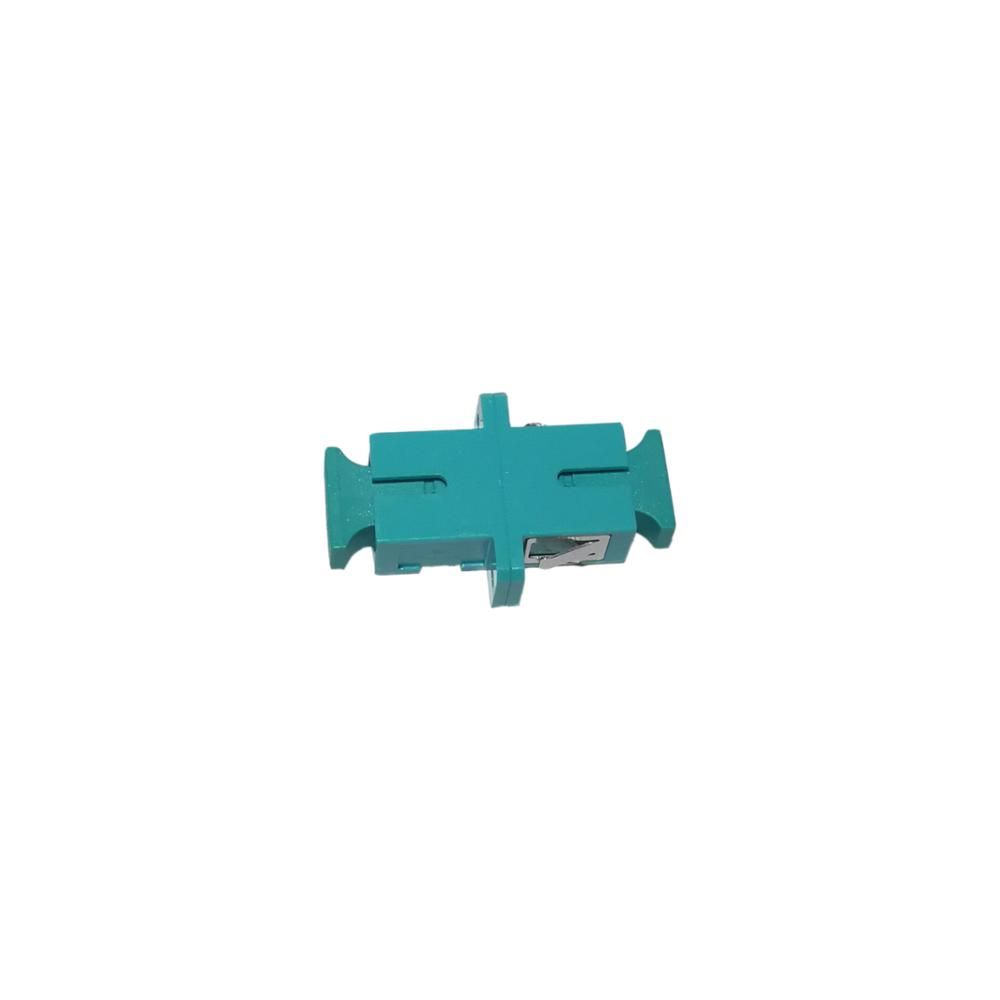

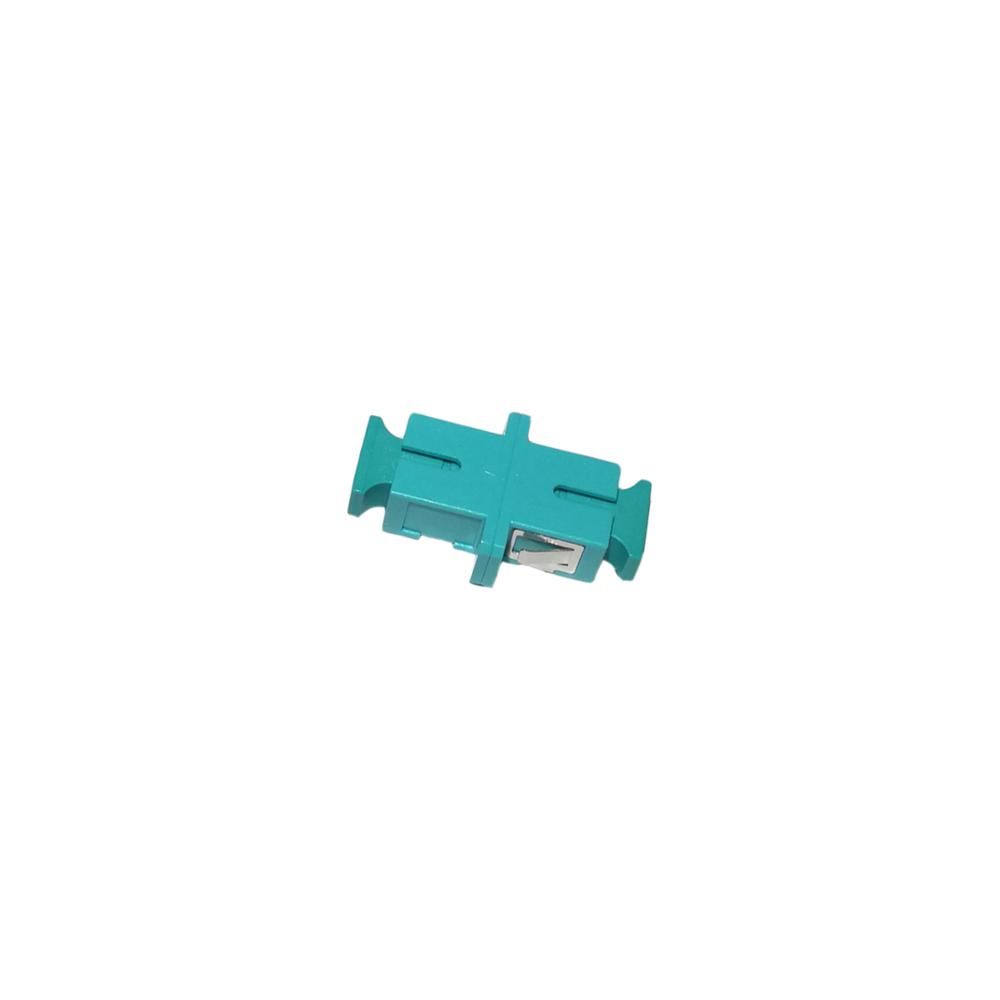

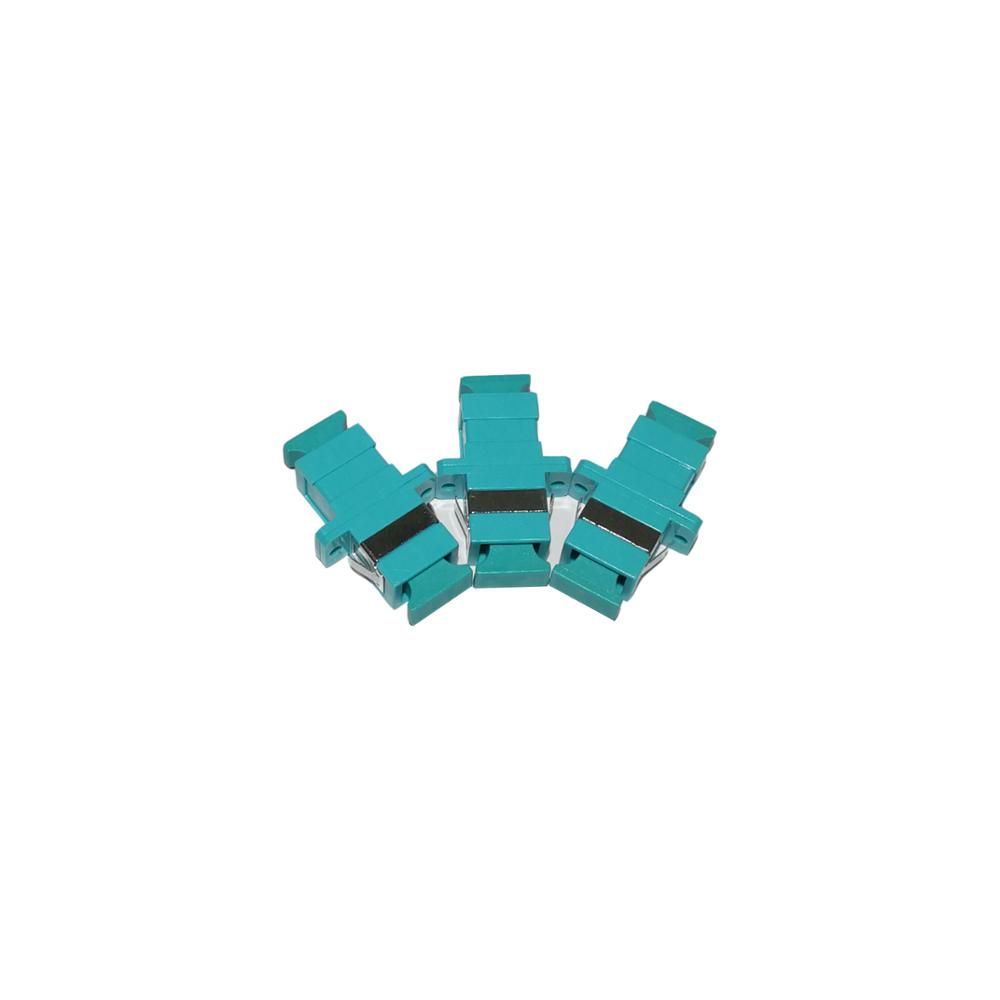

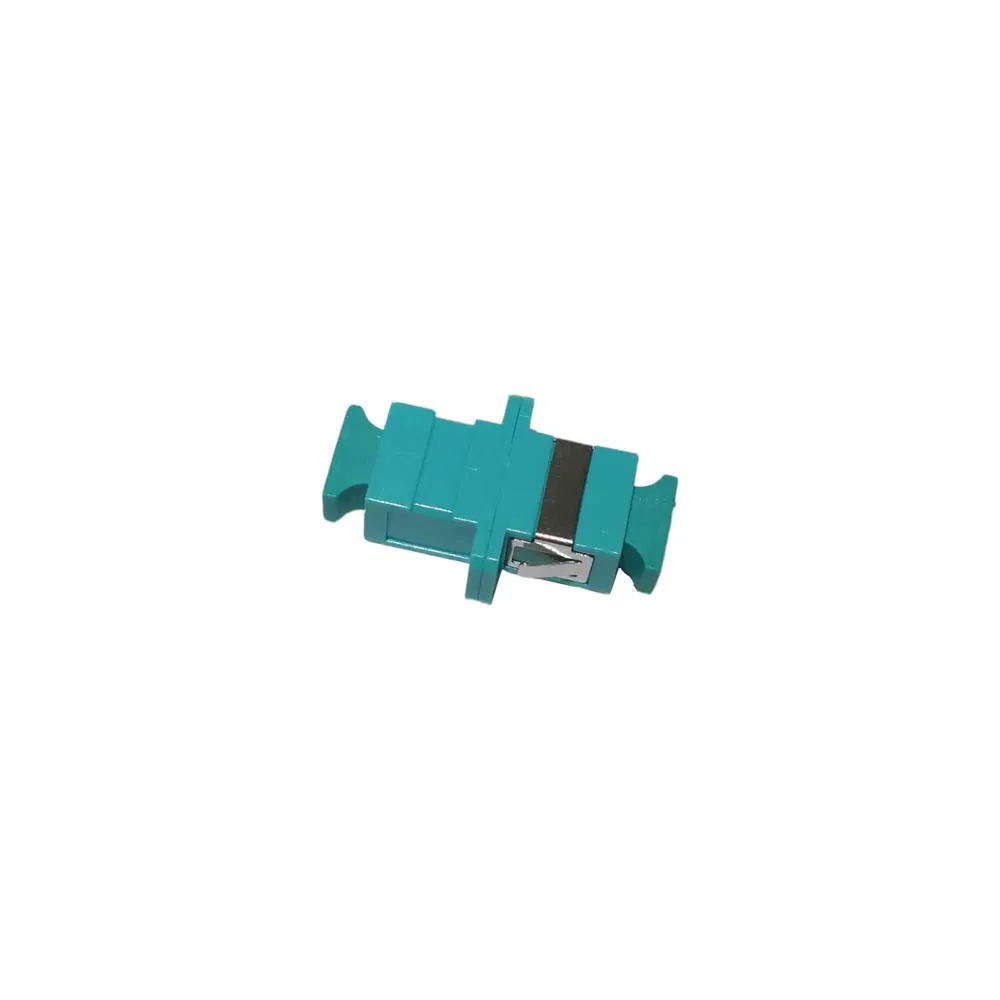

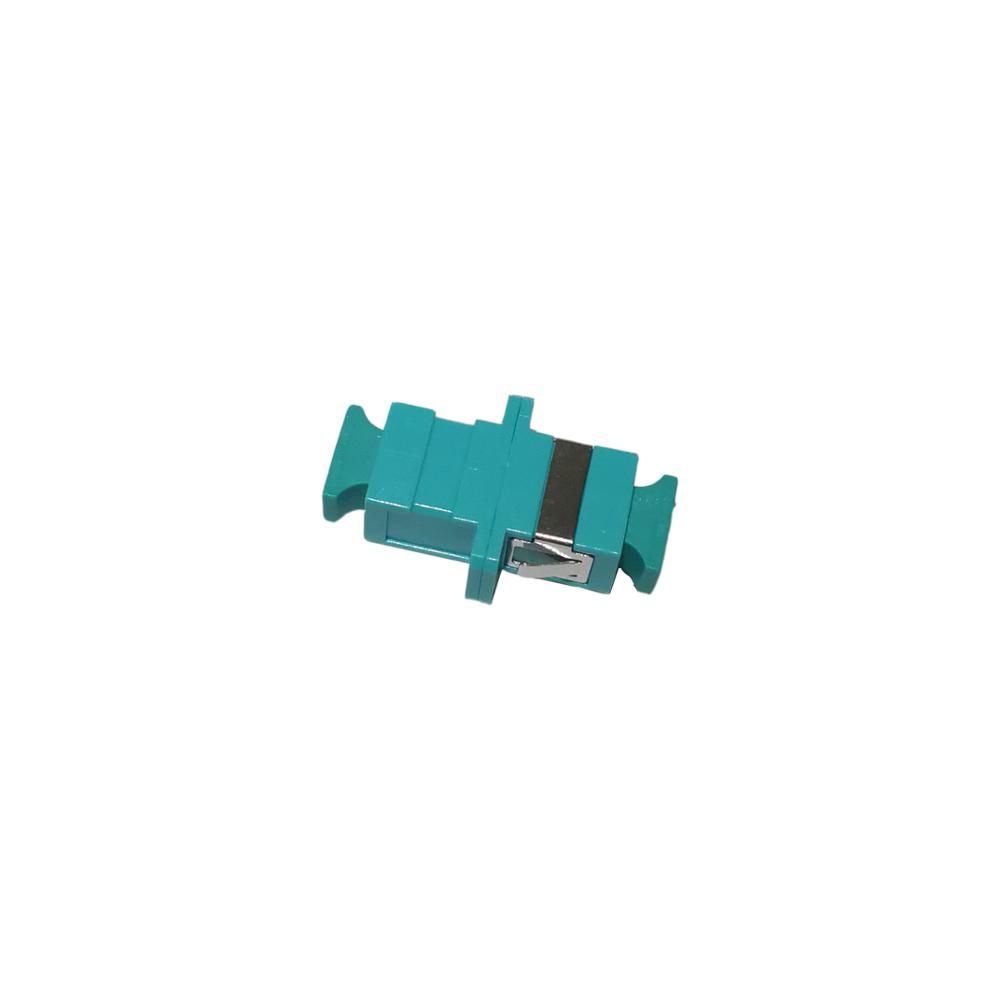

China supply Low Insert Loss SC/UPC to SC/UPC OM3 Fiber Optical Adapter

1.Features

· Good Compatibility

· Accurate Mechanical Dimensions

· High Reliability and Stability

· Zirconia or Phosphor Bronze Sleeve

· Single mode, Multi-mode Versions

· Various Types of Connectors FC,SC,ST,MU,LC,MTRJ,MPO

· Low Splicing Loss

2.Application

· Telecommunication Network

· Testing Equipment

· Local Area Network(LAN)

· CATV

· Engineering Recovery

· FTTH

· Connect Different Types of Ceramic Ferrule Bores

3.Specification

· Insertion Loss

Single Mode PC≤0.3dB,UPC≤0.2dB,APC≤0.2dB

Multi-mode PC≤0.3dB

Hybrid Adapter ≤0.3dB

Female & Male Adapter ≤0.4dB(Both Ends)

· Stability ≤0.2dB

· Repeatability ≤0.2dB

· Frequency of Usage ≥1000 Times

· Operating Temperature Range -40°C ~ +80°C

4. Order Information

Common Adapters
Connector Type	Ceramic Ferrule Bore End Face	Single mode/Multi-mode	Remark
FC	PC/UPC/APC	SM/MM	Round, Square, Split Square, Rectangular
SC	PC/UPC/APC	SM/MM
ST	PC/UPC	SM/MM
LC, MU	PC/UPC	SM/MM	Double
MTRJ	PC/UPC	SM/MM
Hybrid Adapters
Connector Type	Ceramic Ferrule Bore End Face	Single mode/Multi-mode	Remark
FC-SC	PC/UPC/APC	SM/MM
FC-ST	PC/UPC/APC	SM/MM
FC-LC	PC/UPC	SM/MM
SC-ST	PC/UPC	SM/MM
SC-LC	PC/UPC	SM/MM
FC-MU	PC/UPC	SM/MM
