Product Description

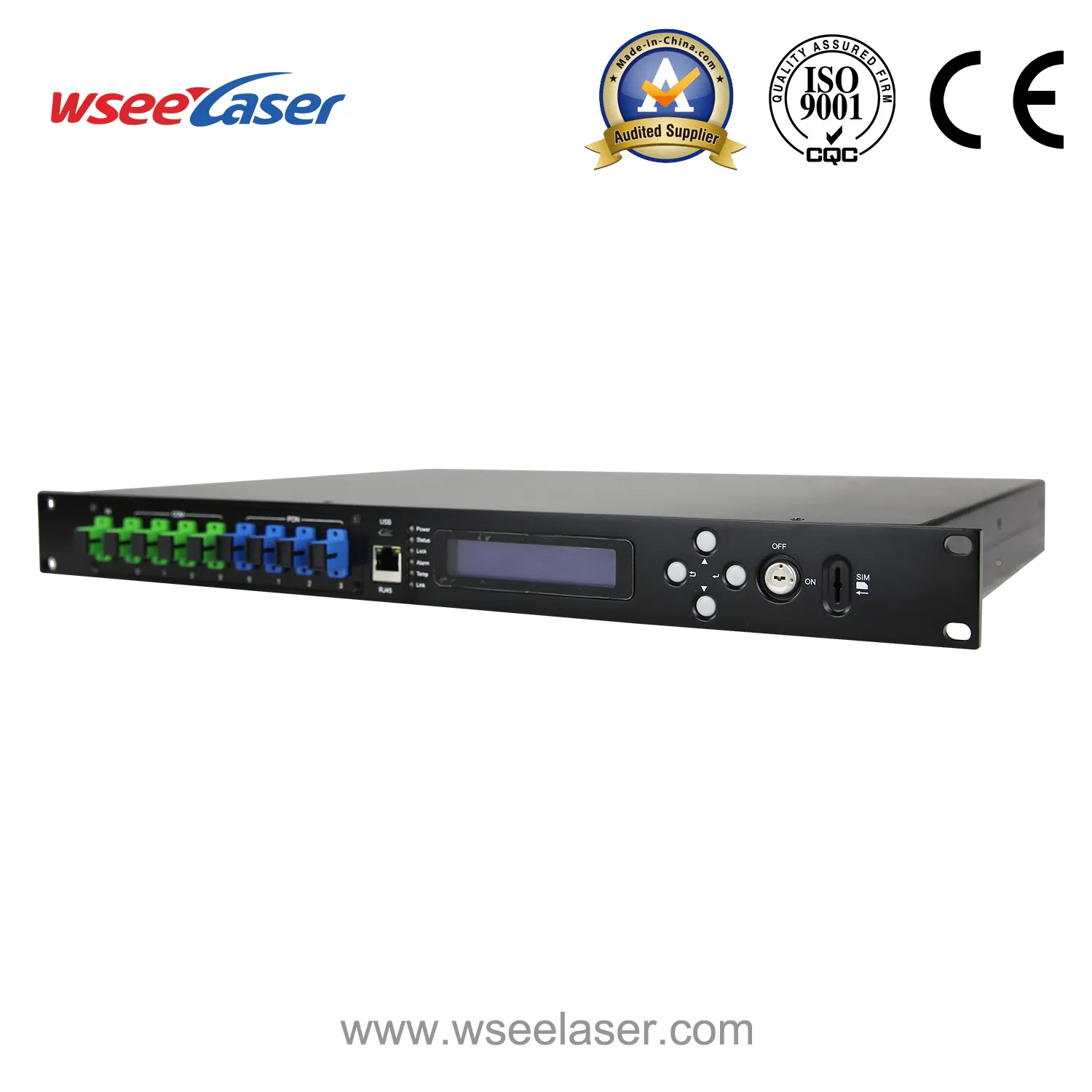

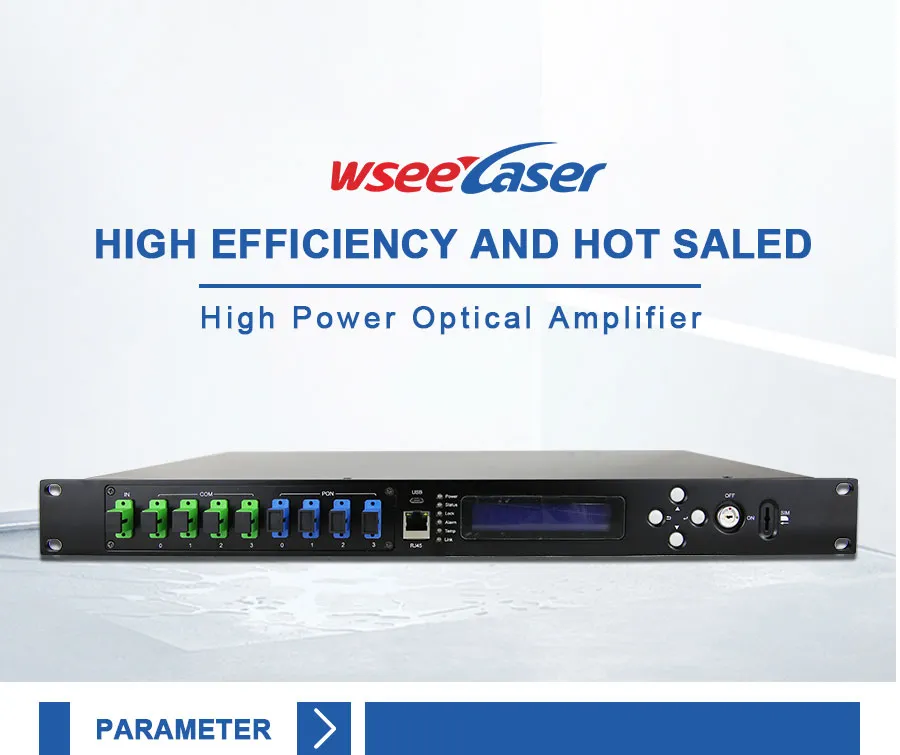

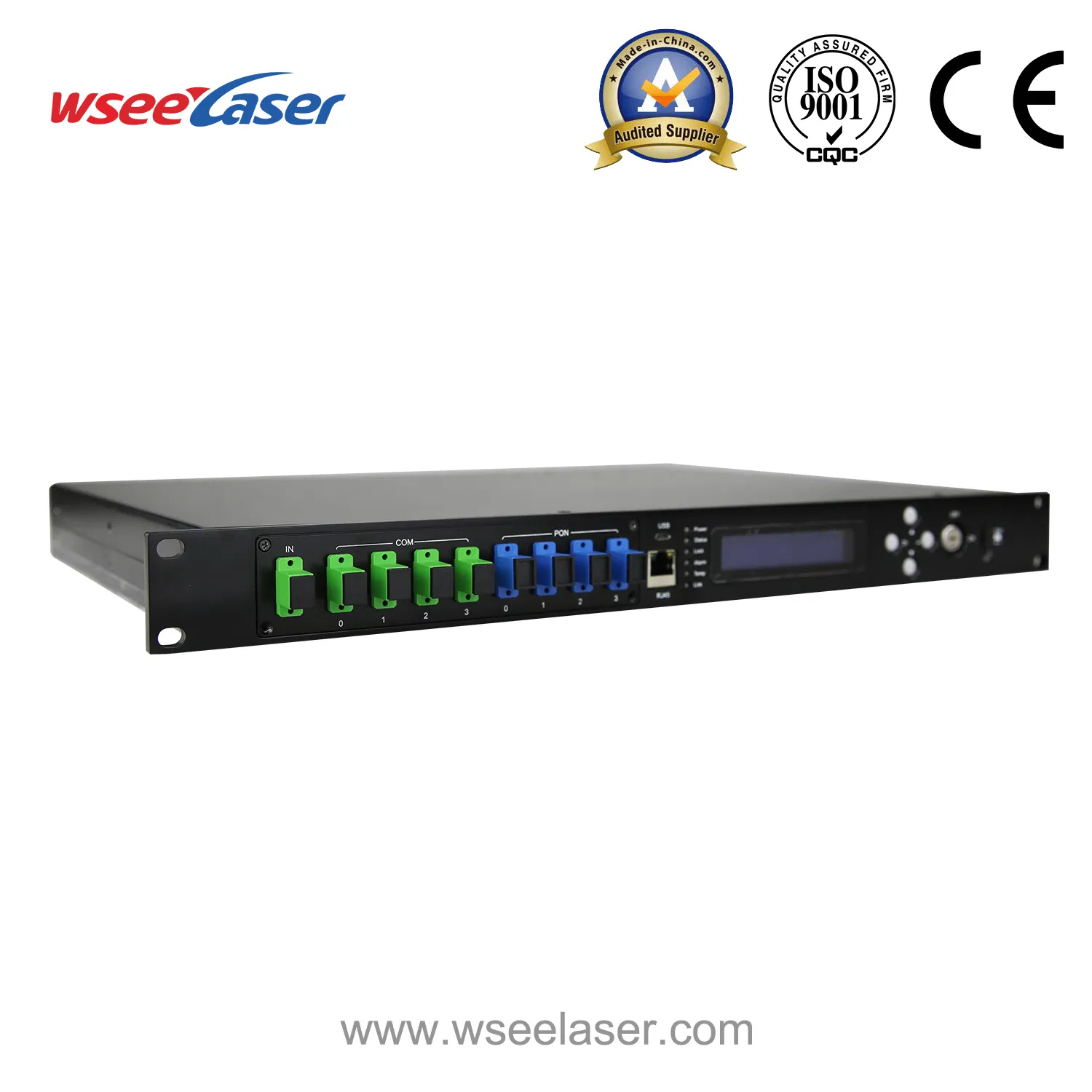

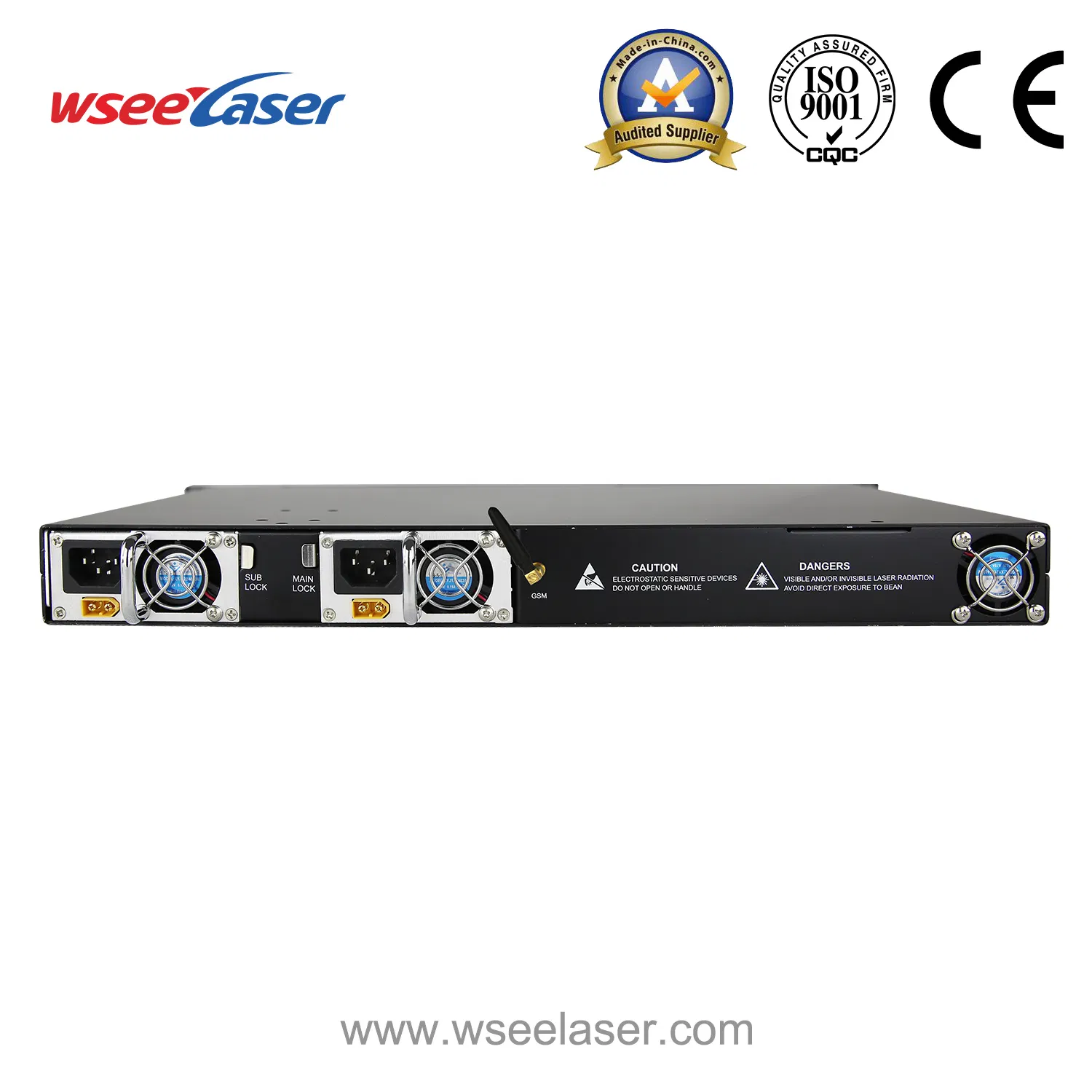

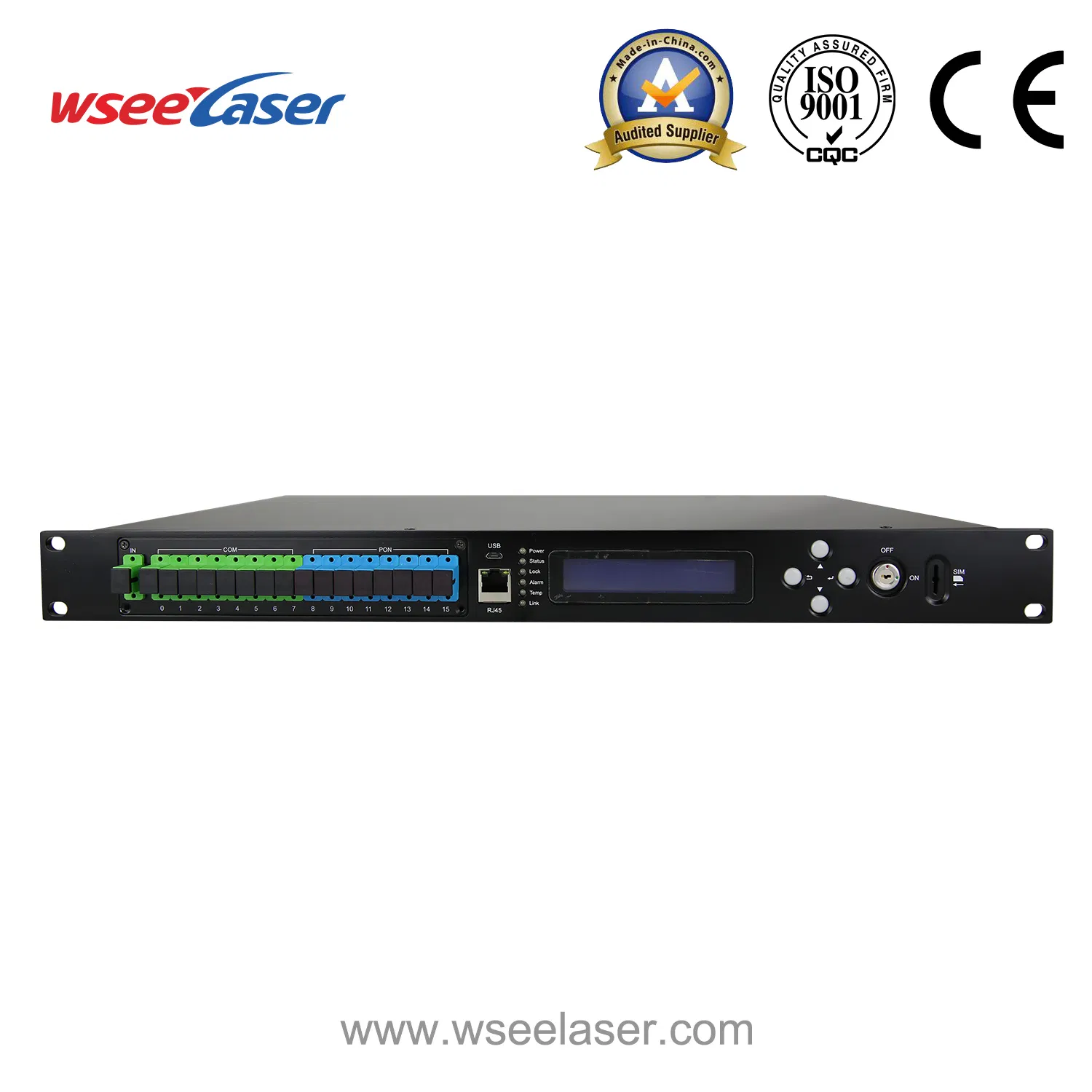

4 Way Output EDFA Optical Amplifier High Quality Low Price

Technical parameters	WS-56EYAxx
Wavelength	1535-1565nm
Input power range	-5dBm~+10dBm(normal input -2dBm~+5dBm)
Output optical power	26dBm~37dBm
Optical power stability	±0.1dBm
Noise figure	≤ 5.0dB(Pin=0dB)
Input return loss	≥ 45dB
Output return loss	≥ 45dB
C/N	≥ 50dB
C/CTB	≥ 63dB
C/CSO	≥ 63dB
Optical connector	SC/APC;SC/PC;LC/APC;LC/PC
Supply voltage	AC220V(160V ~ 265V) /AC110V(90 ~130V)/DC48V(38 ~ 58V)
Consumption	≤ 50w
Working temperature	-5ºC ~+42ºC
Storage temperature	-30ºC ~ +70ºC
Maximum working relative humidity	Max 95% non-condensing
Size	380(W)482(L)44(H)mm
Package size(1pc)	595(W)490(L)120(H)mm
Package size(2pcs)	595(W)490(L)230(H)mm

The WS-56EYAxx series high-power optical amplifier is a high-power multi-port output fiber amplifier with a gain spectrum bandwidth of 1535~1565nm. It is mainly designed for applications of CATV or 1~8 continuous strip channels (ITU wavelengths). It provides a flexible,
low-cost solution for large- scale FTTH coverage of CATV systems in large and medium-sized cities.
WS-56EYAxx can achieve single-wavelength cable TV transmission, CWDM single-fiber three-wave, flat gain, DWDM; its reliable and excellent performance ratio between the main application of FTTH, FTTB, DBS, MMDS, FTTX pon, is to build CATV large Medium-sized optical fiber transmission network is an important equipment.
