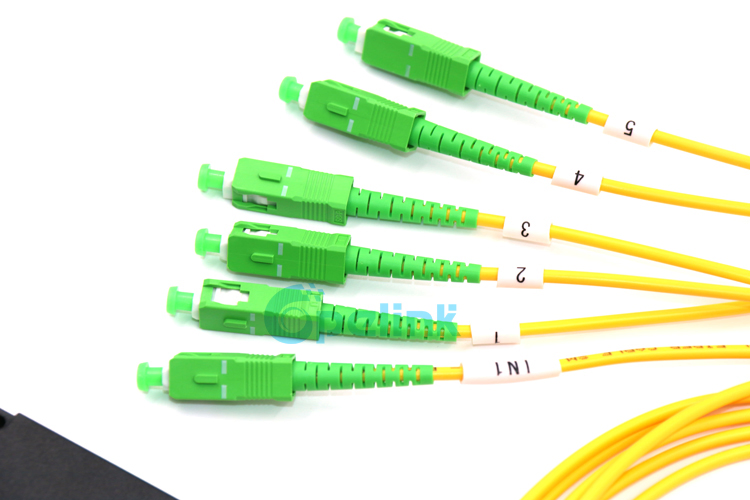

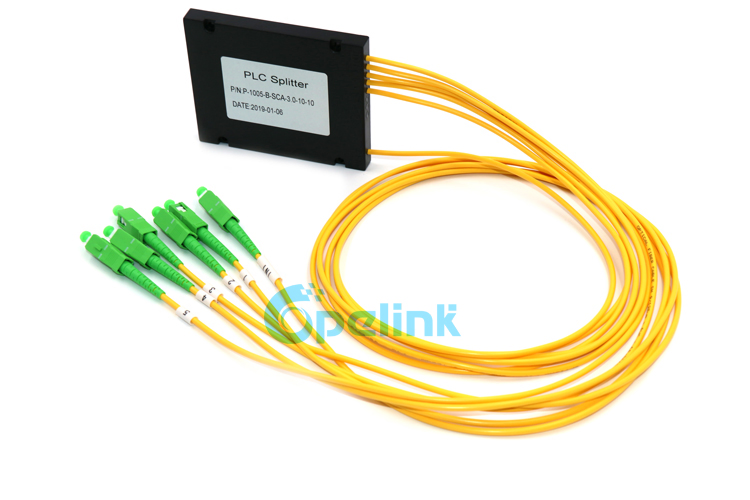

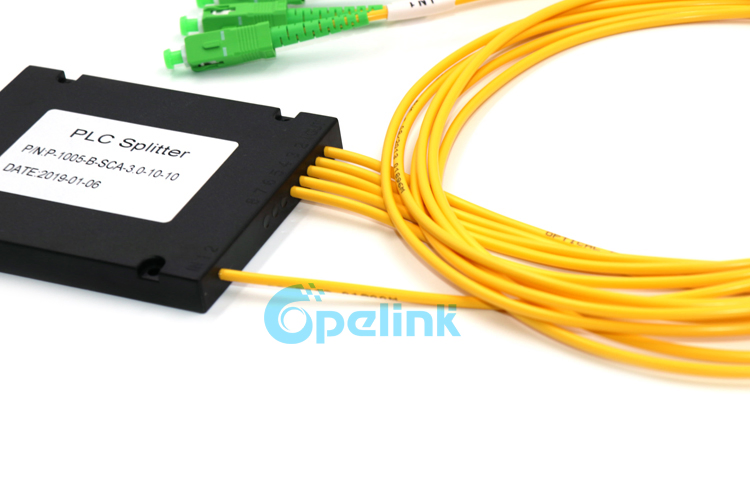

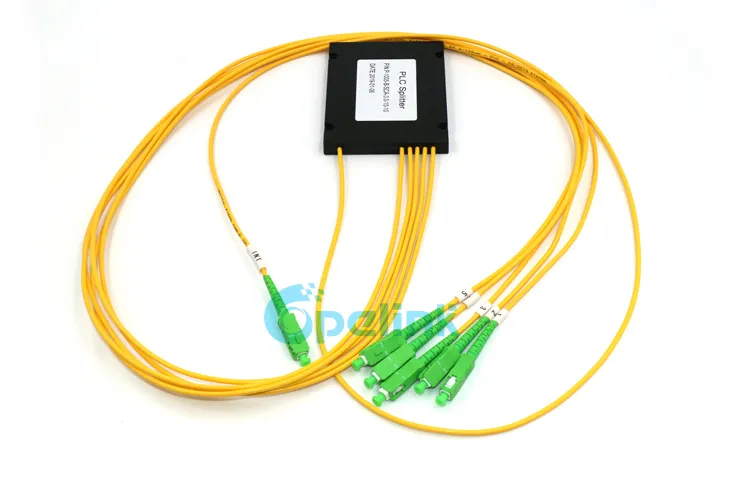

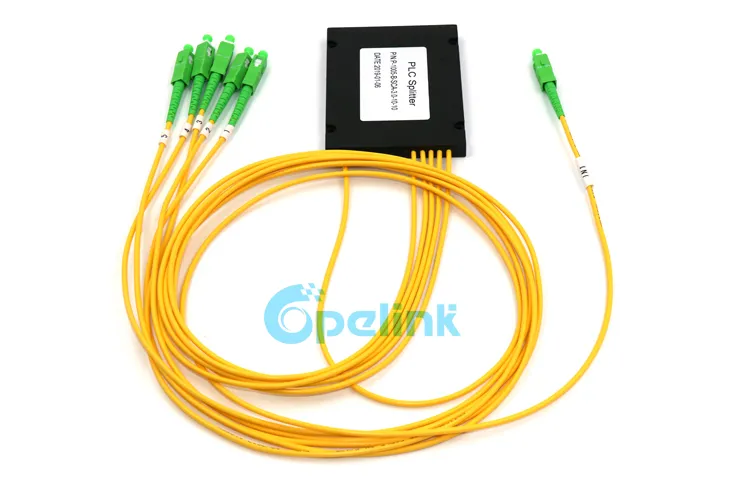

1X5 Sc/APC Fiber Optic PLC Splitter ABS Box 0.5m

Product Description

1X5 SC/APC Fiber Optic PLC Splitter ABS box 0.5M

PLC Splitter is Based on the Planar Waveguide Technology. It Provides a Low Cost Power Distribution Solution with Small Form Factor and High Reliability.

1X5 Sc/APC Fiber Optic PLC Splitter ABS Box 0.5m

Features:

Low Insertion loss
Low PDL
High Return Loss
Uniform Power Splitting
Compact Design
Wide Operating Wavelength
Wide Operating Temperature
Excellent Environmental & Mechanical Stability
Qualified Under Telcordia GR-1221 and GR-1209

Applications:
FTTx (FTTB, FTTH, FTTC)
Passive Optical Networks (PON)
Local Area Networks (LAN)
CATV Systems
Test Equipments

Specifications:

Parameter		Value
Product Type		1×2/2x2	1×4/2x4	1×8/2x8	1×16/2x16	1×32/2x32	1×64/2x64	1×128/2x128
Wavelength(nm)		1260~1650
I.L(dB)	Typ.	3.6/4.2	7.1/7.2	10.4/10.6	13.6/13.8	17.2/17.5	20.1/20.5	25.0/25.2
	Max.	4.3/4.5	7.4/7.6	10.7/11.0	14.0/14.8	18.0/18.0	21.5/21.5	25.8/25.8
Uniformity(Max.)(dB)		0.5/0.8	0.8/1.0	1.0/1.2	1.4/1.5	1.6/1.8	2.0/2.5	2.6/3.0
PDL(Max.)(dB)		0.2/0.2	0.3/0.3	0.3/0.3	0.3/0.3	0.3/03	0.5/0.5	0.8/1.0
TDL(Max.)(dB)		0.5
R.L(dB)		≥55(APC)/≥55(UPC)
Directivity(dB)		≥55
Operating & Storage Temperature		-40~+85
Note: All the data above does not include connectors. UPC Connectors: IL add 0.2 dB, APC Connectors: IL add 0.3 dB.

-----------------------------------------------------FAQ------------------------------------------------------

Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6: Do you offer guarantee for the products?
A: Yes, we offer 1-2 years warranty to our formal products.

Q7: What action will you take if there are some product problems?
A: If there are defective ones in the batch of products, we will offer spare ones for.
