China 144 Core Multimode Low Loss Cable MPO to MPO Trunk Patch Cord

Product Description

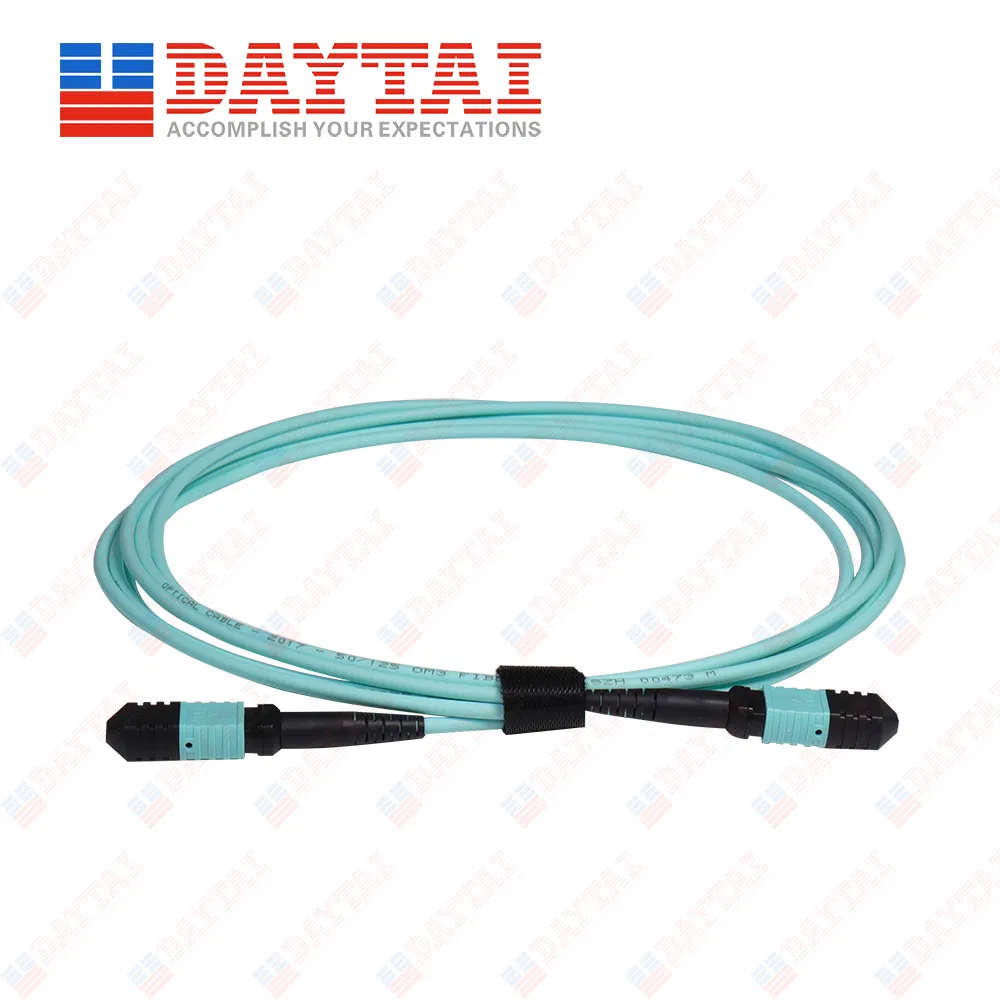

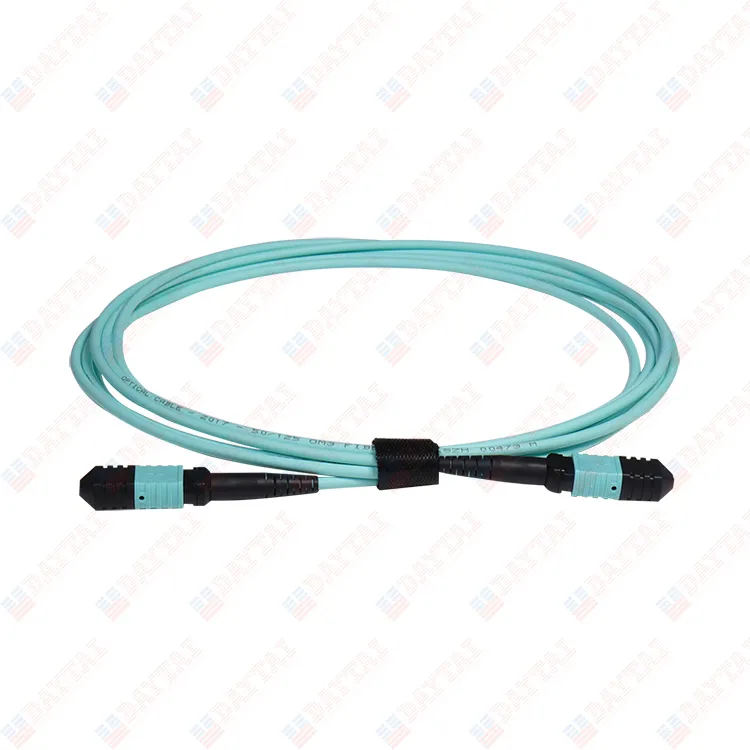

144 Core Multimode Low Loss Cable MPO To MPO Trunk Patch Cord

⊙Small diameter cable can optimize the air flow in the data center, effectively control the heat;

⊙Meet the requirements of high-speed, big data, support the requirements of 10Gb / s, 40Gb / s, 100Gb / s.

⊙The combination of high quality fiber optic cables and components ensures support for data center links;

ITEM	Fiber Type	Single Mode	Multi Mode
Fiber Count	8/12/16/24/48/72/144 Core
Standard Insertion Loss	Typical	0.30dB	0.35dB
	Max	0.60dB	0.50dB
Low Insertion Loss	Typical	0.20dB	0.20dB
	Max	0.35dB	0.30dB
Return Loss (dB)	≥60 APC, ≥50PC	≥20

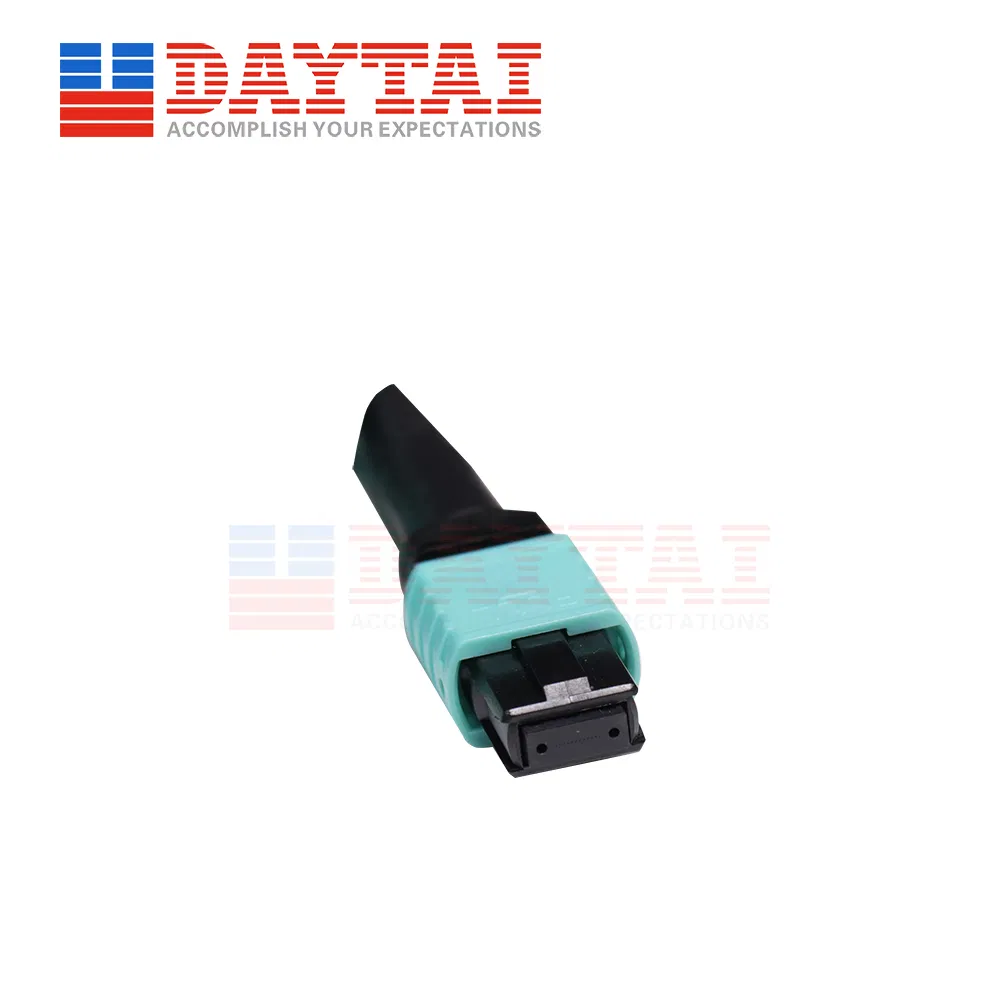

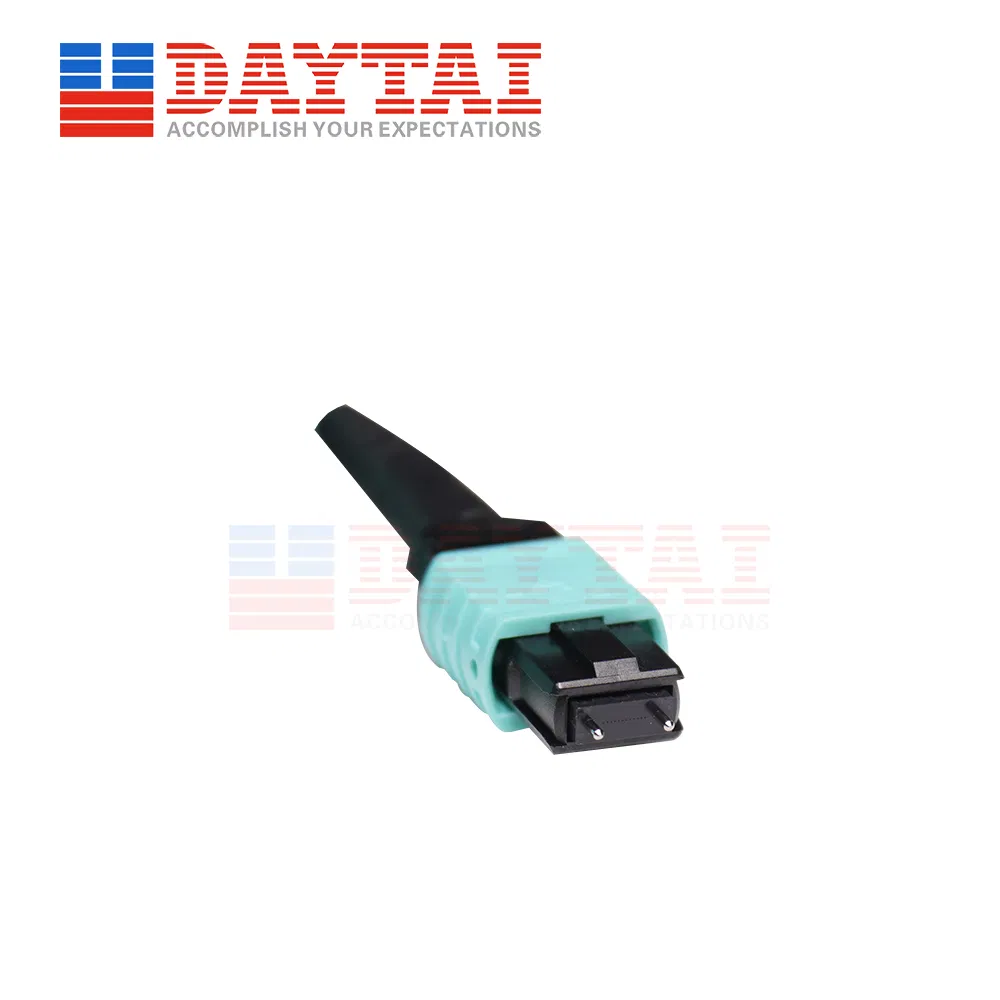

Male / Female		Male: With PIN / Female: Without PIN
Mechanical durability (dB)		≤0.2 200 times mate-demate
Test wavelength (nm)		1310/1550	850/1300
Maximum Installation Tension (N)		500
Minimum bending radius of cable (Static)		10 times the cable diameter
Minimum bending radius of the cable (Dynamic)		20 times the cable diameter
Work temperature (ºC)		-40-+85

Fiber Counts	Connector A	Connector B	Fiber Type	Polarity Type	Loss Type	Length	Cable Type

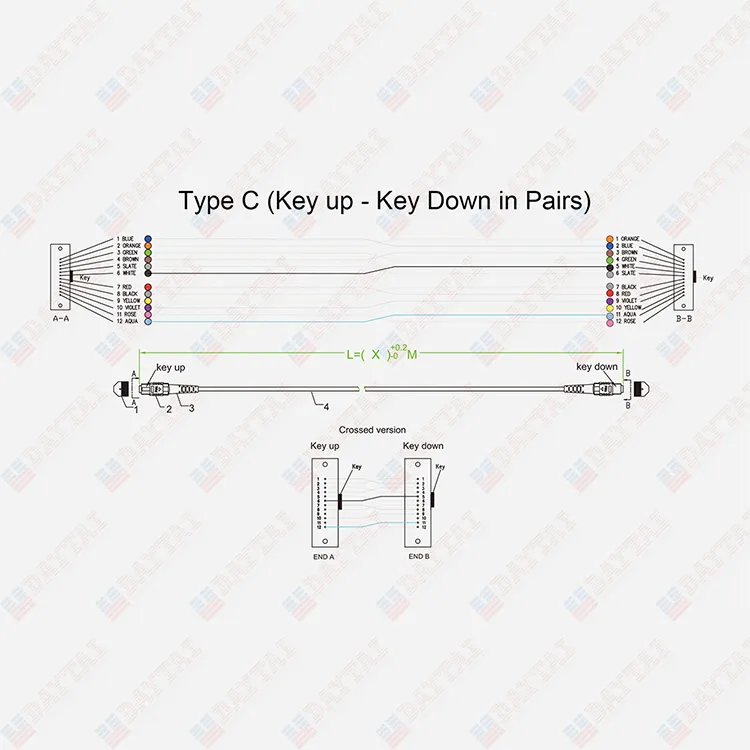

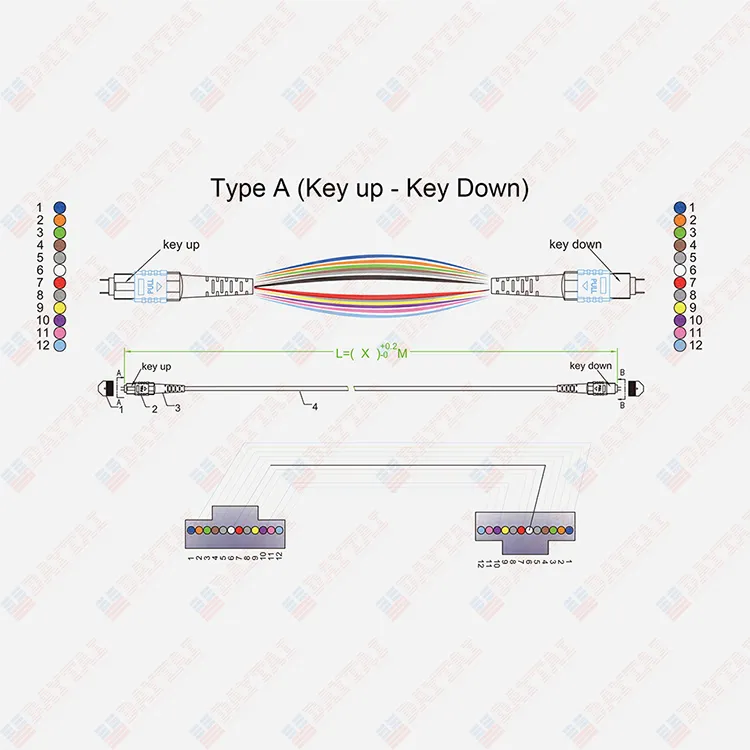

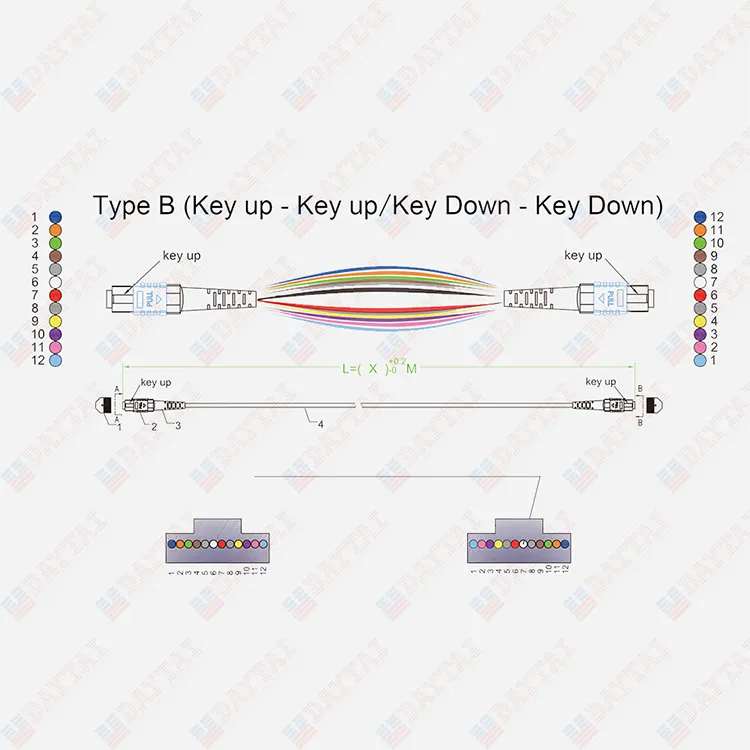

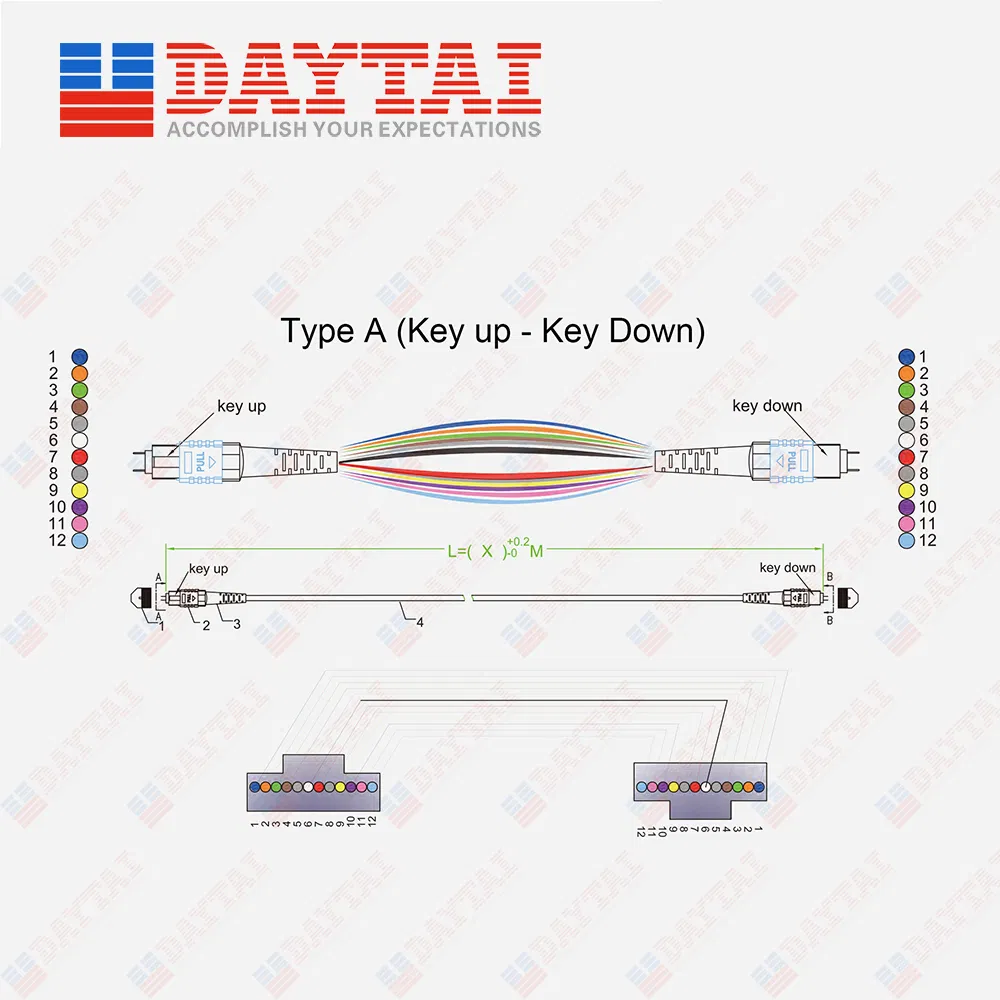

8	Male or Female	Male or Female	Single Mode Multi Mode-OM3-150 Multi Mode-OM3-300 Multi Mode-OM4 Multi Mode-OM5	Type A:(TIA-568-C.3A) Type B:(TIA-568-C.3B) Type C:(TIA-568-C.3C)	Standard Loss: ≤0.7dB Low Loss: ≤ 0.35dB	1M,2M,3M…or Specified	Round Type,Ribbon Flat Type,Bare Ribbon Cable Type
12
16
24
48
72
144
