High Resolution 5 Megapixels CMOS USB Camera Module
High Resolution 5 Megapixels CMOS USB Camera Module:1. 1/2.5 inch MI5100 Cmos Camera Module2. 5Mega OEM Cmos USB Camera Module3. USB webcam with UVC, support Windows, Linux, Mac with UVC and Android system.4. USB Camera Module with 81.3 degree 5. 38*38mm mini micro USB board camera Spe......
Send Inquiry
Product Description
High Resolution 5 Megapixels CMOS USB Camera Module:

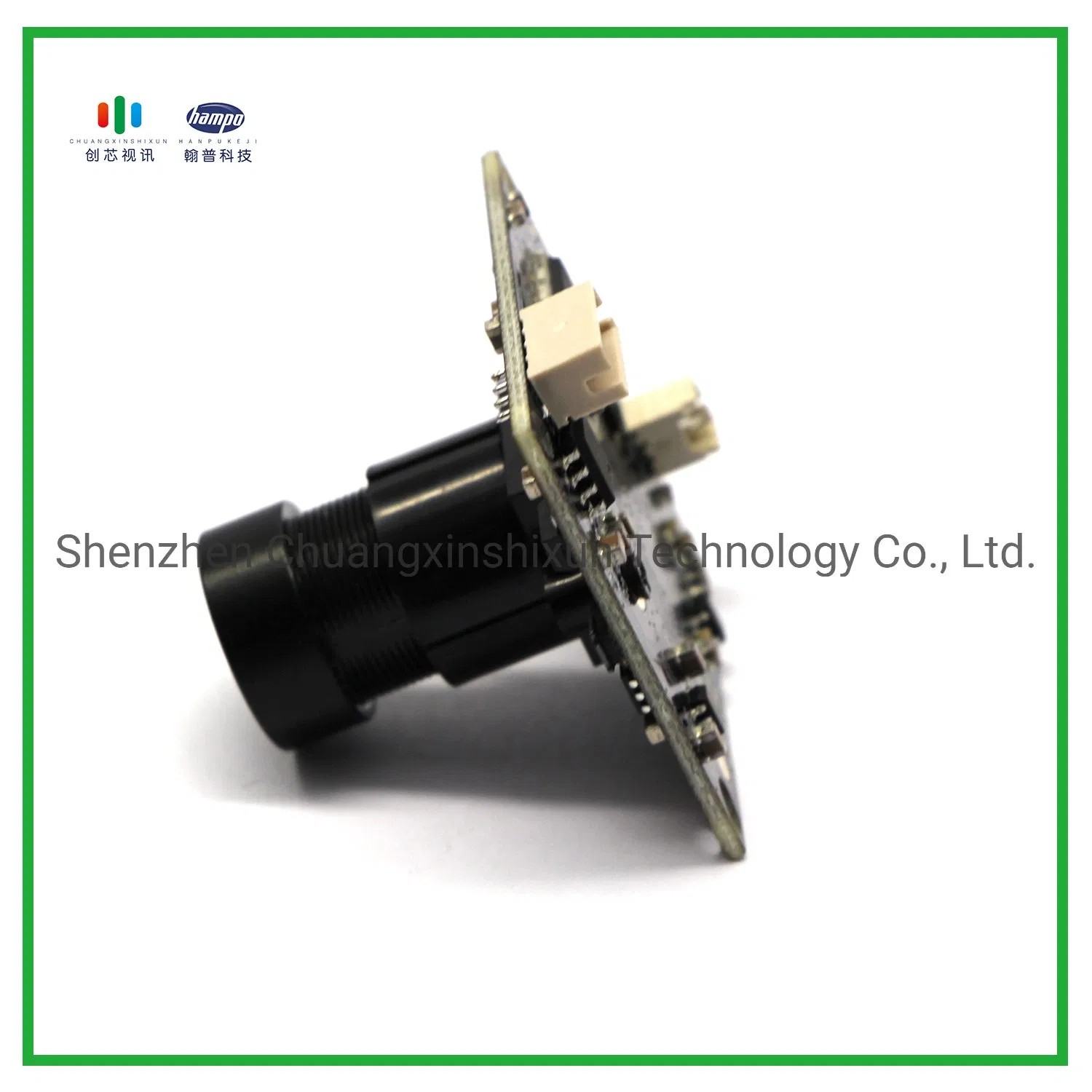

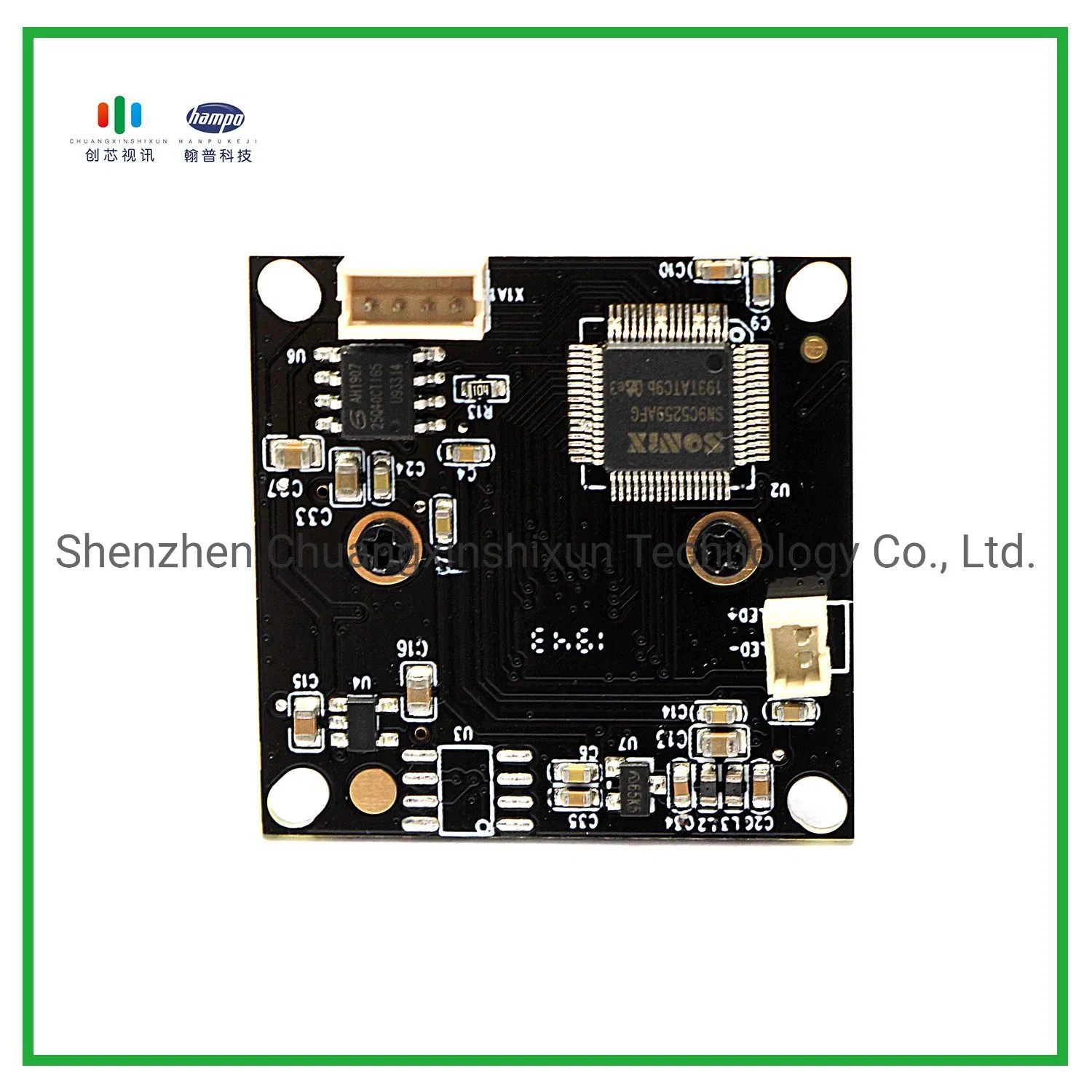

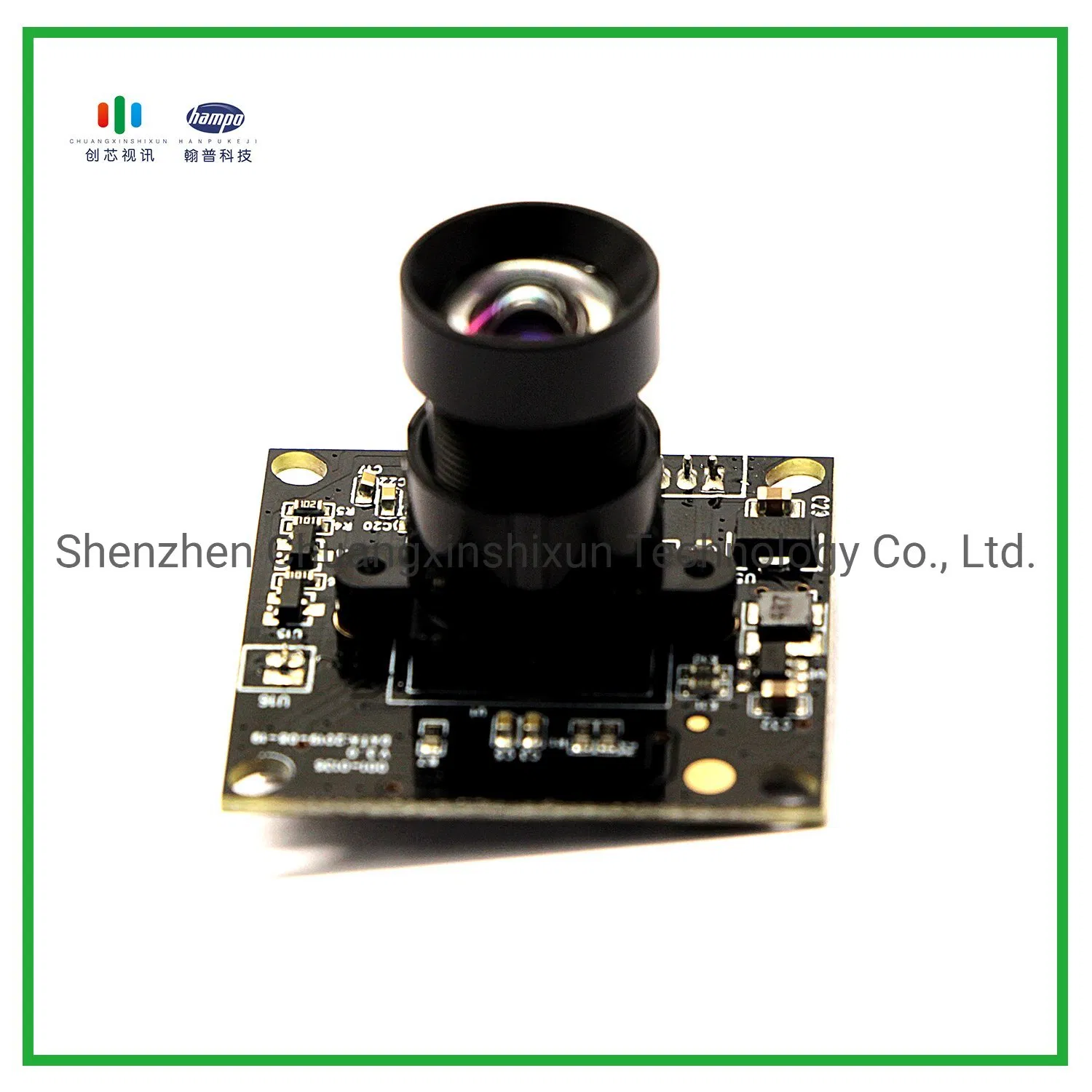

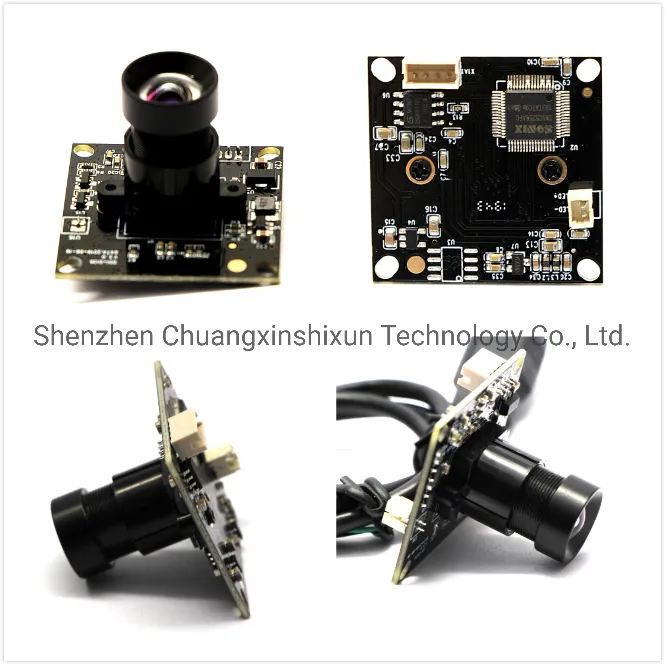

Pictures Display:

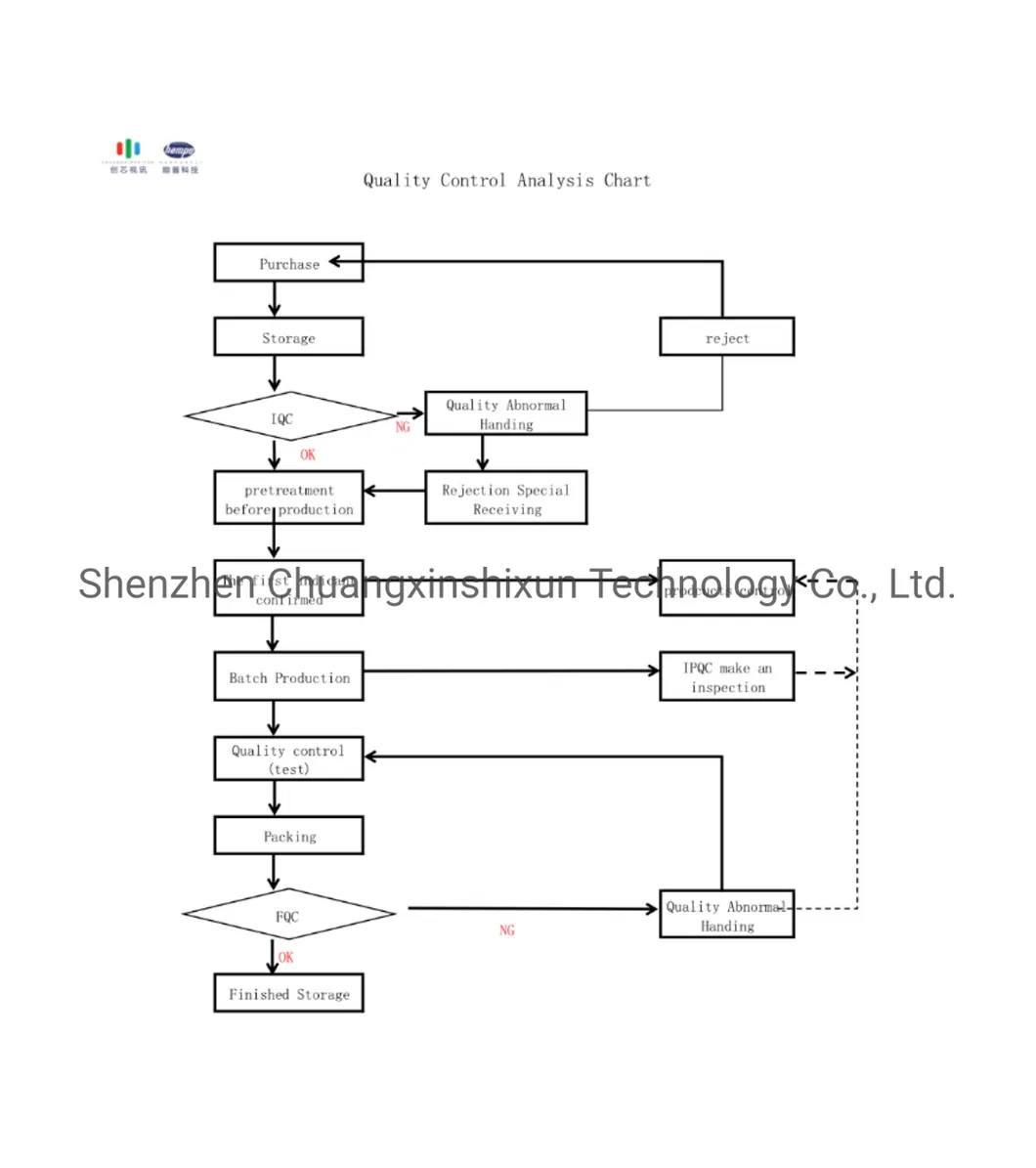

Quality Control:
Company Information:
1. 1/2.5 inch MI5100 Cmos Camera Module
2. 5Mega OEM Cmos USB Camera Module
3. USB webcam with UVC, support Windows, Linux, Mac with UVC and Android system.
4. USB Camera Module with 81.3 degree
5. 38*38mm mini micro USB board camera
Specification:
| Items | Parameters |
| SENSOR | MI5100 |
| Lens Size | 1/2.5-inch (4:3) |
| Most Effective Pixels | 2,592H x 1,944V |
| Data Format | MJPG/YUY2 |
| Pixel Size | 2.2µm x 2.2µm |
| Dynamic Range | 70.1dB |
| Lens | FOV :D=81.3° |
| Optical length:22.10±0.3 | |
| lens construction:3G2P | |
| mount:M12*P0.5 | |
| Focusing | Fixed Focus |
| Frame Rate | 30fps |
| Auto Control | Saturation,Contrast,Acutance,White balance,Exposure |
| Audio | High quality digital MIC, single or dual channel is optional |
| Voltage | DC 5V |
| Working Current | MAX 300mA |
| USB Connector | USB2.0 |
| Storage Temperature | -20ºC to +70ºC |
| Working Temperature | Change with environmental temperature |
| System Compatibility | 1,Windows XP(SP2,SP3),Vista ,7,8,10 |
| 2,Linux or OS with UVC driver |
