Product Description

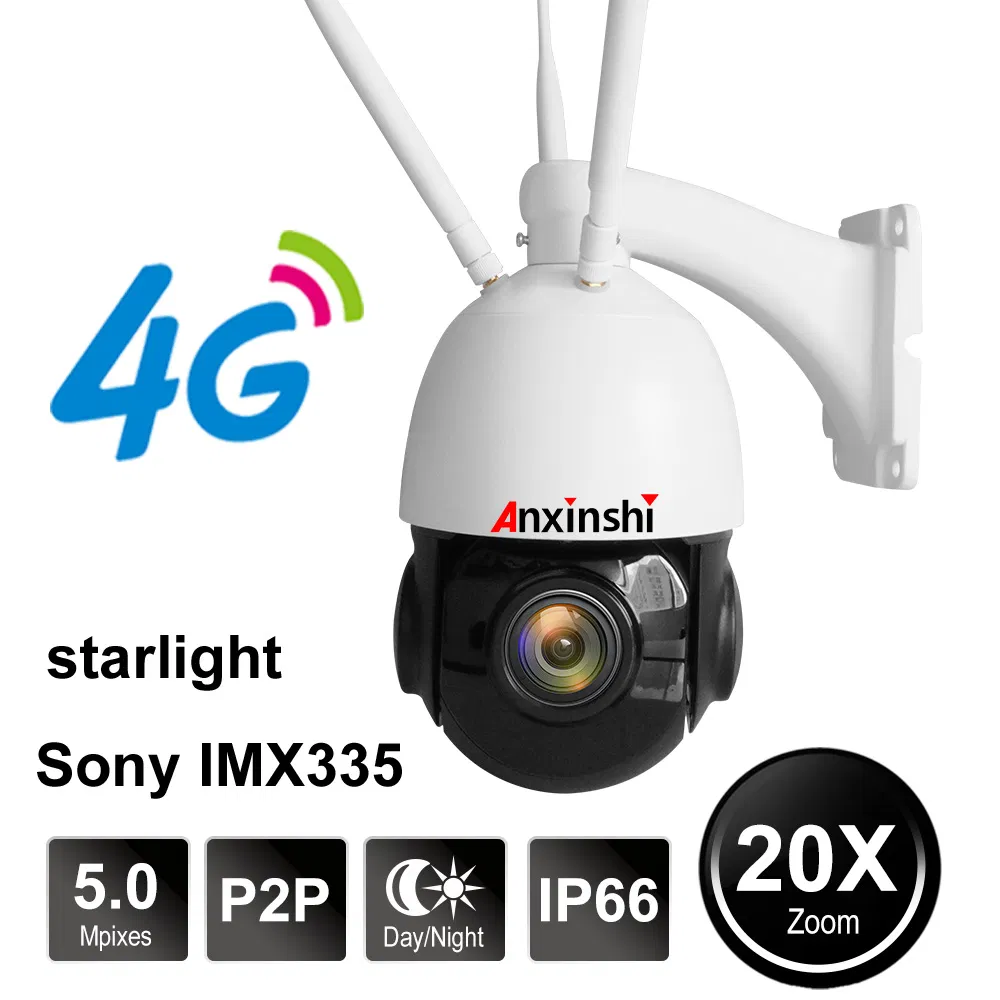

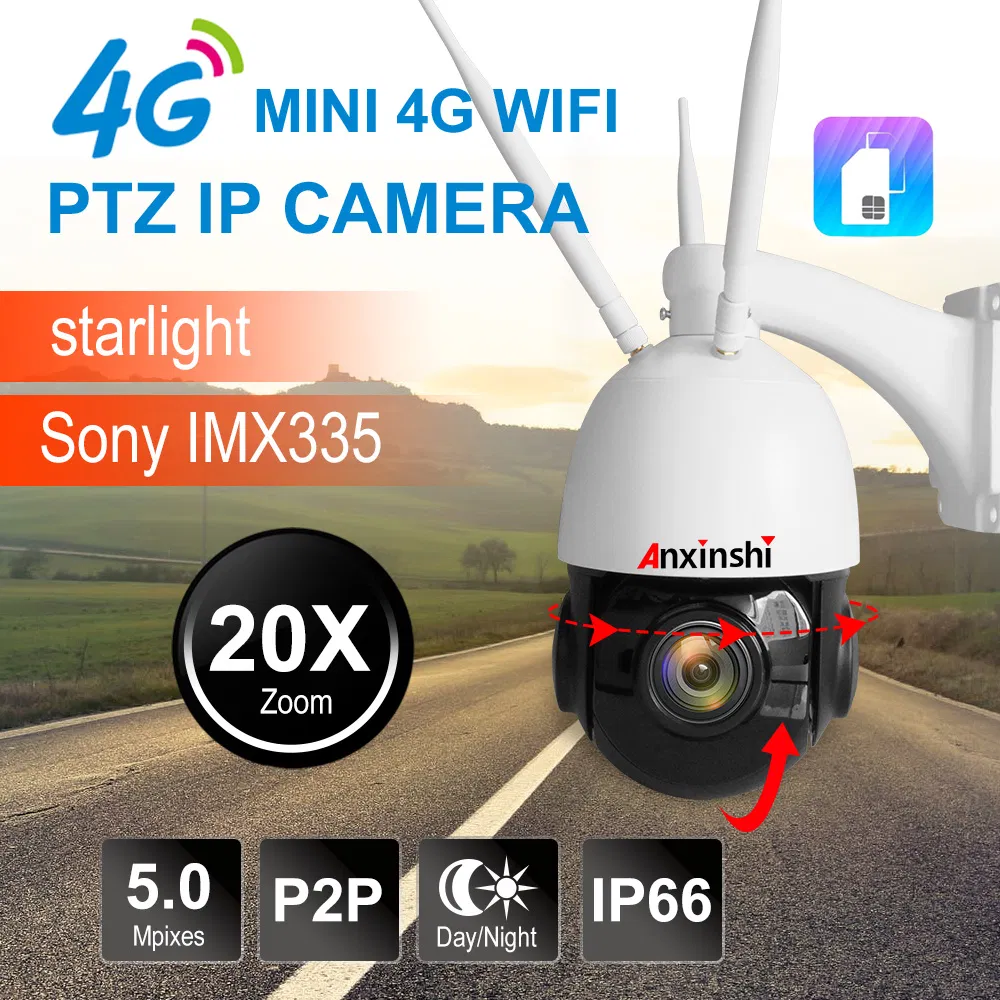

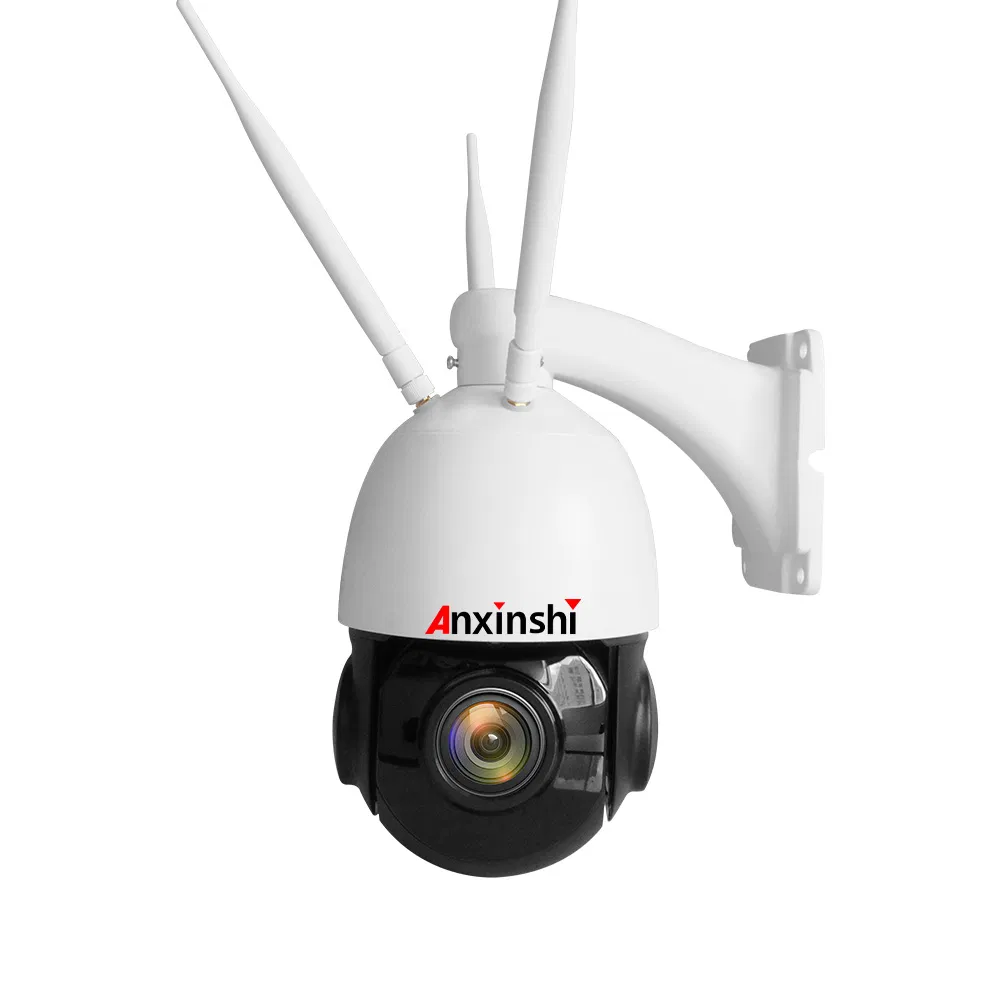

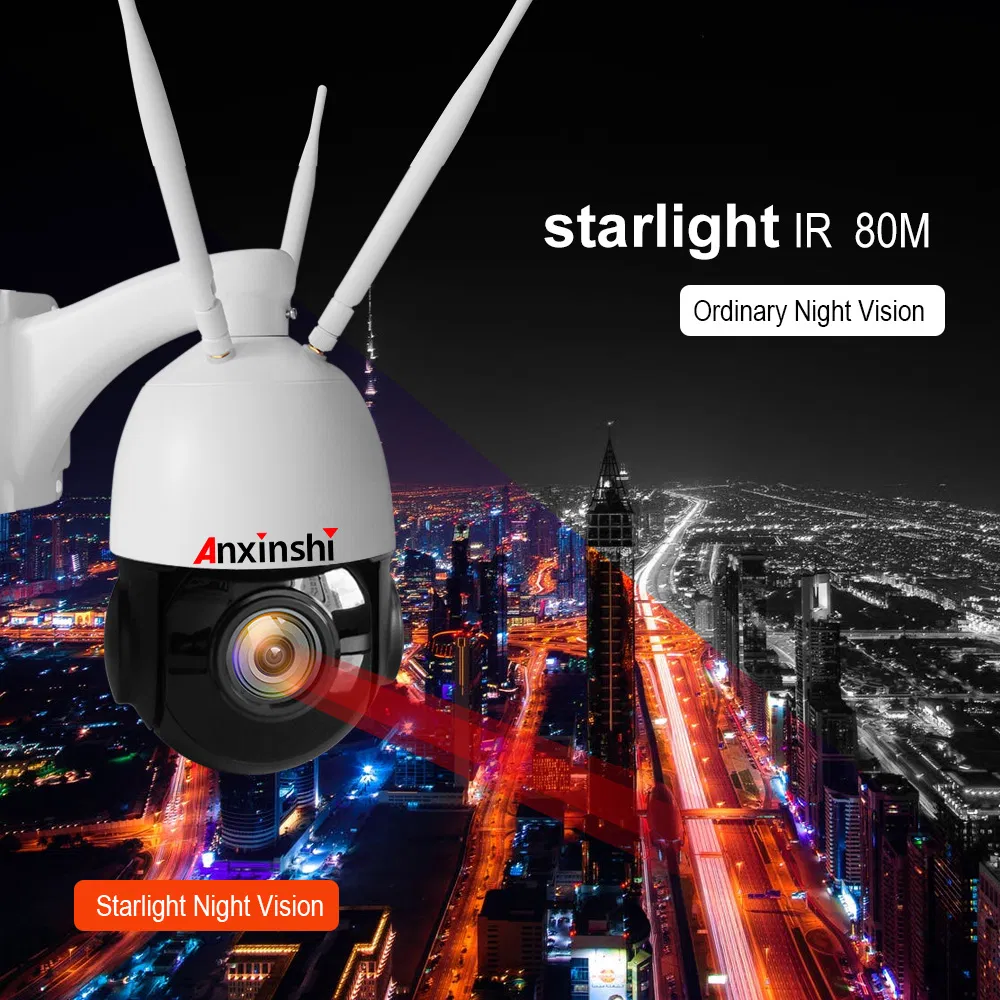

Anxinshi 5MP 3MP 2MP Starlight 4 Inch 4G WiFi PTZ IP Camera

ASIHPT492G-005-22	1/3" CMOS ,starlight,Sensor,Hi351E+IMX307 5x f = 2.7mm ~ 13.5mm DWDR , Color: 0.1lux, B/W:0.01lux. 1080P	355° continued rotation, manual pan speed 0~30°,manual tilt speed 0~20° Preset speed100°/S, Preset Accuracy ±0.10° Tilt range:0~90° DC12V Suport :IOS/Andriod/PCSupport platform:FDD-LTE/TD-LTE/WCDMA/HSPA+/TD-SWCDMA/GSM/GPRS/EDGE.Network frenqucy :LTE B1/B3/B7/B8/B38/B39/B40/B41 WCDMA 2100MHZ/900MHZ TD-SWCDMA B34/B39 GSM/GPRS/EDGE 900/1800MHZ	App:CamHi
ASIHPT492G-020-24	1/3" CMOS Sensor starlight,Hi3516c V200+SonyIMX307 20x, f=4.7mm~94mm, D/N( ICR-Cut) DWDR , Color: 0.1lux, B/W:0.01lux. 1080P
ASIHPT492G-020-32	1/2.7" CMOS Sensor,Hi3516EV200+SC4236C 20x, f=4.7mm~94mm, D/N( ICR-Cut) DWDR , Color: 0.1lux, B/W:0.01lux. 3MP 2304X1296
ASIHPT492G-020-52	1/2.8" CMOS Sensor,starlight,Hi3516EV300+Sony IMX335 20x, f=4.7mm~94mm, D/N( ICR-Cut) DWDR , Color: 0.1lux, B/W:0.01lux. 5MP 2560X1920

Camera:
1/2.8" 5.0M Pixel IMX335 CMOS, 20x zoom, D/N( ICR-Cut), DWDR, Color: 0.001Lux,F1.6; B/W: 0.0001Lux,F1.6, 0Lux with IR

Network Features:
1.2592*1944, 2592*1520,2304*1296, 1920*1080,1280*960,1280*720, 1-25(30)fps
2.Support Android, IOS mobile phone P2P remote monitoring
3.Support Onvif2.4
4.H.265 main profile/H.264 main profile & M-JPEG Dual-stream Encoding ,Three Simultaneous video streams
5.Standard SDK,CGI,easily to be integrated with other digital systems
6.Support a variety of network protocol such as TCP/IP/ HTTP/ NTP/ IGMP/ DHCP/ UDP/ SMTP/ RTP/ RTSP/ ARP /DDNS /DNS/ P2P

Dome Features:
1. Auto tracking moving target according to movment ;
2. NEW 32 bit processor, with soft ID, more storage space, higher speed, better performance, lower consumption
3. Imported array IR LED, auto adjust zoom according to different distance
4. IR range 120M
5. With digital temperature controlling system protecting IR LED

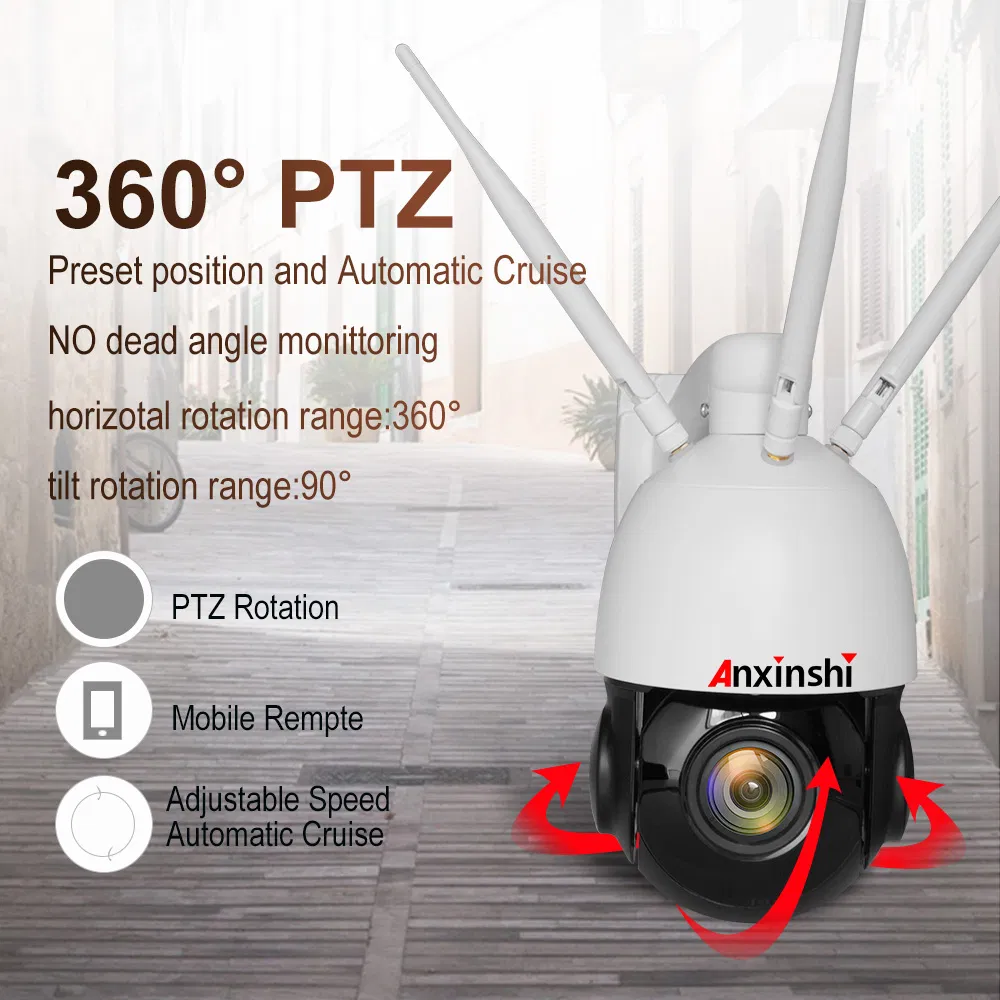

6. 360 degree continued rotation, manual pan speed 0~200°/S, manual tilt speed 0~90°/S, preset speed 400°/S.
7. 5 tours, DC12V&POE(Optional)

Form parameters
Mode	Name and Description	HD IP 4" 4G WIFI Starlight PTZ Camera IR 120M
Mode	Name and Description	ASIHPT492G-020-55
Camera	Image Sensor	1/2.8" 5.0M Pixel IMX335 CMOS
	Effective Pixels	5.0 Megapixels
	Min. Illumination	Color: 0.001Lux,F1.6; B/W: 0.0001Lux,F1.6, 0Lux with IR
	Zoom	20x zoom
	Day/Night	Auto ICR
	WDR	D-WDR
	OSD Display	OSD name, time, date, information overlay
IR	Luminary	5pcs array LEDs + 3pcs Laser LEDs
	Night vision distance	120m
	Lamp control	CDS Control
Network	Video Compression	H.265/H.264
	Streams	Dual streams
	Frame Rate	Main stream: 2592*1944 30fps
	Frame Rate	Sub-stream: 25921520,23041296, 19201080,1280960,1280*720, 1-25(30)fps
	Bitrate	CBR/VBR, bitrate:0.1~8Mbps
	P2P	p6spro (Android,IOS)
	Protocols	TCP/IP,HTTP,TCP,ICMP,UDP,ARP, IGMP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPNP,RTSP
	Motion detect	Support
	Privacy Zone Masking	Support
	Onvif	Onvif 2.4
	Network	10/100M Base-TX Ethernet, RJ45 Connector
	2G	GSM/GPRS/EDGE (900/1800)
	3G	WCDMA (Band 1/8) / TD-CDMA (Band 34/39)
	4G	FDD-LTE (Band 1/3/7/8) / TDD-LTE (Band 38/39/40/41)
	Wifi	802.11b/g/n
	Mini SD Card	Support (Up to 64GB)
	Alarm I/O	N/A
	Audio I/O	N/A
	CVBS Output	N/A
	Reset Button	N/A
Dome Features	CPU Type	32 bit ARM CPU
	Address	0~255
	Pan Range	360°
	Tilt Range	-5~90°
	Manual pan speed	0.05-40º/S
	Manual tilt speed	0.05-40º/S
	Preset points	256
	Patrol scan	4
	L/R Scan	1
	Horizontal Scan	1
	Power-off memory	Support
General	Work temperature	-20ºC~60ºC
	Work Humidity	0%~90% (Non condensing)
	Power	DC12V±10%; 4A
	Consumption	<15W
	Weight	3.5kg
